ACCUWEB MICRO CTL4100-01 Spare for CTL4100 Automation: Spare Replacement & Industrial Downtime Risk Control

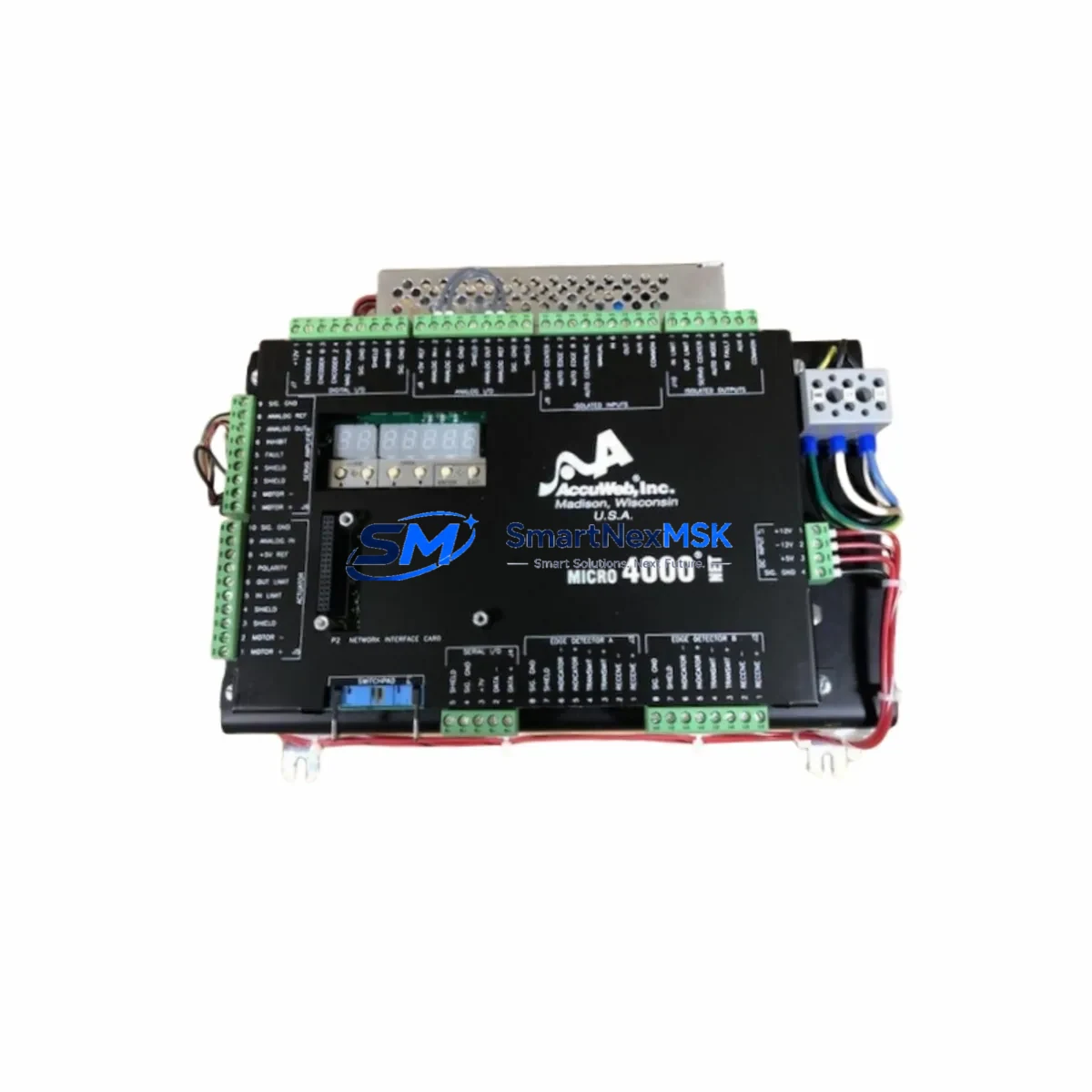

The ACCUWEB MICRO CTL4100-01 is a precision web tension controller designed for continuous industrial automation environments where unplanned downtime carries significant operational and financial consequences. As a maintenance-ready original spare, the CTL4100-01 is engineered to deliver direct drop-in compatibility with the CTL4100 Series platform, enabling maintenance engineers to execute rapid fault isolation and system restoration without reconfiguration delays. Whether you are managing a scheduled overhaul, responding to an emergency shutdown, or building a proactive spare parts inventory for a converting, printing, or coating line, the CTL4100-01 represents a critical line-of-defense component in your control cabinet.

For procurement engineers sourcing replacement units for aging automation systems, the CTL4100-01 offers a verified original-specification alternative to obsolete or discontinued stock. Each unit is tested prior to shipment and backed by a 12-month warranty, providing confidence in both immediate deployment and long-term supply continuity.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the CTL4100-01 in a live production environment, a thorough inspection of the surrounding control circuit is essential to prevent repeat failures and ensure stable system recovery. Maintenance engineers should begin by verifying the integrity of the 24VDC or system-rated power supply module feeding the tension controller — a degraded or undersized power source is a common root cause of controller malfunction that is frequently overlooked during fault isolation.

Next, inspect all signal wiring between the CTL4100-01 and the load cell amplifier or dancer roll transducer. Shielded cable continuity, grounding integrity, and connector seating should be confirmed before powering the replacement unit. If the system uses a signal isolator or signal conditioner between the transducer and the controller, verify that the isolator output range matches the CTL4100-01 input specification — mismatched signal levels are a frequent source of erratic tension control after a controller swap.

For systems integrated into a broader PLC or DCS architecture, check the analog I/O module that interfaces with the CTL4100-01. Verify that the I/O channel scaling, range configuration, and wiring polarity are correct. If the system uses a communication module — such as a DeviceNet, Profibus, or Modbus interface card — confirm that the node address and baud rate settings are preserved after the replacement.

Terminal blocks and wiring ferrules in the control cabinet should be inspected for oxidation, loose connections, or thermal damage, particularly on the power input and signal output terminals of the CTL4100-01. Relay outputs used for tension alarm or brake engagement should also be tested for proper switching function. If the system includes a dedicated HMI or operator panel for tension setpoint entry, verify that the display is reading correctly and that the setpoint values are retained after the controller replacement.

For older CTL4100 Series installations, it is advisable to review the condition of the backplane or mounting rail, the fuse or circuit breaker protecting the controller power circuit, and any surge protection devices installed on the signal lines. Proactive replacement of these ancillary components during a planned maintenance window significantly reduces the risk of secondary failures following a controller swap.

Building a structured spare parts inventory that includes the CTL4100-01 alongside complementary components — such as a matched load cell amplifier, a replacement tension transducer, a spare analog I/O module, and a set of pre-terminated signal cables — enables maintenance teams to execute a complete tension control circuit restoration within a single maintenance shift, minimizing production downtime and reducing the risk of extended outages.

Site Replacement Workflow

Step 1 — Isolation & Documentation: De-energize the control cabinet and lock out / tag out the power source. Photograph the existing CTL4100-01 wiring, terminal assignments, and parameter settings before removal. Record all calibration values, setpoints, and gain parameters from the existing unit or from the system documentation.

Step 2 — Physical Removal: Disconnect all signal, power, and communication wiring from the existing CTL4100-01. Remove the unit from its mounting position. Inspect the mounting rail, terminal blocks, and connector housings for damage or corrosion.

Step 3 — Installation of Replacement Unit: Mount the new CTL4100-01 in the same position. Reconnect all wiring according to the documented terminal assignments. Verify that all connections are secure and that shielded cables are properly grounded at the correct end.

Step 4 — Parameter Restoration: Restore all calibration values, setpoints, and control parameters to the replacement unit. If the system supports parameter upload/download via a programming tool or HMI, use this function to accelerate the restoration process and reduce the risk of manual entry errors.

Step 5 — Functional Verification: Re-energize the system and perform a controlled tension test at reduced line speed. Verify that the tension feedback signal is stable, that the controller output is responding correctly to setpoint changes, and that all alarm and interlock functions are operating as expected before returning the line to full production speed.

This structured replacement workflow is applicable to both emergency fault recovery and planned maintenance scenarios, and is designed to minimize the total time from fault detection to production resumption while maintaining system integrity and operator safety.

Spare Parts Support FAQ

Q1: Is the CTL4100-01 a direct replacement for the original ACCUWEB MICRO unit in my CTL4100 Series system?
Yes. The CTL4100-01 is an original-specification spare that is designed for direct replacement in CTL4100 Series web tension control systems. No hardware modification or firmware update is required for standard installations. We recommend verifying your system’s wiring diagram and parameter settings before installation to ensure a smooth transition.

Q2: What pre-shipment testing is performed on the CTL4100-01, and what does the 12-month warranty cover?
Every CTL4100-01 unit undergoes functional testing prior to dispatch to verify electrical integrity and operational performance. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions from the date of shipment. Units that have been subjected to incorrect installation, overvoltage, or physical damage are not covered under the standard warranty terms.

Q3: How should I manage CTL4100-01 inventory to support a long-term maintenance strategy for aging CTL4100 Series systems?
For production lines where the CTL4100 Series is a critical control component, we recommend maintaining at least one CTL4100-01 spare on-site at all times. For multi-line facilities or high-utilization environments, a minimum of two units per site is advisable. Spare units should be stored in a dry, temperature-controlled environment and inspected annually to confirm storage integrity. Long-term supply agreements are available for customers requiring guaranteed stock availability over extended maintenance cycles.

Q4: Can the CTL4100-01 be used to replace older or discontinued ACCUWEB MICRO tension controller variants in legacy systems?
In many cases, yes — the CTL4100-01 is compatible with a range of CTL4100 Series configurations. However, compatibility with specific legacy variants depends on the hardware revision, signal interface type, and system wiring. We recommend providing your existing unit’s part number and system documentation to our technical team for a compatibility confirmation before ordering. Our engineers can advise on any wiring or parameter adjustments required to ensure a successful installation in legacy automation environments.
