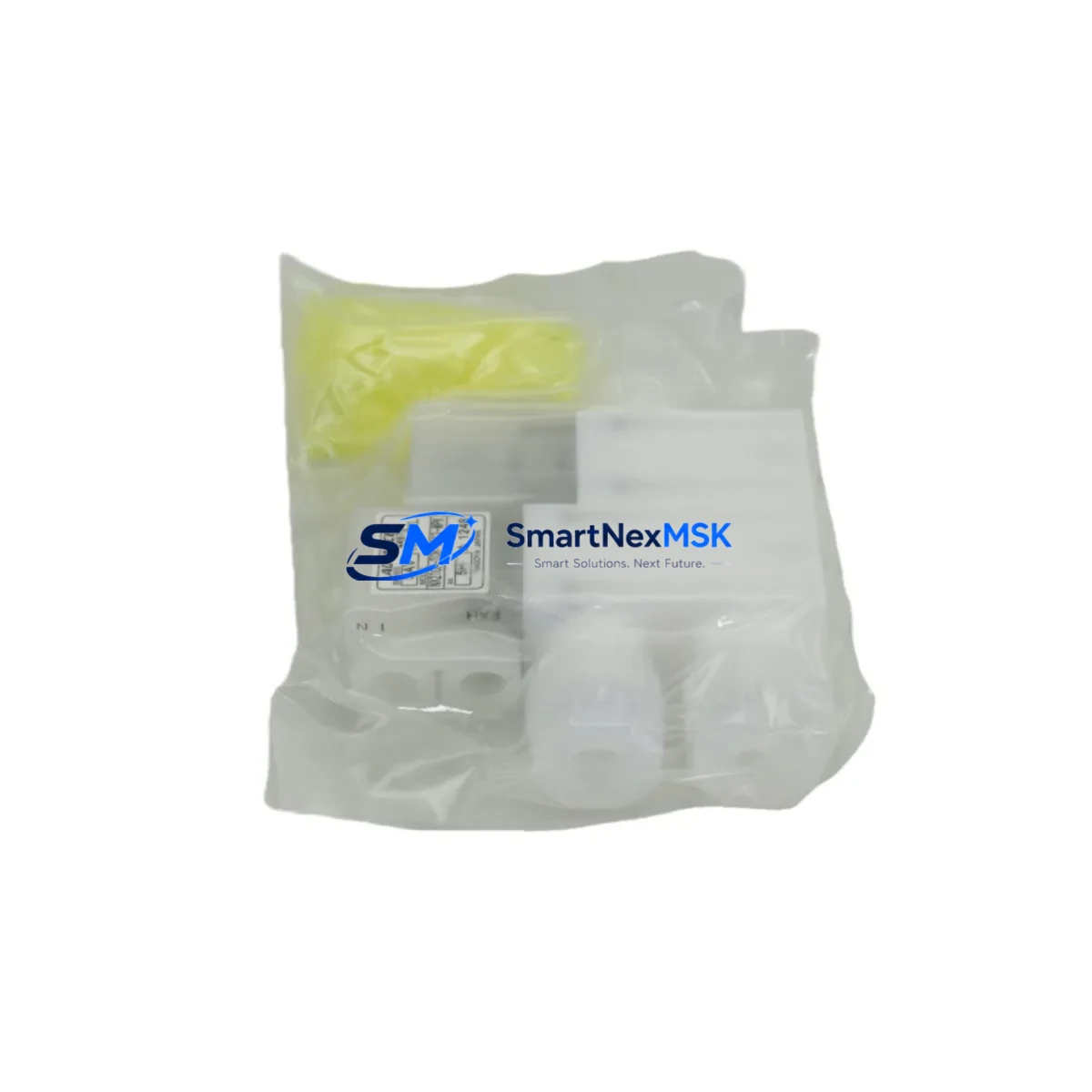

ADVANCE NX210A-3CB-V513-MPK Spare for NX Series Automation
The ADVANCE NX210A-3CB-V513-MPK is an original 3-way directional control valve engineered for NX Series pneumatic automation systems. Cross-referenced as 085-159401 and 04-732063-01, this valve is a critical spare for maintenance engineers managing continuous-duty pneumatic circuits in manufacturing, packaging, and process automation environments. Sourced from verified supply channels, each unit is inspection-tested prior to dispatch and backed by a 12-month warranty.
Unplanned downtime caused by a failed directional control valve can cascade across an entire pneumatic circuit — halting actuators, disrupting sequencing logic, and triggering PLC fault alarms. Stocking the NX210A-3CB-V513-MPK as a ready spare eliminates the lead-time risk associated with OEM procurement and keeps your maintenance team in control of recovery timelines. Whether you are executing a planned shutdown, responding to an emergency fault, or conducting a scheduled control cabinet inspection, having this valve on the shelf is a proven downtime-reduction strategy.
Spare Maintenance Table
| Parameter | Specification |
|---|---|
| Part Number | NX210A-3CB-V513-MPK |
| Cross Reference | 085-159401 / 04-732063-01 |
| Brand | ADVANCE |
| Series | NX Series |
| Valve Type | 3-Way Directional Control Valve |
| Actuation | Solenoid / Pilot (MPK suffix — manifold pilot) |
| Port Configuration | 3-port, 2-position (3CB body) |
| Seal Material | NBR (standard); suitable for compressed air and inert gas |
| Operating Pressure | 0.15 – 0.7 MPa (typical NX Series range) |
| Ambient Temperature | -10°C to +50°C |
| Mounting | Manifold base (sub-plate) mount — NX Series compatible |
| Compatibility | NX Series manifold stations; replaces legacy NX210A variants |
| Application | Pneumatic actuator control, cylinder sequencing, process automation |
| Maintenance Interval | Inspect every 12 months or 5 million cycles; replace seals as required |
| Warranty | 12 Months — covers manufacturing defects and functional failure |
| Pre-shipment Test | Functional actuation and leak test performed before dispatch |
Maintenance Planning for Continuous Operation
When replacing the NX210A-3CB-V513-MPK in the field, a disciplined maintenance engineer will treat the valve swap as an opportunity to audit the surrounding pneumatic and electrical circuit. The valve sits at the intersection of solenoid control and actuator motion — meaning its failure mode often implicates adjacent components that should be inspected simultaneously.
Begin with the solenoid coil assembly (NX Series DIN coil, 24VDC or 110VAC depending on your panel specification). A coil that has been running hot or shows insulation discoloration should be replaced alongside the valve body. Next, inspect the manifold base gaskets and sub-plate seals — worn sub-plate O-rings are a common source of internal leakage that mimics valve failure. If your system uses a NX Series manifold station with multiple valve positions, check adjacent valve bodies (e.g., NX210A-3CB-V513 or NX310A variants) for similar wear patterns, as manifold-mounted valves share the same supply and exhaust galleries.
On the electrical side, verify the solenoid driver output from the PLC I/O module — a transistor output card with a shorted channel can damage replacement coils within hours of installation. If your control system uses a relay output module to drive the solenoid, inspect the relay contacts for pitting or welding, and confirm the flyback diode or surge suppressor on the coil circuit is intact. For systems with pneumatic pressure switches or proximity sensors providing position feedback to the PLC, confirm sensor alignment and output signal integrity before closing the cabinet.
Compressed air quality is frequently overlooked during valve replacement. A clogged or saturated FRL unit (filter-regulator-lubricator) upstream of the manifold will shorten the service life of the new valve. Drain the filter bowl, verify regulator set pressure, and confirm the lubricator oil level. If your system runs oil-free, ensure the valve’s seal specification matches dry-air service. Also inspect the exhaust silencers on the manifold — blocked silencers create back-pressure that degrades valve switching speed and can cause actuator hesitation even with a new valve installed.
For facilities managing aging NX Series installations, consider pairing the NX210A-3CB-V513-MPK with a spare solenoid coil, a manifold blanking plate for unused stations, and a set of sub-plate mounting screws and seals to support rapid field replacement without waiting for hardware. Documenting the valve’s installation date and cycle count in your CMMS ensures the next planned replacement is scheduled before failure occurs.
Site Replacement Workflow
Step 1 — Isolate and depressurise. Shut off the compressed air supply to the manifold section. Exhaust residual pressure through the manual override or bleed valve. Lock out the solenoid power supply at the terminal block or I/O module output.
Step 2 — Remove the failed valve. Unscrew the valve body from the sub-plate (typically 2–4 M3 or M4 screws depending on NX body size). Note the orientation of the valve body relative to the port markings (P, A, R) on the sub-plate. Photograph before removal if the installation is complex.
Step 3 — Inspect the sub-plate. Clean the sub-plate mating face. Replace the sub-plate O-ring set if any deformation or cracking is visible. Confirm the manifold supply and exhaust ports are clear.
Step 4 — Install the NX210A-3CB-V513-MPK. Align the valve body to the sub-plate port pattern. Torque mounting screws to the manufacturer’s specification (typically 0.5–0.8 Nm for NX Series). Reconnect the solenoid coil connector — confirm DIN connector locking tab is fully engaged.
Step 5 — Restore and verify. Re-energise the air supply gradually. Command the solenoid from the PLC or manual test switch. Confirm actuator motion, check for leaks at the sub-plate joint using leak detection spray, and verify PLC feedback signals are restored. Log the replacement in your maintenance record.
This workflow applies equally to planned replacement of legacy NX210A variants and emergency substitution during unscheduled downtime. The NX210A-3CB-V513-MPK is a direct form-fit-function replacement for earlier NX210A body configurations, requiring no manifold modification or re-piping.
Spare Parts Support FAQ
Q1: Is the NX210A-3CB-V513-MPK compatible with my existing NX Series manifold station?
Yes. The NX210A-3CB-V513-MPK is designed for NX Series sub-plate manifold mounting. It is compatible with standard NX Series manifold stations using the 3CB body footprint. If your manifold uses a different body size (e.g., NX310A or NX410A series), please confirm the sub-plate port pattern before ordering. Our technical team can assist with compatibility verification using your manifold part number.
Q2: What is included in the 12-month warranty, and how is a claim handled?
The 12-month warranty covers manufacturing defects and functional failure under normal operating conditions (clean dry air, within rated pressure and temperature). It does not cover damage caused by contaminated air supply, incorrect installation, or operation outside rated parameters. To initiate a warranty claim, contact our sales team with the order reference and a description of the fault. Replacement units are dispatched after fault confirmation — no return required for low-value components.
Q3: How should I store spare NX210A-3CB-V513-MPK units in my parts inventory?
Store in original packaging in a clean, dry environment away from direct sunlight and ozone sources (e.g., electric motors, welding equipment). Recommended storage temperature: 5°C to 35°C. Shelf life for NBR-sealed valves in sealed packaging is typically 3–5 years. Rotate stock on a first-in, first-out basis and inspect seal condition before installation if stored for more than 2 years.
Q4: Can I order multiple units for a blanket spare parts agreement?
Yes. We support blanket orders and long-term supply agreements for maintenance teams managing multiple NX Series installations. Volume pricing is available for orders of 5 units or more. Contact sales@smartnexmsk.com to discuss lead times, pricing tiers, and consignment stocking options tailored to your planned maintenance schedule.
