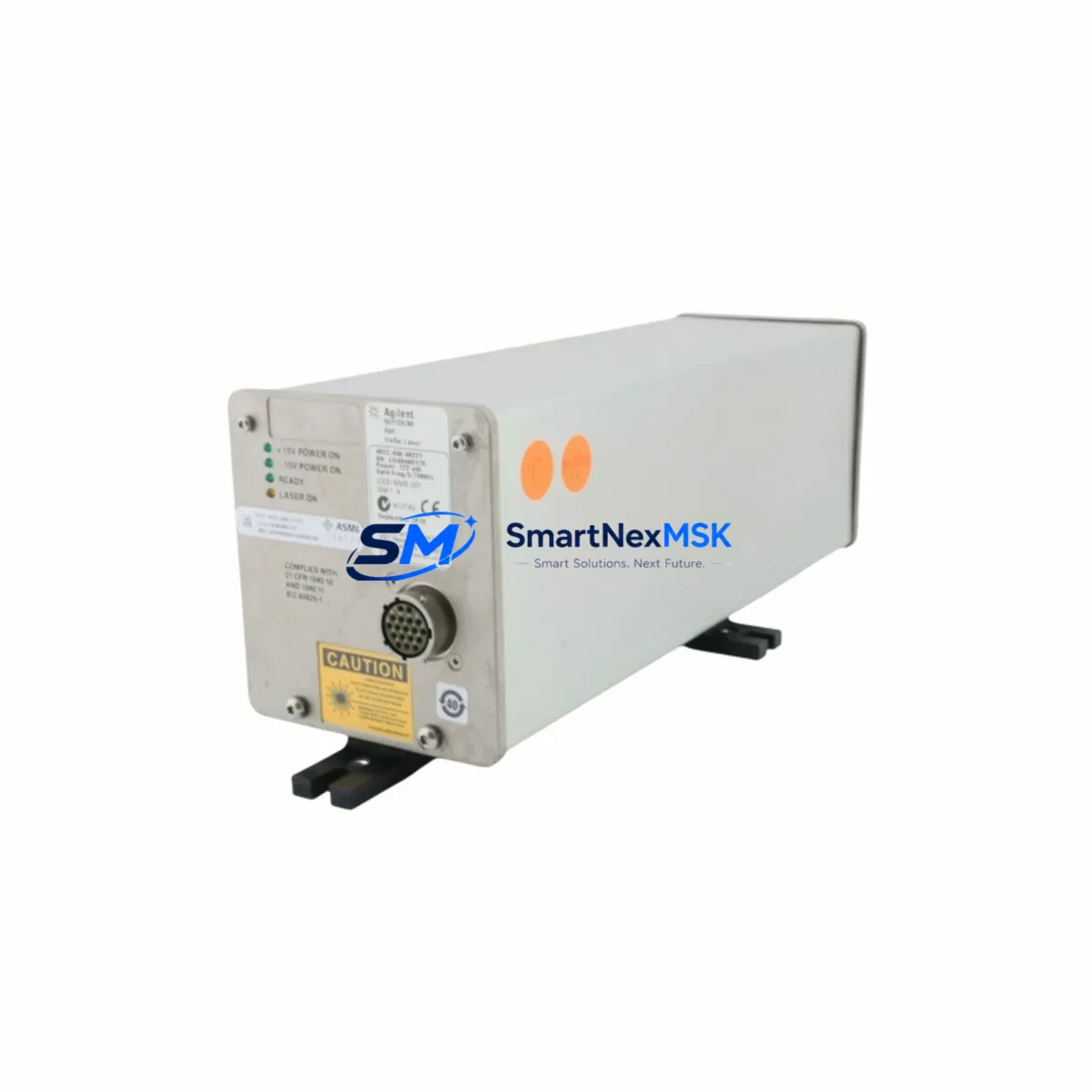

Agilent 5517DC30 Safety-Enhanced HeNe Laser Head

Agilent 5517DC30 Safety-Enhanced HeNe Laser Head: Precision Control Reliability for Harsh Industrial Sites

The Agilent 5517DC30 (OEM P/N: 4022.456.48221, alternates: 5517D-C19 / 4022.454.71615 / 4022.454.71616) is a two-frequency helium-neon (HeNe) laser head engineered for demanding precision measurement and motion-control environments. Designed and manufactured by Agilent Technologies (now Keysight Technologies), this ruggedized interferometer laser source delivers exceptional frequency stability, low noise output, and long-term beam coherence — critical attributes for semiconductor fabrication, precision machine tool control, and high-accuracy metrology systems operating under continuous-duty, high-vibration, or thermally variable conditions.

In industrial environments where measurement integrity directly governs process safety — including lithography stages, CNC machine calibration loops, and coordinate measuring machine (CMM) feedback systems — the 5517DC30 provides the stable optical reference that prevents positional drift, axis runout errors, and closed-loop control failures. Its ruggedized housing and thermally stabilized cavity design make it suitable for deployment in control cabinets and measurement enclosures exposed to mechanical shock, airborne particulates, and fluctuating ambient temperatures.

Safety Reliability Table

Control Cabinet Protection Strategy

In precision motion-control and metrology installations, the 5517DC30 laser head does not operate in isolation — it anchors a broader measurement and control architecture that must be protected against signal degradation, power anomalies, and environmental interference. A robust control cabinet strategy for systems using the 5517DC30 typically integrates several complementary components.

The laser head connects to a dedicated Agilent 10885A laser power supply or the newer N1231A three-axis board, which conditions the drive current and monitors laser health in real time. Upstream power quality is maintained by a line isolation transformer and UPS module to prevent voltage transients from disrupting the laser’s thermally stabilized cavity — even a brief power fluctuation can cause frequency drift that propagates as positional error in the feedback loop.

The optical measurement chain relies on precision beam-splitting optics such as the Agilent 10706B beam splitter and 10702A linear interferometer, which must be mounted on vibration-isolated optical benches or granite bases to prevent mechanical coupling from floor-borne vibration. Downstream, the Agilent 10885A measurement board or N1231A interferometer board digitizes the optical signal and feeds position data to the motion controller — typically a Agilent E1831A or compatible DSP-based servo controller.

For installations in environments with significant electromagnetic interference (EMI) — such as proximity to high-current servo drives, VFDs, or plasma equipment — shielded signal cables and ferrite core suppressors on all measurement signal lines are essential to prevent common-mode noise from corrupting the interferometer’s sub-nanometer resolution. The Agilent 10780F receiver and 10780C remote receiver are commonly paired with the 5517DC30 to convert optical signals to electrical outputs with high noise immunity.

Thermal management within the control cabinet — including forced-air cooling, cabinet-mounted heat exchangers, and thermal sensors — ensures the laser head’s operating temperature remains within its rated 15°C–35°C window, preventing thermally induced frequency drift that would compromise measurement accuracy and, in safety-critical applications, trigger false position alarms or interlock trips.

Critical Industrial Safety Applications

The Agilent 5517DC30 HeNe laser head is deployed across a wide range of precision-critical and safety-sensitive industrial environments:

Semiconductor Fabrication: In photolithography and wafer-stage positioning systems, the 5517DC30 provides the optical reference for nanometer-level stage control. Positional accuracy directly governs overlay error and yield — measurement failure in this context constitutes a process safety event with significant financial and quality consequences.

Precision Machine Tool Calibration: CNC machining centers and grinding machines use interferometer-based calibration to verify axis linearity, squareness, and positioning repeatability. The 5517DC30 enables traceable calibration to national measurement standards, supporting ISO 9001 and ISO 10360 compliance in aerospace and defense manufacturing facilities.

Coordinate Measuring Machines (CMM): In metrology laboratories and production-floor CMM installations, the laser head provides the length standard for dimensional verification of critical components. Reliable laser output prevents measurement uncertainty from exceeding tolerance limits, which in regulated industries (medical devices, aerospace) constitutes a compliance risk.

Flat Panel Display Manufacturing: Stage positioning in LCD and OLED panel production lines requires continuous, high-speed interferometric feedback. The ruggedized design of the 5517DC30 supports operation in cleanroom-adjacent environments where vibration from HVAC systems and material handling equipment is a constant challenge.

Research and Metrology Institutes: National metrology institutes and university precision engineering laboratories rely on the 5517DC30 as a primary length reference for calibration of secondary standards, displacement sensors, and encoder systems — applications where measurement traceability and long-term stability are non-negotiable safety requirements.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the Agilent 5517DC30?
The 12-month warranty covers laser output power, two-frequency operation, frequency stability within rated specification, and mechanical integrity of the housing and beam exit aperture. Any unit that fails to meet its rated performance parameters within the warranty period will be repaired or replaced at no charge. Warranty support includes technical consultation for integration and compatibility issues.

Q2: What pre-shipment testing is performed on each 5517DC30 unit?
Every unit undergoes full functional verification prior to dispatch: laser output power measurement, two-frequency beat signal confirmation, frequency stability assessment over a minimum warm-up cycle, and visual inspection of the housing, connectors, and beam exit optics. A test report is available upon request. Units that do not meet Agilent’s original performance specifications are not shipped.

Q3: Is the 5517DC30 compatible with current Keysight interferometer systems and optics?
Yes. The 5517DC30 is fully compatible with the Agilent/Keysight 5500 series interferometer measurement systems, including the N1231A three-axis board, 10780F and 10780C receivers, and the full range of 10700 series interferometer optics (10702A, 10706B, 10771A, 10774A). It is also compatible with third-party interferometer electronics designed to accept standard two-frequency HeNe laser inputs at 632.8 nm.

Q4: Can long-term supply and replacement support be guaranteed for the 5517DC30?
Yes. We maintain dedicated stock of the 5517DC30 and its OEM equivalents (4022.456.48221, 5517D-C19) to support ongoing production and maintenance requirements. For customers with critical uptime requirements, we recommend discussing consignment stock or priority reservation arrangements. Our supply chain covers multiple refurbishment sources to ensure continuity even as OEM production of legacy laser heads has been discontinued by Keysight.
