AI-Tek 70084-1713-111 Safety-Enhanced Speed Sensor

AI-Tek 70084-1713-111 Safety-Enhanced Speed Sensor: Reliable Control in Harsh Industrial Sites

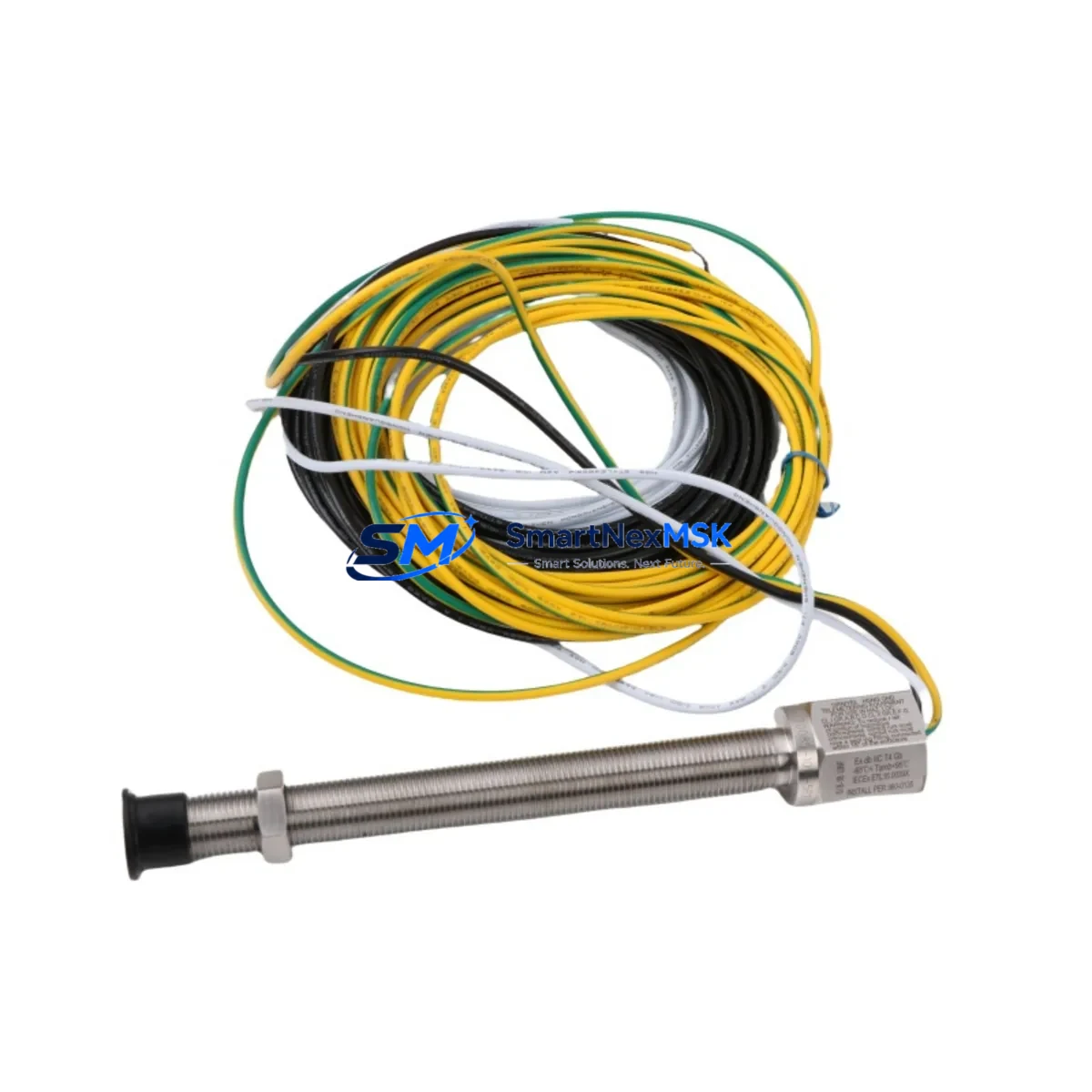

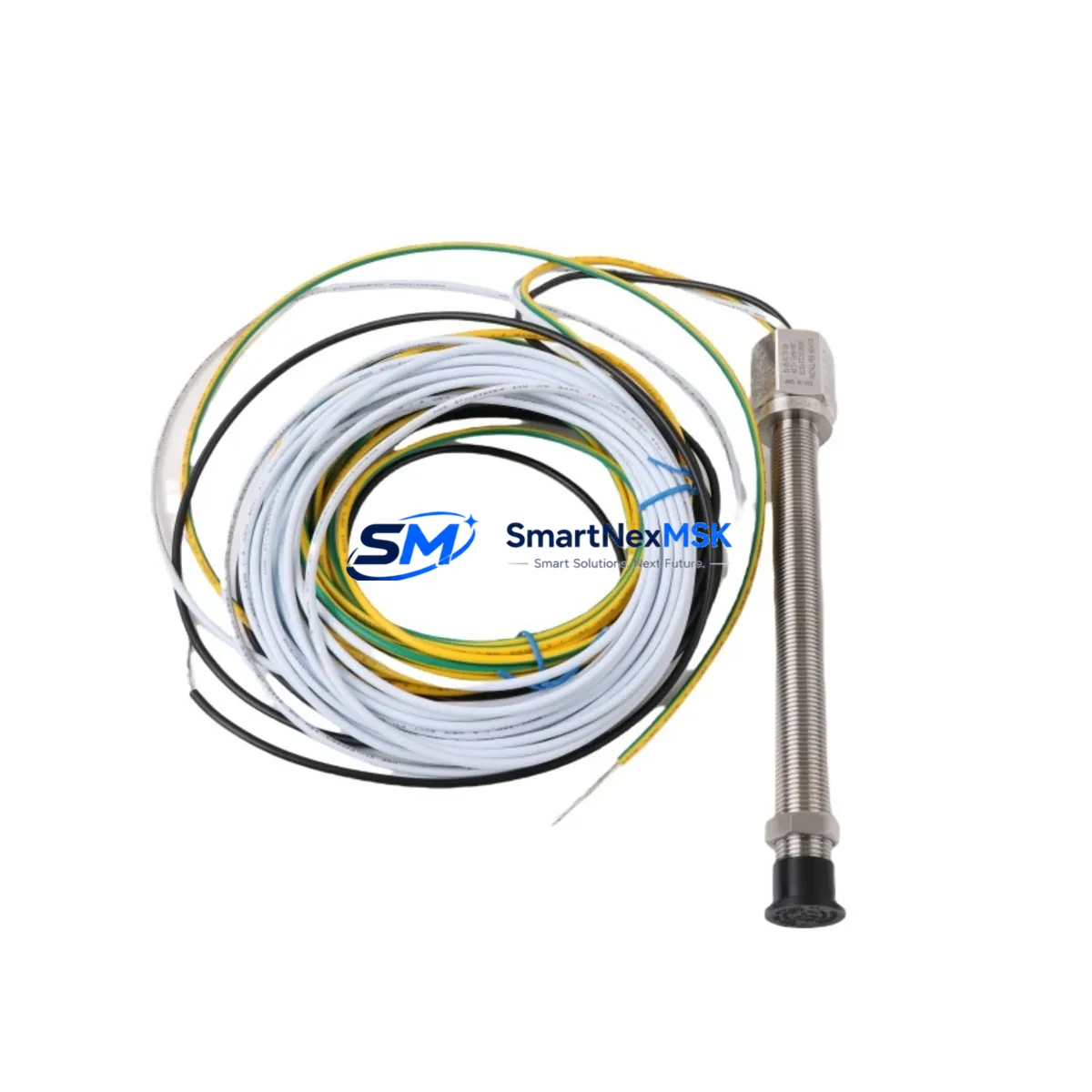

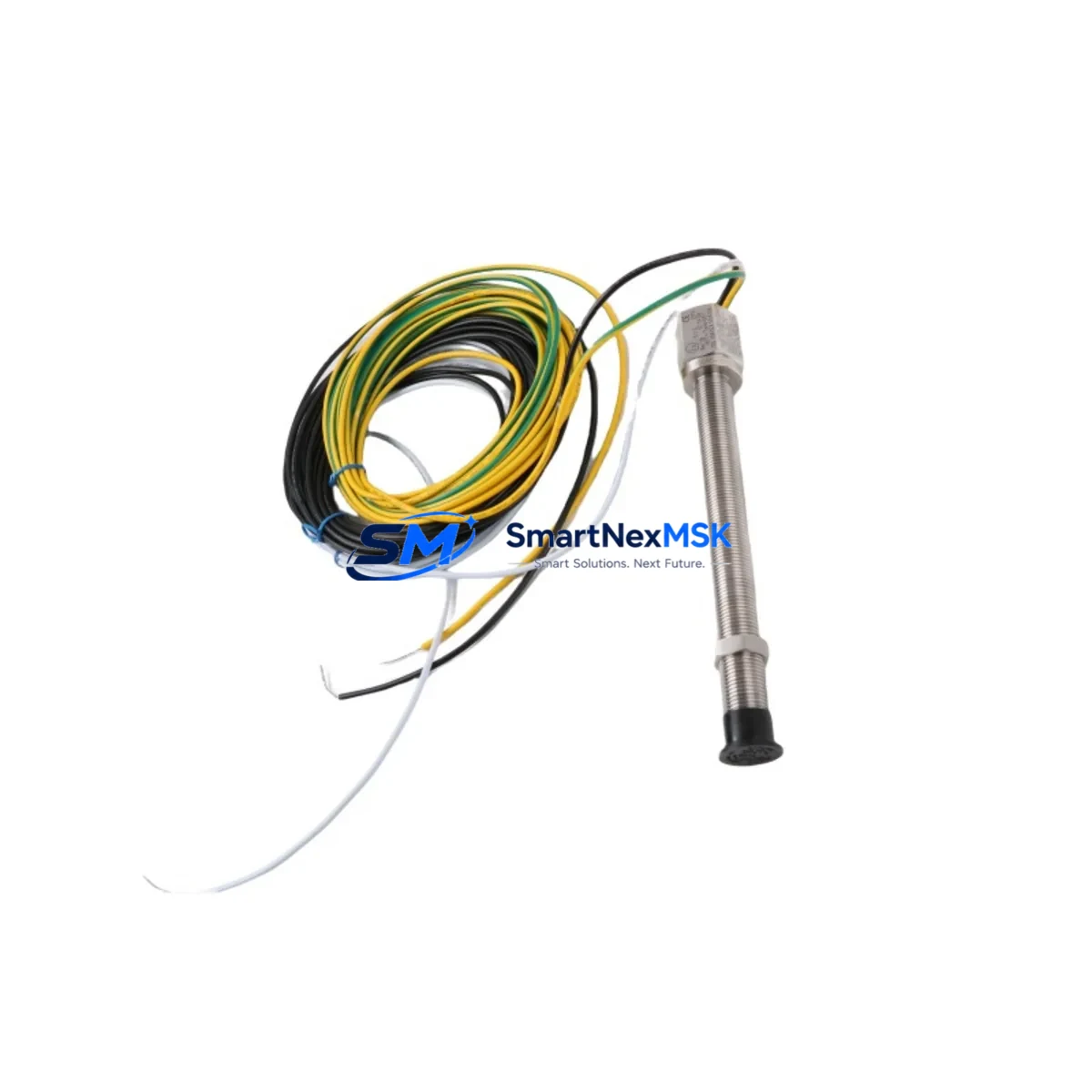

The AI-Tek 70084-1713-111 is a ruggedized variable reluctance magnetic pickup speed sensor engineered for continuous, uninterrupted operation in the most demanding industrial environments. Designed to deliver precise rotational speed signals to PLCs, DCS controllers, and safety relay modules, this sensor is a critical component in control loops where signal integrity directly impacts personnel safety and process continuity. Whether installed in a heavy-duty control cabinet, integrated into a turbine overspeed protection circuit, or deployed on a conveyor drive in a continuous manufacturing line, the 70084-1713-111 provides the stable, noise-immune output that industrial safety systems depend on.

In high-load, high-interference environments — including petrochemical plants, power generation facilities, mining operations, water treatment stations, metallurgical mills, and port logistics systems — speed sensing accuracy is not a convenience; it is a safety requirement. Signal drift, electromagnetic interference, power fluctuations, and module misfires can cascade into unplanned shutdowns, equipment damage, or hazardous conditions. The AI-Tek 70084-1713-111 is built to eliminate these failure modes at the source.

Safety Reliability Table

Control Cabinet Protection Strategy

In a well-engineered industrial control cabinet, the AI-Tek 70084-1713-111 does not operate in isolation — it is one node in a layered protection architecture. The sensor’s sinusoidal output feeds directly into speed input modules such as the Bently Nevada 3500/50 Tachometer Module or compatible frequency input cards on Siemens S7-300/S7-400 PLC racks, where the signal is conditioned, scaled, and compared against setpoints in real time. In safety-critical applications, this signal is simultaneously routed to a Pilz PNOZ safety relay or a Rockwell Allen-Bradley GuardLogix safety controller to enforce overspeed trip logic without relying on the standard control PLC.

Power supply stability is equally important. The 70084-1713-111 is a passive sensor and requires no excitation voltage, which eliminates one common failure point. However, the downstream signal conditioning equipment — including Phoenix Contact QUINT power supplies and Weidmüller surge protection terminal blocks — must be properly specified to protect the entire measurement chain from voltage transients and surge events common in motor-driven environments. Shielded cable runs, properly grounded at a single point, further suppress common-mode noise that could corrupt the speed signal and trigger nuisance trips or, worse, mask a genuine overspeed condition.

For communication-intensive architectures where speed data is transmitted over PROFIBUS DP or PROFINET IO networks to a central SCADA or DCS — such as an ABB System 800xA or Honeywell Experion PKS — the integrity of the raw sensor signal at the field level is the foundation of data quality throughout the system. A drifting or intermittent speed signal from a degraded sensor will propagate errors upstream, potentially triggering false alarms or masking real process deviations. Replacing a worn or suspect sensor with a verified AI-Tek 70084-1713-111 from certified stock is the most direct way to restore measurement confidence.

In redundant safety architectures, the 70084-1713-111 is often installed in pairs or triplets — feeding a 2oo3 voting logic module within a Triconex TRICON safety system or similar SIL-rated platform — ensuring that a single sensor failure does not result in a spurious trip or a dangerous undetected failure. Spare units should be held in climate-controlled storage alongside other critical spares such as Emerson DeltaV I/O cards and Yokogawa CENTUM VP field control station modules to support rapid mean-time-to-repair targets.

Critical Industrial Safety Applications

Petrochemical & Refinery: Compressor trains, pump drives, and rotating equipment in hazardous areas require continuous speed monitoring to enforce API 670 machinery protection standards. The AI-Tek 70084-1713-111 provides the reliable tachometer input needed by machinery protection systems to detect overspeed, underspeed, and zero-speed conditions before they escalate to mechanical failure or process release events.

Power Generation: Steam and gas turbine governor systems depend on accurate speed feedback for load control and grid synchronization. A failed or drifting speed sensor in a turbine control loop can cause frequency excursions, load rejection, or turbine runaway. The 70084-1713-111’s passive design and wide temperature range make it suitable for both the hot sections of turbine enclosures and the cooler environments of generator control rooms.

Mining & Mineral Processing: Conveyor belt drives, crusher motors, and hoist systems in underground and open-pit mining operations are subject to extreme vibration, dust, and moisture. Zero-speed detection on conveyor tail pulleys — a critical safety interlock to prevent belt slip and fire — relies on sensors that can survive the mechanical punishment of a mining environment. The ruggedized housing of the 70084-1713-111 is specifically suited to these conditions.

Water & Wastewater Treatment: Pump stations and aeration blower drives in water treatment facilities require reliable speed feedback for flow control and energy optimization. Sensor failures in these applications can lead to pump cavitation, motor overload, or process upsets that affect water quality compliance.

Metallurgy & Steel Mills: Rolling mill drives, ladle turrets, and continuous casting machines operate under extreme electromagnetic interference from large variable-frequency drives and arc furnaces. The passive, interference-immune nature of the variable reluctance sensor makes the AI-Tek 70084-1713-111 the preferred choice for speed sensing in these high-EMI environments.

Port & Heavy Logistics: Crane hoist and travel drives, ship-to-shore equipment, and automated stacking cranes require precise speed control and anti-sway logic that depends on accurate encoder and tachometer feedback. The 70084-1713-111 supports these applications as a robust, field-proven speed sensing element.

Safety and Quality FAQ

Q1: What warranty does the AI-Tek 70084-1713-111 carry?
All units supplied by SMARTNEXMSK carry a 12-month warranty covering manufacturing defects and functional failure under normal operating conditions. Warranty claims are supported with replacement or refund, subject to inspection. Our warranty policy is designed to give industrial buyers the confidence to specify our stock for critical applications.

Q2: How is each unit tested before shipment?
Every AI-Tek 70084-1713-111 unit undergoes a full pre-shipment functional test, including continuity verification, coil resistance measurement, and output signal confirmation. Units that do not meet AI-Tek’s original specification are quarantined and not dispatched. Test records are available upon request for quality-critical procurement processes.

Q3: Is the 70084-1713-111 compatible with my existing PLC or DCS speed input card?
The AI-Tek 70084-1713-111 is a standard variable reluctance magnetic pickup that produces a sinusoidal AC output compatible with the vast majority of industrial speed input modules, including those from Siemens, Rockwell Automation, ABB, Honeywell, Emerson, and Yokogawa. If your application uses a specific signal conditioner or frequency-to-analog converter, please contact our technical team with your existing module part number for confirmation.

Q4: Can you guarantee long-term supply and replacement support?
Yes. SMARTNEXMSK maintains dedicated stock of the AI-Tek 70084-1713-111 and related AI-Tek 70084-series variants to support ongoing maintenance, planned replacement programs, and emergency breakdown situations. We understand that industrial facilities cannot afford extended lead times on critical spare parts. Our inventory management is structured to ensure availability for repeat orders, and we can discuss blanket order arrangements for high-volume or time-sensitive procurement needs.
