Alstom MPM123 Maintenance-Ready Spare for MiCOM Automation

Alstom MPM123 Maintenance-Ready Spare for MiCOM Automation

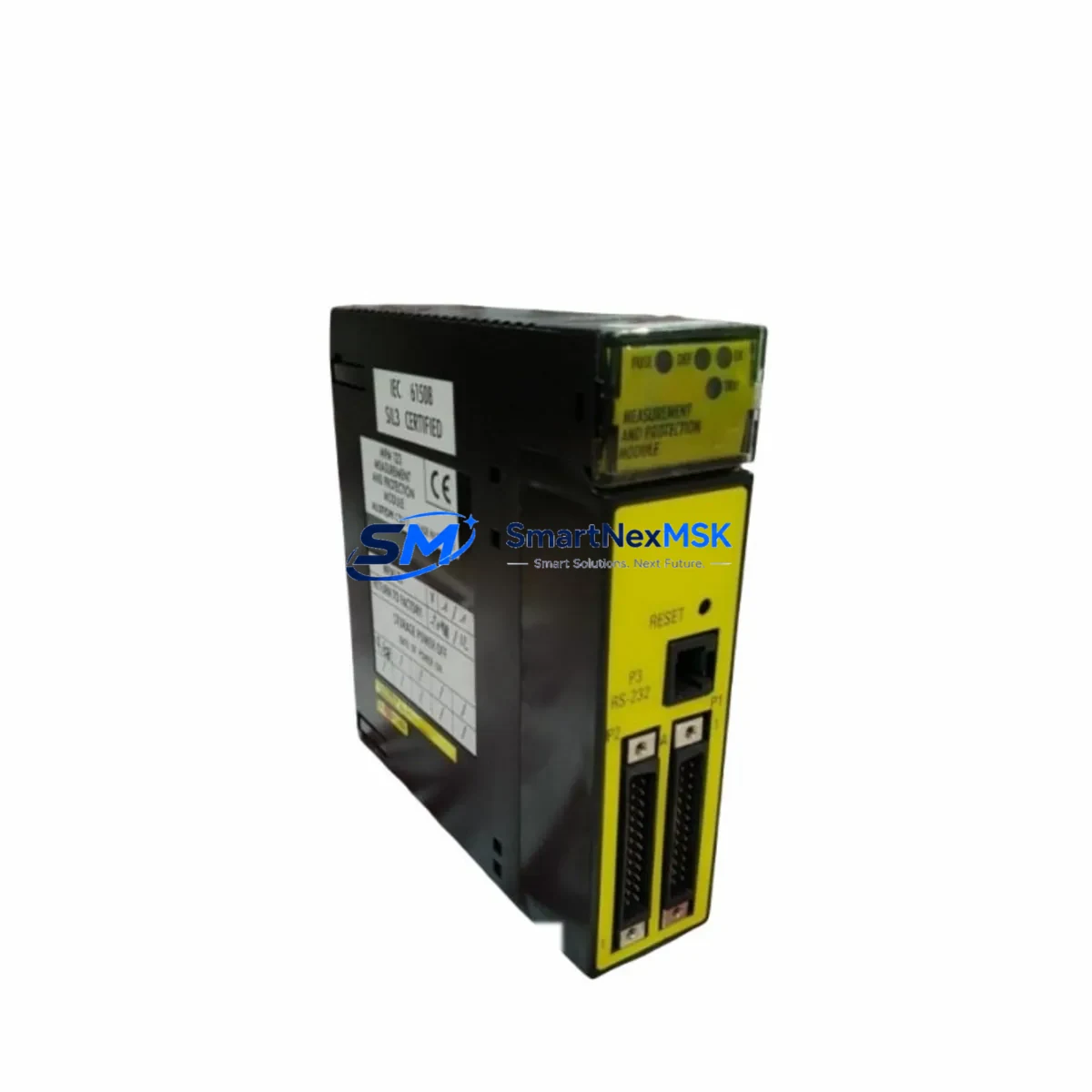

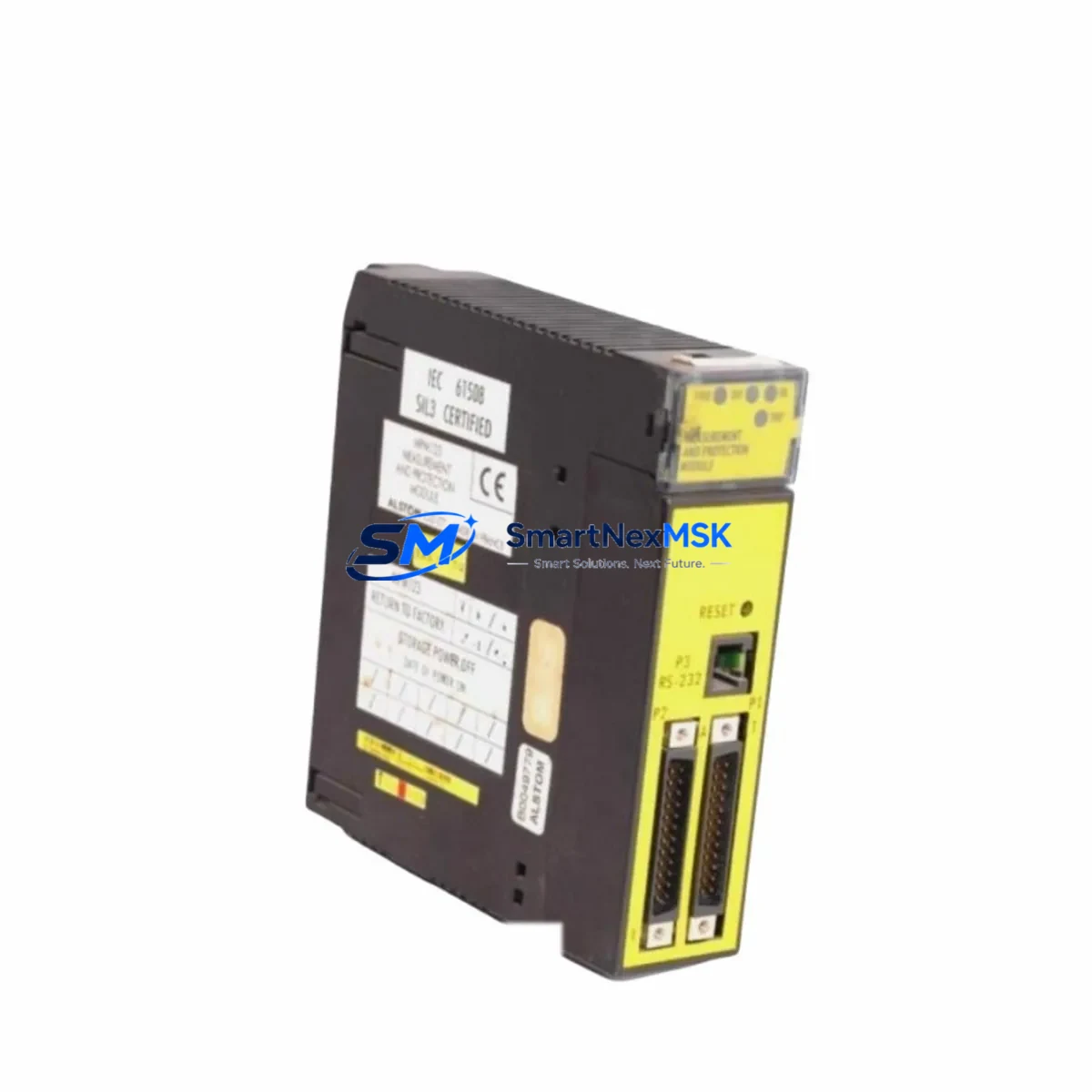

The Alstom MPM123 is a measurement and protection relay module within the MiCOM series, engineered for continuous operation in power distribution, substation automation, and industrial control environments. When a protection relay fails or reaches end-of-service life, every minute of unplanned downtime translates directly into production loss, safety risk, and costly emergency procurement. Stocking a verified MPM123 spare eliminates that exposure.

This listing supplies an original Alstom MPM123 — not a substitute or remanufactured unit — pre-shipment tested against factory electrical parameters, packaged for safe transit, and backed by a 12-month warranty. Whether you are executing a planned outage, responding to a relay trip event, or building out your substation spare parts inventory, the MPM123 ships ready for immediate installation.

Maintenance engineers and procurement teams working with MiCOM-based protection schemes will find this module compatible with existing panel wiring, CT/VT secondary circuits, and SCADA communication architectures without requiring firmware reconfiguration in most standard replacement scenarios.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

A protection relay replacement is rarely an isolated task. When a maintenance or commissioning engineer replaces the MPM123 module, a disciplined site inspection of the surrounding electrical circuit is essential to confirm the root cause of failure and prevent repeat faults.

Begin with the auxiliary power supply module feeding the relay panel — a degraded DC power supply or unstable auxiliary voltage is a common upstream cause of relay module failure. Verify output voltage stability under load before energising the replacement MPM123. Next, inspect the CT and VT secondary wiring terminals and associated terminal blocks for loose connections, insulation breakdown, or corrosion, particularly in humid or high-vibration environments.

The output relay contacts and binary output modules connected to trip coils and circuit breaker control circuits should be tested for contact resistance and correct operation — worn relay contacts can cause delayed or failed trip commands even with a healthy protection relay. If the panel includes a Alstom MiCOM P14x or P12x series relay in the same protection zone, cross-check its event log for any upstream disturbance records that may have contributed to the MPM123 fault.

For panels with IEC 61850 or Modbus RTU communication, verify that the communication module or Ethernet switch port assigned to the relay is functioning correctly after module swap — a communication timeout alarm post-replacement is a common commissioning oversight. Where signal isolators are used between the relay analog outputs and SCADA input cards, confirm isolation integrity and signal scaling after replacement.

Panels operating in dusty or chemically aggressive environments should have their fuse holders and miniature circuit breakers (MCBs) on the auxiliary supply circuit inspected and replaced if showing signs of heat discolouration or contact oxidation. Finally, if the control cabinet houses an HMI or operator panel linked to the protection relay, confirm that alarm acknowledgement and relay status displays are correctly mapped after the module replacement to avoid masked fault conditions during the next operating cycle.

Building a structured spare parts kit around the MPM123 — including a backup auxiliary power supply module, a set of output relay plug-in modules, spare terminal block connectors, and a tested communication interface card — reduces mean time to repair (MTTR) significantly and supports a proactive maintenance posture rather than reactive emergency procurement.

Site Replacement Workflow

Step 1 — Isolation & Safety: Isolate the relay panel from all auxiliary supplies and CT/VT secondary circuits per your site LOTO procedure. Confirm dead using an approved voltage indicator.

Step 2 — Record & Document: Photograph existing wiring, note relay settings, and export the relay configuration file if accessible via the front HMI port or SCADA system before removal.

Step 3 — Module Removal: Release the MPM123 module from the MiCOM chassis using the standard extraction handle. Avoid touching PCB surfaces; use ESD wrist strap.

Step 4 — Inspection: Inspect the chassis backplane connector for bent pins or contamination. Clean with dry compressed air if required.

Step 5 — Installation: Seat the replacement MPM123 firmly into the chassis slot. Reconnect all wiring per the original documentation. Verify terminal torque settings.

Step 6 — Configuration Restore: Reload relay settings from the saved configuration file or re-enter manually per the protection coordination study. Confirm all protection elements, thresholds, and communication parameters.

Step 7 — Commissioning Test: Apply auxiliary supply and perform a secondary injection test to verify protection element operation. Confirm trip output and SCADA status before returning to service.

This workflow supports a controlled, documented replacement that minimises downtime, maintains system compatibility, and satisfies audit requirements for protection relay maintenance records.

Spare Parts Support FAQ

Q1: Is this MPM123 an original Alstom module or a compatible substitute?
This is an original Alstom MPM123 spare part. It is not a third-party compatible or remanufactured unit. Each module undergoes pre-shipment electrical testing to verify functionality before dispatch.

Q2: What is the warranty coverage and what does it include?
All MPM123 modules supplied carry a 12-month warranty from the date of delivery. The warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling on site.

Q3: Can this module replace an older MiCOM relay variant in an existing panel without hardware modification?
In most standard MiCOM chassis configurations, the MPM123 is a direct plug-in replacement. However, compatibility should always be confirmed against the original panel wiring diagram and relay setting file. If your panel uses a customised I/O mapping or non-standard communication protocol configuration, contact our technical team before installation.

Q4: How quickly can the MPM123 be shipped, and what documentation is provided?
Orders are processed and dispatched within 1–3 business days. Each shipment includes a test report, packing list, and tracking information. Express courier options are available for emergency downtime recovery requirements. Long-term supply agreements and consignment stock arrangements are available for utilities and EPC contractors managing large relay fleets.
