AMAT 0150-76458 Retrofit-Ready Cable Assembly for CVD Systems

AMAT 0150-76458 Retrofit-Ready Cable Assembly for CVD Control Systems

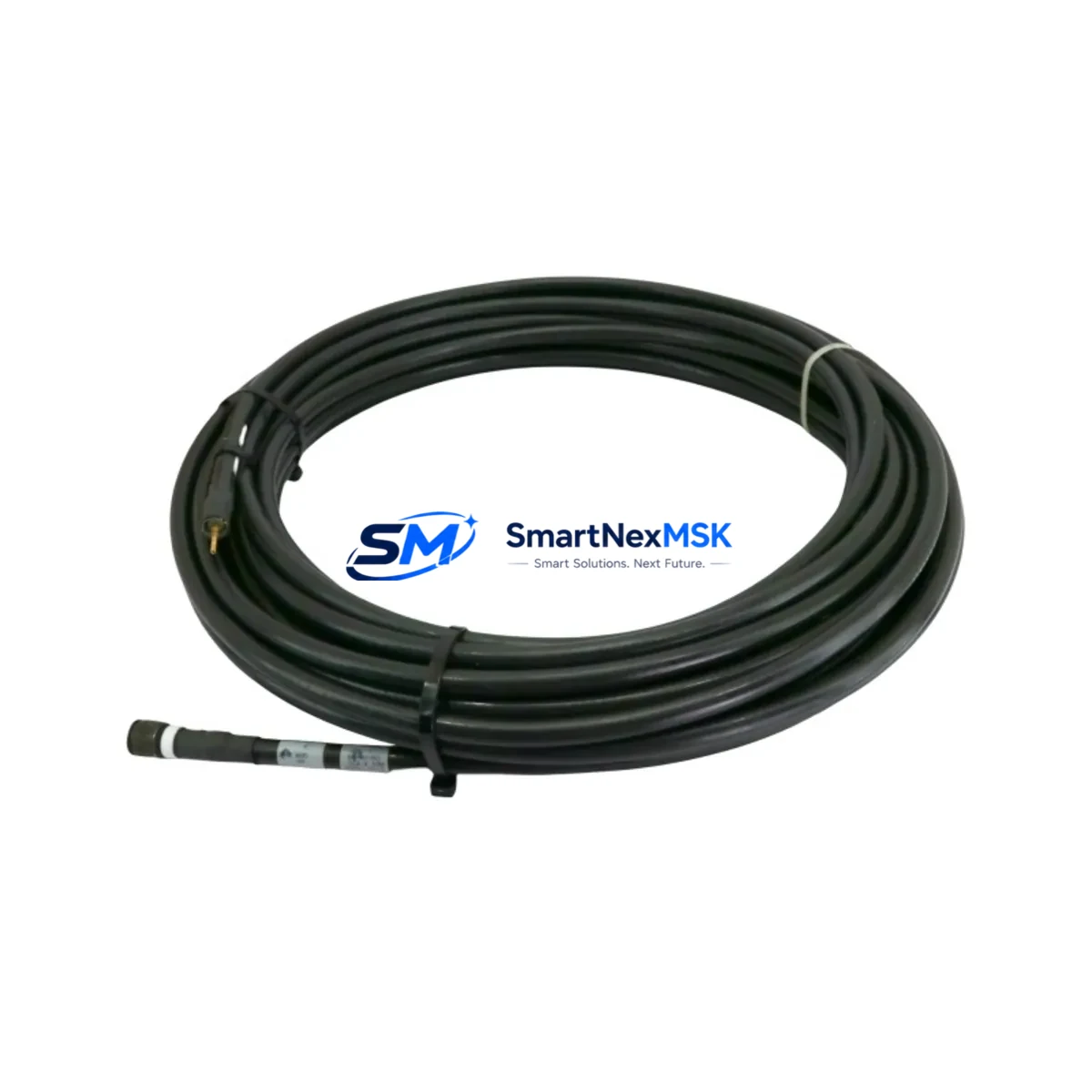

The Applied Materials 0150-76458 (W/CON) cable assembly is a retrofit-ready interconnect solution engineered for seamless integration into Applied Materials CVD, Etch, and implant process equipment platforms. This assembly directly replaces discontinued part numbers 0090-08798 and 6838-H106A, making it a critical component for facilities managing aging semiconductor process lines that require reliable spare parts without full system replacement.

As semiconductor fabs and research institutions extend the operational life of legacy Applied Materials equipment — including the Centura, Producer, and P5000 platforms — sourcing verified replacement cable assemblies becomes a bottleneck that directly impacts uptime. The 0150-76458 assembly addresses this challenge by providing a pin-compatible, specification-matched replacement that integrates without modification to existing wiring harnesses, connector brackets, or chassis routing paths.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

When planning a retrofit or spare-parts replenishment for an Applied Materials process tool, the 0150-76458 cable assembly is rarely replaced in isolation. A comprehensive retrofit typically involves evaluating the condition of adjacent components within the same subsystem. Engineers performing a chamber refurbishment or control cabinet upgrade on a Centura or P5000 platform will commonly assess the 0150-09789 RF match network cable, the 0150-76100 series signal harness, and the 0190-series power distribution assemblies that share the same routing channel.

For facilities upgrading from older P5000 platforms to Centura-generation equipment, the migration path often requires re-mapping I/O assignments within the AMAT Brooks Automation interface board and verifying compatibility with the 0100-series process controller modules that manage chamber pressure, gas flow, and RF power delivery. The 0150-76458 assembly’s connector pinout must be cross-checked against the updated I/O map to ensure signal integrity across the upgraded control architecture.

In control cabinet upgrades, technicians frequently replace the 0190-76458 power supply harness alongside the signal cable assembly to eliminate intermittent faults caused by aged insulation. The AMAT 0010-series backplane connectors and 0040-series terminal blocks within the same cabinet should be inspected for oxidation and mechanical wear, particularly in high-humidity or cleanroom environments where connector degradation accelerates over multi-year operational cycles.

For systems incorporating SECS/GEM communication protocols, the retrofit plan should also include verification of the AMAT host interface cable assembly connecting the process tool to the fab MES. Any change to the I/O subsystem — including cable replacement — warrants a SECS-II message integrity check to confirm that equipment status reporting and alarm handling remain unaffected after the swap.

Facilities managing multiple chamber configurations on a single Centura mainframe should document the cable routing for each process module individually. The 0150-76458 assembly’s installation in one chamber does not automatically validate its fit in adjacent chambers if different process kits or liner configurations are installed. Each chamber retrofit should be treated as an independent verification task, with continuity testing performed before the chamber is returned to production.

Downtime Control During System Migration

Minimizing unplanned downtime during a cable assembly replacement on an Applied Materials process tool requires a structured pre-swap protocol. Before removing the 0150-76458 or its predecessor 0090-08798 from the system, engineers should capture a full screenshot or export of the current process recipe parameters, alarm history, and I/O diagnostic status from the AMAT system controller. This baseline record ensures that any post-installation deviation in sensor readings or interlock behavior can be traced to the cable swap rather than a pre-existing condition.

The recommended procedure is to perform the replacement during a scheduled preventive maintenance window rather than in response to an active fault. If an emergency replacement is required, the chamber should be vented to atmosphere, RF power and process gas flows confirmed as isolated, and the replacement cable pre-staged and continuity-tested on the bench before entering the tool. This bench verification step — using a standard multimeter to confirm pin-to-pin continuity and absence of cross-talk between adjacent conductors — typically adds less than 15 minutes to the replacement procedure but significantly reduces the risk of a second unplanned outage caused by a defective replacement part.

After installation, the system should be brought up in diagnostic mode before resuming production wafer processing. The AMAT diagnostic software allows engineers to exercise each I/O channel individually, confirming that the new cable assembly is correctly transmitting signals between the process module and the system controller. HMI screen updates — particularly alarm acknowledgment screens and chamber status displays — should be verified to confirm that no communication path has been inadvertently interrupted during the cable routing process. A short qualification run using a dummy wafer or monitor wafer is strongly recommended before returning the chamber to full production, ensuring that process parameters remain within specification and that the retrofit has not introduced any latent signal integrity issues.

Retrofit Support FAQ

Q1: Is the 0150-76458 a direct replacement for 0090-08798 and 6838-H106A without any modification?
Yes. The 0150-76458 is the current active part number that supersedes both 0090-08798 and 6838-H106A. The connector interface and cable routing geometry are matched to the original specification. However, we recommend confirming your chassis revision and process module configuration before installation, as minor mechanical variations exist across different production generations of the Centura and P5000 platforms.

Q2: What commissioning steps are required after installing the 0150-76458?
After installation, perform a visual inspection of connector seating, run a pin-to-pin continuity check, and execute the AMAT I/O diagnostic routine from the system controller. Verify that all chamber interlocks are active and that the HMI displays correct chamber status before initiating a process qualification run. Document the installation date and technician ID for warranty tracking purposes.

Q3: Can this cable assembly be used in both CVD and Etch chamber configurations?
The 0150-76458 is designed for use within the Applied Materials equipment family and its suitability for a specific chamber type depends on the subsystem it serves within your tool configuration. Please provide your tool serial number and process module type when placing your order so our technical team can confirm compatibility with your specific chamber revision.

Q4: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects, connector integrity failures, and insulation breakdown under normal operating conditions. It does not cover damage resulting from improper installation, exposure to process chemistry, or mechanical stress beyond the cable’s rated bend radius. All units are functionally tested prior to shipment. Warranty claims are processed within 5 business days of receipt of the returned item.
