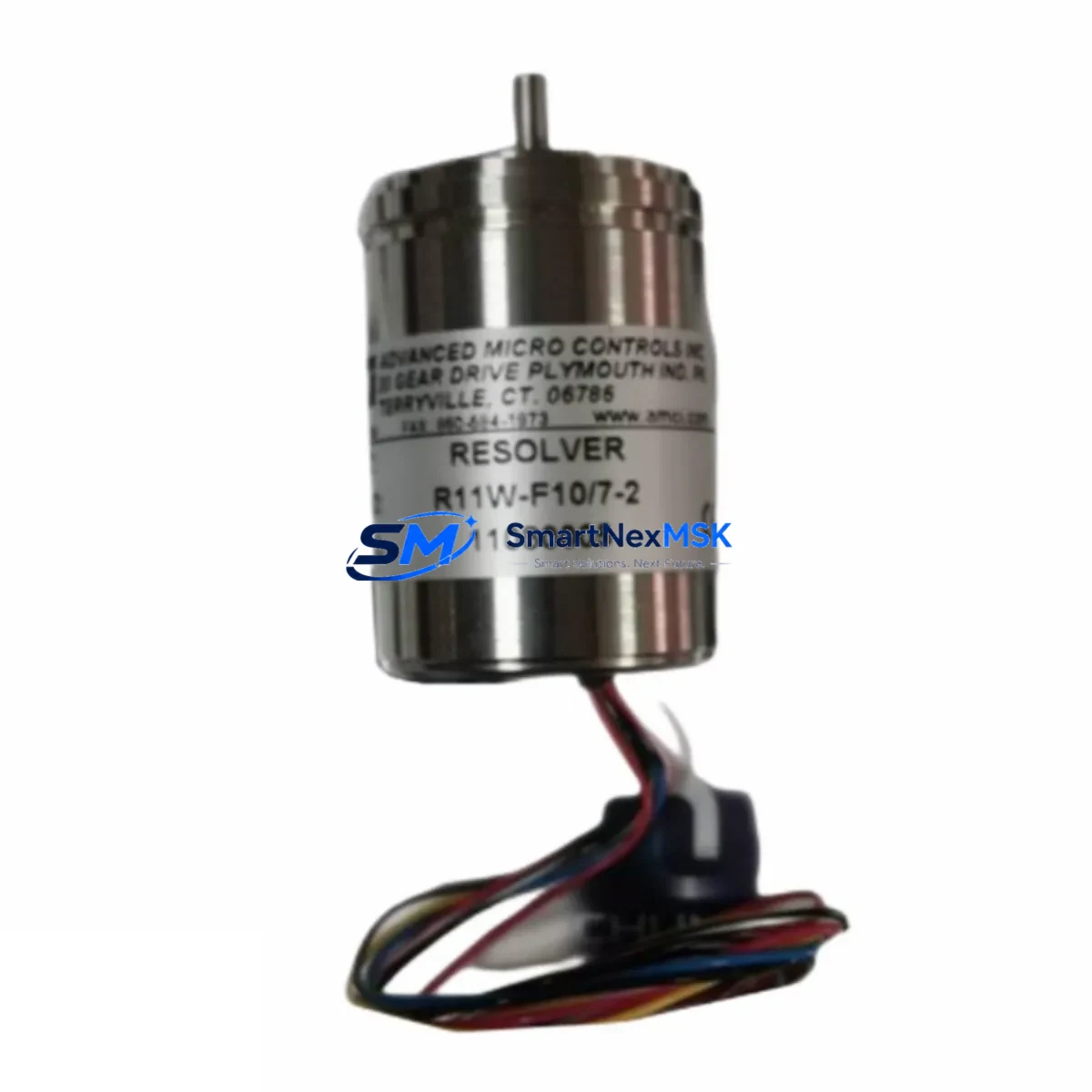

AMC R11W-F10/7-2 Safety-Enhanced Resolver Transformer

AMC R11W-F10/7-2 Safety-Enhanced Resolver Transformer: Reliable Feedback Control for Harsh Industrial Sites

In high-stakes industrial environments — from continuous petrochemical processing lines to high-voltage power generation switchgear rooms — the integrity of position feedback signals is not a convenience; it is a safety imperative. The AMC R11W-F10/7-2 ruggedized resolver transformer is engineered to deliver uncompromising signal fidelity and mechanical resilience in exactly these conditions. Designed for brushless resolver-based servo and CNC feedback architectures, this module ensures that position data transmitted between the resolver stator and the motion controller remains accurate, stable, and immune to the electromagnetic interference, vibration, and thermal cycling that characterize demanding industrial sites.

Signal drift in a resolver feedback loop can cascade into axis runaway, uncontrolled actuator movement, or emergency shutdown of an entire production cell. The R11W-F10/7-2 addresses this risk at the hardware level. Its precision-wound transformer core maintains tight transformation ratio accuracy across the full operating temperature range, preventing the incremental signal degradation that plagues lower-grade components in foundry, mining, or heavy press environments. When paired with AMC servo drives and compatible motion controllers, this resolver transformer forms the backbone of a closed-loop position control system that operators can trust through multi-shift, 24/7 production cycles.

Safety Reliability Table

Control Cabinet Protection Strategy

A resolver transformer does not operate in isolation — it is one node in a tightly coupled safety and control architecture. In a typical servo-driven production line, the R11W-F10/7-2 interfaces directly with the AMC servo amplifier (such as the AMC DZEANTU-020B080 or equivalent digital drive) to close the position loop. Upstream, a 24 VDC regulated power supply module — ideally with active surge suppression — provides the excitation voltage to the resolver stator winding. Any ripple or transient on this supply line will appear as noise on the feedback signal; a high-quality DIN-rail power supply with <1% ripple is therefore a non-negotiable companion component.

Within the control cabinet, the resolver cable harness should be routed away from high-current motor power cables. Ferrite core suppressors and shielded twisted-pair resolver cables (such as those conforming to Belden or equivalent industrial cable standards) are recommended to maintain the signal-to-noise ratio that the R11W-F10/7-2’s precision core is designed to deliver. Where the control cabinet also houses a Siemens SINAMICS or Allen-Bradley Kinetix servo drive in a mixed-vendor architecture, the resolver transformer acts as the galvanic isolation barrier that prevents ground loop currents from corrupting position data.

For applications requiring functional safety compliance (SIL 2 or PLd), the resolver feedback chain — including this transformer module — should be validated alongside a safety relay module (e.g., Pilz PNOZ or Schmersal SRB series) and a safety PLC such as the Siemens S7-1500F or Rockwell GuardLogix. The R11W-F10/7-2 provides the analog position feedback layer; the safety controller monitors for plausibility errors and triggers a safe-state output if signal deviation exceeds defined thresholds. In critical interlock circuits — such as those protecting press brakes, robotic welding cells, or high-speed packaging lines — this layered approach is essential.

Surge protection at the cabinet entry point, using a Phoenix Contact or Weidmüller surge protection device (SPD) rated for the resolver signal voltage range, further shields the transformer from transient overvoltages caused by nearby motor switching or lightning-induced surges on cable runs exceeding 30 meters. Combining the R11W-F10/7-2 with a resolver-to-digital converter (RDC) module — such as the Analog Devices AD2S1210 or equivalent — completes the feedback chain and enables direct digital position output to the motion controller without additional signal conditioning.

Critical Industrial Safety Applications

The AMC R11W-F10/7-2 has proven its reliability across the most demanding sectors of heavy industry. In petrochemical and refinery environments, where continuous rotation of pump and compressor drives must be monitored without interruption, resolver-based feedback is preferred over optical encoders precisely because resolvers contain no optical components susceptible to contamination by oil mist, hydrogen sulfide, or process vapors. The R11W-F10/7-2’s sealed construction and wide temperature tolerance make it suitable for Zone 2 classified areas when installed within an appropriate Ex-rated enclosure.

In electric power generation and grid infrastructure, turbine governor control systems and excitation regulators rely on precise shaft position feedback to maintain synchronization and prevent runaway conditions. A resolver transformer failure in this context can trigger a full unit trip, with significant economic and grid-stability consequences. The R11W-F10/7-2’s robust construction and pre-shipment signal verification testing provide the confidence margin that power plant maintenance engineers require when selecting replacement components for critical rotating machinery.

Mining and mineral processing sites subject control electronics to extreme vibration from crushers, conveyors, and haul-road traffic. Resolver transformers in these environments must maintain their winding integrity and core alignment under continuous mechanical stress. The R11W-F10/7-2’s ruggedized housing and potted construction resist the micro-vibration fatigue that causes premature failure in standard-grade components, reducing unplanned downtime on ore processing lines where every hour of stoppage carries significant cost.

In water and wastewater treatment facilities, variable-speed pump drives controlled by servo or vector drive systems use resolver feedback to optimize flow rates and pressure. The high-humidity, chemically aggressive atmosphere of a treatment plant demands components with superior corrosion resistance and sealed construction — characteristics the R11W-F10/7-2 delivers as standard. Similarly, in metallurgical and steel mill applications — rolling mills, continuous casters, and ladle turrets — the combination of high ambient temperature, electromagnetic interference from arc furnaces, and the safety-critical nature of molten metal handling makes a reliable resolver transformer an essential component of the drive system’s safety architecture.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the AMC R11W-F10/7-2?
The 12-month warranty covers all manufacturing defects, winding integrity failures, and signal accuracy deviations attributable to component or assembly quality. It does not cover damage resulting from incorrect installation, overvoltage beyond rated limits, or physical impact. Warranty claims are processed with priority turnaround to minimize site downtime.

Q2: What pre-shipment testing is performed on each unit?
Every AMC R11W-F10/7-2 unit undergoes full electrical verification prior to dispatch, including transformation ratio measurement, insulation resistance testing, and signal output waveform inspection. Units that do not meet specification are quarantined and not shipped. A test record is available upon request for critical applications requiring traceability documentation.

Q3: Is the R11W-F10/7-2 compatible with non-AMC servo drives and motion controllers?
Yes. The R11W-F10/7-2 is compatible with any servo drive or motion controller that accepts a standard brushless resolver input with the corresponding transformation ratio (F10, 7-2 winding). This includes drives from Siemens, Rockwell Automation, Yaskawa, Mitsubishi, and other major manufacturers. Confirm the resolver input specification of your drive before installation.

Q4: Can long-term supply continuity be guaranteed for maintenance and spare parts planning?
Yes. SMARTNEXMSK maintains buffer stock of the AMC R11W-F10/7-2 to support planned maintenance schedules, emergency replacements, and multi-unit project requirements. For facilities operating critical continuous processes, we recommend establishing a consignment or scheduled replenishment agreement to ensure spare availability without lead-time risk. Contact our technical sales team to discuss long-term supply arrangements.
