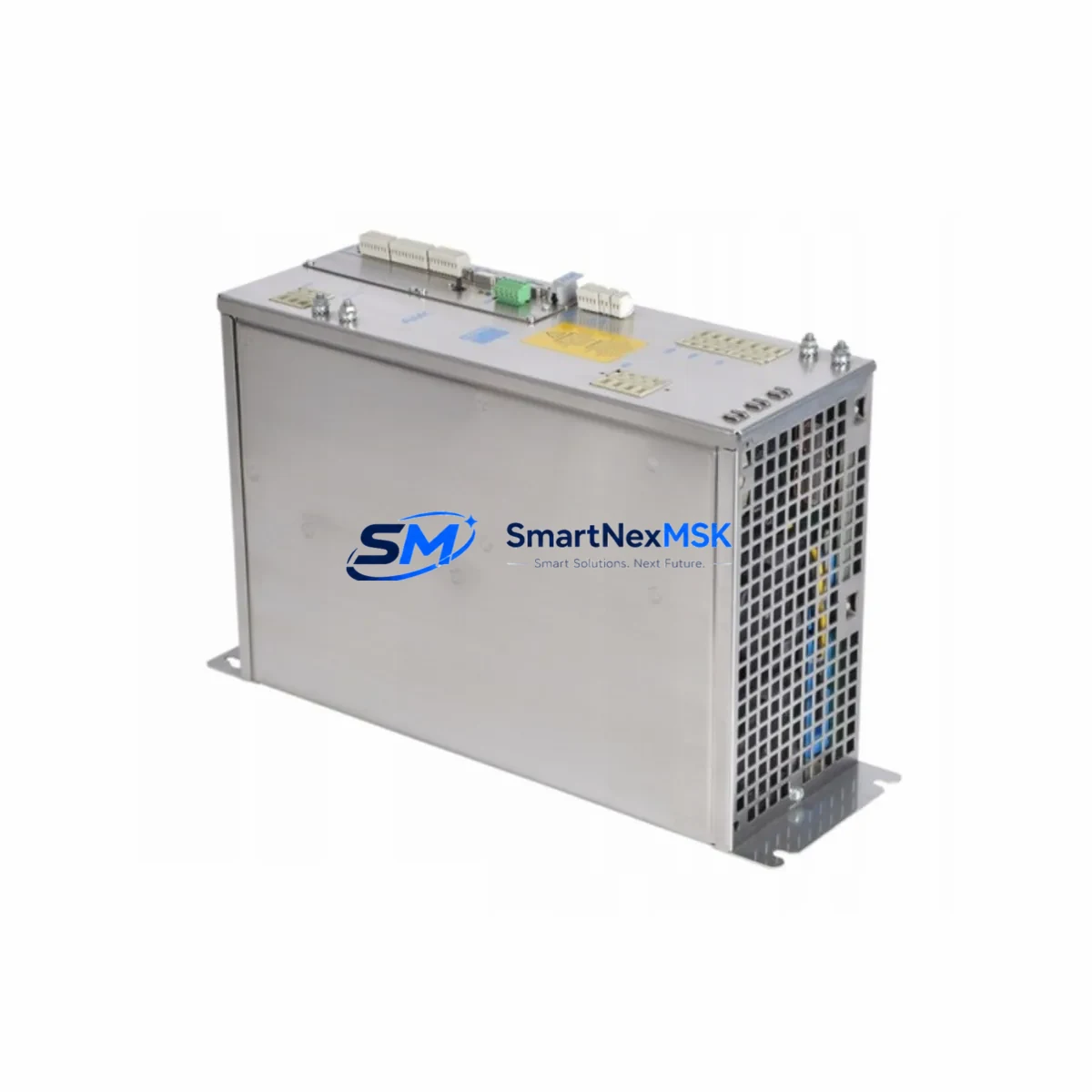

AMKASYN AMK KU14 Retrofit-Ready Servo Drive Axis Module

AMKASYN AMK KU14: Retrofit-Ready Servo Drive Axis Module for AMK Decentralized Control Systems

The AMKASYN AMK KU14 is a servo drive axis module engineered for seamless integration into AMK decentralized multi-axis control architectures. As legacy AMK servo systems approach end-of-life or face discontinued spare parts availability, the AMK KU14 provides a verified, drop-in retrofit solution that preserves existing wiring infrastructure, backplane connections, and motion program logic — minimizing both engineering rework and production downtime.

Whether you are replacing a failed axis module in a running production line, upgrading a multi-axis gantry system, or migrating from an older AMK AMKASYN generation to a current-generation platform, the KU14 is designed to restore full servo axis functionality without requiring a complete control cabinet redesign.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful retrofit of the AMK KU14 into an existing control system requires a structured approach that accounts for the full scope of the drive system architecture. In a typical AMK decentralized installation, the KU14 axis module operates alongside a shared DC bus power supply — commonly an AMK KE power supply module or AMK KW regenerative supply — which feeds multiple axis modules mounted on the same backplane or rack assembly. Before swapping the KU14, engineers should verify that the existing power supply has sufficient current capacity to support the axis load, particularly if the replacement module is being installed in a system that has been expanded since original commissioning.

Terminal wiring for the motor power output, brake control, and encoder feedback must be carefully documented before removal of the failed unit. The KU14 uses a standard AMK terminal layout, but connector pinouts should be cross-referenced against the original wiring diagram, especially in installations where field modifications may have been made. The AMK KU14 supports resolver and incremental encoder feedback; confirm the feedback device type on the connected servo motor — such as an AMK DT or DS series servo motor — before configuring drive parameters.

Backplane slot addressing is a critical step often overlooked during emergency replacements. Each axis module in an AMK multi-axis system is assigned a logical axis address that corresponds to its physical slot position on the rack. If the replacement KU14 is installed in a different slot than the original, the axis address must be reconfigured in the motion controller — typically an AMK AMKAMAC controller or a third-party PLC communicating via SERCOS or CANopen. Failure to match the axis address will result in communication faults and prevent the drive from being recognized by the controller.

For systems using an AMK AML communication module or AMK BUS coupler to bridge fieldbus protocols, verify that the communication link between the controller and the KU14 is re-established after module replacement. In SERCOS-based topologies, the fiber optic ring must be intact and the drive must be assigned the correct SERCOS address before the controller can initialize the axis. In CANopen installations, the node ID and baud rate must match the controller configuration.

I/O expansion modules — such as AMK AIO or AMK DIO digital I/O modules — mounted adjacent to the KU14 on the same rack should be inspected for any shared power or signal connections that may be affected during the swap. In some installations, the axis module provides 24 VDC logic power to neighboring I/O modules through the backplane; confirm that logic power is maintained during the replacement procedure to avoid unintended I/O state changes on the production floor.

If the system includes an AMK HMI panel or a third-party operator interface connected to the AMK controller, verify that axis status displays, alarm screens, and motion sequences referencing the replaced axis are functioning correctly after commissioning. HMI screen tags linked to axis-specific drive parameters may require re-mapping if the axis address or drive configuration has changed.

Programming cable access — via AMK AIPEX Pro software and a standard USB or Ethernet programming interface — is required to upload and verify drive parameters, set axis limits, configure encoder resolution, and perform a test run before returning the machine to production. Always retain a backup of the original drive parameter set before making any configuration changes.

Downtime Control During System Migration

Minimizing unplanned downtime during an AMK KU14 replacement requires preparation before the machine is taken offline. The most effective approach is to pre-configure the replacement module off-line using a laptop running AMK AIPEX Pro, loading the backed-up parameter file from the original drive before installation. This eliminates the need for on-site parameter entry and reduces commissioning time to a final verification run.

Where possible, schedule the replacement during a planned maintenance window rather than responding reactively to a drive failure. Pre-stage all required tools, wiring documentation, and the replacement KU14 module at the machine location before shutdown. Photograph or label all terminal connections before disconnecting the failed unit to ensure accurate rewiring.

After physical installation, power up the system in a controlled sequence: confirm DC bus voltage is within specification before enabling the axis, check for any communication faults on the controller, and perform a slow-speed jog test before returning the axis to full production speed. Retain the original program backup and parameter file throughout the process to allow rapid rollback if unexpected behavior is observed. With proper preparation, a KU14 axis module replacement can typically be completed within a single shift, preserving production continuity and protecting the integrity of the existing motion control program.

Retrofit Support FAQ

Q1: Is the AMK KU14 a direct drop-in replacement for my existing axis module?
In most AMK decentralized system configurations, the KU14 is a direct mechanical and electrical replacement. However, firmware revision and hardware variant should be confirmed against the original module’s nameplate data before installation. Contact our technical team with your original module serial number for a compatibility check.

Q2: What commissioning steps are required after installing the KU14?
At minimum, verify the axis address, encoder feedback type, motor rated current, and velocity/position limits using AMK AIPEX Pro or equivalent software. Restore the parameter backup from the original drive, perform a no-load jog test, and confirm communication with the motion controller before resuming production.

Q3: How do I verify wiring compatibility between the KU14 and my existing motor and encoder cables?
Cross-reference the KU14 terminal layout with your original wiring diagram. Pay particular attention to the motor power connector pinout, brake control terminals, and encoder feedback connector. If the original wiring diagram is unavailable, our team can provide terminal assignment documentation for the KU14 based on your system configuration.

Q4: What does the 12-month warranty cover?
All AMK KU14 units supplied by SMARTNEXMSK are functionally tested prior to shipment and covered by a 12-month warranty against manufacturing defects and functional failure under normal operating conditions. Warranty claims are supported by our technical team with replacement or repair turnaround within agreed lead times.
