Applied Materials 0200-09429 Retrofit-Ready AL2O3 Window for BWCVD Systems

Applied Materials 0200-09429 Retrofit-Ready AL2O3 Window for BWCVD Systems: Compatible Upgrade for Legacy CVD Chamber Platforms

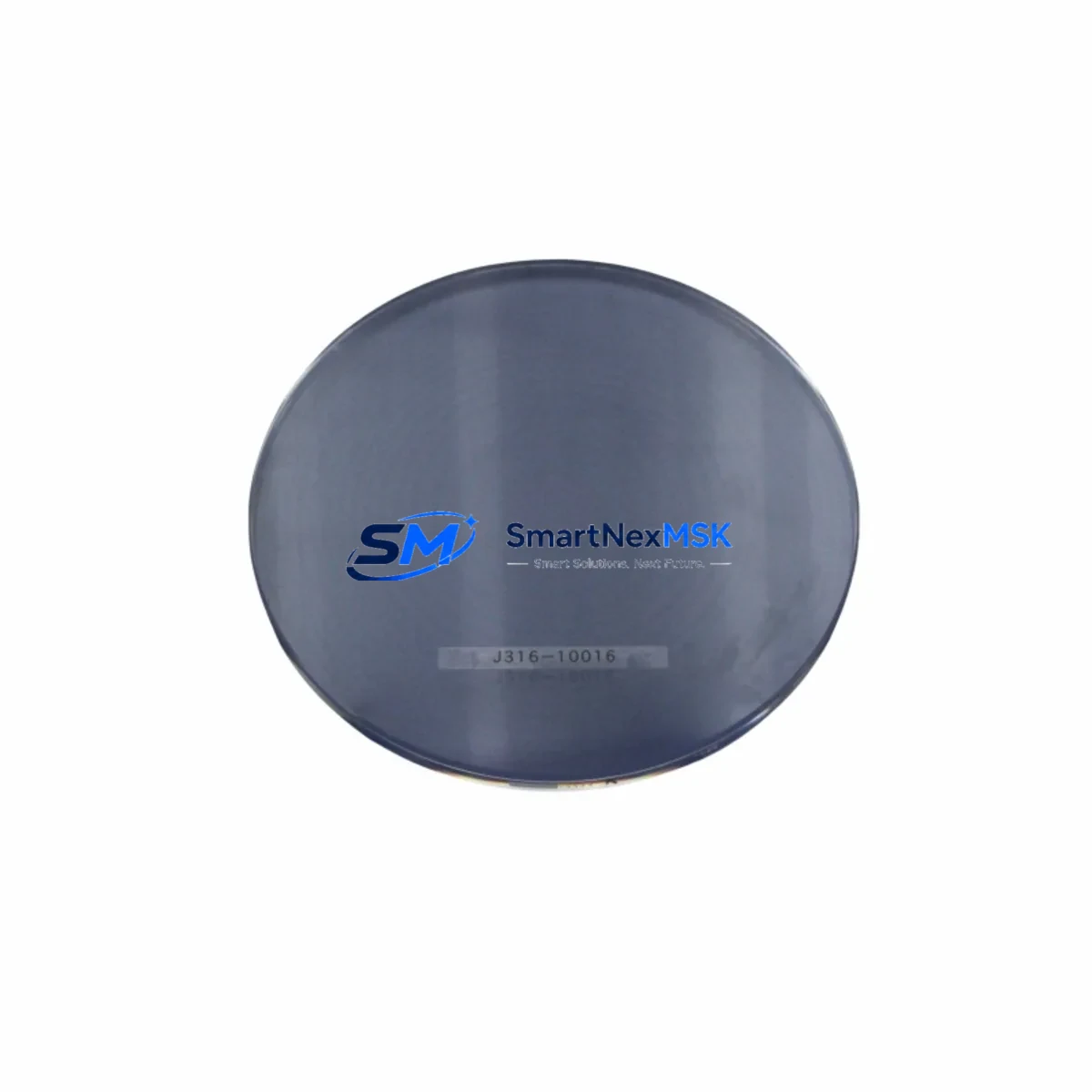

The Applied Materials 0200-09429 AL2O3 BWCVD optical window is a precision-engineered alumina viewport component designed for direct retrofit into Applied Materials blanket tungsten CVD (BWCVD) chamber assemblies. As semiconductor fabs continue to operate legacy CVD platforms well beyond their original design lifecycle, sourcing verified replacement windows for discontinued or end-of-life chamber configurations has become a critical operational challenge. This component — SKU AL203 0200-09429 V10PFT03DX2 853-200977-002 — is stocked and tested to serve as a reliable, drop-in upgrade solution for facilities managing aging BWCVD process modules.

Whether your facility is executing a planned chamber refurbishment, responding to an unscheduled viewport failure, or upgrading a legacy process module to extend its productive service life, the 0200-09429 window provides the dimensional accuracy, material purity, and vacuum-integrity characteristics required for stable BWCVD deposition performance. Each unit ships with a 12-month warranty covering material and workmanship defects.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing the 0200-09429 optical window is typically one step within a broader BWCVD chamber preventive maintenance (PM) or corrective maintenance (CM) event. Facilities planning a full chamber refurbishment should coordinate the window replacement alongside related consumable and wear-part replacements to minimize total downtime exposure.

During a typical BWCVD chamber PM cycle, engineers commonly address the chamber body O-rings and lid seal kits (Applied Materials 0200-series elastomer kits), the showerhead assembly (Applied Materials 0010-09429 or equivalent showerhead for the BWCVD module), and the susceptor or heater assembly if thermal uniformity data indicates degradation. The chamber liner and shadow ring — both alumina-based components similar in material to the 0200-09429 window — are often replaced in the same maintenance window to avoid repeat chamber openings.

For facilities running Applied Materials Centura or Endura platform mainframes, the BWCVD process module interfaces with the mainframe transfer chamber via a slit valve and robot blade assembly. If the viewport replacement is being performed as part of a broader module swap or chamber relocation, engineers should verify the slit valve door seal (Applied Materials 0200-series slit valve O-ring kit) and confirm that the transfer robot blade clearance is within specification after module reinstallation.

Process engineers should also review the chamber’s RF match network and generator interlock settings before resuming deposition. The Applied Materials RF match controller and the associated process kit — including the RF window gasket and the chamber ground strap — should be inspected for continuity and mechanical integrity. In chambers where the optical window is used for endpoint detection or OES (optical emission spectroscopy) monitoring, the fiber optic cable routing and the OES spectrometer alignment should be verified after window replacement to ensure signal integrity is maintained.

For facilities integrating this replacement into a broader controls modernization effort — such as migrating from legacy Applied Materials process controllers to updated recipe management systems — the window replacement itself requires no software changes. However, if the chamber is being re-qualified after a major PM, updated process recipes and baseline qualification wafers (typically bare silicon or oxide monitor wafers) will be required to re-establish process control limits.

Downtime Control During System Migration

Unplanned viewport failures in BWCVD chambers can result in immediate chamber venting and process interruption. To minimize mean time to recovery (MTTR), facilities are advised to maintain at least one spare 0200-09429 window in on-site inventory, particularly for high-utilization chambers running continuous production schedules.

When planning a scheduled replacement, the following sequence is recommended to protect original process logic and maintain field control continuity:

1. Pre-maintenance data capture: Before opening the chamber, download and archive the current process recipe set from the Applied Materials process controller. Capture the current chamber baseline data — including leak-up rate, RF reflected power baseline, and deposition rate history — to serve as the post-PM qualification benchmark.

2. Controlled venting and purge: Follow the OEM-specified N₂ purge and vent sequence to bring the chamber to atmosphere safely. Avoid rapid venting, which can disturb deposited films on internal surfaces and generate particulate contamination.

3. Window removal and inspection: Remove the existing 0200-09429 window and inspect the flange seating surface for scoring, deposition buildup, or O-ring groove damage. Clean the seating surface with IPA and lint-free wipes before installing the replacement unit.

4. Installation and leak check: Install the new window, torque flange hardware to OEM specification, and perform a chamber leak-up rate test. A passing leak-up rate (typically <5 mTorr/min for BWCVD chambers) confirms vacuum integrity before pump-down.

5. Process qualification: Run the standard chamber qualification sequence — including a seasoning deposition run and a monitor wafer deposition — before returning the chamber to production. Compare post-PM baseline data against pre-PM records to confirm process stability.

By following this structured replacement sequence, facilities can typically complete a viewport replacement and return the chamber to qualified production status within a single 8-hour maintenance shift, minimizing the impact on fab throughput.

Retrofit Support FAQ

Q1: Is the 0200-09429 a direct drop-in replacement for the original Applied Materials part, or are modifications required?
The 0200-09429 window supplied by SMARTNEXMSK is manufactured to match the OEM dimensional and material specifications. It is designed as a direct drop-in replacement requiring no machining, drilling, or flange modification. Standard OEM O-rings and hardware are compatible.

Q2: How do I verify compatibility with my specific BWCVD chamber configuration before ordering?
Compatibility can be confirmed by cross-referencing the part number 0200-09429 against your chamber’s BOM (bill of materials) or PM kit documentation. If you have the chamber serial number or process module configuration code, our technical team can verify compatibility before shipment. Contact sales@smartnexmsk.com with your chamber details.

Q3: What pre-shipment testing is performed on each unit?
Each 0200-09429 window undergoes dimensional inspection and visual inspection for surface defects, chips, or inclusions prior to packaging. Units are individually packaged in cleanroom-compatible materials to prevent contamination during transit. A certificate of conformance is available upon request.

Q4: What does the 12-month warranty cover, and what is the RMA process?
The 12-month warranty covers manufacturing defects in material and workmanship under normal operating conditions. It does not cover damage resulting from improper installation, chemical exposure beyond rated parameters, or physical impact. To initiate a warranty claim, contact sales@smartnexmsk.com with your order number, a description of the defect, and photographic documentation. Our team will respond within 2 business days with RMA instructions.
