AREVA MVAJ101RA0802A Maintenance-Ready Spare MVAJ Automation

AREVA MVAJ101RA0802A Maintenance-Ready Spare MVAJ Automation

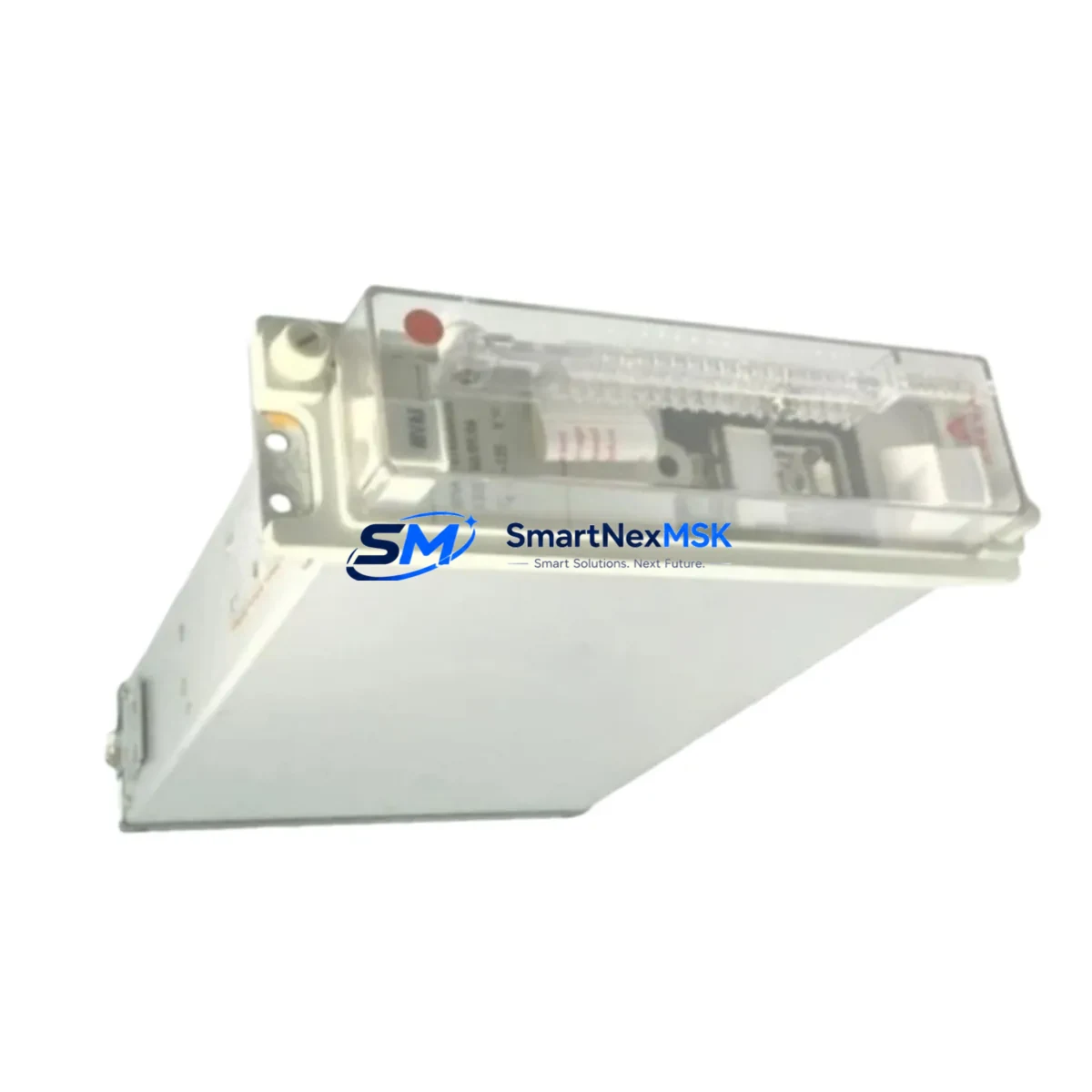

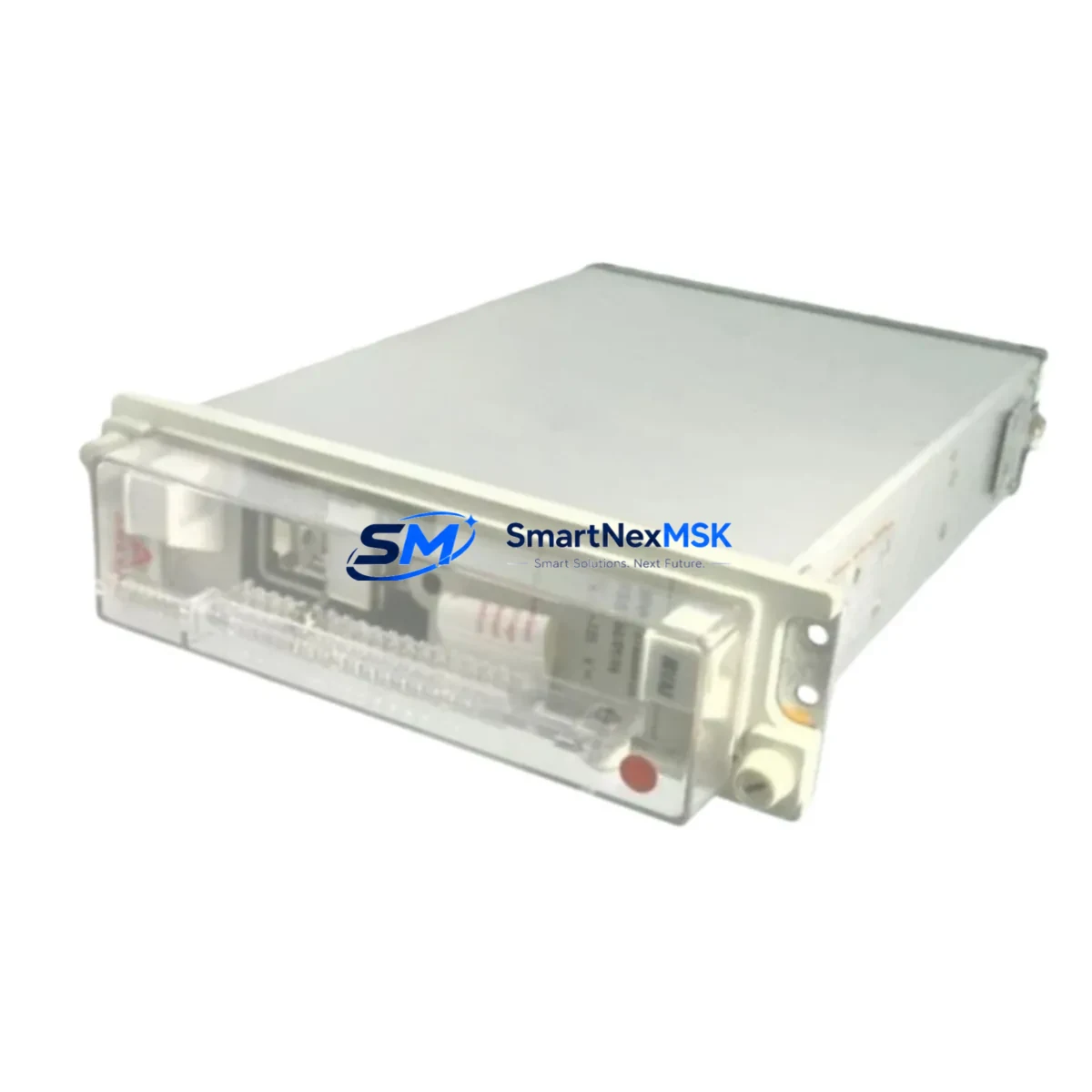

The AREVA MVAJ101RA0802A is an original auxiliary tripping relay from the MVAJ Series, engineered for high-reliability protection and control applications in industrial power systems, substations, and legacy automation panels. Designed to interface directly with AREVA/Alstom protection relays and trip circuits, this module delivers dependable auxiliary switching performance in demanding environments where unplanned downtime carries significant operational and financial risk.

For maintenance engineers managing aging protection systems, sourcing a verified original spare for the MVAJ101RA0802A is a critical step in any planned or emergency maintenance cycle. This unit ships fully tested, with configuration verified against factory specifications, and is backed by a 12-month warranty covering defects in materials and workmanship. Each unit undergoes pre-shipment functional verification to confirm coil pickup voltage, contact resistance, and output switching integrity before dispatch.

Whether you are executing a scheduled panel overhaul, responding to a protection relay trip failure, or building a strategic spare parts inventory for a substation or industrial control room, the MVAJ101RA0802A provides a direct, compatible replacement that minimizes re-engineering effort and restores system protection margins quickly.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the MVAJ101RA0802A in a protection panel or substation relay cubicle, a thorough maintenance review of the surrounding circuit is essential to prevent repeat failures and ensure the restored system meets its original protection coordination design. Maintenance engineers should treat this replacement as an opportunity to inspect the full trip circuit integrity.

Begin by verifying the auxiliary DC supply module feeding the relay coil — a degraded or under-voltage DC supply is a common root cause of auxiliary relay malfunction. Check the trip circuit supervision relay (such as the AREVA MVTU or equivalent) to confirm the trip circuit remains healthy before and after the MVAJ101RA0802A is reinstalled. Inspect all terminal blocks and wiring ferrules in the relay panel for signs of oxidation, loose connections, or thermal discoloration, particularly on the trip output wiring to circuit breaker shunt trip coils.

Review the condition of associated AREVA MiCOM P series protection relays (e.g., MiCOM P122, P123, P141, P142) that feed binary output signals into the MVAJ101RA0802A inputs. A protection relay with degraded output relay contacts can cause intermittent auxiliary relay operation. Similarly, inspect any AREVA MVTT time-delay auxiliary relays in the same panel that operate in sequence with the MVAJ, as timing coordination depends on both units functioning within specification.

For panels incorporating AREVA MCGG or MCAG overcurrent relays, verify that the electromechanical contact outputs remain within rated burden for the MVAJ coil. Where signal isolators or interposing relays are used between the protection relay output and the MVAJ input, check isolator output voltage levels and contact ratings. Inspect miniature circuit breakers (MCBs) and fuse links protecting the DC auxiliary circuits — a marginally rated or aging fuse can cause nuisance trips or failure to trip under fault conditions.

If the panel includes a SCADA or RTU interface, confirm that the MVAJ output contacts feeding remote indication or alarm circuits are correctly mapped and that the RTU input card registers the correct state after replacement. For older installations using hardwired annunciator systems, test each output contact individually before returning the panel to service. Where HMI panels or local operator interfaces display relay status, verify that the status indication updates correctly following the replacement.

Building a structured spare parts inventory that includes the MVAJ101RA0802A alongside compatible MVTT, MVTU, and MiCOM P-series modules significantly reduces mean time to repair (MTTR) for protection system faults. A well-maintained spare parts register, reviewed annually against installed base, is the most effective strategy for managing aging AREVA protection systems through their extended service life.

Site Replacement Workflow

Step 1 — Isolation and Permit to Work: Obtain a valid Permit to Work (PTW) for the protection panel. Isolate the auxiliary DC supply to the relay panel section. Confirm isolation with a calibrated voltage tester on the relay coil terminals before proceeding.

Step 2 — Record Existing Configuration: Photograph or document all wiring connections, terminal assignments, and any link/jumper settings on the existing MVAJ101RA0802A. Note the relay’s current position in the panel and its label/tag number for asset management records.

Step 3 — Remove the Faulty Unit: Disconnect all wiring from the relay terminals in a systematic sequence. Remove the relay from its mounting. Retain the faulty unit for failure analysis if required by your maintenance management system.

Step 4 — Inspect and Prepare the Replacement: Verify the replacement MVAJ101RA0802A part number matches the removed unit exactly. Confirm auxiliary voltage rating compatibility with the panel DC supply. Check that the replacement unit has passed pre-shipment testing (test certificate or label should be present).

Step 5 — Install and Wire: Mount the replacement relay. Reconnect all wiring per the documented terminal assignments. Verify ferrule labels and wire routing match the original configuration. Torque all terminal screws to specification.

Step 6 — Functional Test: Restore auxiliary DC supply. Apply a test signal to each input and verify the corresponding output contact operates correctly. Confirm trip circuit supervision relay (if fitted) shows healthy status. Test the full trip circuit end-to-end if site conditions permit.

Step 7 — Return to Service: Update the maintenance management system (CMMS) with the replacement record, new serial number, and test results. Cancel the PTW and return the panel to normal service. Schedule a follow-up inspection at the next planned maintenance interval.

Spare Parts Support FAQ

Q1: Is the MVAJ101RA0802A a direct replacement for older MVAJ variants in the same panel?
The MVAJ101RA0802A is designed as a direct form-fit-function replacement within the MVAJ Series. However, always verify the auxiliary voltage rating, input count (8 inputs), and output count (2 outputs) match the original unit’s nameplate before installation. Minor sub-variant differences in coil voltage or contact configuration can exist within the MVAJ range.

Q2: What does the 12-month warranty cover, and how is a warranty claim processed?
The 12-month warranty covers manufacturing defects, coil winding failures, contact welding or failure to make/break, and PCB faults where applicable. To initiate a warranty claim, contact sales@smartnexmsk.com with the order reference, unit serial number, and a description of the fault. Replacement or repair will be arranged promptly, typically within 5–10 business days depending on logistics.

Q3: How do you verify compatibility before shipment for legacy AREVA protection systems?
Each MVAJ101RA0802A unit is cross-referenced against the original AREVA product documentation and, where available, customer-supplied panel drawings or relay schedules. Pre-shipment testing confirms coil pickup voltage, contact resistance, and output switching performance. Customers are encouraged to provide their panel’s DC auxiliary voltage and any specific application requirements at the time of order to enable targeted compatibility verification.

Q4: What is the recommended spare parts strategy for sites with multiple AREVA MVAJ relays installed?
For sites with 5 or more MVAJ relays installed, maintaining a minimum of one MVAJ101RA0802A spare per 10 installed units is recommended as a baseline inventory strategy. For critical protection applications (e.g., generator protection, transformer differential, busbar protection), consider holding one spare per critical panel. Annual review of installed base against spare stock, combined with condition monitoring during routine inspections, provides the most cost-effective approach to spare parts lifecycle management.
