ASCO EF8320G184 Safety-Enhanced Solenoid Valve Harsh Sites

ASCO EF8320G184 Safety-Enhanced Solenoid Valve for Harsh Industrial Sites

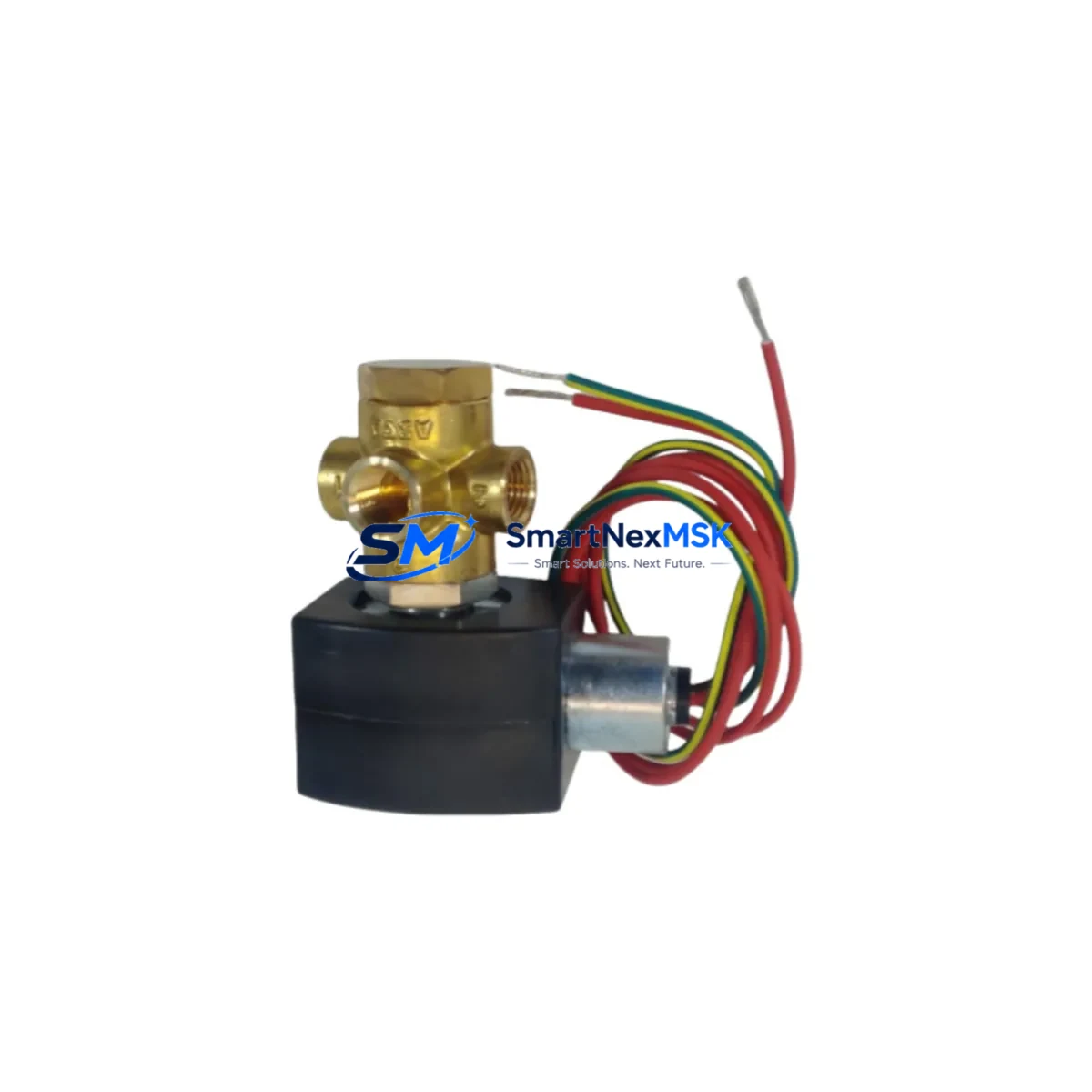

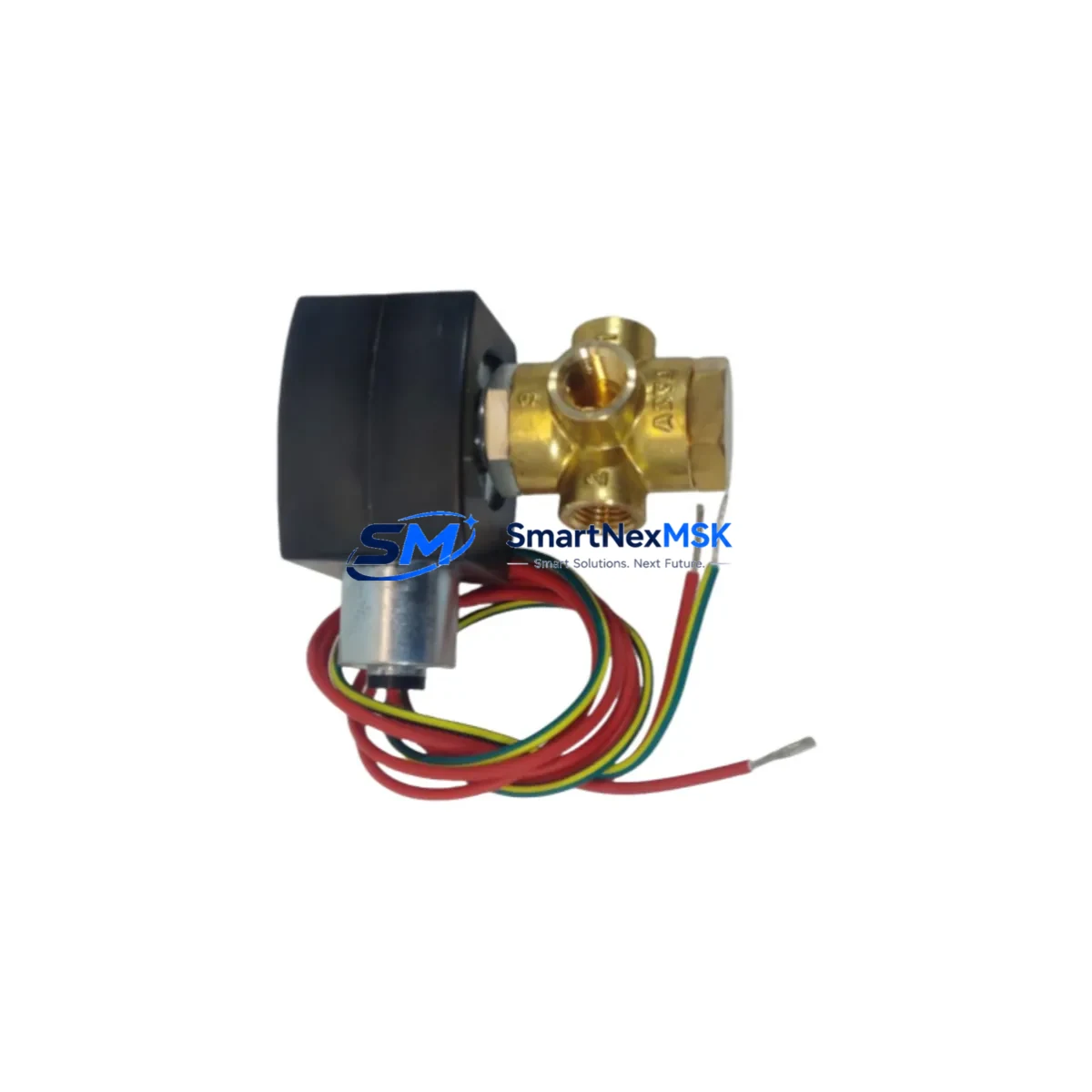

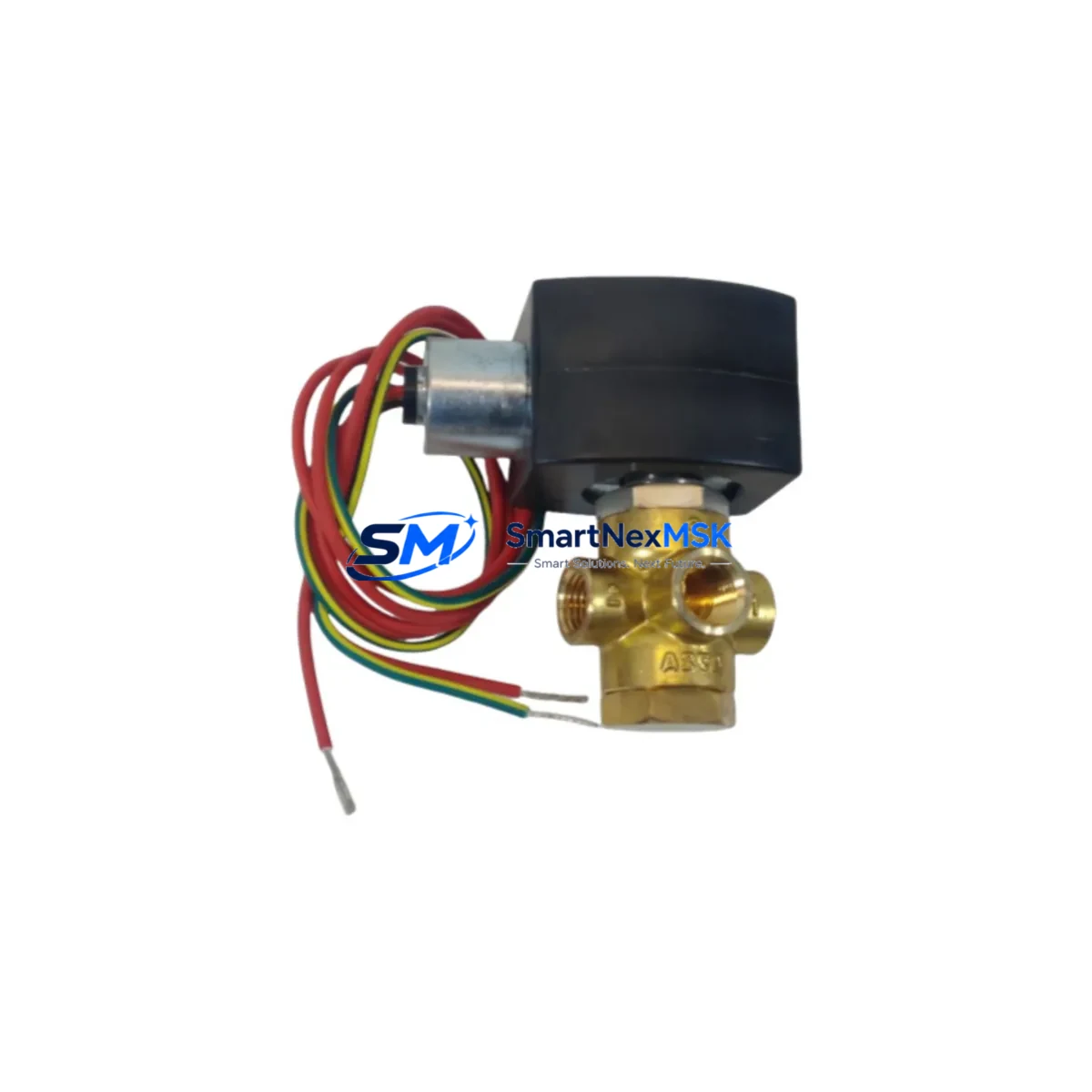

The ASCO EF8320G184 is a ruggedized 2-Way Normally Closed (NC) solenoid valve from ASCO’s proven 8320 Series, engineered specifically for continuous-duty industrial control systems operating in high-load, high-interference, and safety-critical environments. Designed to meet the demanding requirements of petrochemical plants, power generation facilities, mining operations, water treatment stations, metallurgical complexes, port logistics systems, and continuous manufacturing lines, this valve delivers the control reliability and field durability that modern industrial safety architectures demand.

In harsh industrial environments — where electromagnetic interference, voltage surges, extreme temperatures, corrosive media, and mechanical vibration are daily realities — the integrity of every fluid control component directly impacts process safety. The EF8320G184 addresses these challenges through its robust stainless steel body construction, IP65-rated enclosure, and ASCO’s field-proven solenoid coil technology, which maintains stable actuation performance even under sustained electrical noise and power fluctuation conditions common in heavy industrial control cabinets.

Safety Reliability Table

Control Cabinet Protection Strategy

In a well-engineered industrial control cabinet, the ASCO EF8320G184 solenoid valve does not operate in isolation — it functions as a critical node within a layered protection architecture. When integrated alongside an ASCO 8551 Series pilot valve for pneumatic signal amplification, the EF8320G184 ensures that downstream actuators receive clean, surge-free switching commands even when upstream PLC output modules experience transient disturbances.

For power conditioning and coil protection, pairing the EF8320G184 with a Phoenix Contact QUINT-PS/1AC/24DC/10 power supply and an ASCO surge suppressor module eliminates the risk of coil burnout caused by voltage spikes on shared 24VDC or 120VAC bus lines — a common failure mode in facilities running large motor drives or welding equipment nearby. The DIN 43650 connector interface of the EF8320G184 is fully compatible with standard Weidmüller or Phoenix Contact terminal block assemblies, simplifying cabinet wiring and reducing connection resistance that could otherwise cause intermittent solenoid actuation.

In safety interlock circuits, the EF8320G184 is frequently deployed in series with Pilz PNOZ safety relay modules or Rockwell Allen-Bradley GuardLogix safety PLCs, where its fast de-energize response time (≤40 ms) is essential for achieving the required SIL 2 process shutdown timing. The valve’s IP65 enclosure rating also makes it suitable for installation in Rittal AX or TS 8 series stainless steel enclosures used in washdown or chemically aggressive environments, without requiring additional protective housing.

For communication-layer protection in distributed control architectures, the EF8320G184 is commonly used alongside Siemens ET 200SP distributed I/O modules or Emerson DeltaV SIS logic solvers, where the valve’s deterministic switching behavior supports reliable fieldbus-triggered safety actions over PROFIBUS DP or HART-enabled networks. When combined with an ASCO 503 Series manual override valve for maintenance bypass capability, the overall control loop maintains operational continuity during scheduled inspection without requiring full system shutdown.

Critical Industrial Safety Applications

Petrochemical & Refinery Plants: The EF8320G184 is widely deployed in emergency shutdown (ESD) systems and process isolation circuits at petroleum refineries and chemical processing facilities. Its stainless steel body resists corrosive hydrocarbon vapors and aggressive cleaning agents, while its NC fail-safe configuration ensures automatic process isolation upon power loss — a fundamental requirement for SIL-rated safety instrumented systems (SIS).

Power Generation Facilities: In coal-fired, gas turbine, and nuclear auxiliary systems, the EF8320G184 controls cooling water, instrument air, and fuel gas pilot lines where control interruption could trigger turbine trips or boiler shutdowns. Its Class F coil insulation and continuous-duty rating make it suitable for the elevated ambient temperatures found in turbine halls and boiler rooms.

Mining & Mineral Processing: Underground and surface mining operations subject solenoid valves to extreme dust loading, mechanical shock, and wide temperature swings. The EF8320G184’s IP65 protection and robust stainless steel construction allow it to maintain reliable operation in ore crushing circuits, slurry pump control systems, and ventilation damper actuators without frequent replacement.

Water & Wastewater Treatment: Municipal and industrial water treatment plants rely on the EF8320G184 for chemical dosing control, filter backwash sequencing, and UV disinfection system isolation. Its compatibility with water and inert gas media, combined with its corrosion-resistant body, ensures long service life in continuously wet or chemically dosed environments.

Metallurgy & Steel Production: In electric arc furnace (EAF) cooling circuits, continuous casting machine hydraulics, and rolling mill lubrication systems, the EF8320G184 provides the fast, repeatable switching response required to protect high-value equipment from thermal overload and hydraulic pressure excursions.

Port & Heavy Logistics: Container crane hydraulic systems, ship-to-shore loader controls, and bulk material handling conveyors operate in salt-laden, high-humidity coastal environments. The EF8320G184’s sealed construction and corrosion-resistant materials make it a preferred choice for port automation engineers seeking long mean-time-between-failure (MTBF) performance.

Safety and Quality FAQ

Q1: What warranty does the ASCO EF8320G184 carry?
All ASCO EF8320G184 units supplied by SMARTNEXMSK carry a 12-month warranty from the date of shipment. This covers manufacturing defects, coil failure under normal operating conditions, and body integrity. Warranty claims are supported with full documentation and replacement logistics.

Q2: What pre-shipment testing is performed on each unit?
Every EF8320G184 undergoes a multi-point outgoing quality inspection prior to shipment, including coil resistance measurement, actuation function test at rated voltage, seat leakage verification, and visual inspection for body integrity and connector condition. Test records are available upon request for critical safety applications.

Q3: Is the EF8320G184 compatible with existing ASCO 8320 Series installations?
Yes. The EF8320G184 is a direct form-fit-function replacement within the ASCO 8320 Series platform. It maintains identical port dimensions (1/4 in NPT), DIN 43650 electrical interface, and mounting footprint, allowing drop-in replacement without piping or wiring modifications in existing control cabinets or field installations.

Q4: Can long-term supply be guaranteed for maintenance and spare parts programs?
SMARTNEXMSK maintains dedicated stock of the ASCO EF8320G184 to support planned maintenance schedules, emergency spare parts requirements, and multi-unit project procurement. We provide lead-time commitments, batch traceability documentation, and can support blanket order arrangements for facilities requiring guaranteed annual supply continuity.
