ASYST IFB-ZWT03A Safety-Enhanced Interface Board Industrial

ASYST IFB-ZWT03A Safety-Enhanced Interface Board for Harsh Industrial Control Sites

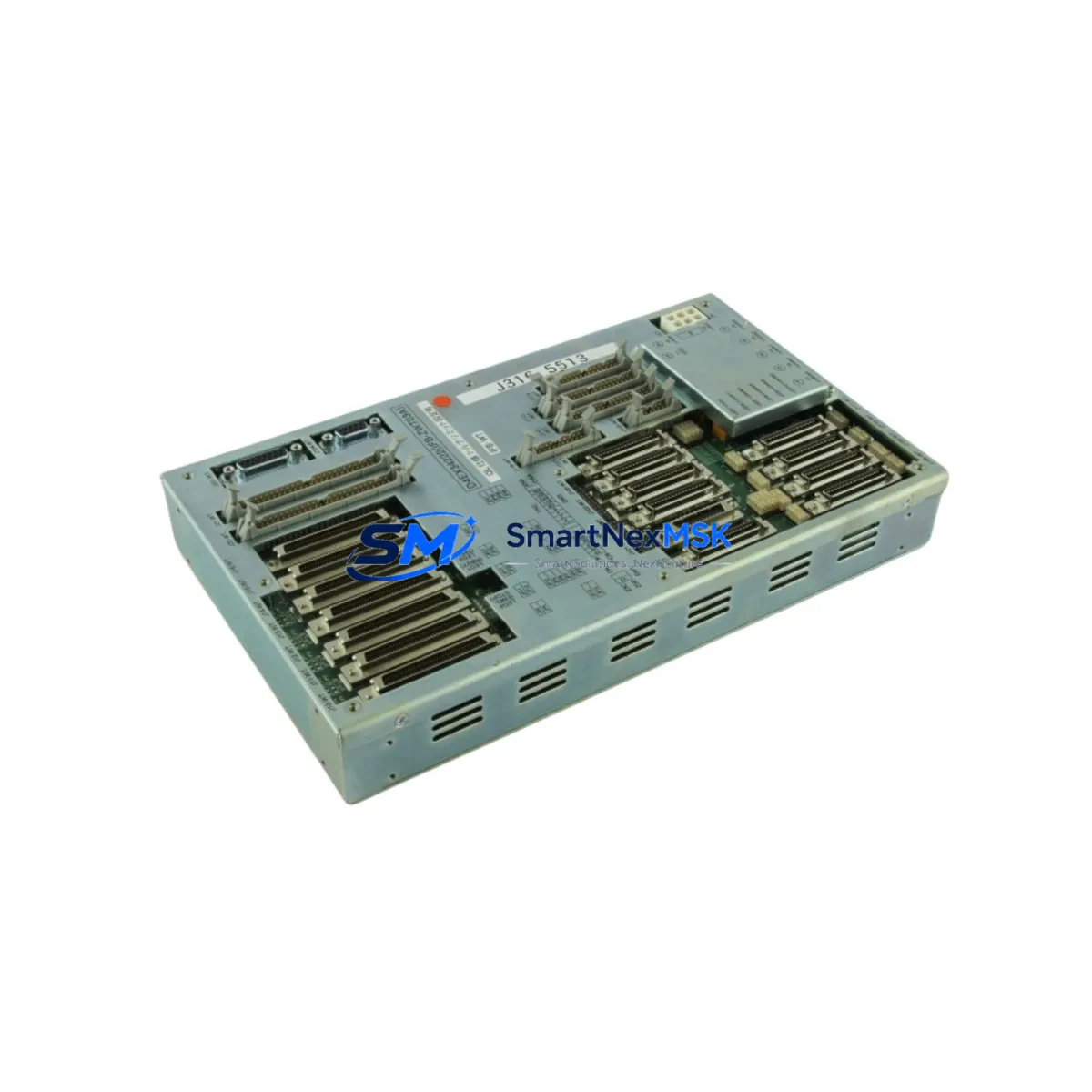

The ASYST D4EX34222 IFB-ZWT03A — full part reference: D4EX34222 IFB-ZWT03A 150X/0.90 WD 0.29 BD 8045R2-1-ES-ASYST — is a ruggedized industrial interface board engineered for mission-critical automation environments where signal integrity, control continuity, and personnel safety are non-negotiable. Designed to operate reliably under high electrical noise, sustained thermal stress, and continuous-duty production cycles, this module functions as a hardened signal bridge between field instrumentation and programmable logic controllers (PLCs) or distributed control systems (DCS).

In heavy industrial settings — including petrochemical plants, power generation facilities, mining operations, water treatment stations, metallurgical complexes, and port logistics automation — control cabinet reliability is the foundation of operational safety. A single interface board failure can cascade into process shutdowns, safety interlock failures, or uncontrolled equipment states. The IFB-ZWT03A is built to prevent exactly these scenarios, delivering stable, noise-immune signal conditioning across demanding duty cycles with consistent, verifiable performance.

Every unit shipped by SMARTNEXMSK undergoes full functional testing prior to dispatch and is backed by a 12-month warranty covering manufacturing defects and functional failures. Dedicated inventory is maintained to support emergency spare requirements, planned maintenance cycles, and long-term supply continuity for critical facilities.

Safety Reliability Table

Control Cabinet Protection Strategy

In a well-engineered industrial control cabinet, the IFB-ZWT03A operates as one coordinated layer within a broader protection architecture. When deployed alongside a Siemens 6ES7 series S7-300 or S7-400 CPU module, the interface board ensures that field-side signal anomalies — including ground loops, common-mode noise, and inductive kickback from motor starters — are absorbed before they can corrupt the PLC’s input registers. This protection is equally critical in cabinets housing Schneider Electric Modicon M340 or Quantum I/O modules, where signal cross-contamination between analog channels can trigger nuisance trips or, more dangerously, masked faults that go undetected until a process upset occurs.

Power quality within the cabinet is a parallel concern. The IFB-ZWT03A is designed to tolerate the micro-interruptions and voltage sags that occur when Siemens SITOP PSU100S 24 VDC power supply units or Phoenix Contact QUINT-PS power supplies cycle under heavy load. In systems where Weidmüller or Murrelektronik surge protection terminal blocks are installed on the field wiring side, the interface board provides a complementary second layer of transient suppression, preventing residual surges from reaching sensitive backplane circuitry in the ABB AC500 PLC rack or Rockwell Allen-Bradley 1756 ControlLogix chassis.

For safety interlock and emergency shutdown (ESD) circuits, the IFB-ZWT03A supports reliable signal transmission to Pilz PNOZ X safety relay modules or Omron G9SA-321 safety relay units, maintaining the integrity of the safety loop even under high-frequency switching noise generated by variable frequency drives or soft starters operating in the same enclosure. In communication-intensive architectures using Siemens Profibus DP repeaters or Hirschmann managed Ethernet/IP switches, the board’s galvanic isolation prevents ground potential differences from disrupting fieldbus communication frames — a documented root cause of intermittent PLC faults in large-scale DCS installations. The result is a control cabinet that maintains safe, uninterrupted operation across the full production cycle, from cold start to continuous-duty steady state.

Critical Industrial Safety Applications

Petrochemical & Refinery Plants: In continuous process environments handling flammable or toxic media, control loop integrity is a safety-of-life requirement. The IFB-ZWT03A provides stable signal conditioning for pressure transmitters, flow meters, and level sensors feeding into safety instrumented systems (SIS), reducing the risk of spurious trips or dangerous undetected failures in SIL-rated interlock loops. Its surge suppression capability is particularly valuable in areas where lightning-induced transients on field cable runs are a recurring threat.

Power Generation & Substation Automation: High-voltage switching operations generate severe electromagnetic transients that can overwhelm unprotected I/O interfaces. Installed in relay protection panels and SCADA interface cabinets, the IFB-ZWT03A maintains clean signal paths for protection relays and RTU inputs, preventing false tripping events that could destabilize grid-connected generation assets or cause unnecessary unit shutdowns.

Mining & Mineral Processing: Dust, vibration, and wide temperature swings characterize underground and open-pit mining control environments. The ruggedized construction of the IFB-ZWT03A ensures consistent performance in conveyor control panels, crusher automation cabinets, and ventilation safety systems where module failure means production stoppage and potential personnel safety hazards. Its extended temperature rating supports reliable operation in both deep-mine and surface processing facilities.

Water & Wastewater Treatment: SCADA-driven water treatment facilities rely on accurate analog signal transmission for dosing control, pump management, and effluent monitoring. The IFB-ZWT03A’s noise immunity prevents signal drift that could lead to incorrect chemical dosing — a direct public safety concern — while its isolation architecture protects the control system from the electrochemical interference common in wet process environments.

Metallurgy & Steel Production: Furnace control, rolling mill automation, and ladle handling systems operate in extreme thermal and electromagnetic environments. Interface boards in these applications must withstand radiated heat, heavy inductive loads, and frequent power cycling without degradation in signal accuracy or response time. The IFB-ZWT03A’s industrial-grade construction meets these demands across multi-shift, continuous production schedules.

Port & Heavy Logistics Automation: Crane control systems, automated stacking equipment, and conveyor interlocks in port environments demand high-reliability I/O interfaces capable of operating through vibration, humidity, and salt-air exposure. The IFB-ZWT03A supports safe, uninterrupted signal flow in these high-cycle, high-consequence control applications, where a single control interruption can halt cargo operations and create crane safety incidents.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions. If the D4EX34222 IFB-ZWT03A fails to perform its specified signal conditioning and isolation functions within the warranty period, SMARTNEXMSK will arrange replacement or repair at no additional cost. Warranty claims are processed promptly with dedicated technical support to minimize your downtime.

Q2: What pre-shipment testing is performed on each unit?
Every IFB-ZWT03A undergoes a full functional test prior to dispatch. This includes verification of signal isolation integrity, input/output channel continuity, power supply compatibility, and visual inspection for physical defects. Test records are maintained and can be provided upon request for quality-critical procurement and incoming inspection processes.

Q3: Is the IFB-ZWT03A compatible with third-party PLC and DCS platforms?
Yes. As a signal conditioning and interface board operating on standard industrial signal levels (4–20 mA, 0–10 V, discrete I/O), the IFB-ZWT03A is compatible with control platforms from Siemens, ABB, Rockwell Automation, Schneider Electric, Yokogawa, and Honeywell. Always verify connector pinout and signal type against your specific system documentation before installation to ensure correct integration.

Q4: Can long-term supply and replacement support be guaranteed?
SMARTNEXMSK maintains dedicated inventory of the D4EX34222 IFB-ZWT03A and compatible ASYST Automation IFB-ZWT series interface modules to support ongoing maintenance, planned replacements, and emergency spare requirements. For facilities with critical uptime requirements, we recommend establishing a standing spare parts agreement to ensure immediate availability when needed. Contact our team to discuss volume pricing and reserved stock arrangements.
