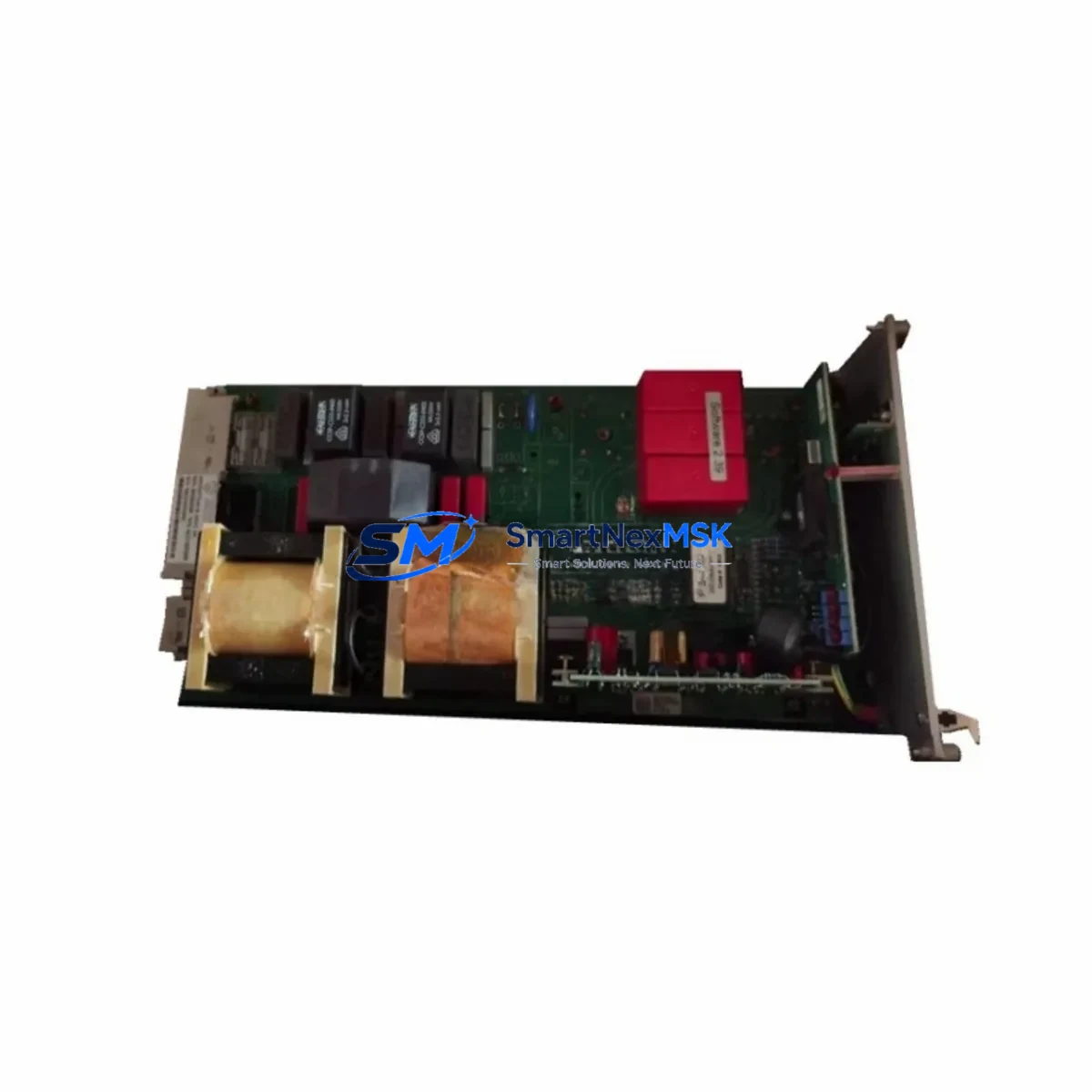

ATOTECH MG330TD40-B Safety-Enhanced Mixed I/O Module

ATOTECH MG330TD40-B Safety-Enhanced Mixed I/O Module: Reliable Control for Harsh Industrial Sites

The ATOTECH MG330TD40-B is a ruggedized 40-channel mixed I/O module engineered for mission-critical industrial control environments where signal integrity, electrical resilience, and continuous uptime are non-negotiable. Designed as part of the proven ATOTECH MG330 series, this module delivers robust digital and analog I/O management across demanding applications including petrochemical processing, power generation, mining automation, water treatment, metallurgy, port logistics, and continuous manufacturing lines.

In high-load, high-interference industrial settings, a single point of I/O failure can cascade into unplanned shutdowns, safety interlock trips, or costly production losses. The MG330TD40-B is purpose-built to eliminate these risks through hardened signal conditioning, wide operating temperature tolerance, and multi-layer surge protection — ensuring your control cabinet remains stable even under extreme electrical stress.

Safety Reliability Table

Control Cabinet Protection Strategy

In a well-engineered industrial control cabinet, the ATOTECH MG330TD40-B serves as the primary field interface layer, collecting sensor signals and issuing actuator commands while absorbing the electrical punishment that field wiring inevitably delivers. To build a complete, safety-hardened cabinet around this module, integrators typically pair it with the ATOTECH MG330 CPU module as the central processing unit, which coordinates all I/O scanning cycles and executes the safety logic programs. The MG330 power supply module provides regulated 24 VDC to the backplane, with built-in overvoltage and short-circuit protection that shields the MG330TD40-B from upstream power anomalies.

For installations in environments with heavy motor drives, welding equipment, or high-frequency inverters, an ATOTECH MG330 communication module handles fieldbus isolation — preventing ground loops and common-mode noise from corrupting the analog input channels of the MG330TD40-B. Surge protection devices such as Phoenix Contact TRABTECH surge arresters or equivalent DIN-rail SPDs are recommended on all field cable entries to the cabinet, providing the first line of defense before signals reach the module’s internal TVS protection.

Safety interlock circuits benefit from pairing the MG330TD40-B with a dedicated safety relay module (e.g., Pilz PNOZ or equivalent) on critical output channels, ensuring that emergency stop signals and safety-rated outputs meet SIL 2 or PLd requirements independently of the PLC logic. For redundant power architectures, a 24 VDC UPS module or buffer capacitor unit maintains backplane voltage during brief mains interruptions, preventing spurious I/O state changes that could trigger false alarms or unsafe actuator behavior.

In distributed control architectures, the MG330TD40-B integrates cleanly with ATOTECH remote I/O expansion modules over the MG330 backplane bus, allowing engineers to extend the I/O count without introducing additional communication latency or signal degradation. Fiber-optic communication converters are recommended for cabinet-to-cabinet links exceeding 50 meters, eliminating ground potential differences that are common in large industrial plants.

Critical Industrial Safety Applications

Petrochemical & Refinery Plants: The MG330TD40-B is well-suited for monitoring pressure transmitters, temperature sensors, and valve position feedback in hazardous process areas. Its optical isolation prevents ground faults in intrinsically safe field circuits from propagating into the control system, maintaining the integrity of emergency shutdown (ESD) logic.

Power Generation & Substation Automation: In turbine control panels and substation RTUs, the module’s wide operating temperature range and EMI immunity allow reliable operation alongside high-voltage switching equipment. It handles analog feedback from generator excitation systems and digital status signals from circuit breakers without signal drift or false triggering.

Mining & Mineral Processing: Conveyor belt interlocks, crusher motor controls, and slurry pump monitoring all demand I/O modules that can withstand vibration, dust ingress, and wide temperature swings. The MG330TD40-B’s ruggedized design and DIN-rail mounting make it a dependable choice for underground and surface mining control rooms.

Water & Wastewater Treatment: Pump station automation, chemical dosing control, and SCADA integration rely on accurate, stable analog inputs. The module’s multi-channel mixed I/O capability reduces panel complexity while maintaining the signal accuracy needed for flow control and level monitoring in continuous treatment processes.

Metallurgy & Steel Production: Rolling mill drives, furnace temperature control, and ladle handling systems generate intense electromagnetic interference. The MG330TD40-B’s IEC 61000-4 compliant EMI resistance ensures that control signals remain clean and reliable even in the immediate vicinity of large induction furnaces and high-current bus bars.

Port & Logistics Automation: Crane PLC systems, automated stacking equipment, and conveyor routing controllers benefit from the module’s fast I/O scan rates and reliable digital output switching, reducing the risk of positioning errors or load-handling incidents caused by delayed or corrupted control signals.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover?
The ATOTECH MG330TD40-B carries a 12-month warranty from the date of shipment, covering all manufacturing defects, component failures, and functional malfunctions under normal operating conditions. Warranty claims are processed with priority support, and replacement units are dispatched from verified stock to minimize your downtime.

Q2: How is each unit tested before shipment?
Every MG330TD40-B unit undergoes pre-shipment functional testing including power-on verification, I/O channel continuity checks, and communication bus handshake confirmation. Units are inspected for physical integrity and packed in anti-static, shock-resistant packaging to ensure they arrive in field-ready condition.

Q3: Is the MG330TD40-B compatible with existing MG330 series installations?
Yes. The MG330TD40-B is fully compatible with the ATOTECH MG330 series backplane, CPU modules, and power supply modules. It can be installed as a direct replacement in existing MG330 control racks without requiring firmware changes or backplane modifications, making it an ideal spare part for maintenance and emergency replacement scenarios.

Q4: Can long-term supply be guaranteed for critical infrastructure projects?
We maintain dedicated inventory of the MG330TD40-B and key MG330 series components to support long-term project requirements, planned maintenance shutdowns, and emergency spare part needs. Bulk orders and scheduled delivery agreements are available for customers with ongoing supply requirements in critical infrastructure, energy, or process industries.
