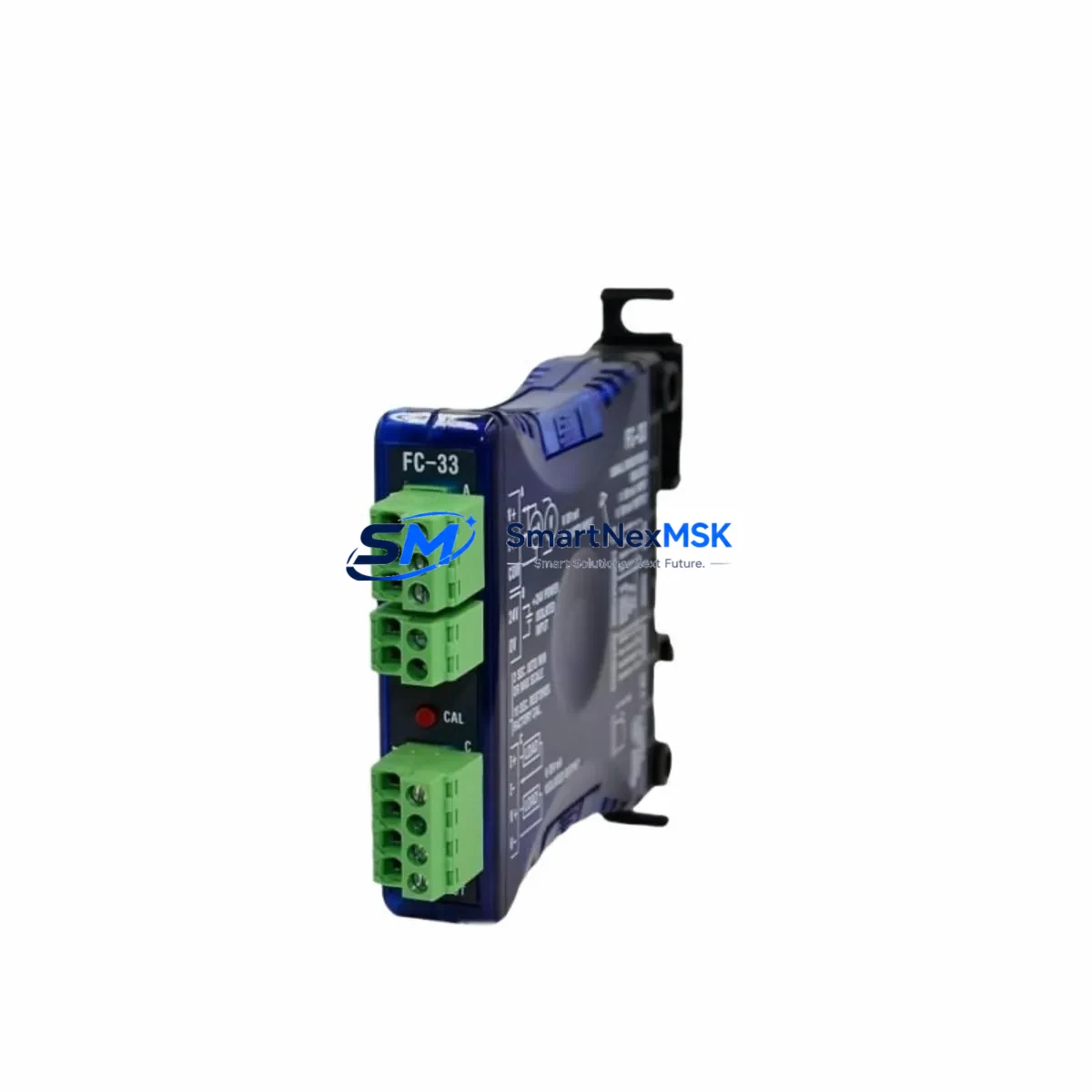

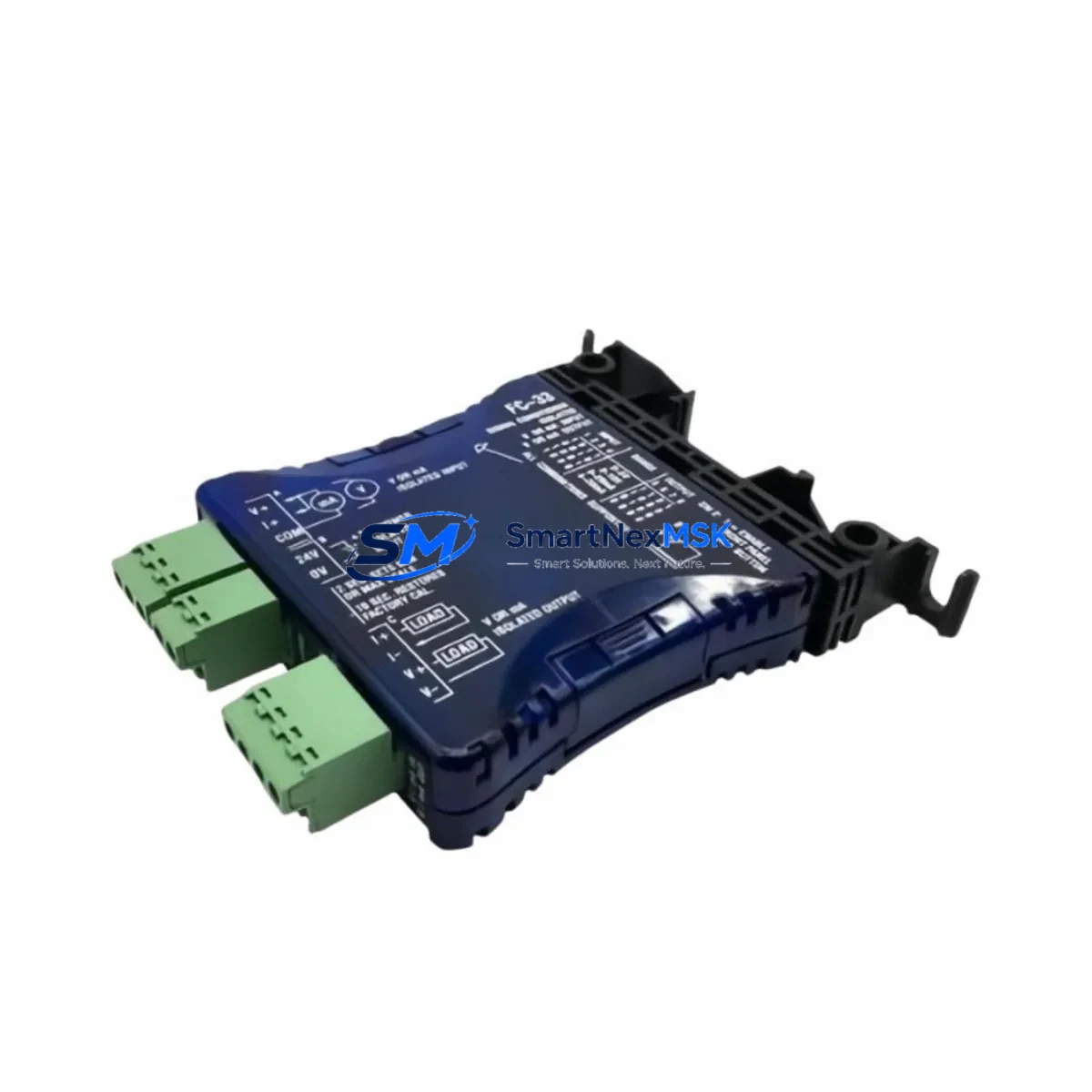

AutomationDirect FC-33 Retrofit-Ready Signal Isolator for FC Series

AutomationDirect FC-33 Retrofit-Ready Signal Isolator for FC Series Control Systems

The AutomationDirect FC-33 is a loop-powered, DIN rail-mounted 4-20mA signal isolator engineered for seamless integration into legacy FC Series control architectures. As industrial facilities face increasing pressure to modernize aging automation infrastructure without full system overhauls, the FC-33 delivers a cost-effective, drop-in retrofit path that preserves existing wiring topology, maintains signal integrity across long cable runs, and eliminates ground loop interference that commonly plagues older analog I/O configurations.

Whether you are replacing a discontinued signal conditioner in a legacy control cabinet, upgrading an aging DCS front-end, or expanding analog I/O capacity in an existing PLC rack, the FC-33 provides the electrical isolation, signal accuracy, and form factor compatibility required for a smooth, low-risk migration. Its loop-powered design eliminates the need for an auxiliary 24VDC supply at the field terminal, reducing wiring complexity and minimizing the footprint impact on crowded marshalling panels.

For facilities running AutomationDirect DirectLOGIC series controllers — including the DL05, DL06, DL105, DL205, and DL405 families — the FC-33 integrates directly with existing analog input modules such as the F2-04AD and F4-04ADS without requiring firmware changes or I/O address remapping. This makes it particularly valuable in brownfield retrofit projects where preserving the original ladder logic program and HMI tag database is a priority.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the FC-33 into a brownfield control system begins with a thorough audit of the existing signal chain. Engineers should document the current loop supply voltage — typically sourced from the PLC analog input module’s internal 24VDC loop supply or an external DIN rail power supply such as the AutomationDirect PSP24-060S — and confirm that the FC-33’s loop burden voltage falls within the available compliance headroom.

In systems where the FC-33 replaces a previously active (externally powered) signal conditioner, the field wiring must be reconfigured to a 2-wire loop topology. This typically involves removing the auxiliary power feed to the old conditioner’s power terminals and reconnecting the field transmitter loop through the FC-33’s input terminals. Terminal block labeling should be updated in the as-built drawings to reflect the new passive loop configuration.

For control cabinets housing AutomationDirect DL205 or DL405 racks with F2-04AD or F4-04ADS analog input modules, the FC-33 can be mounted on an adjacent DIN rail section within the same enclosure. The isolated output connects directly to the analog input module’s screw terminals, maintaining the existing I/O address assignments in the DirectSOFT or Do-more Designer program. No changes to the PLC program’s analog scaling rungs or PID loop parameters are required, provided the FC-33’s output accuracy (±0.1% of span) is within the original calibration tolerance.

In systems that also incorporate AutomationDirect C-more EA9 series HMI panels, the existing analog tag bindings and trend displays remain valid after the FC-33 retrofit, since the signal chain output characteristics are preserved. Engineers should perform a live loop test after installation to confirm that HMI analog bar graphs and trend pens track correctly against a reference calibrator signal.

For facilities migrating from older Modbus RTU-based analog I/O networks to Ethernet/IP or PROFIBUS architectures, the FC-33 serves as a stable analog front-end during the transition period, allowing the digital communication backbone to be upgraded incrementally without disrupting field transmitter wiring. This is particularly relevant in phased migration projects where AutomationDirect ERM or H2-ERM100 Ethernet remote I/O modules are being introduced alongside legacy serial I/O racks.

Inventory planning for retrofit projects should account for the FC-33’s typical lead time from stock (same-day to 3-day dispatch) versus the extended lead times associated with sourcing discontinued OEM signal conditioners. Maintaining a buffer stock of FC-33 units alongside complementary components — including DIN rail terminal blocks, 24VDC loop power supplies, and analog input modules — reduces the risk of extended downtime during unplanned failures in critical process loops.

Downtime Control During System Migration

Minimizing production downtime during a signal isolator retrofit requires a structured hot-swap procedure that preserves loop continuity throughout the changeover. The recommended approach is to pre-wire the FC-33 on a temporary DIN rail section adjacent to the existing conditioner, connect the output to a spare analog input channel on the F2-04AD or equivalent module, and verify signal accuracy against the live process value before cutting over the primary input channel.

Where a spare analog input channel is not available, a portable loop calibrator can be used to inject a known 4-20mA signal into the new FC-33 output circuit while the existing conditioner remains in service. This allows zero and span verification to be completed offline, reducing the live cutover window to the time required for terminal reconnection and a single-point loop check — typically under 15 minutes per loop for an experienced technician.

Original PLC program logic should be backed up to a PC running DirectSOFT or Do-more Designer before any physical wiring changes are made. The backup file should include the full program, I/O configuration, and data register values to enable rapid restoration in the event of an unexpected fault during the cutover. HMI project files from C-more EA9 panels should similarly be archived before the retrofit begins.

Post-installation, each retrofitted loop should be documented with a completed loop check sheet recording the as-found and as-left 4mA and 20mA values, the loop supply voltage, and the technician’s signature. This documentation supports the 12-month warranty claim process and provides a baseline for future preventive maintenance calibration cycles.

Retrofit Support FAQ

Q: Is the FC-33 a direct replacement for the original AutomationDirect FC Series signal isolator?
A: Yes. The FC-33 is designed as a form, fit, and function replacement for FC Series signal isolators with the same 4-20mA loop-powered specification. Terminal pinout and DIN rail footprint are compatible with the original mounting position. Verify the loop supply voltage budget before installation to confirm compliance headroom.

Q: Does the FC-33 require any changes to the existing PLC program or analog scaling parameters?
A: No program changes are required provided the replacement unit’s output accuracy (±0.1% of span) is within the original calibration tolerance. I/O addresses, analog scaling rungs, and PID setpoints remain valid. A post-installation loop calibration check is recommended to confirm zero and span alignment.

Q: What pre-shipment testing is performed on the FC-33?
A: Each FC-33 unit undergoes a functional loop test at 4mA and 20mA prior to dispatch. A test report confirming isolation voltage, input/output accuracy, and loop burden voltage is available upon request. The 12-month warranty covers manufacturing defects identified after installation.

Q: Can the FC-33 be used in HART-enabled transmitter loops?
A: The FC-33 is a passive analog isolator and is transparent to HART communication signals superimposed on the 4-20mA loop. HART handheld communicators can be connected at the field transmitter terminals or at the analog input module terminals without interference from the FC-33. Verify that the total loop impedance, including the FC-33’s burden resistance, remains within the HART specification (250–1100 ohms).
