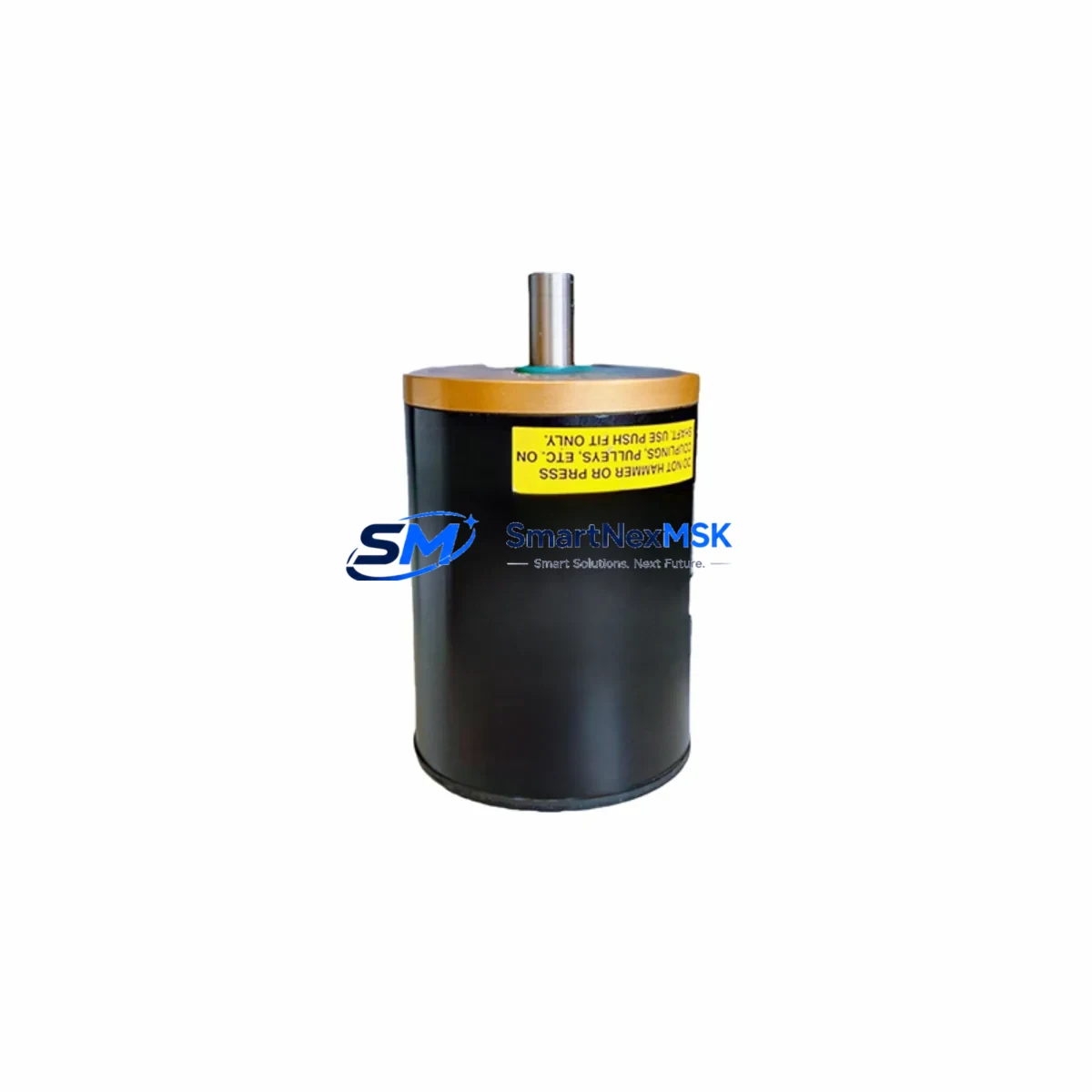

AUTOTECH SAC-RL100-M11 Safety-Enhanced Resolver

AUTOTECH SAC-RL100-M11 Safety-Enhanced Resolver for Harsh Industrial Sites

The AUTOTECH SAC-RL100-M11 is a ruggedized single-turn resolver engineered for mission-critical servo feedback in the most demanding industrial environments. Designed to deliver absolute angular position data via analog sine/cosine output signals, this resolver module is the backbone of safe, continuous motion control in high-load, high-interference, and hazardous-area applications. Whether integrated into a heavy-duty servo drive cabinet, a critical interlock loop, or a continuous-process production line, the SAC-RL100-M11 provides the positional accuracy and signal integrity that industrial safety demands.

In modern industrial automation, position feedback is not merely a performance parameter — it is a safety-critical function. Signal drift, electromagnetic interference, power fluctuations, and module misfires in a resolver feedback chain can cascade into unplanned shutdowns, equipment damage, or personnel hazards. The SAC-RL100-M11 addresses each of these risks through its ruggedized mechanical construction, wide operating temperature tolerance, and inherently analog feedback architecture that remains immune to digital communication faults and fieldbus anomalies. Unlike encoder-based systems that depend on digital signal integrity, the resolver’s transformer-based sine/cosine output is inherently robust against surge impacts and transient noise — a decisive advantage in high-voltage switchgear rooms, motor control centers, and variable-frequency drive (VFD) environments.

The SAC-RL100-M11 is fully compatible with AUTOTECH’s SAC-series resolver-to-digital converter (RDC) modules and interfaces seamlessly with leading servo drive platforms. When paired with a compatible RDC interface card or drive-integrated resolver input, it delivers sub-arc-minute positional resolution suitable for precision axis control in robotic welding cells, CNC machining centers, and high-speed packaging lines. Its single-turn architecture ensures deterministic position feedback within each 360° rotation, making it ideal for applications where absolute within-turn position is the primary safety reference — such as press brake tooling, rotary indexing tables, and valve actuator positioning in process control.

Safety Reliability Table

Control Cabinet Protection Strategy

A resolver is only as reliable as the ecosystem surrounding it. In a well-engineered servo control cabinet, the SAC-RL100-M11 operates as part of a layered protection architecture. The resolver’s analog output feeds directly into an AUTOTECH SAC-RDC resolver-to-digital converter module, which converts the sine/cosine signals into a high-resolution digital position word consumed by the motion controller or safety PLC. This RDC stage is critical: it filters noise, detects signal loss (open-circuit or short-circuit faults), and generates a fault output that can be wired into the machine’s safety relay circuit — for example, a Pilz PNOZ or Schneider Preventa safety relay — to trigger a controlled stop before a hazardous condition develops.

Power supply quality is equally important. The resolver excitation reference signal must be stable and free of harmonic distortion. A dedicated 24 VDC regulated power supply module — such as those in the Phoenix Contact QUINT or TRIO series — should power the RDC interface independently from the main drive bus to prevent voltage sag during motor acceleration from corrupting the excitation reference. Surge protection devices (SPDs) on the resolver cable shield and signal lines protect against transient overvoltages induced by nearby VFDs, contactors, or lightning events on outdoor installations.

Cable routing discipline is non-negotiable. The SAC-RL100-M11’s M11 connector and shielded cable assembly must be routed in a dedicated signal cable duct, physically separated from power cables carrying motor phase currents. In cabinets where space is constrained, ferrite clamp suppressors on the resolver cable near the RDC input provide additional common-mode noise rejection. For applications in explosive atmospheres (ATEX Zone 1 or Zone 2), the resolver cable must be terminated through certified Zener barrier or galvanic isolator modules — such as those from MTL Instruments or Pepperl+Fuchs — before entering the safe area control cabinet.

In distributed control architectures, the digital position output from the RDC module is typically transmitted to the main DCS or safety PLC via a high-speed backplane bus or hardwired analog/digital I/O. Redundant position feedback configurations — using a second SAC-RL100-M11 mounted on the opposite shaft end or a cross-check encoder — are recommended for SIL 2 or SIL 3 safety loops where single-point failure of the feedback device must be detected and annunciated within the process safety time.

Critical Industrial Safety Applications

The SAC-RL100-M11 has established a strong track record across the most demanding heavy industrial sectors:

Petrochemical and Refinery Plants: In continuous catalytic cracking units and compressor trains, the SAC-RL100-M11 provides shaft position feedback for anti-surge control valves and turbine governor actuators. Its wide temperature range and IP67 protection allow installation in hot, humid, and chemically aggressive environments where standard encoders fail prematurely. Resolver-based feedback eliminates the risk of digital communication loss between the field device and the safety instrumented system (SIS), a critical requirement under IEC 61511 for safety instrumented functions (SIFs) protecting against overpressure or runaway reactions.

Electric Power Generation and Transmission: In hydro and thermal power stations, the resolver monitors the angular position of generator excitation control actuators and governor valve servos. The inherent galvanic isolation of the transformer-coupled resolver output provides natural protection against ground loops and common-mode voltages that are endemic in high-voltage substations and generator halls — environments where ground potential differences of tens of volts can destroy conventional encoder electronics within hours.

Mining and Mineral Processing: Underground and open-pit mining operations subject feedback devices to extreme vibration, shock, dust ingress, and wide temperature swings. The SAC-RL100-M11’s 50 g shock rating and IP67 housing make it the preferred choice for dragline swing drives, conveyor belt take-up winches, and crusher drive positioning systems. In these applications, an undetected resolver failure can result in mechanical overtravel, structural damage, or entrapment hazards for maintenance personnel.

Water and Wastewater Treatment: Large pump station drives and sluice gate actuators in water treatment facilities require reliable position feedback for flow control and emergency isolation. The SAC-RL100-M11’s resistance to moisture ingress and its compatibility with standard servo drive resolver inputs make it a cost-effective, long-service-life solution for these 24/7 continuous-duty applications.

Metallurgy and Steel Mills: Rolling mill main drives, ladle turret positioning systems, and continuous casting mold oscillation drives operate in environments with intense electromagnetic interference from large DC and AC drives, induction furnaces, and overhead cranes. The resolver’s analog feedback architecture is inherently immune to the EMI levels that routinely disrupt digital encoder communication in these facilities, ensuring uninterrupted position feedback during critical rolling sequences where a feedback loss would trigger an emergency stop and costly production interruption.

Port and Material Handling: Ship-to-shore cranes, rubber-tired gantry (RTG) cranes, and automated stacker-reclaimers rely on precise slew and hoist position feedback for safe load handling. The SAC-RL100-M11’s ruggedized construction withstands the salt-laden marine atmosphere, wide ambient temperature range, and high-cycle mechanical loading characteristic of port operations.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the SAC-RL100-M11?
The 12-month warranty covers all manufacturing defects, signal integrity failures (including sine/cosine output amplitude deviation beyond specification), mechanical integrity issues (bearing failure, shaft runout), and connector integrity. Warranty claims are supported by our technical team with replacement dispatch within 3 business days upon fault confirmation. The warranty period begins from the date of shipment and applies to units used within their rated operating conditions.

Q2: What pre-shipment testing is performed on each SAC-RL100-M11 unit?
Every SAC-RL100-M11 unit undergoes a full functional test prior to shipment. This includes excitation signal injection at rated voltage and frequency, sine/cosine output amplitude and phase verification across the full 360° rotation, electrical error measurement, insulation resistance testing, and connector integrity inspection. A test report is available upon request for quality-critical procurement processes.

Q3: Is the SAC-RL100-M11 compatible with third-party servo drives and safety PLCs?
Yes. The SAC-RL100-M11 produces standard analog sine/cosine resolver signals compatible with any servo drive or RDC module that accepts a resolver input with a 7 Vrms, 10 kHz excitation reference and a 0.5 transformation ratio — which covers the vast majority of industrial servo drives from Siemens, Fanuc, Mitsubishi, Yaskawa, Bosch Rexroth, and others. For safety PLC integration, the digital position output from the paired RDC module can be wired to any standard digital or analog safety I/O module.

Q4: Can long-term supply continuity be guaranteed for ongoing maintenance and spare parts programs?
We maintain dedicated buffer stock of the SAC-RL100-M11 to support long-term spare parts programs for installed base maintenance. For customers with critical production assets, we recommend establishing a consignment stock or annual blanket order arrangement to ensure immediate availability during unplanned breakdowns. Our team can provide lead time commitments and supply continuity agreements tailored to your maintenance planning cycle.
