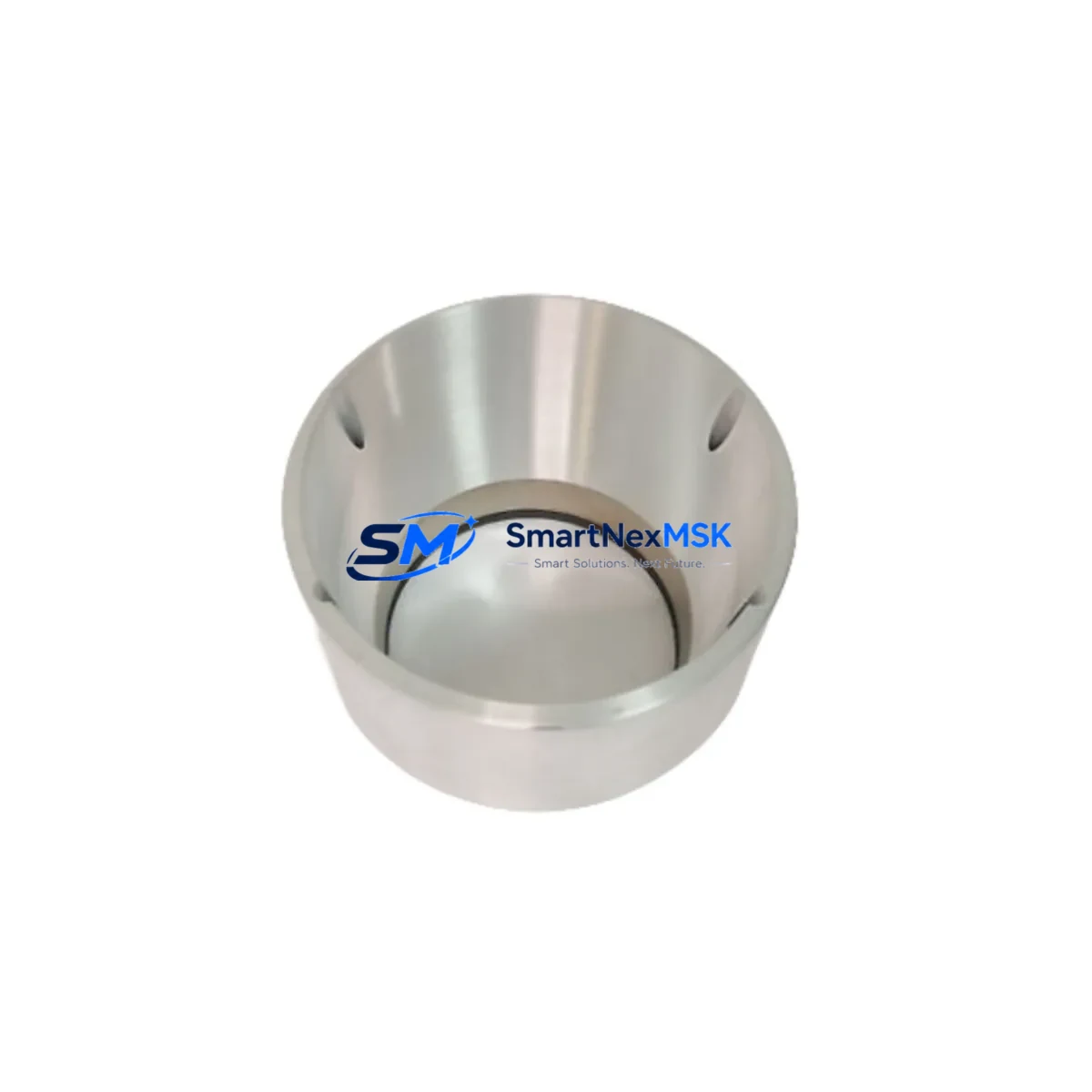

AXCELIS 17293090 Retrofit-Ready Disk Faraday Liner for Optima/GSD Control Systems
The AXCELIS 17293090 Disk Faraday Liner Adaptor is a precision-engineered retrofit replacement component designed for seamless integration into Axcelis Optima and GSD Series ion implantation systems. As semiconductor fabs extend the operational life of legacy implant platforms, sourcing verified, drop-in-compatible spare parts becomes critical to maintaining beam uniformity, dose accuracy, and process repeatability. The 17293090 addresses exactly this need — providing a direct, specification-matched replacement for aging or failed Faraday liner assemblies without requiring mechanical modification to the existing disk assembly or end-station structure.
Whether your facility is executing a planned preventive maintenance cycle, recovering from an unplanned liner failure, or upgrading a refurbished Optima platform for re-deployment, the AXCELIS 17293090 is stocked, tested, and ready for immediate dispatch. Each unit ships with a 12-month warranty and passes pre-shipment functional inspection to reduce commissioning risk on the production floor.
Upgrade Compatibility Table
| Parameter | Details |
|---|---|
| Compatible Platform | Axcelis Optima Series, GSD Series Ion Implanters |
| Part Number / SKU | 17293090 |
| Component Type | Disk Faraday Liner Adaptor |
| Installation Interface | Direct bolt-on to existing disk Faraday assembly; no mechanical modification required |
| Communication / Control Compatibility | Compatible with existing Optima/GSD end-station control architecture; no firmware changes required |
| Replacement Recommendation | Direct OEM-equivalent replacement; suitable for both corrective and preventive maintenance |
| Commissioning Notes | Verify beam alignment and dose calibration post-installation; re-run Faraday cup calibration routine per Axcelis service manual |
| Origin | China (CN) |
| Warranty | 12 Months from date of shipment |
| Pre-Shipment Testing | Dimensional inspection and functional verification performed on every unit |
Retrofit Planning for Existing Automation Systems
Retrofitting an Axcelis Optima or GSD ion implanter requires careful coordination across multiple subsystems. The Disk Faraday Liner Adaptor (17293090) sits at the intersection of the beam measurement and end-station mechanical systems, making its condition directly relevant to dose uniformity and process control. When planning a liner replacement as part of a broader system upgrade, engineers should simultaneously audit adjacent components to avoid repeat downtime.
In a typical Optima end-station retrofit, the Axcelis disk Faraday cup assembly and its associated suppression electrode are inspected alongside the liner. If the system has accumulated significant implant hours, the Axcelis beam stop assembly and neutral beam trap components may also require replacement. For GSD-series platforms undergoing refurbishment for re-deployment, the Axcelis scan magnet power supply module and deceleration lens assembly are commonly addressed in the same maintenance window to maximize uptime between service intervals.
On the control and automation side, older Optima systems running legacy Axcelis VME-based control boards may benefit from a parallel upgrade to the Axcelis PPC (Process and Platform Controller) architecture, which improves recipe management, alarm handling, and remote diagnostics capability. Facilities integrating the implanter into a broader fab automation framework should verify compatibility between the implanter’s SECS/GEM communication interface module and the host MES system — particularly if the host has been upgraded since the implanter was originally commissioned.
For facilities managing multiple implant platforms, the Axcelis wafer handling robot end-effector and atmospheric transfer module (ATM) components are frequently sourced alongside process chamber spare parts to consolidate procurement and reduce per-shipment logistics costs. Maintaining a small buffer stock of high-wear items such as the 17293090 Disk Faraday Liner, along with Axcelis source arc chamber components and extraction electrode assemblies, is a proven strategy for minimizing unplanned downtime on high-utilization implant tools.
Downtime Control During System Migration
Minimizing production impact during a Faraday liner replacement on an Axcelis Optima or GSD system requires disciplined pre-staging and a structured swap procedure. Before the maintenance window opens, confirm that the replacement 17293090 unit has passed incoming inspection and that all required tooling — including torque wrenches, alignment fixtures, and vacuum-compatible fasteners — is staged at the tool. Download and archive the current process recipes, dose calibration data, and beam tuning parameters from the Axcelis control system prior to venting the end-station, ensuring that the original process baseline can be restored without re-characterization if the new liner requires adjustment.
During the swap, follow the Axcelis-recommended venting and pump-down sequence to protect the ion source and beamline from contamination. After mechanical installation of the 17293090, perform a leak check before initiating pump-down, and allow the end-station to reach base pressure before running the Faraday cup calibration routine. This sequence preserves the integrity of the original program logic and beam control parameters, avoiding the need for a full process re-qualification.
For facilities operating the Optima or GSD in a high-mix, low-volume implant environment, scheduling the liner replacement during a planned recipe changeover — rather than as an emergency intervention — can reduce the effective downtime impact to under four hours. Pre-verified replacement parts like the AXCELIS 17293090, combined with a documented swap procedure and a pre-staged calibration dataset, are the most reliable tools for maintaining field control continuity and protecting wafer yield during the transition.
Retrofit Support FAQ
Q1: Is the AXCELIS 17293090 a direct drop-in replacement for the original Disk Faraday Liner Adaptor on Optima and GSD series implanters?
A: Yes. The 17293090 is dimensionally and functionally equivalent to the original OEM part. It installs directly into the existing disk Faraday assembly without mechanical modification. Verify torque specifications per the Axcelis service manual during installation.
Q2: What commissioning steps are required after installing the 17293090?
A: After installation and pump-down, run the Faraday cup calibration routine as specified in the Axcelis Optima/GSD maintenance documentation. Verify beam current readings against the pre-maintenance baseline and confirm dose uniformity across the wafer before returning the tool to production.
Q3: How do I verify wiring and interface compatibility before installation?
A: The 17293090 is a mechanical/structural component and does not involve electrical wiring. Confirm that the mating surfaces on the disk assembly are clean and undamaged, and that the suppression electrode and adjacent Faraday cup components are in serviceable condition before completing the assembly.
Q4: What warranty and pre-shipment testing does this part carry?
A: Every AXCELIS 17293090 unit is subject to dimensional inspection and functional verification prior to shipment. The part carries a 12-month warranty from the date of shipment, covering manufacturing defects. Expedited shipping options are available to support urgent maintenance requirements.
