Azbil C315GA004500 Retrofit-Ready Temp Controller SDC

Azbil C315GA004500 Retrofit-Ready Temperature Controller for SDC Control Systems

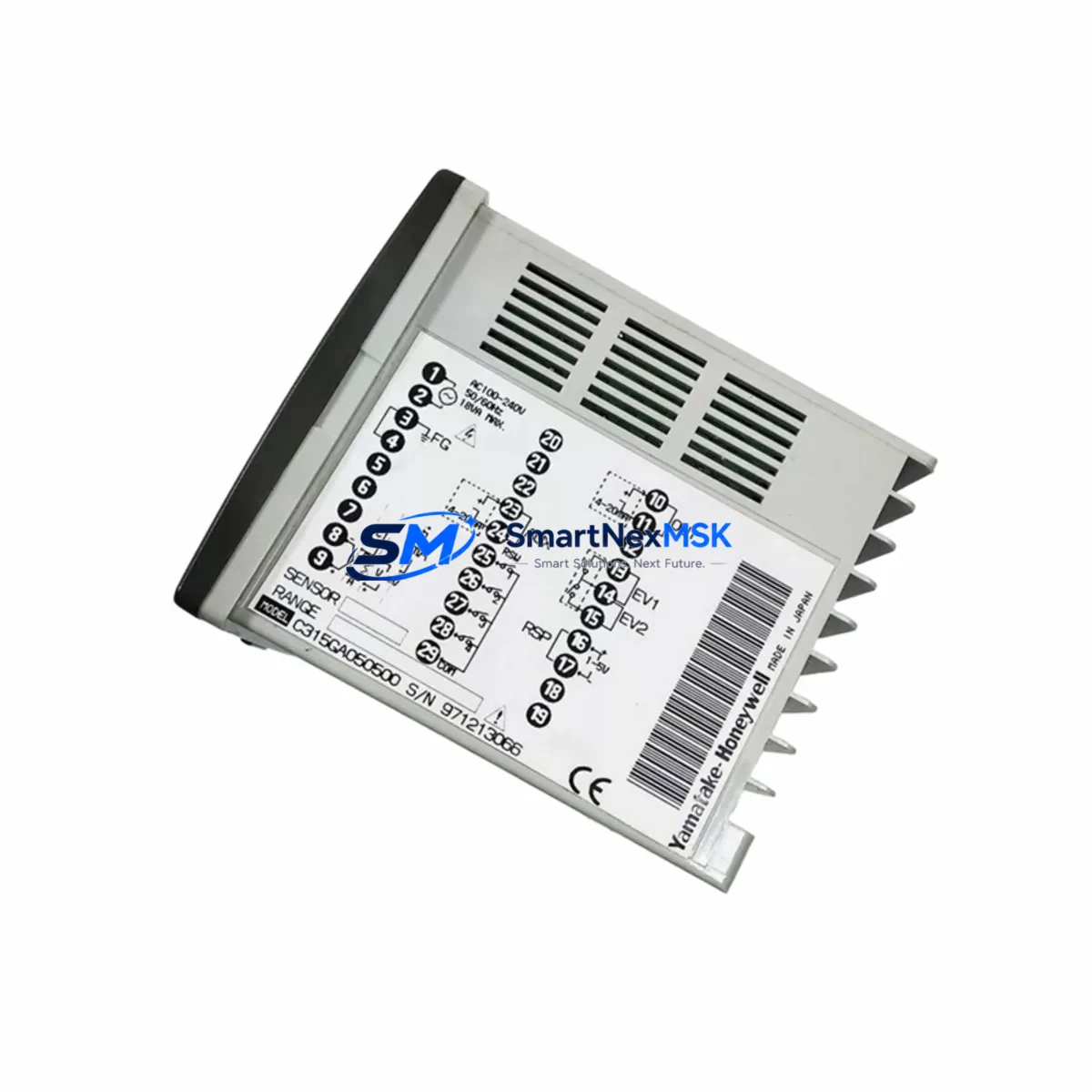

The Azbil C315GA004500 is a single-loop digital temperature controller from Azbil’s SDC (Single-loop Digital Controller) series — one of the most widely deployed process control platforms in Asian and global industrial facilities. Designed for seamless integration into existing DIN-rail control cabinets, this unit is the preferred retrofit solution for engineers replacing aging SDC15, SDC25, or SDC35 series controllers without redesigning the entire control panel.

Whether you are managing a kiln, heat treatment furnace, injection molding machine, or a chemical reactor loop, the C315GA004500 delivers precise PID control with auto-tuning capability, universal input compatibility (thermocouple, RTD, and DC voltage/current), and dual relay or current output options. Its compact 48×48mm DIN form factor ensures direct panel cutout compatibility with most legacy Azbil SDC installations, dramatically reducing retrofit labor and downtime.

For facilities running legacy Azbil C15, C25, or C35 series controllers that have reached end-of-life or are no longer supported under Azbil’s active parts program, the C315GA004500 provides a validated upgrade path. Terminal block pinout compatibility is maintained across the SDC series, meaning existing field wiring — including thermocouple leads, 4–20 mA transmitter loops, and relay output circuits — can typically be reconnected without modification. Engineers should verify power supply voltage (100–240 VAC universal or 24 VDC depending on suffix), output type (relay vs. current), and communication option (RS-485 Modbus RTU) against the original specification before commissioning.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit of the Azbil C315GA004500 into an existing production line requires systematic pre-commissioning verification across several subsystems. Begin by auditing the control cabinet’s power distribution: confirm whether the existing rail supplies 100–240 VAC or 24 VDC, and cross-reference with the C315GA004500 power suffix. If the cabinet also houses an Azbil SDC35 or SDC45 controller on an adjacent loop, note that those units may share a common power bus — any voltage mismatch will require an intermediate power supply module.

Terminal wiring is the next critical checkpoint. The C315GA004500 uses a rear-terminal screw block layout consistent with the SDC series standard. Before disconnecting the legacy unit, photograph or document all terminal assignments, particularly the thermocouple or RTD sensor leads (terminals 1–3), the relay output circuit (terminals 7–9), and the RS-485 communication pair if present. If the original installation used an Azbil NX-D15 or NX-D25 communication adapter, verify whether the new unit’s built-in RS-485 port can replace it directly or whether a separate Azbil AO-D15 analog output module is still required for cascade control loops.

For facilities integrating the C315GA004500 into a broader SCADA or DCS environment — such as a Yokogawa CENTUM VP or Honeywell Experion PKS system — the Modbus RTU register map of the new controller must be mapped to the existing HMI tag database. This typically involves updating the PV (process variable), SP (setpoint), and MV (manipulated variable) register addresses in the SCADA configuration. If the original controller used a proprietary Azbil communication protocol, a protocol converter or gateway device will be needed during the transition period to maintain supervisory visibility without interrupting the process.

I/O expansion is another common requirement during SDC-series retrofits. If the existing panel includes an Azbil AI-D15 analog input expansion module or a discrete I/O terminal block connected to a Mitsubishi MELSEC Q-series remote I/O rack, confirm that the new controller’s I/O addressing does not conflict with the expanded module map. In multi-loop panels, also verify that the Azbil UM33A or UM35A universal signal conditioner — often used for signal isolation between the controller and field transmitters — remains compatible with the new unit’s input impedance specification.

Finally, before energizing the new controller, load the original PID parameters (P, I, D, and alarm setpoints) from the legacy unit’s documentation or from a backup configuration file if the original was connected to an Azbil PRM (Plant Resource Manager) asset management system. Run the auto-tune function under a controlled process condition to validate the new parameters before returning the loop to automatic mode.

Downtime Control During System Migration

Minimizing production downtime during a controller swap is the primary concern for maintenance engineers. The recommended approach for replacing a legacy SDC-series unit with the Azbil C315GA004500 is a staged hot-swap procedure: place the affected loop in manual mode at the SCADA or DCS level, hold the current output at the last stable MV value, and then perform the physical swap. Because the C315GA004500 retains its configuration in non-volatile memory, pre-programming the unit on the bench — including input type, PID parameters, alarm limits, and communication address — before bringing it to the panel eliminates the need for on-site parameter entry under time pressure.

For processes where even a brief interruption is unacceptable (e.g., continuous chemical reactors or glass annealing furnaces), consider installing the new controller in a parallel shadow configuration: wire it to the same sensor input via a signal splitter, configure it identically, and monitor its output against the legacy unit for 24–48 hours before the final cutover. This approach also validates thermocouple or RTD calibration consistency between the old and new units without risking process upset.

Communication link continuity is equally important. If the legacy controller was part of a Modbus RTU daisy chain, assign the C315GA004500 the same device address as the unit being replaced, and verify baud rate, parity, and stop bit settings match the network configuration. The SCADA system should automatically resume polling without requiring tag remapping, provided the register map is compatible. All units shipped from SmartNexMSK are pre-tested for communication functionality and covered by a 12-month warranty against manufacturing defects.

Retrofit Support FAQ

Q1: Is the Azbil C315GA004500 a direct drop-in replacement for the SDC15 or C15 series?
In most installations, yes. The 48×48mm panel cutout, rear screw terminal layout, and universal input configuration make it physically and electrically compatible with the majority of SDC15 and C15 installations. However, you must verify the power supply suffix and output type suffix against your existing wiring before ordering. Contact our technical team with your original model number for a confirmed compatibility assessment.

Q2: What wiring changes are required during installation?
In most cases, existing field wiring can be reconnected directly to the C315GA004500’s rear terminals without modification. Document all terminal assignments before removing the legacy unit. Pay particular attention to the sensor input polarity (thermocouple type and lead assignment), relay output load rating, and RS-485 A/B polarity if communication is used. A wiring diagram for the C315GA004500 is available upon request.

Q3: How do I migrate the PID parameters from the old controller?
Record the existing P (proportional band), I (integral time), D (derivative time), and alarm setpoint values from the legacy unit’s front display or configuration printout before removal. Enter these values into the C315GA004500 via the front keypad or the Azbil PC Configurator software. After installation, run the auto-tune function under a stable process load to confirm the parameters are appropriate for the new unit’s response characteristics.

Q4: What does the 12-month warranty cover, and what is the shipping lead time?
Every Azbil C315GA004500 unit shipped from SmartNexMSK is covered by a 12-month warranty against manufacturing defects and functional failure under normal operating conditions. Units are pre-tested for input accuracy, output function, and communication integrity before dispatch. Standard lead time is 3–7 business days for in-stock units, with express shipping options available for urgent retrofit projects. Contact us at sales@smartnexmsk.com or +86 18259474341 for stock confirmation and expedited order processing.
