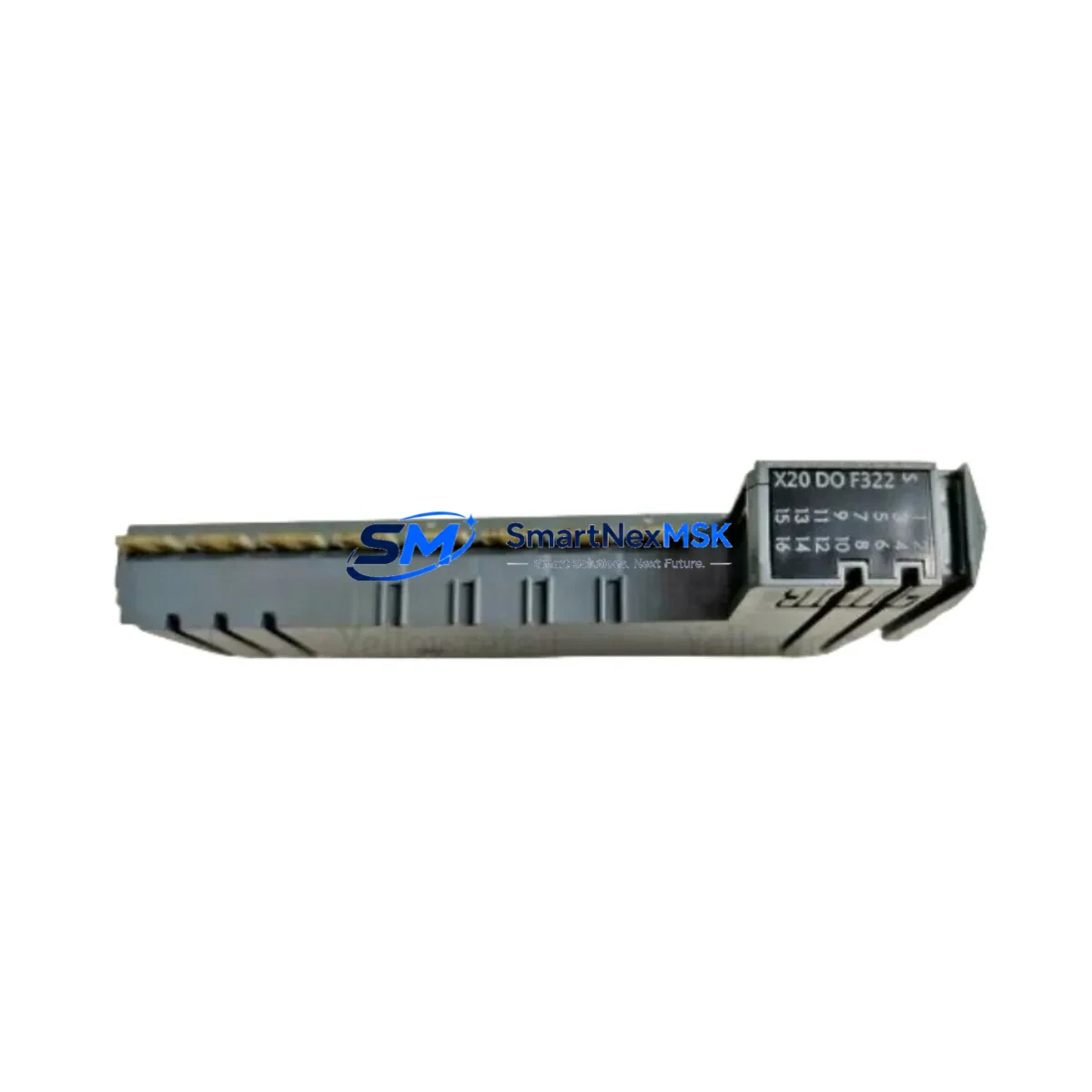

B&R X20DOF322 Safety-Enhanced Digital Output for X20 Systems

B&R X20DOF322 Safety-Enhanced Digital Output for X20 Systems

The B&R X20DOF322 is a SIL3/PLe-certified safety digital output module engineered for the X20 Series modular I/O platform. Designed to operate reliably in the most demanding industrial environments — including high-voltage interference zones, continuous-process facilities, and safety-critical interlock circuits — the X20DOF322 delivers deterministic output switching with integrated diagnostic feedback and hardware-level fault detection. For plant engineers managing aging control infrastructure or upgrading legacy safety architectures, this module represents a proven, in-stock solution backed by a 12-month warranty and full pre-shipment functional testing.

The X20DOF322 provides four fail-safe digital output channels rated for 24 VDC loads, with each channel independently monitored for short-circuit, overload, and wire-break conditions. The module’s compact X20 bus format allows direct installation into existing X20 backplane assemblies alongside standard I/O modules such as the X20DI9371 digital input module and X20DO9322 standard digital output module, enabling mixed safe and standard I/O within a single rack without additional interface hardware. The integrated safety processor communicates via the X2X Link fieldbus, ensuring synchronous, low-latency data exchange with the X20CP1586 or X20CP3586 safety controller without requiring separate safety network cabling.

In high-load environments such as petrochemical process units, power generation switchgear rooms, and metallurgical furnace control cabinets, the X20DOF322 maintains stable output switching even under sustained electromagnetic interference. Its reinforced housing meets IP20 protection with conformal coating options for humid or corrosive atmospheres, and the module is rated for operation from -25°C to +60°C — a critical specification for outdoor control enclosures in mining, port logistics, and water treatment facilities. The X20PS9400 power supply module, commonly installed in the same X20 rack, provides the regulated 24 VDC bus voltage required for safe-state output de-energization during emergency shutdown sequences.

Safety Reliability Table

Control Cabinet Protection Strategy

Deploying the X20DOF322 within a safety-rated control cabinet requires a systematic approach to power distribution, signal integrity, and fault isolation. In a typical safety architecture, the module is mounted on an X20 base plate alongside the X20BM11 bus module, which provides the mechanical and electrical connection to the X20 backplane. The X20PS9400 power supply feeds the 24 VDC bus, while a dedicated safety relay — such as the X20SR1000 safety relay module — monitors the output channel status and provides hardware-enforced de-energization during SIL3 interlock activation.

For cabinets operating in environments with significant surge exposure — common in arc furnace control rooms, high-voltage switchyards, and variable-frequency drive enclosures — surge protection devices should be installed upstream of the X20 power supply. The X20DOF322’s internal surge clamping handles transients up to IEC 61000-4-5 Level 3, but external protection on the 24 VDC supply rail extends the module’s service life in the most aggressive electrical environments. The X20IF1091 PROFINET interface module, often installed in the same rack for supervisory communication, should be shielded and grounded independently to prevent conducted interference from affecting safety channel timing.

In water treatment and chemical processing facilities, where the control cabinet may be located adjacent to pump motor starters or variable-speed drives, the X20DOF322’s output channels should be wired using shielded twisted-pair cable with shield grounded at the cabinet entry point. The X20TB12 terminal block, compatible with the X20 base plate system, simplifies field wiring and allows individual channel disconnection without removing the module from the rack — a critical feature for partial maintenance during live production. When integrating with third-party safety PLCs or legacy Siemens S7-300 safety CPUs via gateway modules, the X20DOF322’s X2X Link output data can be mapped through the X20IF10D1 EtherNet/IP adapter to maintain cross-platform safety interlock continuity.

Critical Industrial Safety Applications

The X20DOF322 is deployed across a broad range of safety-critical industrial sectors where output module failure carries significant operational and personnel risk. In petrochemical refineries and LNG terminals, the module drives emergency shutdown valve actuators within SIL2 and SIL3 rated safety instrumented systems, where response time from fault detection to safe-state output de-energization must be verified and documented per IEC 61511. The module’s hardware fault tolerance of HFT=1 in redundant configurations satisfies the architectural constraints for SIL3 subsystems without requiring additional voting logic hardware.

In electric power generation and grid substation control, the X20DOF322 controls protection relay trip coils and circuit breaker actuators within digital protection systems. Its deterministic X2X Link cycle time — typically 400 µs in X20 safety configurations — ensures that protection commands are executed within the timing margins required by IEC 61850 protection coordination schemes. Mining and mineral processing operations rely on the module for conveyor belt emergency stop circuits, crusher interlock outputs, and ventilation fan safety controls, where the module must maintain reliable switching across wide temperature ranges and in the presence of coal dust, silica, and hydrocarbon vapors.

Water and wastewater treatment facilities use the X20DOF322 to control chemical dosing pump enable outputs, UV disinfection system interlocks, and high-level overflow prevention actuators. In port and terminal automation, the module drives safety-rated outputs for crane anti-collision systems, spreader interlock circuits, and quayside emergency stop networks. Continuous steel and aluminum rolling mills deploy the X20DOF322 in roll gap control safety circuits, where output channel diagnostics must detect actuator feedback discrepancies within a single control cycle to prevent material damage and personnel injury.

Safety and Quality FAQ

Q: What warranty coverage does the X20DOF322 carry?
A: Every X20DOF322 unit shipped by SMARTNEXMSK is covered by a 12-month warranty from the date of delivery. The warranty covers functional defects under normal operating conditions and includes replacement or repair at no additional cost. Pre-shipment functional testing is performed on all units to verify output channel switching, diagnostic feedback, and bus communication integrity before dispatch.

Q: Is the X20DOF322 compatible with existing B&R X20 safety controller configurations?
A: Yes. The X20DOF322 is fully compatible with the B&R X20 Series safety controller family, including the X20CP1586 and X20CP3586 CPUs running Automation Studio with SafeDESIGNER. The module is recognized automatically during hardware configuration and does not require firmware updates when installed in X20 racks running current X20 system firmware. Compatibility with legacy X20 configurations using older SafeDESIGNER versions should be verified against the B&R hardware compatibility matrix.

Q: What pre-shipment testing is performed on each unit?
A: Each X20DOF322 undergoes a structured functional test protocol covering output channel switching under rated load, short-circuit and overload diagnostic response, X2X Link bus communication verification, and power supply sequencing. Test records are retained and can be provided upon request for quality audit purposes. Units that do not pass all test criteria are quarantined and not shipped.

Q: Can the X20DOF322 replace a failed module in a live safety system without full system restart?
A: The X20 Series supports hot-swap module replacement in non-safety I/O configurations, but safety-rated modules including the X20DOF322 typically require a controlled safety function reset after replacement to re-validate the safety channel configuration. The replacement procedure should follow the B&R X20 safety module replacement guidelines and the site-specific safety management of change procedure. SMARTNEXMSK can provide technical guidance on replacement sequencing to minimize planned downtime during module exchange.
