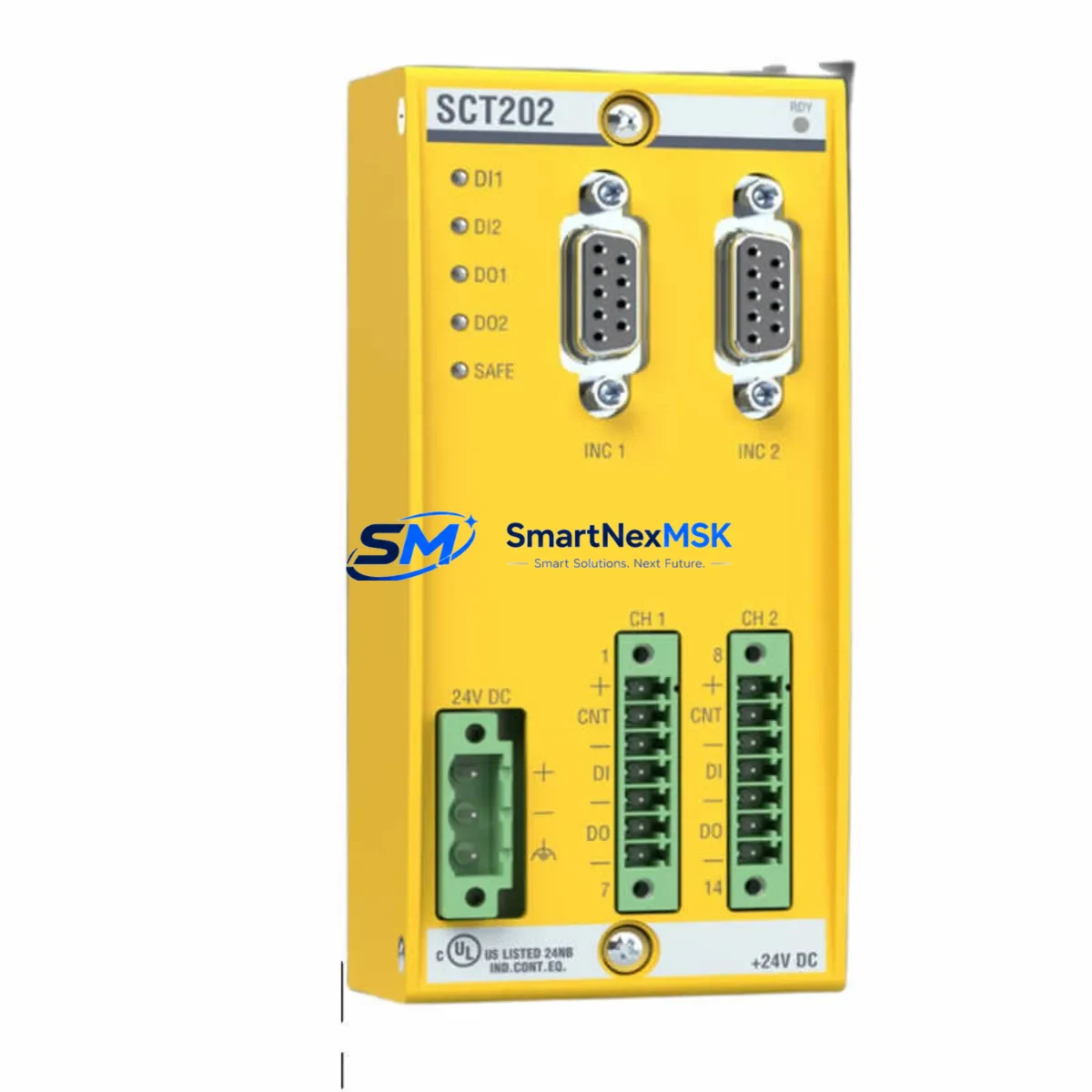

The BACHMANN SCT202 is an original safety counter input module engineered for the BACHMANN M1 automation platform, rated SIL 2 / PLd in accordance with IEC 61508 and EN ISO 13849-1. For maintenance engineers managing continuous production lines, process control cabinets, or safety-critical motion systems, the SCT202 represents a high-priority spare that must be available on-site before a fault occurs — not after. Unplanned downtime caused by a failed counter input module can cascade across an entire M1 rack, disabling encoder feedback, speed monitoring, and position verification simultaneously. Sourcing a tested, original SCT202 in advance is the single most effective step to reduce mean time to repair (MTTR) in M1-based control architectures.

This listing supplies the SCT202 as a maintenance-ready spare: inspected, function-tested, and dispatched with a 12-month warranty covering manufacturing defects and operational failure under normal industrial conditions. Each unit is verified against BACHMANN’s original electrical specifications prior to shipment, ensuring drop-in compatibility with existing M1 racks without firmware reconfiguration in standard replacement scenarios.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a maintenance or procurement engineer schedules replacement of the SCT202, the inspection scope should extend beyond the module itself. The SCT202 interfaces directly with the M1 backplane bus; a degraded MX213 CPU module or a failing MX220 CPU can produce counter read errors that are misdiagnosed as SCT202 faults. Before condemning the counter module, verify backplane communication integrity and CPU diagnostic logs.

On the field wiring side, the encoder cables feeding the SCT202’s counter inputs are a common failure point in high-vibration or high-cycle environments. Shielded encoder cables with proper grounding at the cabinet entry point should be inspected for insulation breakdown, connector corrosion, and shield continuity. Alongside the SCT202, the DI212 digital input module and DO212 digital output module in the same rack should be checked for contact wear if the system has accumulated high operating hours.

Power distribution within the M1 cabinet is equally critical. The PS201 power supply module provides regulated 24 V DC to the rack; a marginal power supply with output ripple exceeding specification will cause intermittent counter errors and spurious safety trips. Inspect the PS201’s output voltage under load and replace proactively if the unit is beyond its recommended service interval. The MX203 I/O expansion module and any installed AIO288 analog I/O modules sharing the same power rail should also be verified for stable supply voltage.

For systems using BACHMANN’s safety communication layer, the MX-NET Ethernet module or CAN bus interface module installed in the same rack should be confirmed operational, as a communication fault can mask or amplify counter module alarms in the SCADA or HMI layer. If the plant uses a BACHMANN SolutionCenter HMI or third-party HMI connected via OPC-UA or Modbus TCP, verify that counter channel status tags are updating correctly after module replacement before returning the system to automatic mode.

Terminal blocks and wiring ferrules at the encoder input terminals of the SCT202 should be re-torqued to specification during any planned replacement. Loose terminations in safety counter circuits are a leading cause of nuisance trips and can introduce counting errors that compromise position or speed safety functions. Including a set of spare terminal blocks and cable ferrules in the same spare parts kit as the SCT202 is a low-cost, high-value practice.

Site Replacement Workflow

Step 1 — Pre-replacement documentation: Record the current SCT202 slot position, firmware version (visible in BACHMANN SolutionCenter), and all counter channel parameter settings (counting mode, filter time, safety function assignment) before powering down. Export the project configuration backup from the M1 CPU.

Step 2 — Safe isolation: Follow the site LOTO (Lockout/Tagout) procedure. De-energize the M1 rack via the main cabinet isolator. Confirm 0 V at the backplane power terminals before handling modules.

Step 3 — Module extraction and inspection: Remove the SCT202 by releasing the front panel locking lever. Inspect the backplane connector pins for damage or contamination. Clean with isopropyl alcohol if required before inserting the replacement unit.

Step 4 — Replacement insertion and parameter restore: Insert the new SCT202 into the same slot. Power up the rack and allow the M1 CPU to perform automatic module recognition. Restore counter channel parameters from the saved configuration backup. Verify that the SolutionCenter project compiles and downloads without module mismatch errors.

Step 5 — Functional verification: Perform a live encoder signal test on each counter channel. Confirm that speed, position, and direction values match expected values from the connected encoder. Verify that all safety functions (speed monitoring, standstill detection) are active and reporting correctly before releasing the system to production.

Step 6 — Documentation close-out: Record the replacement date, new module serial number, and post-replacement test results in the site maintenance log. Update the spare parts inventory to trigger reorder of a replacement SCT202 for the next maintenance cycle.

Spare Parts Support FAQ

Q1: Is this SCT202 an original BACHMANN part or a compatible substitute?
This is an original BACHMANN Electronic SCT202 module, not a third-party compatible or remanufactured substitute. Each unit is sourced from verified supply channels and function-tested before dispatch to confirm it meets BACHMANN’s original electrical and safety specifications.

Q2: What does the 12-month warranty cover, and how is a warranty claim handled?
The 12-month warranty covers manufacturing defects and operational failure under normal industrial operating conditions (correct supply voltage, within rated temperature range, no physical damage). To initiate a warranty claim, contact our sales team with the order reference and a description of the fault. We will arrange return shipping and provide a replacement or refund upon verification.

Q3: Can the SCT202 be used as a direct replacement for older M1 counter modules without reprogramming?
In most standard M1 configurations, the SCT202 is recognized automatically by the M1 CPU upon insertion, and existing project parameters are restored from the CPU’s configuration memory. However, if the site is running a legacy firmware version on the M1 CPU, a firmware compatibility check is recommended before installation. Our technical team can advise on compatibility for specific CPU firmware versions upon request.

Q4: What is the recommended spare parts stocking strategy for the SCT202 in a multi-rack M1 installation?
For installations with three or more M1 racks containing SCT202 modules, we recommend maintaining a minimum of one spare SCT202 per site. For critical continuous-process applications (24/7 operation, no scheduled downtime windows), a two-unit on-site buffer is advisable. Long-term supply continuity is supported: we maintain stock and can fulfill repeat orders with consistent lead times, making it practical to establish an annual replenishment schedule aligned with your planned maintenance shutdowns.
