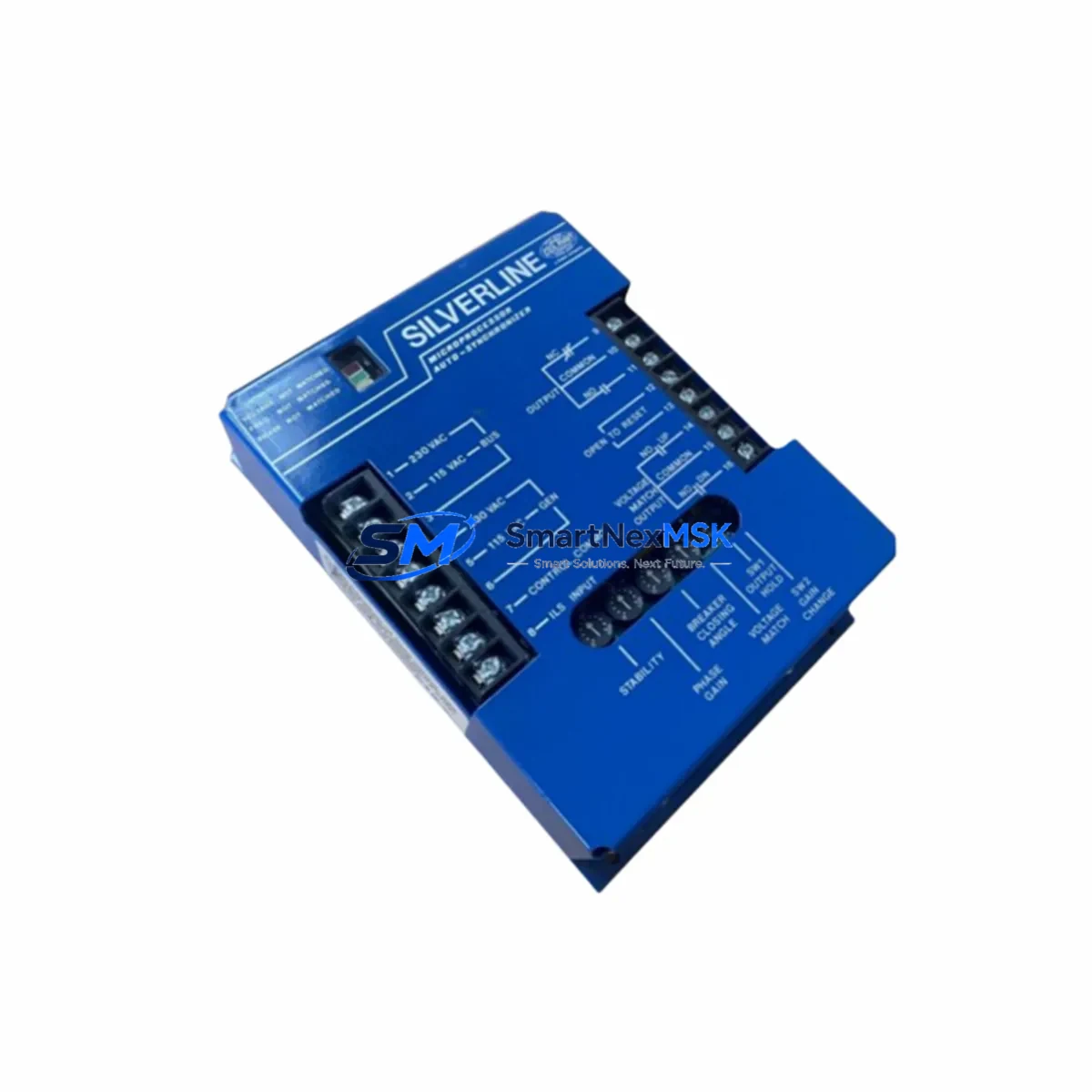

Barber-Colman DYN2-90200 Maintenance-Ready Spare Silverline Automation
The Barber-Colman DYN2-90200 is a proven process controller from the Silverline Series, widely deployed in industrial temperature regulation, HVAC control loops, and continuous process automation systems. For maintenance engineers managing aging control infrastructure, sourcing a verified original spare for the DYN2-90200 is critical to minimizing unplanned downtime and restoring system stability quickly. This unit ships tested, inspected, and backed by a 12-month warranty — ready for immediate site installation.
Whether you are executing a planned shutdown replacement, responding to an emergency fault, or building out your facility’s critical spare inventory, the DYN2-90200 delivers the compatibility and reliability that Silverline-based control systems demand. Each unit undergoes pre-shipment functional verification to confirm output response, setpoint accuracy, and communication integrity before dispatch.
Spare Maintenance Table
| Parameter | Specification |
|---|---|
| Part Number | DYN2-90200 |
| Brand | Barber-Colman |
| Series | Silverline |
| Product Type | Process Controller |
| Input Type | Thermocouple / RTD / Analog (Series-dependent) |
| Output Type | Relay / Analog (application-configured) |
| Supply Voltage | 100–240 VAC, 50/60 Hz (verify nameplate) |
| Mounting | Panel-mount, DIN rail compatible |
| Operating Temperature | 0°C to 55°C ambient |
| Enclosure Rating | IP54 front panel (typical Silverline spec) |
| Communication | RS-485 / Modbus RTU (model-dependent) |
| Origin | United States |
| Compatibility | Direct replacement for Silverline Series DYN2-90200 installations |
| Maintenance Recommendation | Replace every 5–8 years or upon setpoint drift / output failure |
| Warranty | 12 Months — covers manufacturing defects and functional failure |
| Pre-Shipment Test | Functional output, setpoint response, and communication verified |
Maintenance Planning for Continuous Operation
When a DYN2-90200 process controller is flagged for replacement during a scheduled inspection or emergency fault response, experienced maintenance engineers know that the controller itself is rarely the only component requiring attention. A thorough control cabinet audit at the time of replacement significantly reduces the risk of repeat failures and secondary downtime events.
Begin by inspecting the 24 VDC power supply module feeding the controller — voltage sag or ripple is a common root cause of erratic setpoint behavior and premature controller failure. Check the terminal blocks and wiring harness connected to the DYN2-90200 for signs of heat damage, loose crimps, or insulation degradation, particularly on thermocouple and RTD input leads where signal integrity is critical.
Review the output relay module or solid-state relay (SSR) driven by the DYN2-90200’s control output — relay contacts wear over time and a failed relay can mimic a controller fault, leading to misdiagnosis. If the system uses analog 4–20 mA signal loops, inspect the signal isolator or signal conditioner in the loop; a degraded isolator introduces offset errors that appear as controller drift.
For systems with RS-485 or Modbus RTU communication, verify the communication cable shielding and termination resistors, and check the RS-485 to USB or RS-232 converter if a local HMI or SCADA interface is in use. A faulty communication adapter can prevent parameter upload/download during commissioning of the replacement unit, extending your downtime window unnecessarily.
If the DYN2-90200 is part of a multi-loop control panel, also inspect adjacent Barber-Colman Silverline Series companion controllers — units of similar age in the same thermal environment often exhibit concurrent wear. Checking the panel cooling fan and air filter is equally important; restricted airflow accelerates component aging across all installed modules. Finally, confirm that the fuse holders and circuit protection devices on the controller’s supply line are intact and within rated capacity, as a marginal fuse can cause intermittent resets that are difficult to diagnose without a spare on hand.
Site Replacement Workflow
Replacing the DYN2-90200 on-site is a straightforward process when the correct spare is available and pre-verified. Begin by documenting all current parameter settings — setpoint values, PID tuning constants, alarm thresholds, and communication addresses — either from the HMI display or via a connected configuration tool before powering down the panel.
Isolate the controller’s supply circuit using the appropriate lockout/tagout procedure. Disconnect input signal wiring (thermocouple, RTD, or analog leads) and output wiring (relay or analog output) in sequence, labeling each terminal to ensure accurate reconnection. Remove the DYN2-90200 from its panel cutout or DIN rail mount.
Install the replacement DYN2-90200, reconnect all wiring per the original terminal layout, and restore power. Re-enter all documented parameters before enabling automatic control mode. Perform a setpoint step test to confirm output response and verify that the process variable tracks correctly. For systems with Modbus communication, confirm register mapping and baud rate settings match the SCADA or HMI configuration before returning the loop to service.
This workflow typically allows a trained technician to complete a DYN2-90200 swap within 30–60 minutes, keeping unplanned downtime to a minimum. Having a pre-tested spare on the shelf reduces that window further — no waiting for shipping, no expedite fees, no extended production loss.
Spare Parts Support FAQ
Q: Is this DYN2-90200 a genuine original spare or a compatible substitute?
A: This is an original Barber-Colman DYN2-90200 unit sourced from authorized supply channels. It is not a third-party compatible or rebranded substitute. Each unit is individually inspected and functionally tested prior to shipment to confirm it meets the original Silverline Series specification.
Q: How long does the 12-month warranty cover, and what does it include?
A: The 12-month warranty begins from the date of shipment and covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling. Warranty claims are processed promptly with replacement or refund options.
Q: Can I use this unit as a direct drop-in replacement for an existing DYN2-90200 without reconfiguration?
A: In most cases, yes — provided the replacement unit is the same hardware revision as the original. We recommend documenting all parameter settings from the outgoing unit before removal and re-entering them into the replacement. If your installation uses Modbus communication, verify that the communication address and baud rate are correctly configured before returning the loop to automatic mode.
Q: Do you maintain long-term stock of the DYN2-90200 for ongoing maintenance programs?
A: Yes. We maintain dedicated inventory of the DYN2-90200 and other Silverline Series components to support facilities with long-term maintenance contracts and planned replacement schedules. Contact our team to discuss volume pricing, reserved stock arrangements, or multi-unit spare kits tailored to your control system inventory strategy.
