Basler SIA1600-14FM Safety-Enhanced Line-Scan Camera

Basler SIA1600-14FM Safety-Enhanced Line-Scan Camera: Reliable Vision Control for Harsh Industrial Sites

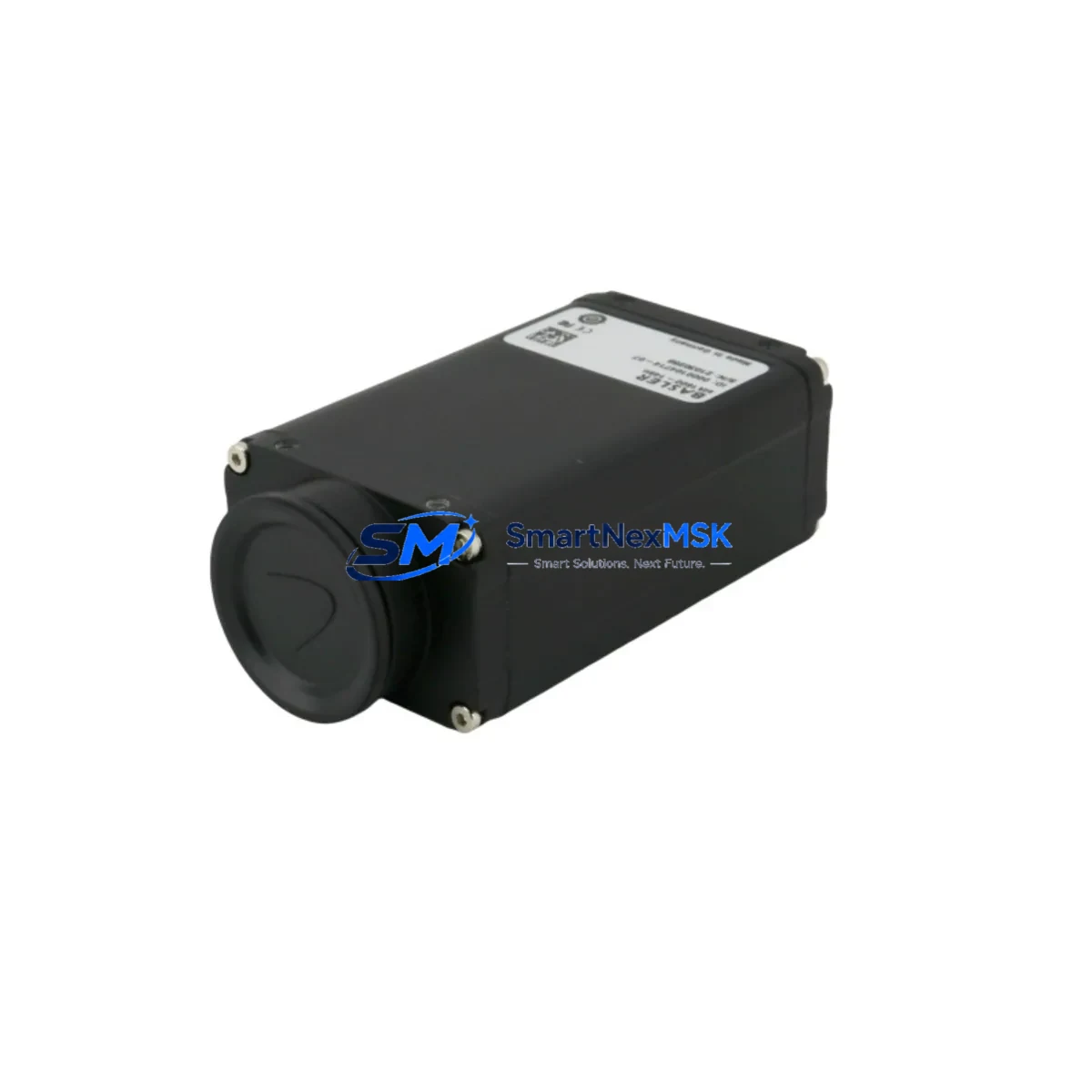

In high-stakes industrial environments — from continuous steel rolling mills and petrochemical processing lines to port logistics conveyors and mining ore-sorting systems — machine vision reliability is not a convenience; it is a safety imperative. The Basler SIA1600-14FM (Part No. 0000104714-07) is a ruggedized, high-resolution line-scan CCD camera engineered to deliver uninterrupted imaging performance in exactly these demanding conditions. With its 14-bit dynamic range, Camera Link Full Medium (FM) interface, and robust EMI-resistant housing, this module is purpose-built to anchor safety-critical inspection and control loops where signal integrity and uptime are non-negotiable.

Unlike standard industrial cameras that may falter under electrical noise, vibration, or thermal stress, the SIA1600-14FM is designed to maintain stable pixel-clock synchronization and consistent line-rate output even when co-located with high-power servo drives, variable-frequency drives (VFDs), and heavy switching power supplies. This makes it a trusted component in control cabinets and field enclosures where electromagnetic interference (EMI) and ground-loop noise routinely threaten sensor accuracy and process continuity.

Safety Reliability Table

Control Cabinet Protection Strategy

Deploying the Basler SIA1600-14FM within a safety-oriented control architecture requires careful attention to the surrounding electrical ecosystem. In a typical heavy-industry control cabinet, the camera interfaces with a Camera Link FM frame grabber (such as those from Matrox or National Instruments) mounted in an industrial PC or vision controller. Signal integrity over long Camera Link cable runs — often 5 to 10 meters in large-format inspection systems — depends critically on proper cable shielding and grounding, particularly when the cabinet also houses Siemens SINAMICS G120 or S120 variable-frequency drives that generate significant conducted and radiated EMI.

To protect the SIA1600-14FM’s pixel-clock and trigger lines from noise-induced jitter, system integrators routinely install Phoenix Contact TRABTECH surge protection modules on the 24 VDC auxiliary rail and on the Camera Link trigger input lines. Pairing the camera with a Weidmüller or Phoenix Contact 24 VDC DIN-rail power supply rated at 10 A or higher ensures that transient load spikes from co-located solenoid valves or relay coils do not cause voltage sag that could corrupt frame-sync signals.

In interlock-critical applications — such as web-break detection on paper machines or foreign-object detection on food-processing conveyors — the camera’s trigger input is typically driven by a Pilz PNOZ or Sick safety relay module, ensuring that the imaging cycle is synchronized with the machine’s safety PLC state. The safety PLC itself, often a Siemens S7-300 F-CPU or Allen-Bradley GuardLogix controller, monitors the camera’s frame-valid output as a process health signal; loss of valid frames within a configurable watchdog window triggers a controlled machine stop rather than an uncontrolled fault.

For installations in dusty or humid environments — common in cement plants, grain terminals, and mineral processing facilities — the camera is typically housed in a Rittal or Hoffman IP65-rated enclosure with a compressed-air purge system. The Camera Link cable entry points are sealed with EMC cable glands to prevent both moisture ingress and RF leakage. Thermal management inside the enclosure is handled by a Pfannenberg or Rittal cooling unit to keep the CCD sensor within its rated operating temperature range, preventing dark-current noise that would degrade 14-bit image quality at elevated temperatures.

Communication between the vision system and the plant DCS or SCADA layer is typically handled via OPC-UA or Profinet, with the vision controller publishing inspection results — pass/fail, defect coordinates, measurement values — to the process historian in real time. This architecture ensures that the SIA1600-14FM’s imaging data contributes directly to process safety and quality records without manual intervention.

Critical Industrial Safety Applications

Petrochemical & Refinery: In pipeline weld inspection and pressure-vessel seam verification, the SIA1600-14FM provides the high-resolution, high-dynamic-range imaging needed to detect sub-millimeter surface defects on reflective metal surfaces under variable ambient lighting. Its EMI-hardened design ensures stable operation near high-voltage switchgear and motor control centers common in refinery environments.

Electric Power Generation: Turbine blade and generator rotor inspection systems use line-scan cameras to capture full-surface imagery during slow-rotation test cycles. The 14-bit depth of the SIA1600-14FM resolves fine cracks and coating delamination that 8-bit cameras would miss, directly supporting predictive maintenance programs that prevent catastrophic equipment failures.

Mining & Mineral Processing: On ore-sorting conveyors operating 24/7 in high-dust, high-vibration environments, the ruggedized housing and stable CCD output of the SIA1600-14FM enable reliable material classification without the false-trigger events that plague less robust sensors. Reduced false rejects translate directly to improved yield and reduced downstream processing costs.

Water & Wastewater Treatment: Pipe lining inspection and membrane integrity verification in water treatment plants require cameras that can operate reliably in high-humidity, chemically aggressive atmospheres. The SIA1600-14FM’s sealed housing and stable imaging output make it suitable for deployment in these environments, supporting regulatory compliance inspections.

Metallurgy & Steel: Hot-strip mill surface inspection systems demand cameras that can withstand radiated heat, steam, and intense electromagnetic fields from induction heaters and arc furnaces. The SIA1600-14FM, when properly enclosed and thermally managed, delivers consistent surface defect detection at line speeds exceeding 10 m/s, enabling real-time quality control that prevents defective coil from reaching downstream customers.

Port & Logistics: Container and cargo inspection gantries use line-scan cameras to capture full-length images of passing vehicles and containers. The SIA1600-14FM’s high line rate and wide dynamic range accommodate the variable lighting and speed conditions typical of port operations, supporting both security screening and damage-assessment workflows.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover, and how is a warranty claim processed?
The 12-month warranty covers all defects in materials and workmanship under normal operating conditions. If the unit fails within the warranty period, we arrange return shipping, perform diagnostic testing, and provide either a repaired unit or a direct replacement of the same model and specification. Warranty claims are typically resolved within 5–10 business days of receipt.

Q2: What pre-shipment testing is performed on the SIA1600-14FM (0000104714-07)?
Every unit undergoes full functional verification before dispatch: Camera Link signal integrity check, line-rate stability test across the full operating range, pixel uniformity verification, and visual inspection of the housing and connector interfaces. A test report is available upon request for quality-critical procurement processes.

Q3: Is the SIA1600-14FM compatible with third-party Camera Link frame grabbers and vision software?
Yes. The SIA1600-14FM conforms to the Camera Link Full Medium standard, making it compatible with any compliant frame grabber from vendors such as Matrox, National Instruments, Euresys, and Active Silicon. It is also supported by major machine vision SDKs including Halcon, VisionPro, and OpenCV-based custom applications via standard GenICam/CLHS drivers where applicable.

Q4: Can long-term supply and spare-part availability be guaranteed for ongoing production lines?
We maintain dedicated stock of the SIA1600-14FM and related Basler line-scan modules to support customers with ongoing production commitments. For facilities requiring guaranteed spare availability — common in continuous-process industries where an unplanned camera failure could trigger a line shutdown — we offer reserved-stock arrangements. Contact our sales team to discuss volume and lead-time requirements for your specific application.
