BAUMULLER BM4422-ST1-01242-0309 Spare for BM44 Automation: Spare Replacement & Industrial Downtime Risk Control

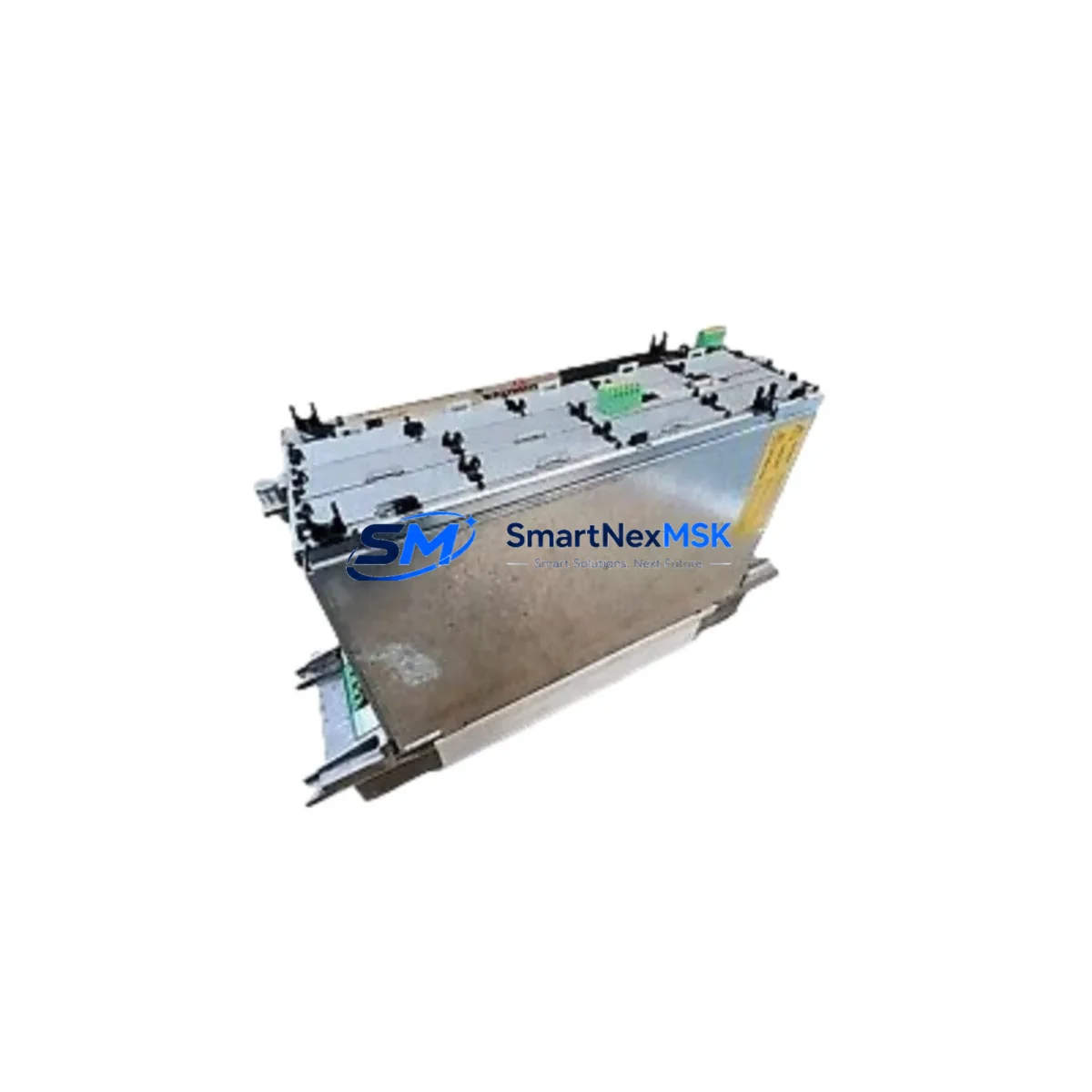

The BAUMULLER BM4422-ST1-01242-0309 is an original servo drive module from the BM44 series, engineered for precision motion control in demanding industrial automation environments. For maintenance engineers managing aging servo systems, production lines, or multi-axis CNC installations, having a verified, ready-to-ship spare of this module is a critical element of any proactive downtime prevention strategy. Unplanned servo drive failures can halt entire production cells within minutes — the BM4422-ST1-01242-0309 is stocked and tested to ensure your system is back online with minimal disruption.
Whether you are executing a planned overhaul, responding to an emergency fault, or building out your control cabinet spare parts inventory, this module delivers the original BAUMULLER performance your BM44-series system was designed around. Each unit undergoes pre-shipment functional verification and ships with a 12-month warranty, giving procurement engineers the confidence to source with certainty.
Spare Maintenance Table
| Parameter | Specification / Detail |
|---|---|
| Part Number / SKU | BM4422-ST1-01242-0309 |
| Brand | BAUMULLER |
| Series | BM44 |
| Product Type | Servo Drive Module |
| Origin | Germany (DE) |
| Compatibility | BAUMULLER BM44 series servo systems; compatible with standard BM44 control cabinet configurations |
| Application Environment | Industrial automation, CNC machining, packaging lines, printing machinery, textile equipment |
| Installation | Direct replacement for existing BM4422-ST1-01242-0309 installations; follow BAUMULLER BM44 commissioning guidelines |
| Electrical Interface | Compatible with BM44-series power supply modules, feedback encoder interfaces, and DC bus connections |
| Maintenance Recommendation | Inspect DC bus capacitors, feedback cables, and cooling fans during replacement; verify parameter backup before swap |
| Pre-Shipment Testing | Functional verification performed on every unit prior to dispatch |
| Warranty | 12 Months |
| Shipping | Worldwide; express options available for urgent maintenance requirements |
Maintenance Planning for Continuous Operation
Replacing the BM4422-ST1-01242-0309 in a live production environment requires more than a simple module swap. Experienced maintenance engineers know that a servo drive fault is rarely an isolated event — it is often a symptom of broader stress across the electrical circuit. Before and during replacement, a thorough inspection of the surrounding components is strongly recommended to prevent repeat failures and ensure long-term system stability.
Start with the BM44-series power supply module (such as the BM4400 or BM4401 regenerative supply unit): verify DC bus voltage levels are within specification and that no overvoltage or undervoltage faults are logged. A degraded power supply can stress replacement drives prematurely. Next, inspect the feedback encoder cable and connector — damaged shielding or loose connectors on the resolver or incremental encoder interface are a leading cause of recurring drive faults in BM44 installations.
Check the 24VDC control power supply feeding the drive’s logic section; voltage ripple or intermittent dropout can cause unexplained fault codes even in a healthy drive module. Inspect DC bus fuses and pre-charge resistors within the control cabinet — these are often overlooked during emergency replacements but are critical for protecting the new module during power-up. If the cabinet uses a BAUMULLER BM4-O or BM4-S communication module for PROFIBUS, CANopen, or EtherCAT connectivity, verify firmware compatibility with the replacement drive before commissioning.
For multi-axis systems, review the axis coupling and DC bus sharing configuration: a shorted or weakened axis in the same DC bus group can cause cascading faults across adjacent drives. Inspect terminal blocks and power wiring at the drive’s motor output — loose connections generate heat and intermittent faults that are difficult to diagnose remotely. If the system includes a BAUMULLER b maXX HMI or operator panel, confirm that the drive parameters are backed up and can be restored after the swap to avoid lengthy recommissioning.
Finally, review the motor thermal protection circuit and any PTC or KTY temperature sensor wiring connected to the drive’s feedback input. A failed temperature sensor can trigger false overtemperature faults on an otherwise healthy replacement module. Building a cabinet-level spare kit that includes the BM4422-ST1-01242-0309 alongside a spare encoder cable assembly, a set of DC bus fuses, and a 24VDC power supply module will dramatically reduce mean time to repair (MTTR) for your BM44-series installations.
Site Replacement Workflow
Replacing the BM4422-ST1-01242-0309 on-site is a structured process designed to minimize downtime and maintain full system compatibility. Begin by safely de-energizing the control cabinet and discharging the DC bus — BAUMULLER BM44 drives retain high-voltage charge for several minutes after power-off, so always verify with a calibrated meter before opening the cabinet.
Before removing the faulty module, use the BAUMULLER ProDrive or b maXX toolset to export the complete parameter set from the drive if it is still partially functional. This backup eliminates the need for full recommissioning and allows the replacement BM4422-ST1-01242-0309 to be configured identically to the original within minutes. If the original drive is completely non-functional, parameters can often be recovered from a previously saved project file or from a sister axis in the same machine.
Disconnect motor power cables, encoder feedback, 24VDC control wiring, and the DC bus connections in sequence, labeling each connector to prevent wiring errors during reinstallation. Slide the replacement module into the cabinet rail, reconnect all interfaces, and restore the parameter backup before powering up. Perform a no-load test run to verify encoder feedback, current loop response, and communication status before returning the axis to production. This systematic approach — combined with a pre-tested, warranted spare — consistently reduces unplanned downtime from hours to under 30 minutes for experienced maintenance teams.
Spare Parts Support FAQ
Q1: Is the BM4422-ST1-01242-0309 a direct replacement for older BM44 series drive variants?
Yes. The BM4422-ST1-01242-0309 is designed as a direct form-fit-function replacement within the BAUMULLER BM44 series. However, always verify the hardware revision and firmware version compatibility with your specific machine configuration before installation, particularly in multi-axis or synchronized motion applications.
Q2: What pre-shipment testing is performed on each unit?
Every BM4422-ST1-01242-0309 unit undergoes functional verification prior to dispatch, including power-on self-test, communication interface check, and output stage validation. Units that do not pass testing are not shipped. A 12-month warranty covers all units against manufacturing defects and functional failures under normal operating conditions.
Q3: How should I manage long-term spare parts inventory for BM44-series systems?
For production-critical BM44 installations, we recommend maintaining at least one BM4422-ST1-01242-0309 on-site as a hot spare, particularly for machines running 24/7 or in single-point-of-failure configurations. Pair this with a spare encoder cable, DC bus fuses, and a 24VDC logic supply to cover the most common failure modes without waiting for international shipping lead times.
Q4: What is the lead time and can urgent orders be expedited?
Standard orders ship within 1–3 business days. For urgent maintenance situations, express shipping options are available to most global destinations. Contact our team directly to confirm stock availability and arrange priority dispatch for emergency downtime recovery scenarios.
