BEI E25BB-4R-SB-CCW-8CC-7406R-LED-ED25 Retrofit-Ready Encoder

BEI E25BB-4R-SB-CCW-8CC-7406R-LED-ED25 Retrofit-Ready Encoder for Legacy Control Systems

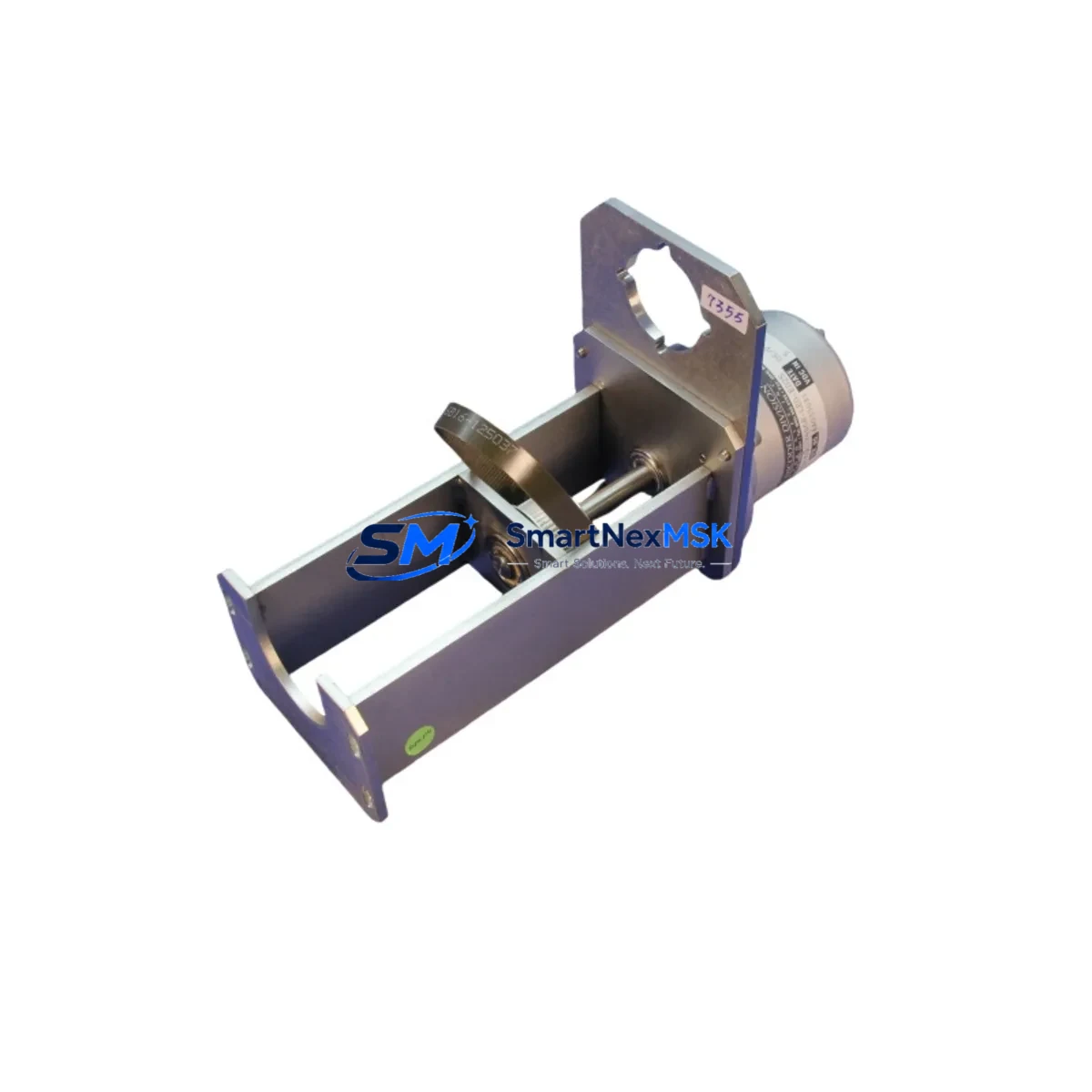

The BEI E25BB-4R-SB-CCW-8CC-7406R-LED-ED25 (also cross-referenced as 23835-01, 932T0016, GIDX2C7RSML, and 12-1K11AAED-072) is a high-resolution incremental rotary encoder engineered for demanding servo feedback and motion control applications. With a resolution of 7,406 PPR, counter-clockwise (CCW) shaft rotation, and a robust LED optical sensing element, this encoder is purpose-built for retrofit integration into aging automation systems where the original BEI E25 series unit has reached end-of-life or is no longer available through standard distribution channels.

Whether you are modernizing a legacy CNC machining center, upgrading a servo-driven conveyor line, or restoring position feedback on a discontinued motion controller platform, the E25BB-4R-SB-CCW-8CC-7406R-LED-ED25 provides a verified drop-in replacement path with minimal re-engineering. Its 4-pin SB connector configuration and standard 2.5-inch flange mount are dimensionally compatible with the original E25BB footprint, allowing direct mechanical substitution without bracket modification in most retrofit scenarios.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the E25BB-4R-SB-CCW-8CC-7406R-LED-ED25 into an existing control system requires a structured pre-installation review. Before removing the failed or obsolete encoder, technicians should document the current PPR setting stored in the servo drive’s parameter table — on platforms such as the Allen-Bradley Kinetix 5500 or Siemens SINAMICS S120, this value is typically held in the motor feedback configuration register and must match the replacement encoder’s 7,406 PPR exactly to avoid position error faults at startup.

Terminal wiring is a critical checkpoint. The 8CC differential output of this encoder produces complementary A/A̅, B/B̅, and Z/Z̅ channels. When replacing an older single-ended encoder on a legacy Mitsubishi MELSEC Q-series or Omron CJ2M high-speed counter module, an external line receiver or signal converter may be required to bridge the differential output to the existing I/O card’s single-ended input. Confirm the input specification of the high-speed counter module before finalizing the wiring diagram.

Backplane and rack considerations are equally important in multi-axis systems. If the encoder is feeding position data to a Rockwell Automation 1756-M02AE servo module housed in a ControlLogix 1756 chassis, verify that the module’s encoder input channel is configured for differential mode and that the cable shield is grounded at one end only to prevent ground loop interference. For systems using a Beckhoff EL5101 incremental encoder terminal, the 7,406 PPR value must be entered in the TwinCAT axis configuration to ensure accurate velocity and position scaling.

In retrofit projects involving Fanuc Series 0i-MF or Series 30i CNC controllers, the encoder’s Z-channel (index pulse) alignment is essential for accurate reference point return (RPR) cycles. After mechanical installation, perform a slow-speed jog to verify that the Z-pulse is detected at the correct angular position before enabling the automatic reference cycle. If the original machine program references a specific home offset, confirm that the offset value remains valid after encoder substitution.

For applications where the encoder interfaces with a Yaskawa Sigma-7 servo amplifier or a Panasonic MINAS A6 drive, the encoder cable — typically a shielded twisted-pair assembly with a programming cable or dedicated feedback harness — should be inspected for continuity and insulation integrity before reuse. Cable lengths exceeding 20 meters may require signal repeaters to maintain signal integrity at 7,406 PPR.

All units supplied by SMARTNEXMSK undergo pre-shipment functional testing including PPR verification, channel symmetry check, and index pulse confirmation. Each encoder ships with a test report and is covered by a 12-month warranty against manufacturing defects.

Downtime Control During System Migration

Minimizing unplanned downtime during encoder replacement is a primary concern for maintenance teams operating continuous production lines. The recommended approach is to pre-stage the replacement E25BB-4R-SB-CCW-8CC-7406R-LED-ED25 unit alongside a printed copy of the original servo drive parameter file — exported via the drive’s commissioning software such as Siemens Starter, Rockwell Studio 5000 Logix Designer, or Mitsubishi GX Works3 — before the scheduled maintenance window begins.

Where possible, perform a controlled axis disable rather than an emergency stop to preserve the current program logic and retain the axis home position in the controller’s non-volatile memory. On Allen-Bradley CompactLogix and ControlLogix platforms, the axis position is stored in the controller tag database and will survive a power cycle if the program is saved to the controller’s flash memory prior to the swap. This eliminates the need for a full re-homing sequence in many cases, reducing the mechanical changeover to under 30 minutes for experienced technicians.

After installation, bring the axis online at reduced speed (typically 10–20% of rated velocity) and monitor the position feedback signal on the drive’s diagnostic display or via the HMI trend screen. Confirm that the position count increments in the correct direction — given the CCW shaft specification of this encoder, verify that the drive’s direction parameter is set to match the original configuration. If the axis moves in the wrong direction, invert the A and A̅ channel connections at the terminal block rather than modifying the program logic, to preserve the integrity of the original control sequence.

Once position feedback is confirmed stable, restore the axis to full speed and run a short production cycle under operator supervision before returning the line to automatic mode. Document the replacement in the machine’s maintenance log, including the new encoder’s serial number, installation date, and the technician’s commissioning sign-off.

Retrofit Support FAQ

Q1: Is the E25BB-4R-SB-CCW-8CC-7406R-LED-ED25 a direct replacement for the original BEI E25BB unit?
Yes. This encoder is dimensionally and electrically compatible with the original BEI E25BB series. The 4-pin SB connector, 2.5-inch servo flange, and differential 8CC output match the original specification. Confirm that the PPR value (7,406) is correctly entered in your servo drive’s feedback configuration before enabling the axis.

Q2: What wiring changes are required when replacing a single-ended encoder with this differential unit?
If your existing system uses a single-ended encoder input, you will need to add a differential line receiver (such as an AM26LS32 or equivalent) between the encoder output and the controller input. For systems already configured for differential input, the wiring is a direct substitution — connect A, A̅, B, B̅, Z, Z̅, +5V, and GND to the corresponding terminals on the drive or counter module.

Q3: Does SMARTNEXMSK test encoders before shipment?
Yes. Every unit undergoes pre-shipment functional testing including PPR pulse count verification, channel symmetry measurement, and index pulse detection. A test report is included with each shipment. All units are covered by a 12-month warranty from the date of shipment.

Q4: Can this encoder be used with Siemens, Fanuc, and Mitsubishi servo systems?
Yes. The differential line driver output (8CC) is compatible with the encoder input specifications of Siemens SINAMICS, Fanuc αi/βi servo amplifiers, Mitsubishi MR-J4/MR-J5 drives, Yaskawa Sigma-7, and most other industrial servo platforms that accept 5V differential incremental encoder signals. Always verify the supply voltage and input threshold specifications of your specific drive model before installation.
