Bently Nevada 109549-01 Safety-Enhanced Speed Probe

Bently Nevada 109549-01 Safety-Enhanced Speed Probe: Reliable Control for Harsh Industrial Sites

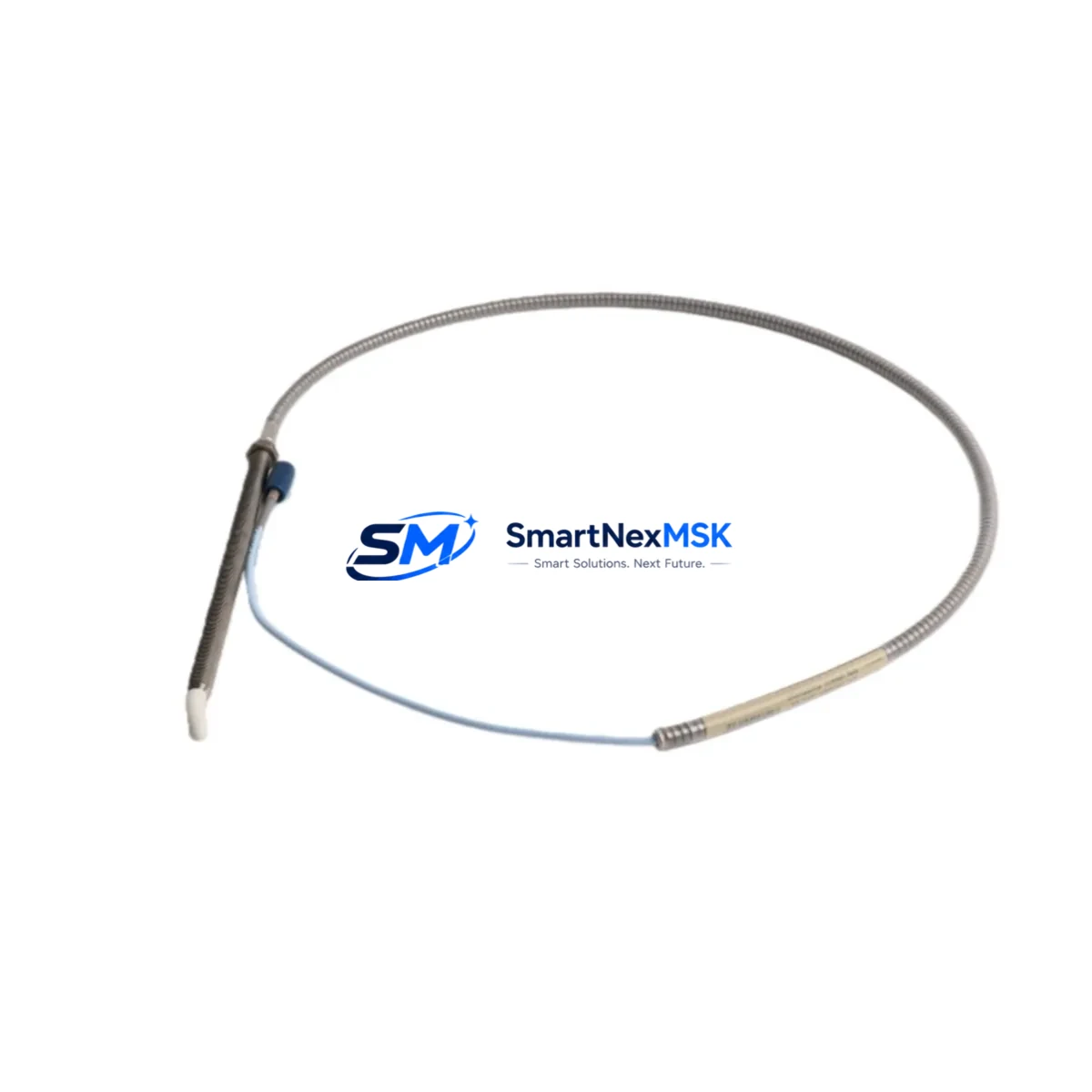

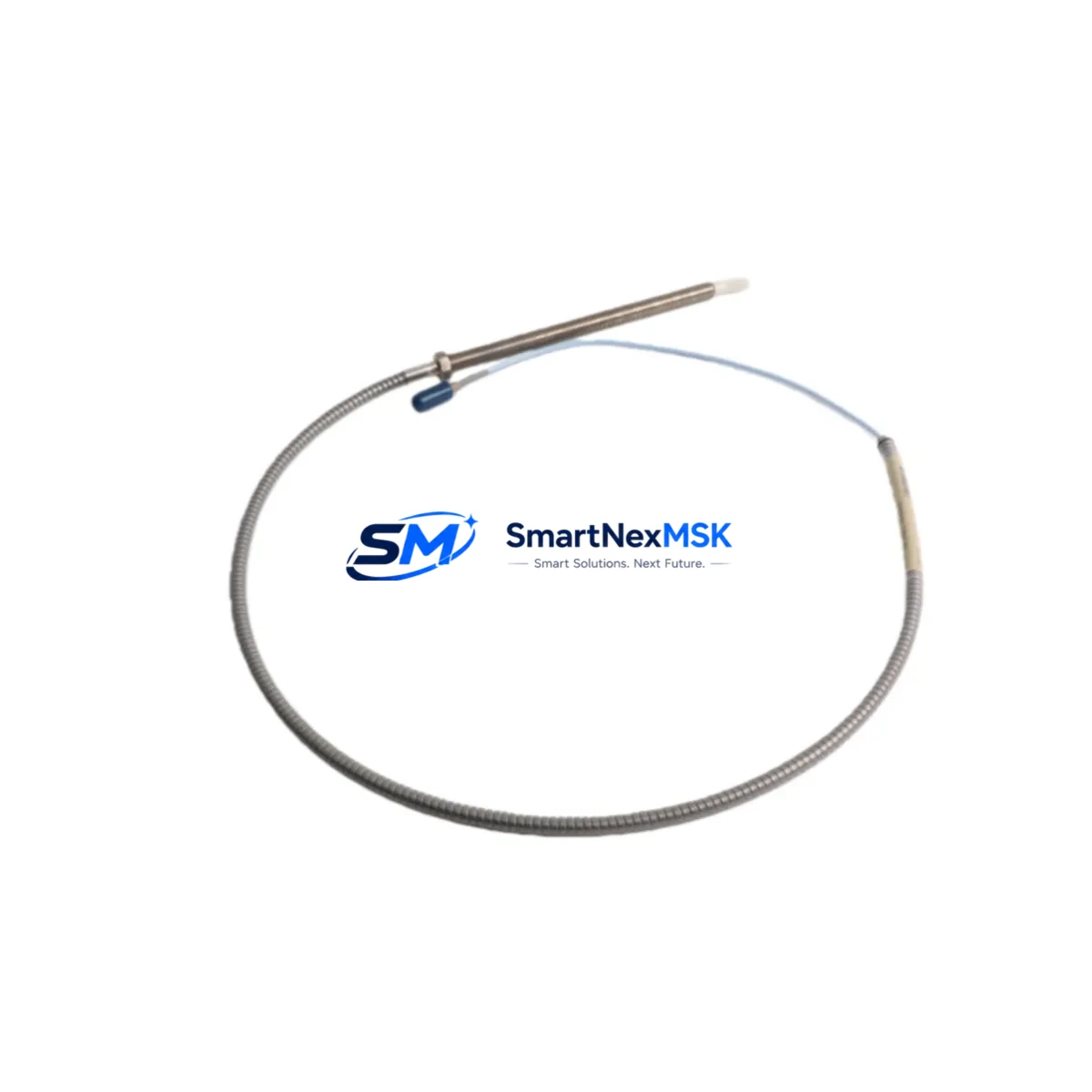

The Bently Nevada 109549-01 is a ruggedized photoelectric speed probe engineered for mission-critical rotating machinery protection in the most demanding industrial environments. Designed to integrate seamlessly with the Bently Nevada 3500 Series and 3300 Series machinery protection systems, this module delivers precise shaft speed and overspeed detection signals that are fundamental to safe, uninterrupted plant operation. Whether deployed in a petrochemical compressor train, a power generation turbine hall, or a continuous mining conveyor drive, the 109549-01 provides the speed signal integrity that safety interlock systems depend on.

In high-load, high-interference industrial environments, speed signal accuracy is not a convenience — it is a safety requirement. The 109549-01 is built to resist electromagnetic interference (EMI), mechanical vibration, and thermal cycling that would compromise lesser sensors. Its ruggedized housing and precision optical sensing element maintain stable output even when installed adjacent to high-voltage switchgear, variable frequency drives (VFDs), or large motor control centers (MCCs) that generate significant electrical noise. This makes it a trusted component in control cabinets where signal integrity directly governs turbine trip logic, compressor surge protection, and motor overspeed shutdown circuits.

When integrated with the Bently Nevada 3500/20 Rack Interface Module and the 3500/25 keyphasor module, the 109549-01 forms the backbone of a complete shaft monitoring architecture. The keyphasor signal it generates is used by the 3500 system to synchronize phase measurements across multiple 3500/42M proximity transducer I/O modules, enabling accurate vibration vector analysis. This synchronization is critical in detecting rotor imbalance, misalignment, and bearing degradation before they escalate into catastrophic failures. Paired with Bently Nevada 330180 proximity probes and 330130 extension cables, the 109549-01 completes a fully validated transducer chain that meets API 670 machinery protection standards.

For power supply reliability in the control cabinet, the 109549-01 operates within the standard DC supply range provided by the 3500/15 power supply module, ensuring stable operation even during grid fluctuations or momentary power dips. In facilities where redundant power is mandatory — such as offshore platforms or nuclear auxiliary systems — the module’s low power consumption allows it to be supported by uninterruptible power supply (UPS) systems without oversizing the battery bank. This characteristic is particularly valued in safety instrumented systems (SIS) where the IEC 61511 functional safety standard demands continuous availability of protective sensing elements.

The 109549-01 is equally at home in communication-intensive architectures. When the 3500 rack is configured with a 3500/92 communication gateway module for Modbus TCP or OPC-DA integration into a distributed control system (DCS) or SCADA platform, the speed data from the 109549-01 is transmitted in real time to the control room historian and alarm management system. This enables operators to trend speed deviations, detect early signs of governor instability, and trigger pre-alarm notifications before a trip event occurs — reducing unplanned downtime and protecting production continuity.

Replacement and spare parts management is straightforward. The 109549-01 is a direct drop-in replacement for earlier Bently Nevada photoelectric speed probe assemblies used in legacy 3300 Series racks, making it an ideal upgrade path for aging machinery protection systems without requiring full rack replacement. Our inventory is maintained with tested, serialized units that have passed full functional verification prior to shipment, ensuring that your maintenance team receives a field-ready module every time.

Safety Reliability Table

Control Cabinet Protection Strategy

A robust machinery protection cabinet built around the Bently Nevada 3500 platform requires more than a single sensor. The 109549-01 speed probe works in concert with a carefully selected suite of protective and monitoring components. The 3500/40M proximitor I/O module processes radial vibration signals from proximity probes mounted at the journal bearings, while the 3500/45 position monitor tracks axial thrust displacement — a critical parameter in centrifugal compressors and steam turbines where axial overload can destroy thrust bearings within seconds. Together, these modules feed the 3500/32 relay module, which executes the trip logic that shuts down the machine when any monitored parameter exceeds its danger setpoint.

On the power conditioning side, the 3500/15 power supply module provides regulated DC power to all rack-mounted modules, with redundant supply options available for SIL-rated applications. Surge protection devices installed at the cabinet entry point — such as DIN-rail mounted transient voltage suppressors — protect the entire rack from lightning-induced surges and switching transients generated by large contactors in the same panel. The 109549-01’s signal cable should be routed in a dedicated shielded conduit, separated from power wiring, to preserve signal integrity in environments with high electromagnetic noise floors.

For facilities integrating the 3500 system into a broader safety instrumented system (SIS), the speed signal from the 109549-01 can be hardwired into a Triconex or Rockwell GuardLogix safety PLC via the relay output of the 3500/32 module, providing a certified trip signal that satisfies SIL 2 or SIL 3 functional safety requirements. Communication to the DCS is handled through the 3500/92 Ethernet communication module, enabling continuous data streaming to the plant historian and alarm rationalization system without interrupting the hardwired safety loop.

Critical Industrial Safety Applications

The Bently Nevada 109549-01 is deployed across a wide range of heavy industrial sectors where rotating machinery reliability is directly linked to personnel safety and production continuity.

In petrochemical and refinery facilities, the 109549-01 monitors the speed of process gas compressors and steam turbine drivers in continuous service. Overspeed events in these machines can result in catastrophic mechanical failure, fire, or toxic gas release. The probe’s keyphasor output enables the 3500 system to detect speed excursions within milliseconds and initiate an emergency shutdown (ESD) before the machine reaches destructive overspeed.

In power generation plants — including coal-fired, gas turbine, and hydroelectric facilities — the 109549-01 provides the shaft speed reference used by the turbine control system to synchronize generator output with the grid. Accurate speed measurement is essential during startup, load shedding, and islanding events. A failed or drifting speed probe in this application can result in grid instability or generator damage.

In mining and mineral processing operations, large ball mills, SAG mills, and conveyor drive systems operate under extreme mechanical loads and vibration. The 109549-01’s ruggedized construction allows it to maintain reliable operation in these environments, providing the speed feedback needed for overload protection and controlled ramp-up sequences that protect gearboxes and drive couplings.

In water and wastewater treatment plants, high-speed centrifugal pumps and blowers rely on speed monitoring to detect cavitation, impeller damage, and bearing wear. The 109549-01 provides the speed signal that, combined with vibration data from proximity probes, gives maintenance teams early warning of developing faults — enabling condition-based maintenance rather than reactive breakdown repair.

In metallurgical and steel plants, rolling mill drives and continuous casting equipment operate in environments with extreme heat, scale, and vibration. The 109549-01’s thermal tolerance and EMI resistance make it suitable for installation in these harsh conditions, where lesser sensors would fail prematurely and cause unplanned production stoppages.

Safety and Quality FAQ

Q1: What warranty does the Bently Nevada 109549-01 carry?
Every 109549-01 unit supplied by SMARTNEXMSK is covered by a 12-month warranty against functional failure under normal operating conditions. If the module fails within the warranty period due to a manufacturing or component defect, we will replace or repair it at no charge. Warranty claims are processed promptly to minimize your downtime.

Q2: How is each unit tested before shipment?
All 109549-01 units undergo full functional verification prior to dispatch. This includes output signal integrity testing, optical sensing element verification, and housing inspection. Units that do not meet Bently Nevada performance specifications are quarantined and not shipped. You receive a field-ready module, not a shelf-stored untested spare.

Q3: Is the 109549-01 compatible with both 3500 and 3300 Series racks?
Yes. The 109549-01 is compatible with Bently Nevada 3500 Series and 3300 Series machinery protection racks. It serves as a direct replacement for earlier photoelectric speed probe assemblies used in 3300 Series installations, making it an ideal upgrade component for legacy system modernization without full rack replacement.

Q4: Can you guarantee long-term supply and availability?
SMARTNEXMSK maintains a dedicated inventory of Bently Nevada 109549-01 units to support both planned maintenance programs and emergency replacement requirements. We supply industrial facilities globally and can fulfill urgent orders with expedited shipping. For large-volume or scheduled procurement, contact our sales team to discuss framework agreements and reserved stock arrangements.
