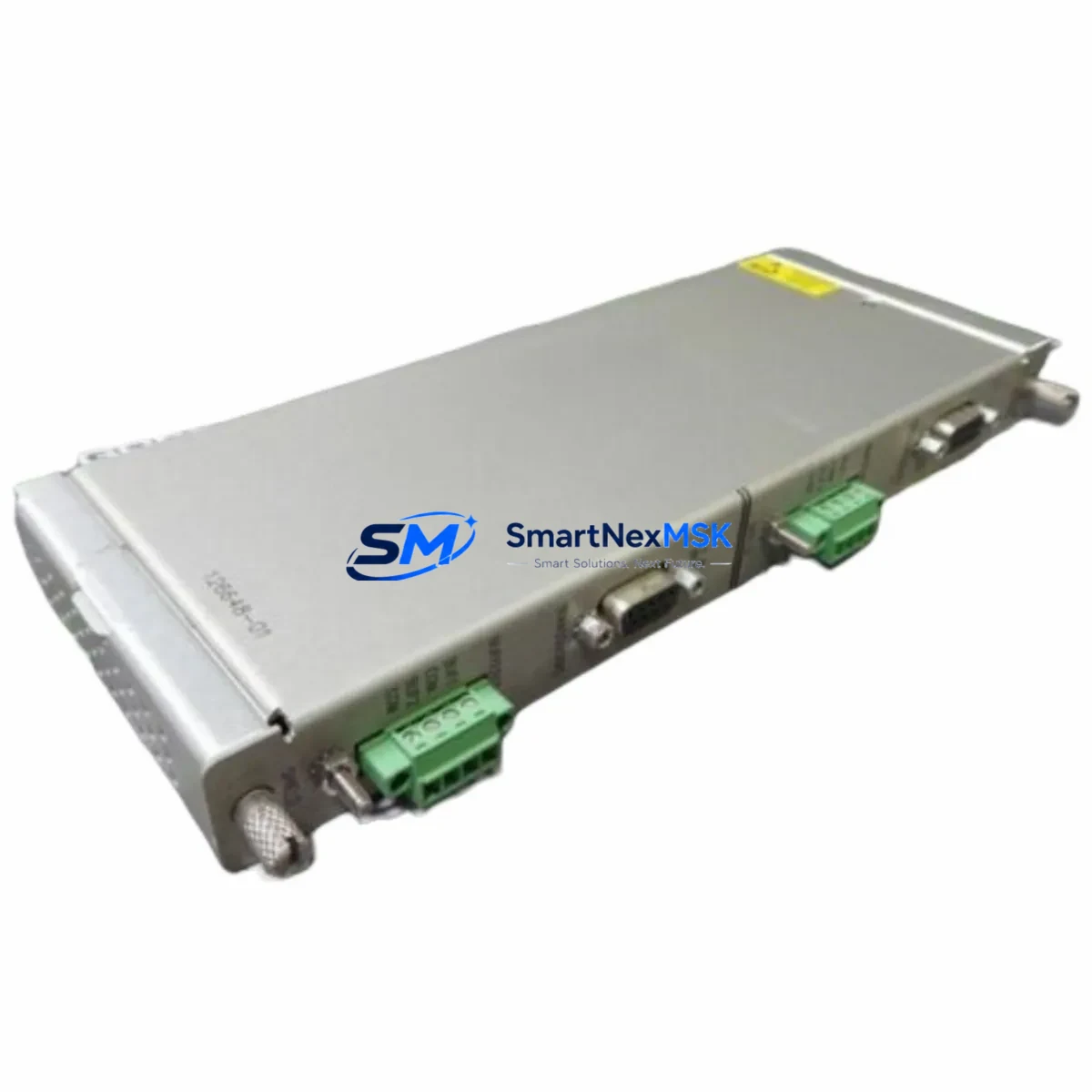

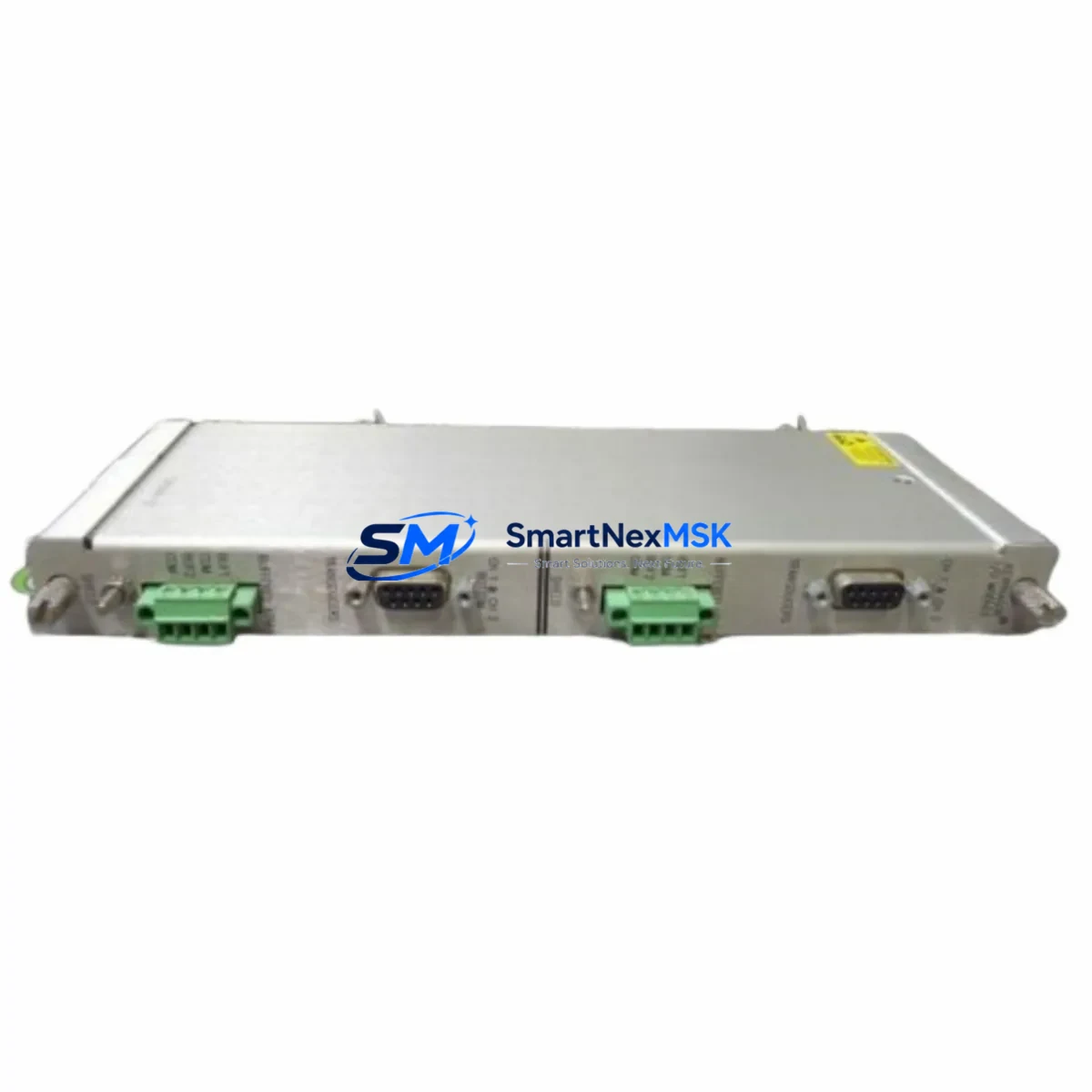

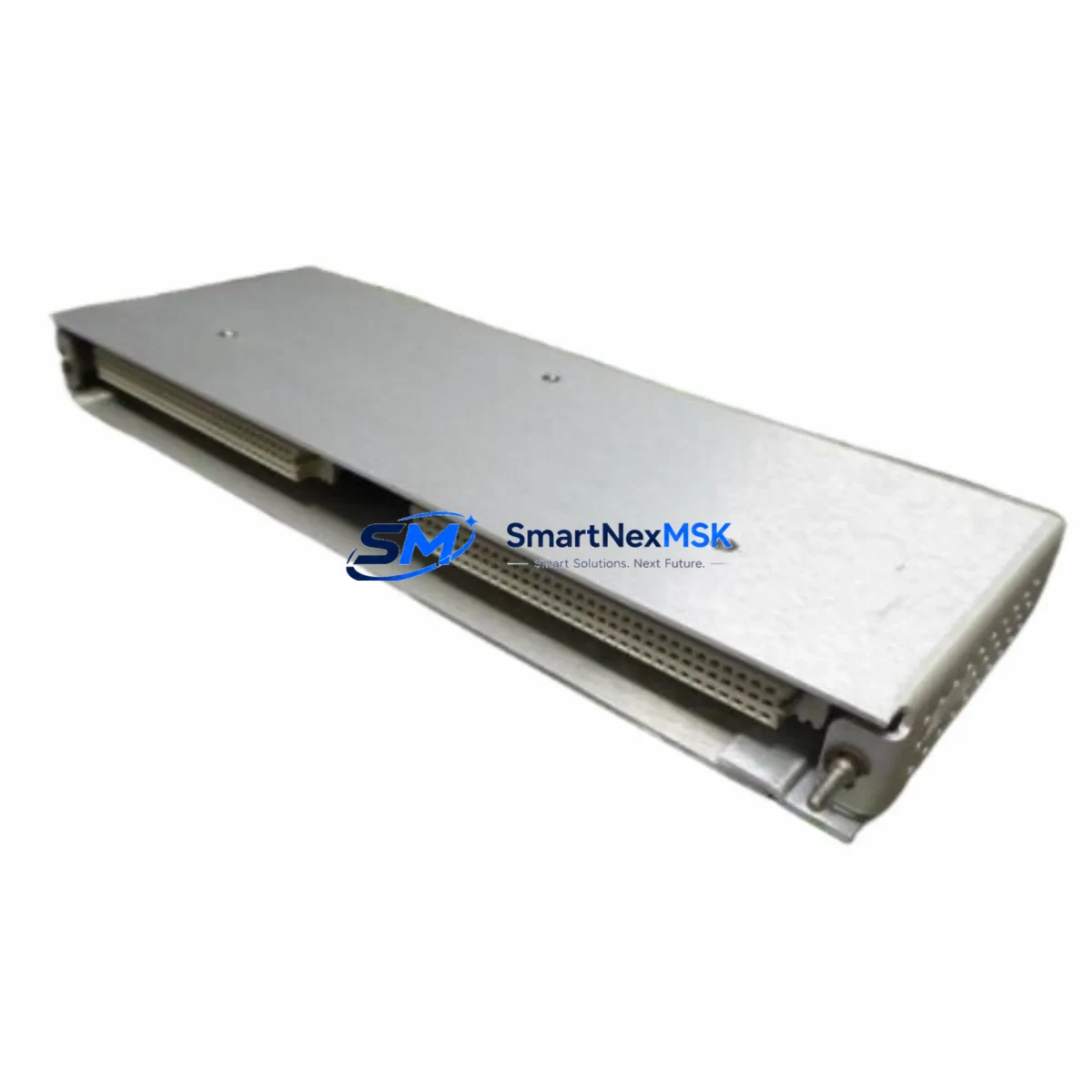

Bently Nevada 126648-01 Safety-Enhanced Keyphasor I/O Module: Precision Control for Harsh Industrial Sites
The Bently Nevada 126648-01 is a ruggedized Keyphasor I/O Module engineered for the Bently Nevada 3500 Series machinery protection system — one of the most trusted continuous monitoring platforms deployed across critical rotating equipment in heavy industry. Designed to operate reliably under high electromagnetic interference, wide temperature swings, and the relentless demands of 24/7 continuous production environments, the 126648-01 delivers the signal integrity and timing accuracy that safety-critical control loops depend on.
In industrial facilities where a single shaft-speed measurement error can cascade into a turbine trip, compressor surge, or unplanned shutdown, the Keyphasor I/O Module serves as the foundational timing reference for the entire 3500 rack. It captures once-per-revolution phase reference pulses with microsecond-level precision, enabling the system to calculate rotational speed, phase angle, and vibration vector data used by downstream protection modules. Without a stable, noise-immune Keyphasor signal, the accuracy of every vibration, position, and dynamic pressure channel in the rack is compromised.
The 126648-01 is built to resist the signal drift and false triggering that plague lesser I/O modules in environments with variable-frequency drives, high-voltage switchgear, arc furnaces, and large motor starts. Its internal signal conditioning circuitry filters transient noise and surge events, maintaining clean pulse output even when installed in control cabinets adjacent to high-power equipment. This makes it a preferred replacement and spare component for facilities that cannot tolerate measurement uncertainty in their machinery protection architecture.
Safety Reliability Table
| Parameter | Specification / Capability |
|---|---|
| Part Number / SKU | 126648-01 |
| Brand | Bently Nevada |
| Series | 3500 Series Machinery Protection System |
| Module Type | Keyphasor I/O Module |
| Primary Function | Phase reference signal conditioning and distribution for rotating machinery monitoring |
| Signal Input | Proximity probe or magnetic pickup Keyphasor transducer |
| Output | Buffered Keyphasor pulse to 3500 rack monitor modules |
| EMI / RFI Resistance | High — internal filtering for industrial electromagnetic environments |
| Surge Protection | Transient suppression on signal input lines |
| Operating Temperature | 0°C to +65°C (standard industrial control cabinet range) |
| Rack Compatibility | Bently Nevada 3500/20 Rack Interface Module chassis |
| Form Factor | Standard 3500 Series plug-in module |
| Approvals / Standards | Designed to complement SIL-rated 3500 system configurations |
| Country of Origin | United States |
| Warranty | 12 Months — covers manufacturing defects and functional failure under normal operating conditions |
| Pre-shipment Testing | Full functional verification and signal integrity test prior to dispatch |
| Availability | In stock — ready for immediate shipment |
Control Cabinet Protection Strategy
A reliable machinery protection architecture is never built around a single module — it is the result of carefully matched components working in concert across the control cabinet. The Bently Nevada 126648-01 Keyphasor I/O Module anchors the timing layer of the 3500 rack, but its effectiveness depends on the integrity of the surrounding system.
In a typical 3500 Series installation, the 126648-01 interfaces directly with the Bently Nevada 3500/20 Rack Interface Module, which manages communication between the rack and the host DCS or safety PLC. Vibration data from channels monitored by the Bently Nevada 3500/42M Proximitor Seismic Monitor and the 3500/40M Proximitor Monitor relies on the Keyphasor reference to compute accurate 1X and 2X vibration vectors — critical for detecting rotor imbalance and misalignment before they escalate to mechanical failure.
On the transducer side, the 126648-01 is typically paired with a Bently Nevada 330180 Series proximity probe and its associated 330130 Series extension cable and 3300 XL 8mm proximitor, forming a complete Keyphasor sensing chain from shaft surface to rack input. Any degradation in this chain — whether from cable damage, connector corrosion, or proximitor gap drift — will directly affect the quality of the Keyphasor pulse and, by extension, the accuracy of every phase-referenced measurement in the system.
Power integrity is equally critical. The 3500 rack is typically powered through a Bently Nevada 3500/15 Power Supply Module, and facilities operating in regions with unstable grid power often add an external DC UPS module or isolation transformer to protect against voltage sags and surges that could cause rack resets or false trips. In high-criticality applications such as steam turbine protection or compressor anti-surge control, some sites also deploy a redundant power supply configuration to eliminate the power supply as a single point of failure.
For facilities integrating the 3500 system into a broader safety instrumented system (SIS), the Keyphasor data is often consumed by a Triconex or Rockwell GuardLogix safety PLC via the 3500/92 Communication Gateway Module, enabling speed and phase data to participate in safety logic for overspeed protection and emergency shutdown sequences. Ensuring the 126648-01 is functioning correctly is therefore not just a condition monitoring concern — it is a safety integrity requirement.
Critical Industrial Safety Applications
Petrochemical and Refinery Plants: In fluid catalytic cracking units, compressor trains, and boiler feed pump systems, the 126648-01 provides the phase reference that enables early detection of rotor instability. Continuous Keyphasor monitoring allows maintenance teams to trend 1X vibration amplitude and phase angle over time, identifying developing imbalance or bearing wear weeks before a forced outage would otherwise occur.
Power Generation: Steam and gas turbine protection systems depend on accurate speed and phase data for overspeed trip logic and synchronization monitoring. The 126648-01 ensures that the Keyphasor signal feeding the 3500 overspeed detection module remains clean and consistent, even during load transients and grid disturbances that introduce electrical noise into the control cabinet environment.
Mining and Mineral Processing: Ball mills, SAG mills, and large slurry pump drives operate in environments with extreme vibration, dust ingress, and frequent motor starts that generate significant electrical transients. The ruggedized design of the 126648-01 and its transient suppression capability make it well-suited for these demanding conditions, where module reliability directly affects plant throughput and safety.
Water and Wastewater Treatment: High-service pumping stations and blower systems in water treatment facilities require continuous, unattended operation. The 126648-01 supports long-term, maintenance-free monitoring of rotating equipment in these facilities, reducing the risk of undetected mechanical degradation that could lead to pump failure and service interruption.
Metallurgy and Steel Production: Rolling mill drives, ID fans, and continuous casting equipment in steel plants operate under extreme thermal and mechanical stress. Keyphasor-based vibration analysis using the 126648-01 enables condition-based maintenance strategies that reduce unplanned downtime in these high-value production assets.
Port and Marine Infrastructure: Crane drives, ship-loader conveyors, and bulk material handling systems in port environments are exposed to salt air, humidity, and variable loading conditions. The 126648-01’s robust signal conditioning ensures reliable Keyphasor performance in these corrosive and electrically noisy environments.
Safety and Quality FAQ
Q: What warranty coverage is provided with the Bently Nevada 126648-01?
A: Every 126648-01 unit supplied by SMARTNEXMSK carries a 12-month warranty covering manufacturing defects and functional failure under normal operating conditions. Warranty claims are processed promptly with replacement or repair support to minimize your equipment downtime.
Q: How is the module tested before shipment?
A: Each unit undergoes a full functional verification test prior to dispatch, including signal input/output integrity checks and visual inspection for physical damage. Only modules that pass all pre-shipment tests are released for sale, ensuring you receive a field-ready component.
Q: Is the 126648-01 compatible with all 3500 Series racks?
A: The 126648-01 is designed for use within the Bently Nevada 3500 Series machinery protection system and is compatible with standard 3500 rack configurations using the 3500/20 Rack Interface Module. For specific rack revision or firmware compatibility questions, our technical team can advise based on your system configuration details.
Q: Can long-term supply and replacement support be guaranteed?
A: SMARTNEXMSK maintains dedicated inventory of critical 3500 Series spare modules, including the 126648-01, to support facilities with long-term maintenance contracts and planned outage schedules. We provide reliable supply continuity for both emergency replacement and planned spare parts programs, with global shipping capability to minimize lead times.
