Bently Nevada 128710-01 Safety Termination Module: Reliable Control in Harsh Industrial Sites

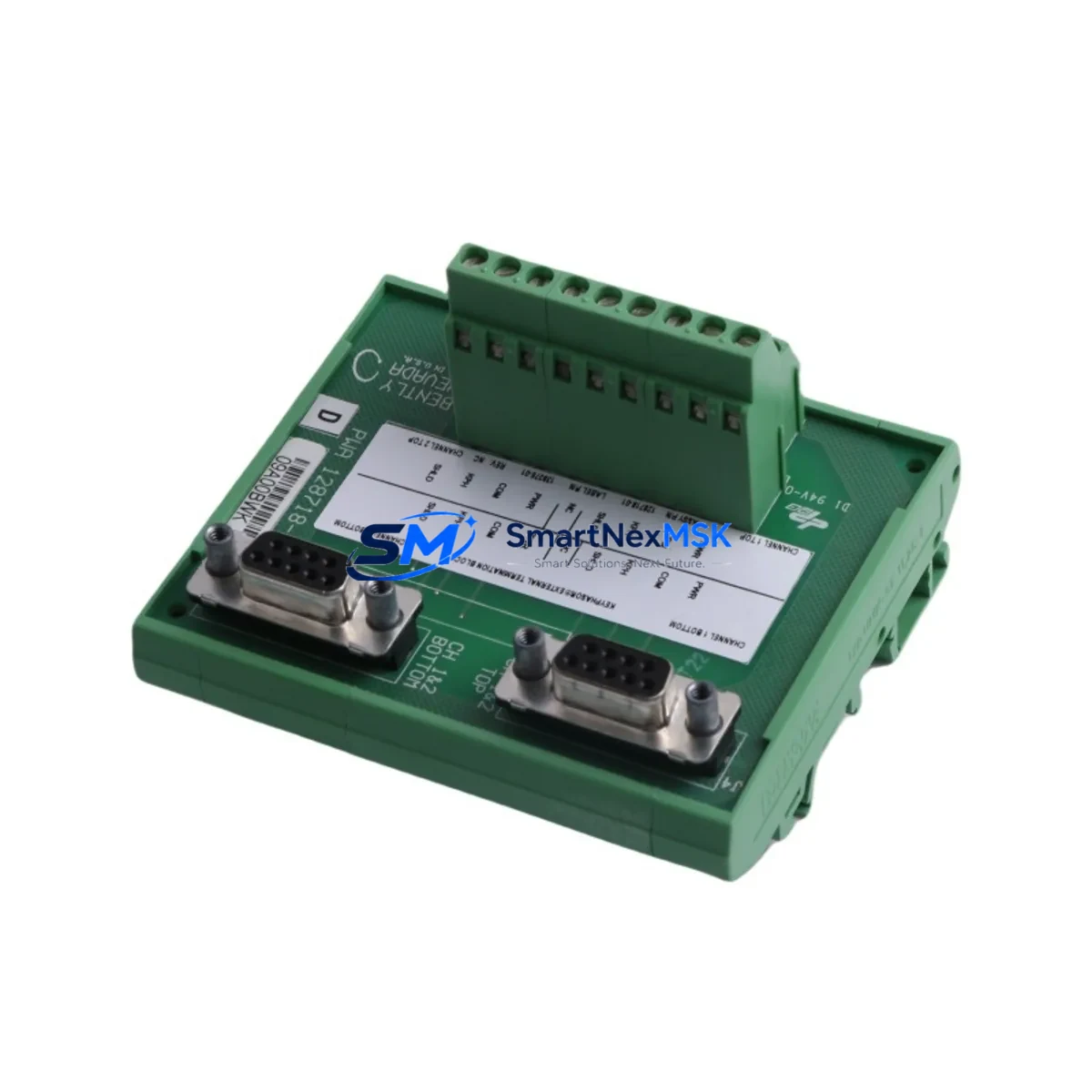

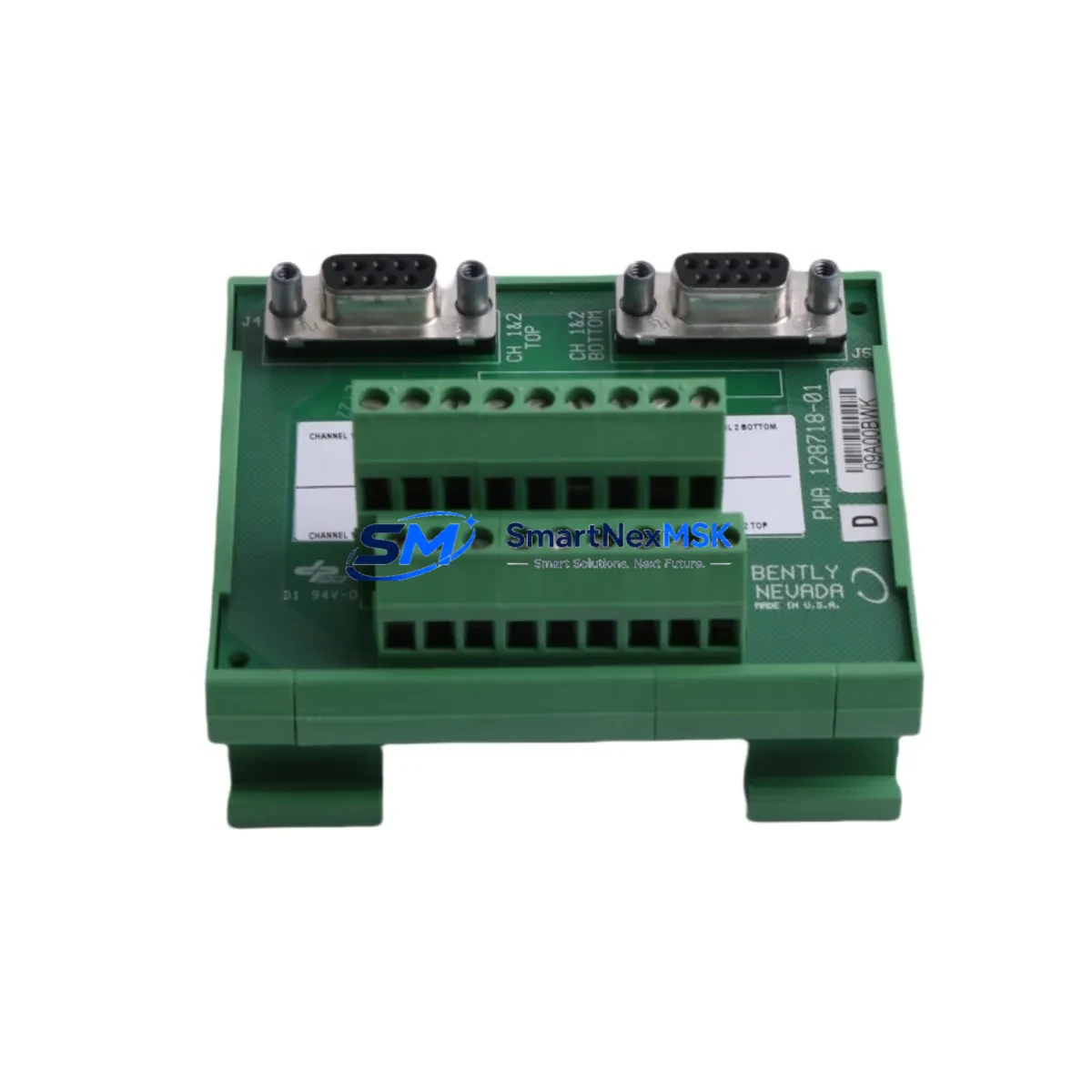

The Bently Nevada 128710-01 is a ruggedized external termination block engineered for the Bently Nevada 3500 Machinery Protection System — one of the most widely deployed continuous machinery monitoring platforms in critical industrial infrastructure worldwide. Designed to operate reliably in high-vibration, high-temperature, and electrically noisy environments, the 128710-01 serves as the critical interface between field-mounted transducers and the 3500 rack-based monitoring modules, ensuring signal integrity is maintained even under the most demanding plant conditions.

In continuous production facilities — including petrochemical complexes, power generation stations, offshore platforms, and heavy metallurgical plants — control interruptions caused by signal degradation at the termination layer can trigger unplanned shutdowns, cascade safety trips, or missed machinery fault detection. The 128710-01 addresses this risk directly by providing a stable, low-impedance termination path that minimizes signal drift, reduces susceptibility to electromagnetic interference, and maintains consistent loop continuity across the full operating temperature range. Its robust terminal block construction supports secure field wiring connections that resist loosening under mechanical vibration — a common failure mode in rotating machinery environments.

When integrated into a properly configured 3500 rack alongside the Bently Nevada 3500/22M Transient Data Interface and 3500/42M Proximitor/Seismic Monitor, the 128710-01 ensures that proximity probe signals from critical rotating equipment — turbines, compressors, pumps, and fans — are accurately routed to the monitoring system without attenuation or noise injection. This is especially important in safety instrumented systems (SIS) where the 3500 platform interfaces with a Triconex Safety Controller or similar IEC 61511-compliant logic solver, and where signal fidelity at the termination block directly affects the integrity of the safety function.

Safety Reliability Table

Control Cabinet Protection Strategy

A reliable machinery protection cabinet built around the Bently Nevada 3500 platform requires more than just the monitoring rack — it demands a carefully coordinated ecosystem of protection, power, and communication components. The 128710-01 termination block is typically installed alongside the Bently Nevada 3500/20 Rack Interface Module, which manages communication between the 3500 rack and the plant DCS or historian. Power supply redundancy is ensured through the 3500/15 Power Supply Module, which provides dual-feed capability to prevent monitoring blackouts during utility disturbances or switchgear maintenance.

For plants operating with Emerson DeltaV or Honeywell Experion DCS platforms, the 128710-01 is often deployed in the same marshalling cabinet as EPAX or Phoenix Contact MACX signal conditioners and MTL Instruments surge protection barriers, which guard against transient overvoltage events from lightning strikes or switching surges that could otherwise damage the sensitive analog inputs of the 3500 monitor cards. In hazardous area installations — such as Zone 1 or Zone 2 classified areas in refineries or gas processing plants — the termination block is paired with Pepperl+Fuchs Zener barriers or galvanic isolators to maintain intrinsic safety compliance while preserving signal accuracy.

Communication integrity within the protection system is maintained through the Bently Nevada 3500/92 Communication Gateway Module, which supports Modbus TCP and OPC DA/UA protocols for integration with plant safety and asset management systems. Ensuring the 128710-01 is correctly wired and torqued to specification is critical to preventing intermittent faults that could generate nuisance trips or, worse, mask genuine machinery fault conditions in a critical interlock loop.

Critical Industrial Safety Applications

The Bently Nevada 128710-01 is deployed across a wide range of critical industrial sectors where continuous machinery monitoring is a safety and operational imperative:

Petrochemical and Refining: In fluid catalytic cracking (FCC) units, hydrocracker compressor trains, and boiler feed pump systems, the 128710-01 provides the termination interface for proximity probes monitoring shaft radial vibration and axial position — parameters that, if unmonitored, can lead to catastrophic bearing failure or seal damage. Unplanned shutdowns in these environments carry both safety and multi-million-dollar production loss consequences.

Power Generation: Steam turbine-generator sets and gas turbine packages in combined-cycle power plants rely on the 3500 system for continuous overspeed protection, differential expansion monitoring, and eccentricity measurement. The 128710-01 ensures that the signal chain from the proximity probe to the 3500/42M monitor card remains intact and noise-free, supporting reliable turbine protection relay operation.

Mining and Minerals Processing: Large SAG mills, ball mills, and conveyor drive systems in copper, iron ore, and gold mining operations operate in environments with extreme dust, vibration, and electrical noise. The ruggedized construction of the 128710-01 makes it well-suited for these conditions, where standard termination hardware often fails prematurely due to mechanical fatigue or corrosion.

Water and Wastewater Treatment: High-capacity pump stations and blower systems in municipal water treatment facilities use the 3500 platform for bearing condition monitoring. The 128710-01 supports reliable signal routing in these continuously operating, often remotely monitored facilities where maintenance access is limited and component reliability is paramount.

Metallurgy and Steel Production: Rolling mill drives, blast furnace blowers, and continuous casting machine drives in integrated steel plants operate under extreme thermal and mechanical stress. The 128710-01’s ability to maintain signal integrity in high-temperature, high-vibration control cabinets makes it a trusted component in these demanding applications.

Safety and Quality FAQ

Q1: What warranty does the Bently Nevada 128710-01 carry?
All 128710-01 units supplied by SMARTNEXMSK carry a 12-month warranty from the date of shipment. This covers functional defects and premature failure under normal operating conditions. Our technical team provides post-sale support for installation, compatibility verification, and replacement coordination throughout the warranty period.

Q2: How is the 128710-01 tested before shipment?
Every unit undergoes a full pre-shipment functional and continuity inspection before dispatch. This includes terminal integrity verification, visual inspection for physical damage, and confirmation of part number and revision compatibility with the Bently Nevada 3500 system. Test records are available upon request for quality-critical procurement processes.

Q3: Is the 128710-01 compatible with all 3500 rack configurations?
The 128710-01 is designed as an external termination block for specific 3500 series monitor modules. Compatibility depends on the specific monitor card installed in your 3500 rack. We recommend confirming the target monitor module part number before ordering. Our technical team can assist with cross-referencing your existing rack configuration to confirm compatibility.

Q4: Can SMARTNEXMSK support long-term and repeat supply of the 128710-01?
Yes. SMARTNEXMSK maintains stock of the 128710-01 and other Bently Nevada 3500 series components to support both immediate replacement needs and planned maintenance programs. We serve industrial clients with ongoing spare parts management requirements and can provide scheduled supply agreements for critical components to minimize procurement lead times and reduce unplanned downtime risk.
