Bently Nevada 130539-06 Retrofit-Ready Probe Cable for 3300 XL

Bently Nevada 130539-06 Retrofit-Ready Probe Cable for 3300 XL Control Systems

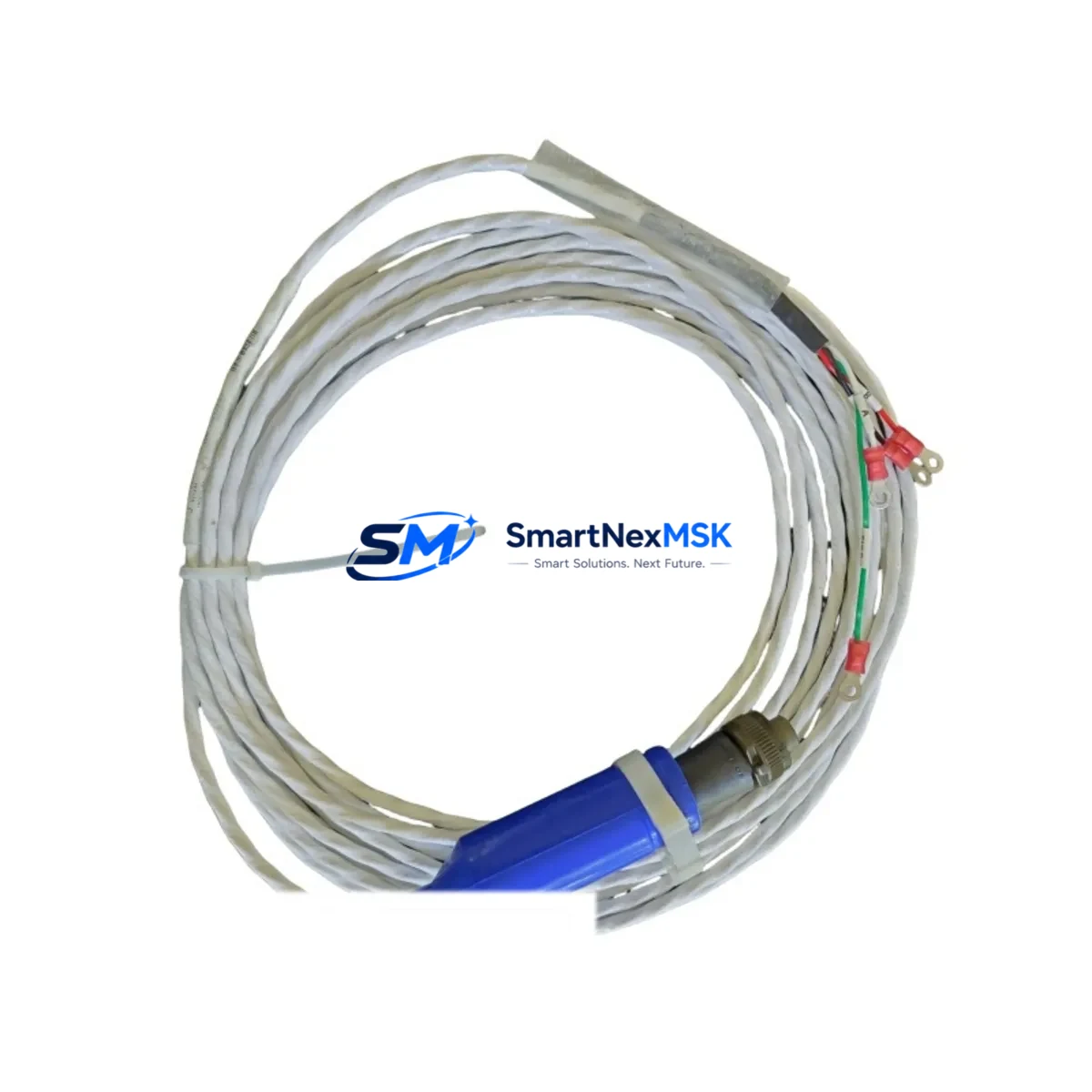

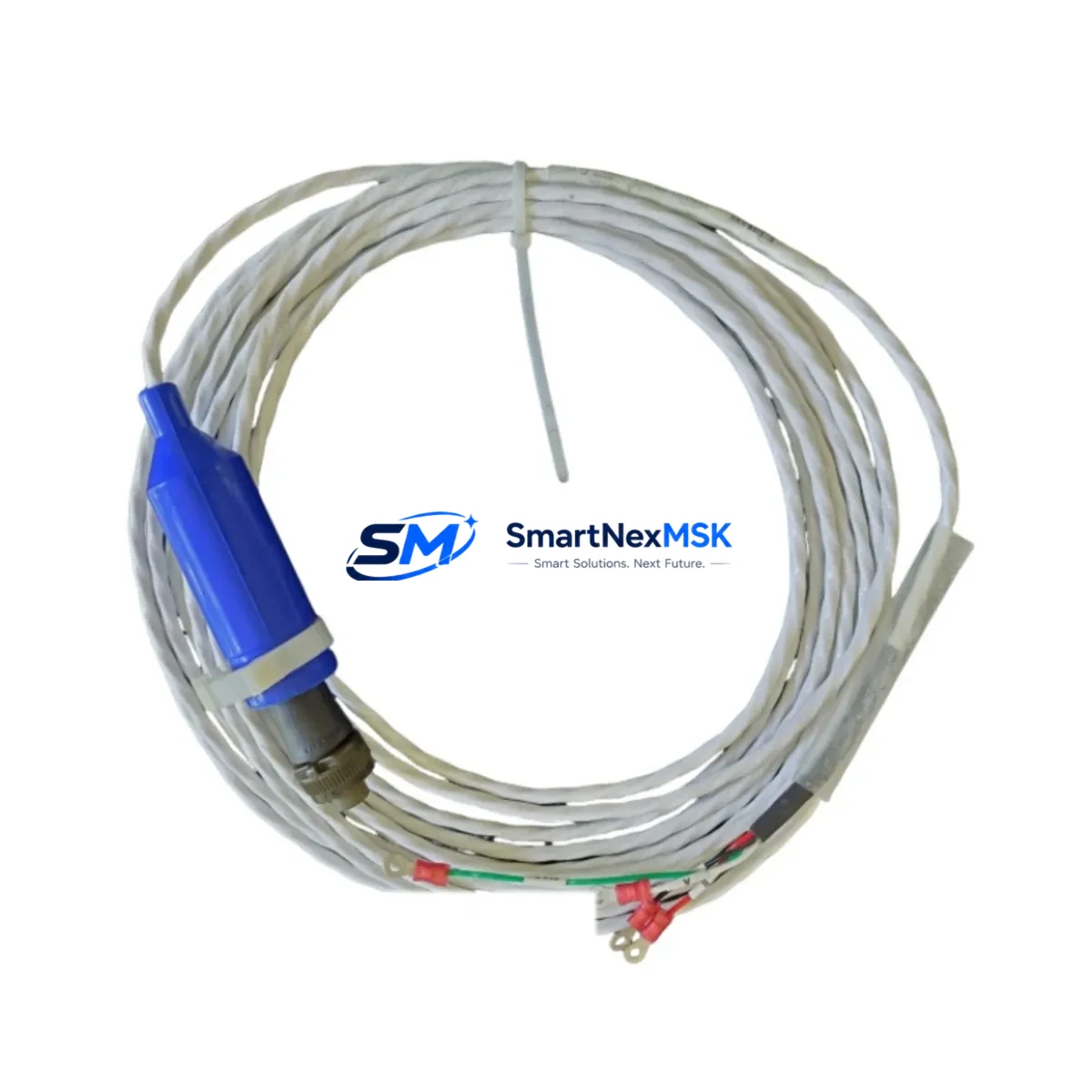

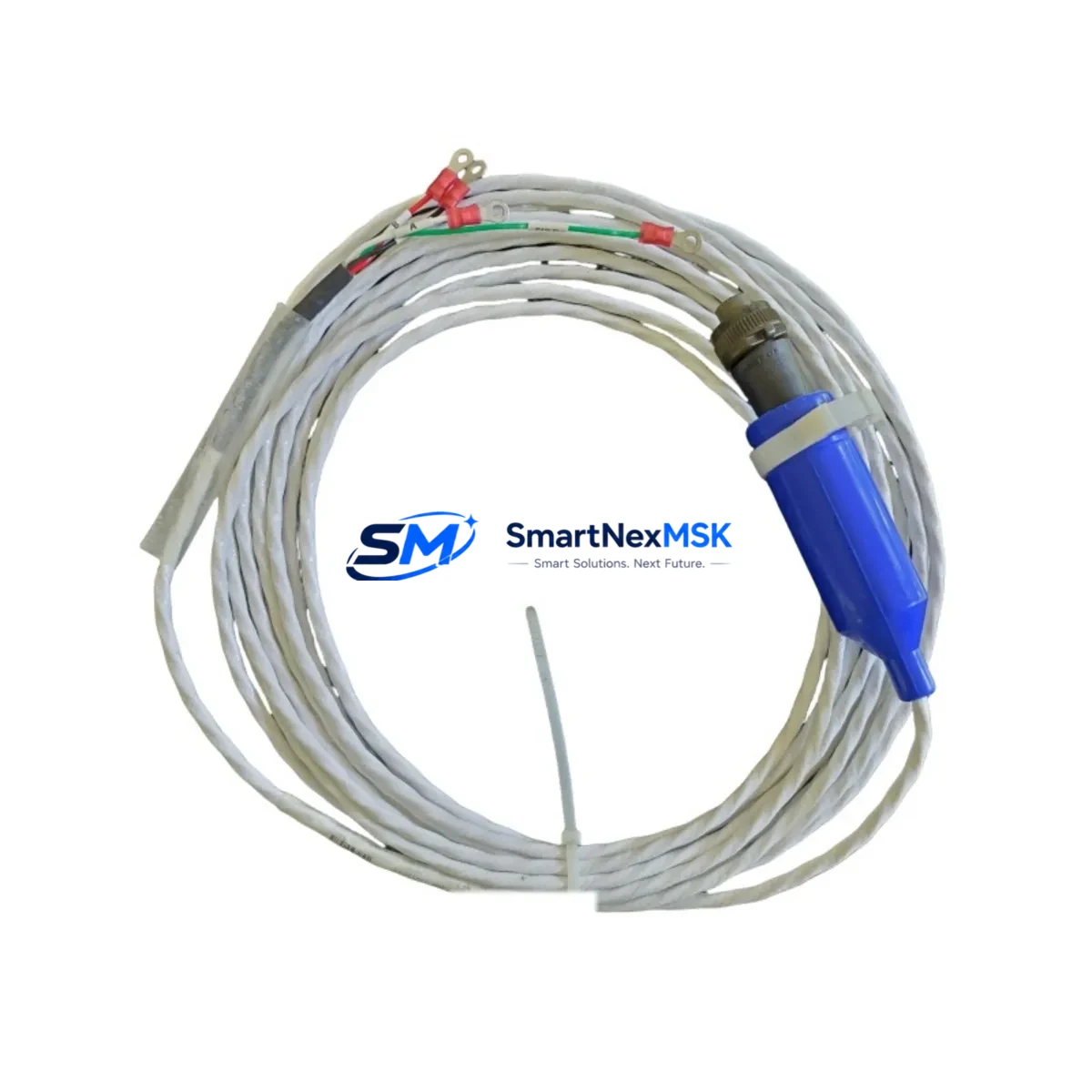

The Bently Nevada 130539-06 is a proximity probe interconnect cable engineered for seamless integration into 3300 XL Series vibration monitoring systems. As legacy Bently Nevada installations age and OEM support windows close, plant engineers and reliability teams increasingly rely on verified replacement components to sustain continuous machinery protection without triggering full-system overhauls. The 130539-06 is a direct-fit, retrofit-ready solution that preserves existing wiring infrastructure, maintains signal integrity, and eliminates the need for costly panel redesigns.

Whether you are replacing a failed cable in a running plant, upgrading a brownfield control cabinet, or restocking critical spares for a scheduled turnaround, the 130539-06 delivers the dimensional accuracy, shielding performance, and connector compatibility that 3300 XL proximity monitoring chains demand. All units are pre-tested prior to shipment and backed by a 12-month warranty.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Integrating the 130539-06 into a brownfield plant requires a structured approach that accounts for the full proximity monitoring chain. The cable connects the Bently Nevada 3300 XL proximity probe (typically an 8 mm or 5 mm eddy-current probe) to the corresponding 3300 XL proximitor / extension driver housed in the field junction box or directly at the monitor rack. Before pulling the old cable, technicians should document the existing gap voltage reading — typically between −10 VDC and −18 VDC — so the post-installation baseline can be confirmed without re-entering the machinery train data in the System 1 condition monitoring software.

At the rack level, the 130539-06 terminates at the 3300 XL monitor card input channel. Plants running multi-channel configurations should note the channel address assignments in the monitor’s configuration to avoid re-mapping after cable swap. If the cabinet also houses a Bently Nevada 3500 Series rack for newer machinery trains, the wiring conventions differ — the 3500/42M proximity monitor uses a different I/O module pinout, and the interconnect cable is not interchangeable without an adapter plate.

For sites undergoing a broader migration from 3300 XL to the Bently Nevada 3500 platform, the 130539-06 is commonly used as a bridge component: it keeps legacy machinery trains online while the new 3500 rack, 3500/20 rack interface module, and 3500/92 communication gateway are staged and configured in parallel. This phased approach allows engineering teams to validate the new Modbus TCP or OPC-DA data paths to the plant DCS — often a Honeywell Experion PKS or Emerson DeltaV — before cutting over the critical protection loops.

Control cabinet upgrades that involve adding I/O capacity should also account for the 3300 XL power supply module loading. Each active proximity channel draws a defined current from the −24 VDC rail; adding channels without verifying available headroom on the power supply can cause intermittent OK relay dropouts. Similarly, if the cabinet includes a Bently Nevada TDXnet data acquisition module for remote diagnostics, confirm that the new cable routing does not introduce ground loops that could corrupt the vibration waveform data streamed to the historian.

For plants using a Rockwell Automation ControlLogix or Siemens S7-300 safety PLC alongside the Bently Nevada protection system, the 130539-06 replacement does not affect the hardwired relay outputs from the 3300 XL monitor to the PLC digital input card — but the I/O address mapping in the PLC program should be verified after any rack disturbance to confirm that the trip and alert relay signals are still correctly mapped to the safety logic rungs.

Downtime Control During System Migration

Minimizing unplanned downtime during a proximity cable replacement begins with pre-staging. Before the maintenance window opens, confirm that the 130539-06 is on-site, the gap voltage specification for the specific probe-proximitor combination is documented, and a calibrated voltmeter is available at the junction box. The actual cable swap on a single channel typically takes under 30 minutes; the majority of the maintenance window should be allocated to post-installation verification — gap voltage check, OK relay confirmation, and a brief coast-down or bump test if the machinery can be safely jogged.

To protect the original program logic in the associated PLC or DCS controller, place the affected monitor channel in bypass mode before disconnecting the cable. This prevents a nuisance trip from propagating to the safety shutdown system while the channel is open. Most 3300 XL monitors support a front-panel bypass switch or a software bypass via the Bently Nevada System 1 software configuration interface. Document the bypass activation time in the plant’s permit-to-work system and ensure the bypass is removed and the channel is returned to normal protection status before the machinery is restarted.

For multi-channel cabinets where several 130539-06 cables are being replaced in a single outage, work channel by channel rather than disconnecting all cables simultaneously. This preserves the reference gap voltage readings on adjacent channels and reduces the risk of connector mix-up during reinstallation. After all channels are restored, perform a full rack self-test and confirm that the System 1 overview display or the plant DCS alarm summary shows no active alerts before releasing the machinery to operations.

Retrofit Support FAQ

Q1: Is the 130539-06 a direct drop-in replacement for the original Bently Nevada OEM cable?
Yes. The 130539-06 matches the OEM connector type, cable length, and shielding specification for the 3300 XL proximity monitoring chain. No adapters or wiring modifications are required for a standard replacement on an existing 3300 XL installation.

Q2: What commissioning checks are required after installation?
After installing the 130539-06, measure the gap voltage at the proximitor output with the probe positioned at the normal operating air gap. The reading should fall within the range specified on the probe-proximitor calibration sheet (typically −10 VDC to −18 VDC). Confirm that the monitor’s OK relay is energized and that no alert or danger setpoints are active before returning the channel to service.

Q3: Can this cable be used in a mixed 3300 XL / 3500 Series rack environment?
The 130539-06 is designed for the 3300 XL signal chain. It is not directly interchangeable with 3500 Series interconnect cables due to differences in connector keying and cable impedance. In a mixed-rack environment, use the correct cable for each platform and verify the channel configuration in the respective monitor before energizing.

Q4: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects in materials and workmanship from the date of shipment. Each unit undergoes pre-shipment functional testing. Warranty claims are supported by SMARTNEXMSK’s technical team; contact sales@smartnexmsk.com with the order reference and a description of the observed fault.
