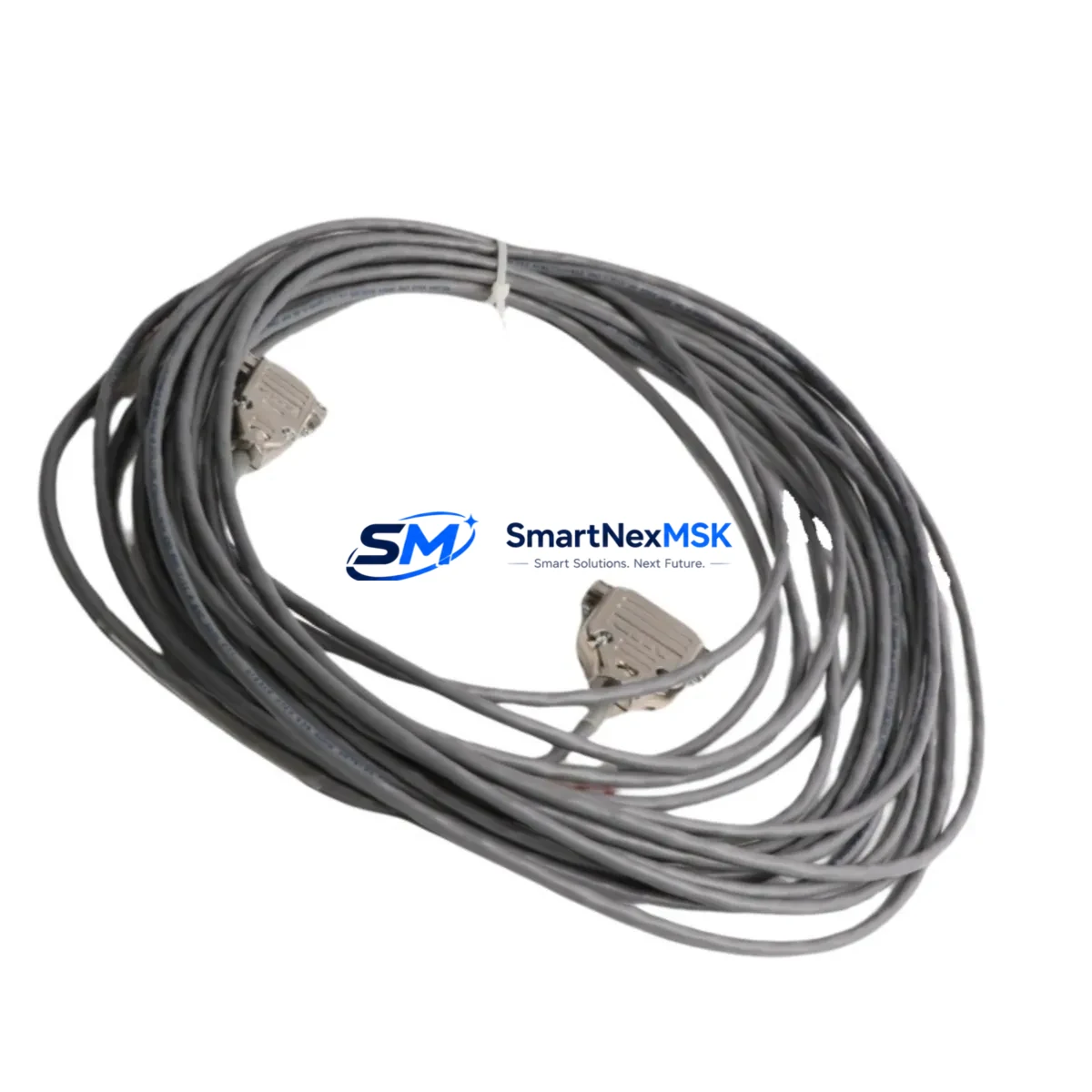

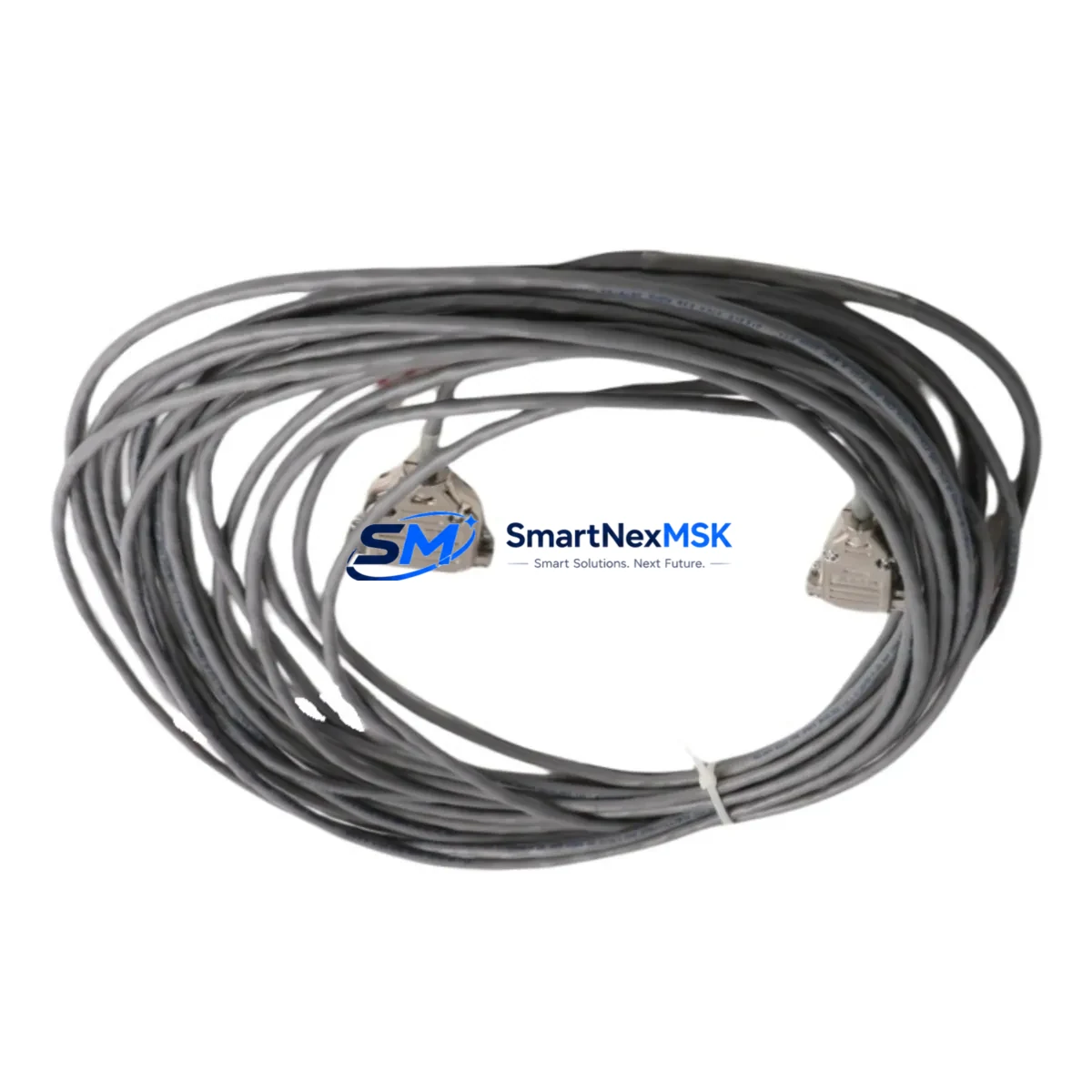

Bently Nevada 130539-12 Retrofit-Ready Interconnect Cable for 3500 Series Control Systems
The Bently Nevada 130539-12 is a precision interconnect cable engineered for seamless integration within the Bently Nevada 3500 Series machinery protection and condition monitoring platform. As legacy control infrastructure ages and OEM support windows close, plant engineers and reliability teams increasingly rely on verified retrofit-ready replacements to maintain continuous vibration monitoring, shaft displacement measurement, and machinery health surveillance without interrupting production. The 130539-12 cable serves as a direct drop-in replacement for the original factory cable, preserving signal integrity between transducer inputs and rack-mounted monitor modules across a wide range of industrial environments.
This cable is designed to interface with the 3500/22M Transient Data Interface, 3500/40M Proximitor/Seismic Monitor, 3500/42M Proximitor/Seismic Monitor, and related I/O modules within the 3500 rack system. When planning a retrofit or spare-parts replenishment, engineers should verify the cable routing path, connector orientation, and pin-out compatibility against the existing 3500/20 Rack Interface I/O Module or 3500/15 Power Supply Module installation. Confirming the cable length and shielding specification against the original wiring diagram is a critical pre-installation step that prevents signal noise and ground loop issues in high-vibration plant environments.
Upgrade Compatibility Table
| Parameter | Details |
|---|---|
| Compatible Platform | Bently Nevada 3500 Series Machinery Protection System |
| Replaces OEM Part | 130539-12 (direct drop-in) |
| Connector Type | Multi-pin shielded, per 3500 Series specification |
| Installation Requirement | No rack modification required; mounts to existing I/O module backplane |
| Communication Compatibility | Compatible with 3500 Series Rack Communication Gateway (3500/92) |
| Signal Type | Analog transducer signal (Proximitor/Seismic) |
| Replacement Recommendation | Inspect connector pins and cable jacket before installation; replace if oxidation or mechanical damage is present |
| Commissioning Note | Verify channel address and module slot assignment in System 1 or rack configuration software after installation |
| Warranty | 12 Months from date of shipment |
Retrofit Planning for Existing Automation Systems
Successful retrofit of the 130539-12 cable within an operating plant requires a structured approach that accounts for the full signal chain from field transducer to the control room historian. Begin by auditing the existing 3500 rack configuration: identify which monitor modules — such as the 3500/40M or 3500/42M — are currently active, and confirm that the 3500/20 Rack Interface I/O Module backplane connectors are free of corrosion or mechanical stress. If the plant is simultaneously upgrading from an older 3300 Series or 7200 Series monitoring system to the 3500 platform, the 130539-12 cable is a key component in re-terminating transducer field wiring to the new rack I/O architecture.
During rack-level planning, engineers should also account for the 3500/15 Power Supply Module capacity, particularly when adding new monitor cards or expanding I/O density. The 3500/92 Rack Communication Gateway, which handles Modbus, Ethernet/IP, or OPC-DA communication to the plant DCS or historian, should be reconfigured after any cable replacement to ensure that channel mapping and alarm setpoints are correctly re-associated. If the plant uses a System 1 Evolution software platform for condition monitoring, the channel configuration database should be backed up before any physical cable swap is performed.
For plants integrating Bently Nevada monitoring into a broader Emerson DeltaV DCS or Ovation control system environment, the 130539-12 cable replacement is typically part of a larger I/O marshalling cabinet upgrade. In these scenarios, the cable interfaces with terminal blocks and junction boxes that may also require re-labelling and re-documentation to comply with updated P&ID revisions. Spare Proximitor sensors, extension cables, and barrier isolators should be staged alongside the 130539-12 to minimize rack downtime during the cutover window. All replacement cables are pre-tested and shipped with a functional test certificate to support incoming inspection and quality control procedures.
Downtime Control During System Migration
Minimizing unplanned downtime during a 3500 Series cable replacement requires pre-staging all materials, completing a pre-outage checklist, and coordinating with the control room operator to place affected monitoring channels in bypass mode before disconnecting any field wiring. The original program logic in the 3500 rack — including alarm setpoints, danger limits, and relay output assignments — should be exported from the rack configuration software and stored offline before the cable swap begins. This ensures that if a module reset occurs during reconnection, the configuration can be reloaded without manual re-entry.
Where possible, the cable replacement should be scheduled during a planned maintenance window aligned with rotating equipment inspection cycles. If a hot-swap is required on a running machine, the affected transducer channel should be placed in a latched bypass state and the control room notified to monitor the machine manually via portable vibration analyzer during the cable exchange. After reconnection, perform a signal verification check by comparing the live Proximitor gap voltage and vibration amplitude readings against the pre-outage baseline values recorded in the System 1 trend database. Confirm that all relay outputs and communication links to the DCS are restored before releasing the channel from bypass.
Retrofit Support FAQ
Q: Is the 130539-12 a direct replacement for the original Bently Nevada cable without any rack modification?
A: Yes. The 130539-12 is a direct drop-in replacement designed to fit the existing 3500 Series rack I/O module connectors without requiring any backplane modification, re-pinning, or adapter hardware.
Q: What commissioning steps are required after installing the replacement cable?
A: After physical installation, verify the Proximitor gap voltage on the affected channel using the 3500 rack front-panel display or System 1 software. Confirm that vibration and position readings are within expected baseline ranges, and check that all alarm and danger setpoints are correctly loaded in the monitor module configuration.
Q: How is the cable tested before shipment?
A: Each 130539-12 cable undergoes continuity testing, insulation resistance verification, and connector integrity inspection prior to shipment. A functional test certificate is included with each unit to support incoming quality control and traceability requirements.
Q: What warranty coverage applies to this replacement cable?
A: All replacement cables carry a 12-month warranty from the date of shipment, covering manufacturing defects in materials and workmanship. Warranty claims are supported with direct technical assistance and expedited replacement dispatch.
