Bently Nevada 130944-01 Spare for 3500 Series Automation: Rack Slot Filler Panel for Continuous Uptime

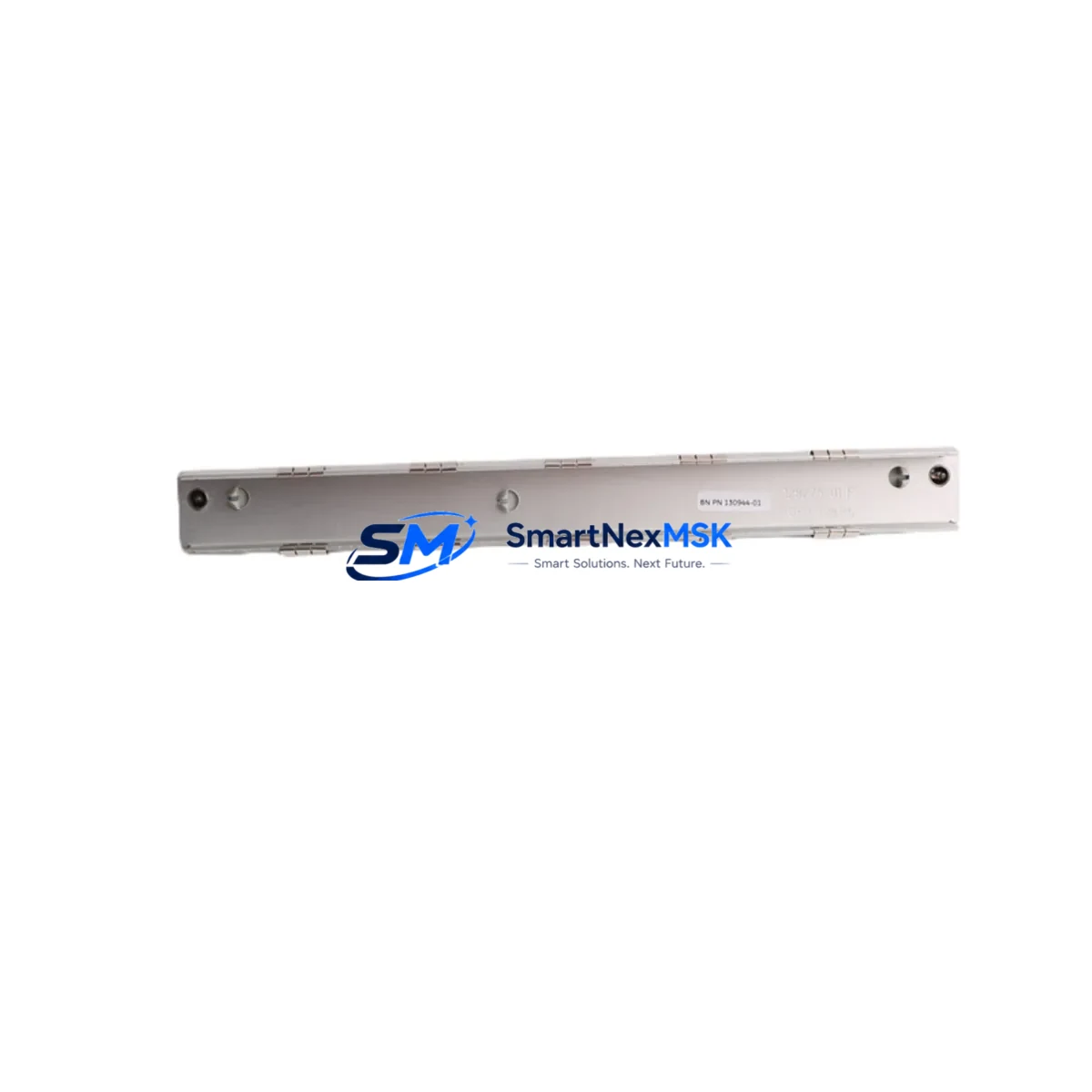

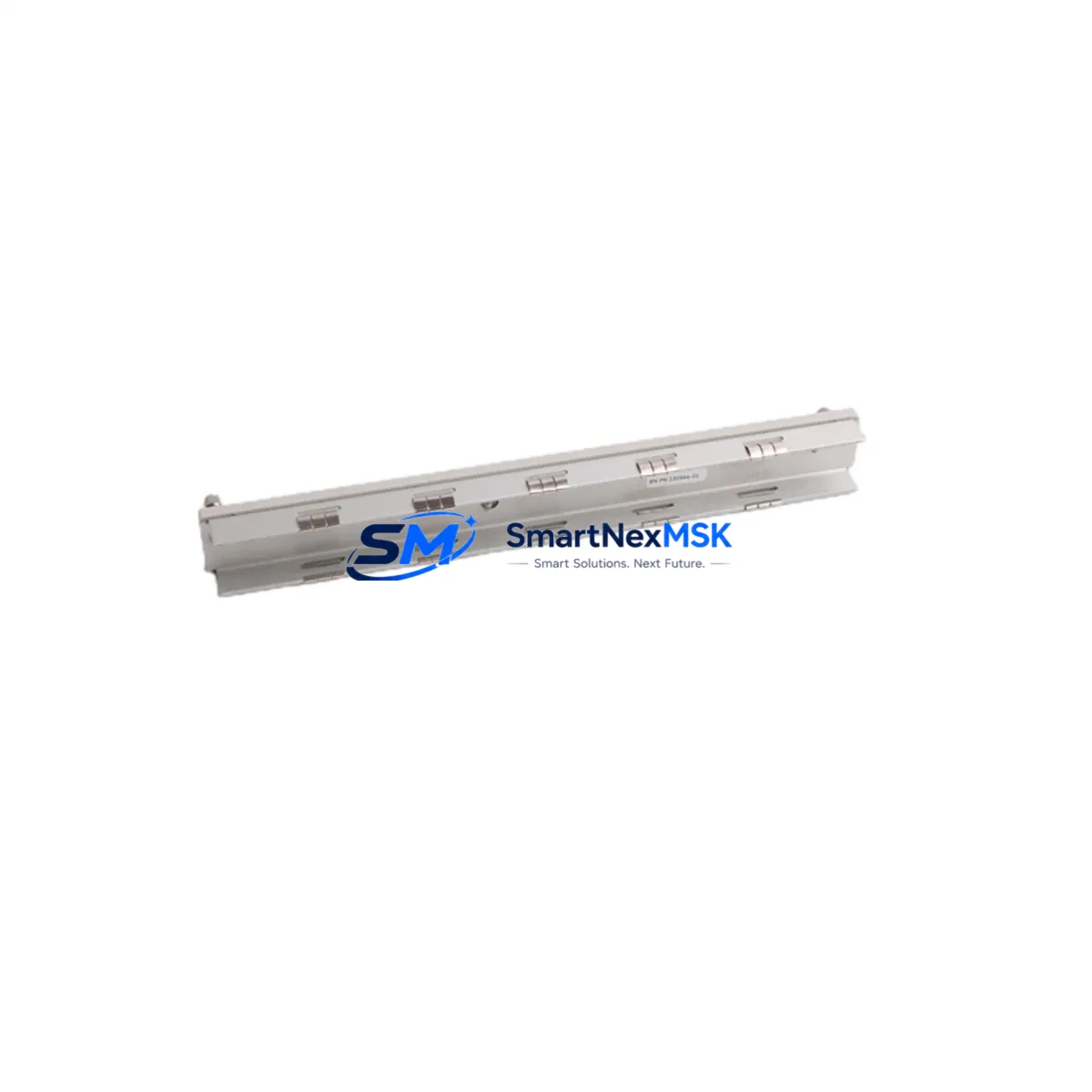

The Bently Nevada 130944-01 is an original rack slot filler (blank) panel designed for the 3500 Series Machinery Protection System (MPS) chassis. In industrial condition monitoring environments, every slot in the 3500 rack must be properly covered to maintain EMI shielding integrity, airflow management, and chassis pressure balance. A missing or damaged filler panel can compromise the thermal performance of adjacent modules — including the 3500/15 Power Supply, 3500/20 Rack Interface Module (RIM), and active monitoring cards such as the 3500/40M Proximitor/Seismic Monitor or 3500/42M Proximitor/Seismic Monitor — leading to nuisance trips or accelerated component degradation.
For maintenance engineers managing rotating machinery protection on turbines, compressors, pumps, and generators, the 130944-01 is a low-cost, high-impact spare that belongs in every site spare parts kit. Procurement engineers sourcing for planned shutdowns or emergency callouts will find this part readily available with verified OEM compatibility, tested before dispatch, and backed by a 12-month warranty.
Spare Maintenance Table
| Parameter | Specification / Detail |
|---|---|
| Part Number | 130944-01 |
| Brand | Bently Nevada (Baker Hughes) |
| Series | 3500 Machinery Protection System |
| Component Type | Rack Slot Filler / Blank Panel |
| Chassis Compatibility | 3500 Series MPS Rack (all standard rack configurations) |
| Function | EMI shielding, airflow management, slot sealing for unused rack positions |
| Installation | Tool-free insertion into standard 3500 rack slot; no wiring required |
| Operating Environment | Industrial control rooms, turbine enclosures, compressor skids |
| Origin | USA |
| Condition | Original spare — inspected and tested before shipment |
| Warranty | 12 Months |
| Lead Time | In stock — ships within 1–3 business days |
| Long-Term Supply | Available for repeat orders and blanket purchase agreements |
Maintenance Planning for Continuous Operation
When conducting a scheduled inspection or emergency callout on a 3500 Series rack, replacing the 130944-01 filler panel is typically part of a broader chassis audit. Maintenance engineers should simultaneously verify the condition and seating of the 3500/15 Power Supply Module — a loose or aging power supply is one of the most common root causes of intermittent rack faults. The 3500/20 Rack Interface Module (RIM) should be checked for firmware version compatibility and communication link status, particularly if the rack interfaces with a DCS via Modbus or OPC.
Active monitoring modules such as the 3500/40M Proximitor/Seismic Monitor and 3500/42M Proximitor/Seismic Monitor should have their transducer input wiring inspected for continuity and shield grounding. The 3500/22M Transient Data Interface (TDI), if installed, should be confirmed operational for waveform capture during the next planned run. For racks with temperature monitoring, the 3500/60 Temperature Monitor thermocouple input terminals should be checked for oxidation and torque.
Beyond the rack itself, a complete site inspection should include the Keyphasor module (3500/25 or 3500/17) signal cable routing and connector integrity, as Keyphasor signal loss can cause false danger alerts across multiple channels. If the site uses external signal conditioners or signal isolators between field sensors and the 3500 rack, these should be tested for drift. Finally, confirm that all terminal blocks and field wiring connectors on the rear I/O modules are properly torqued and free of corrosion — a common failure point in high-humidity or offshore environments.
Stocking the 130944-01 alongside a set of critical active modules ensures that any rack reconfiguration — whether adding a new monitoring channel, replacing a failed card, or decommissioning a legacy slot — can be completed cleanly without leaving open slots that degrade system performance.
Site Replacement Workflow
Replacing the 130944-01 in the field requires no tools and no system shutdown. The filler panel slides into any unused slot in the 3500 rack and locks in place with the standard front-panel latch mechanism. When upgrading from an older or non-OEM filler panel, confirm that the replacement panel fully seats flush with the rack face — improper seating can allow airflow bypass and increase thermal load on adjacent active modules.
For sites transitioning from legacy 3300 Series or 7200 Series Bently Nevada systems to the 3500 platform, the 130944-01 is specific to the 3500 rack form factor and is not interchangeable with older chassis fillers. Ensure the rack model is confirmed before ordering. During system expansion — for example, adding a new 3500/50M Tachometer Module or a 3500/70M Temperature Monitor to an existing rack — previously installed filler panels are removed and replaced with the new active module, making a stock of 130944-01 panels essential for managing slot occupancy across the rack lifecycle.
All units supplied by SMARTNEXMSK are inspected, function-tested where applicable, and shipped with documentation. Expedited shipping is available for emergency maintenance situations. Long-term supply agreements are supported for MRO procurement teams managing multi-site 3500 rack installations.
Spare Parts Support FAQ
Q1: Is the 130944-01 an original Bently Nevada part or a third-party equivalent?
All 130944-01 units we supply are original Bently Nevada (Baker Hughes) components. We do not supply aftermarket or reverse-engineered substitutes. Each unit is inspected before shipment and covered by a 12-month warranty.
Q2: How many filler panels should I stock for a 3500 Series rack installation?
Best practice is to stock one filler panel per unused slot in each rack, plus two to three additional units per rack as buffer stock. For multi-rack installations or sites with frequent reconfiguration, a standing inventory of 5–10 units per site is recommended to support rapid slot management during planned maintenance windows.
Q3: Can the 130944-01 be used in any slot position within the 3500 rack?
Yes. The 130944-01 is compatible with all standard slot positions in the 3500 Series MPS rack. It is not position-specific and can be installed in any unused slot to maintain chassis integrity. Always confirm the rack model and slot width before installation if mixing rack generations.
Q4: What is included in the 12-month warranty and how is compatibility verified before shipment?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. Before shipment, each unit undergoes a visual and dimensional inspection to confirm OEM specifications. For active modules, functional testing is performed. Compatibility with the 3500 Series rack is verified against the part number and chassis documentation. If a unit fails within the warranty period, we provide replacement or full refund.
—
