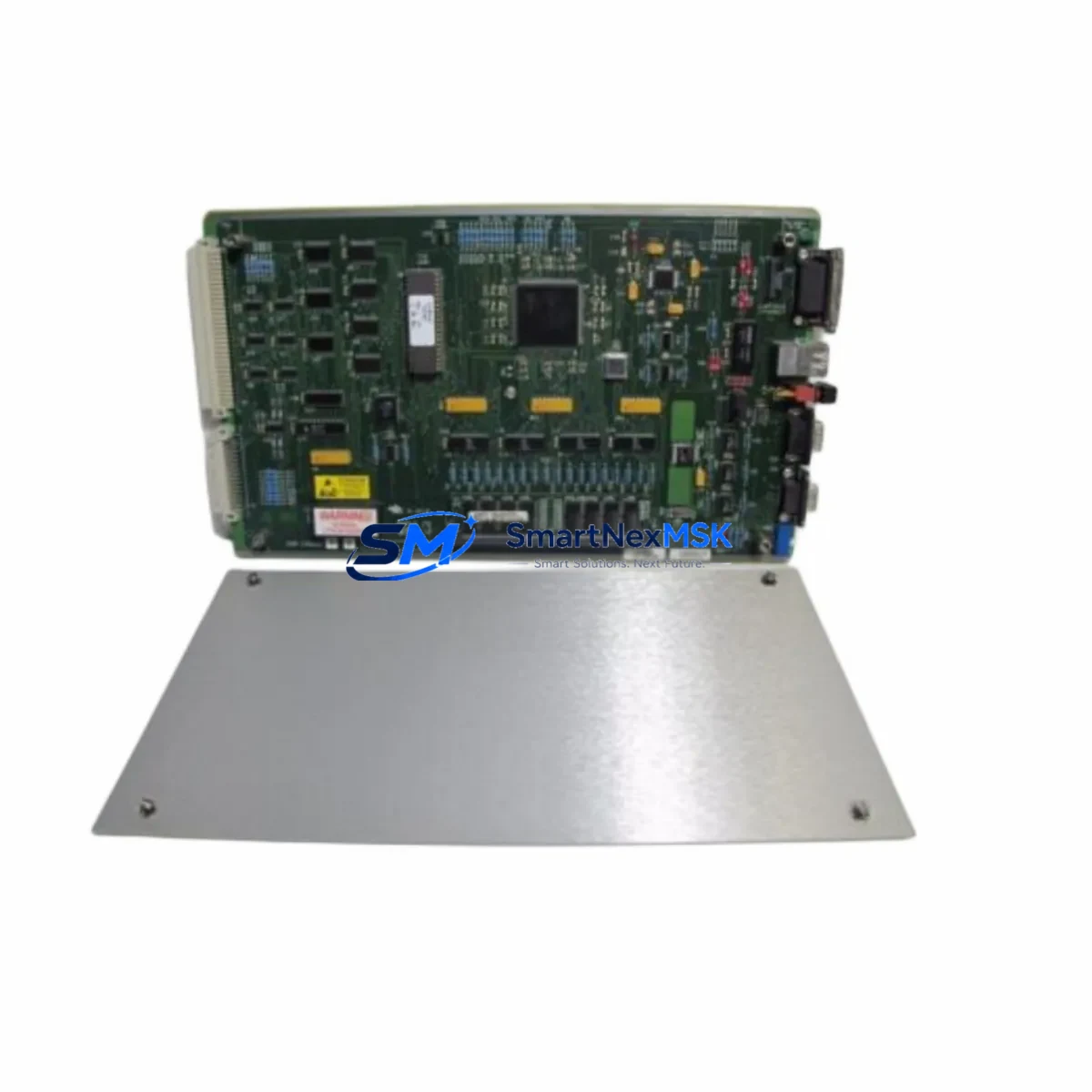

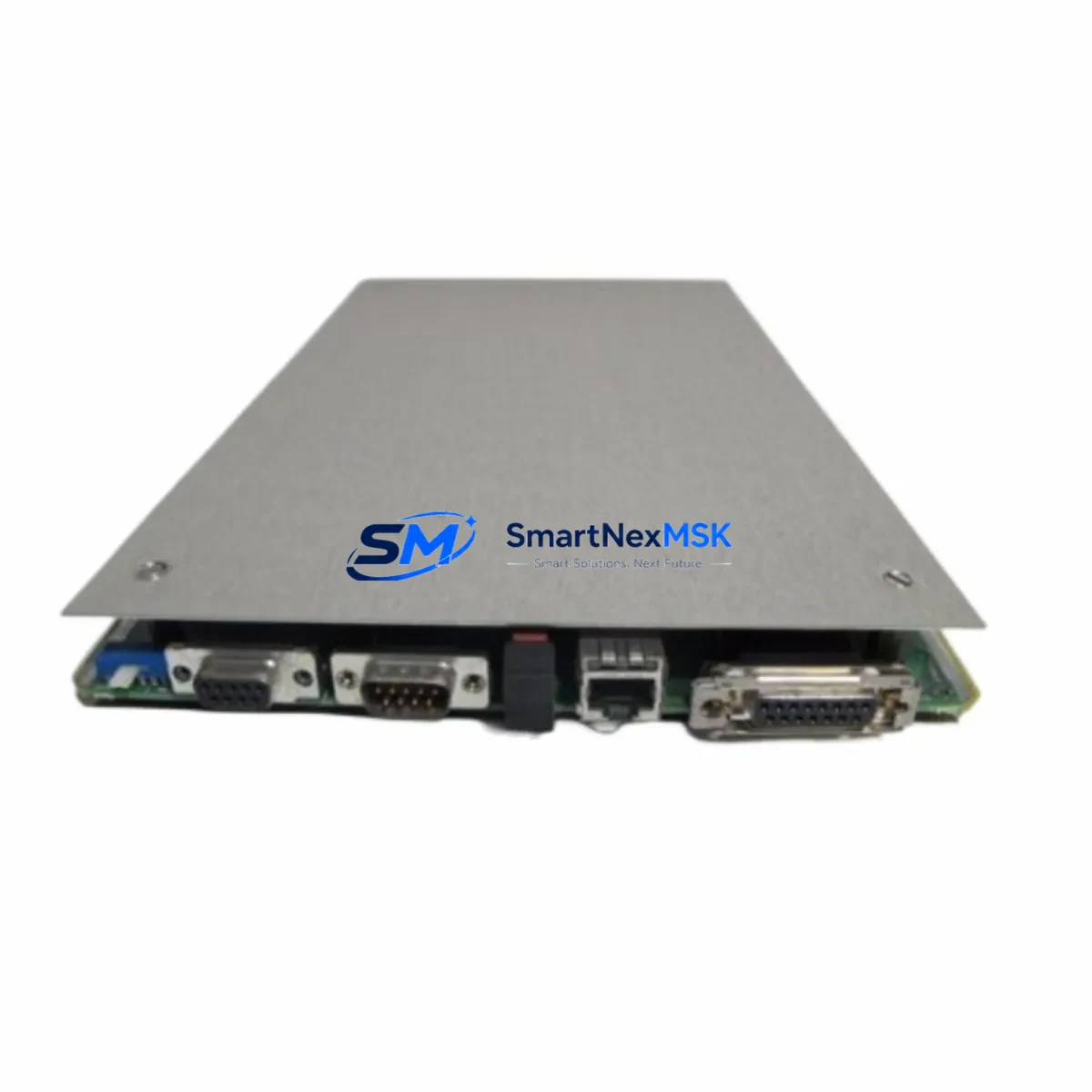

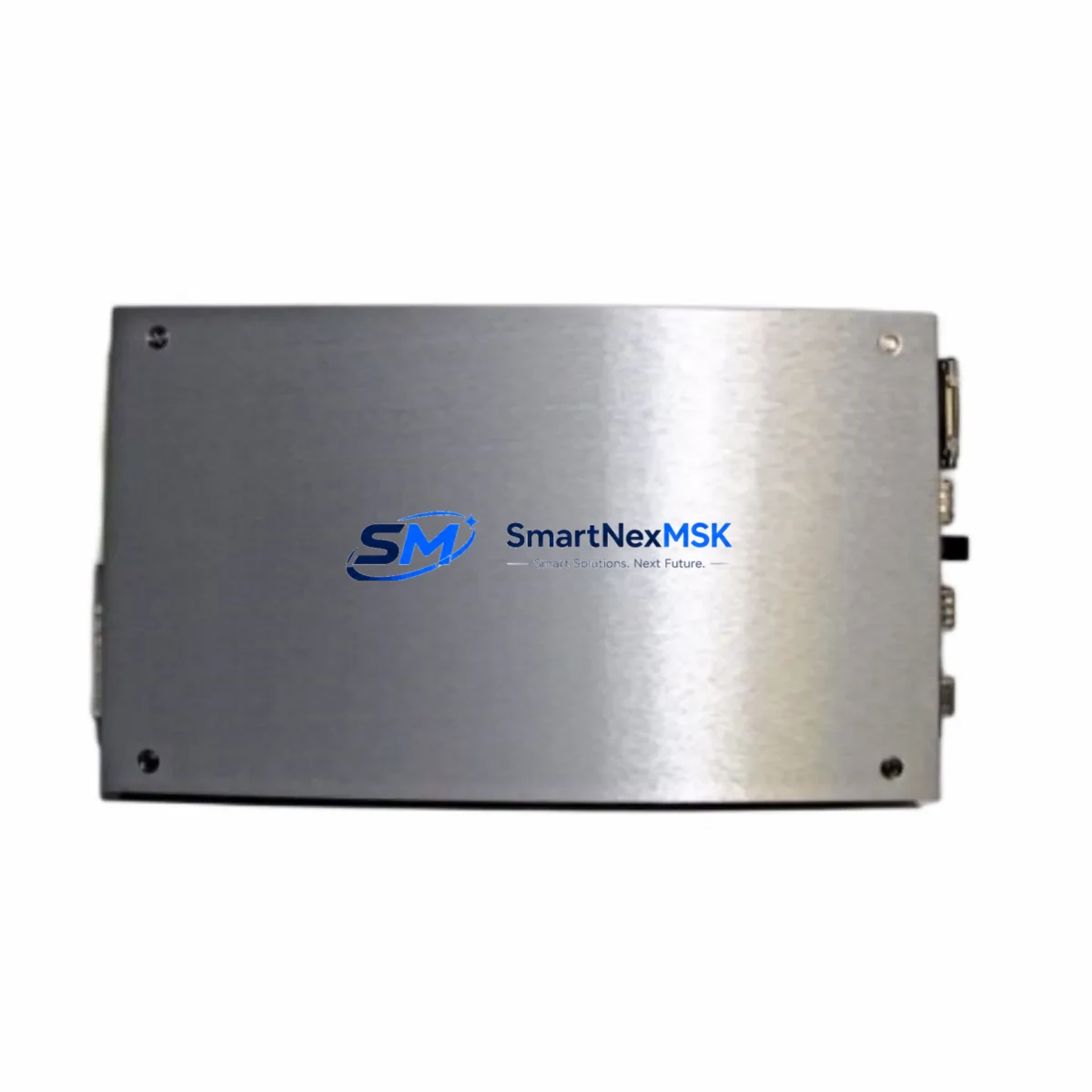

Bently Nevada 134652-01 Retrofit-Ready TDI for 3500 Series

Bently Nevada 134652-01 Retrofit-Ready Transient Data Interface for 3500 Series Control Systems

The Bently Nevada 134652-01 is a Transient Data Interface (TDI) module engineered for the 3500 Series machinery protection and condition monitoring platform. As legacy 3500 Series installations age across petrochemical, power generation, and heavy industrial facilities, the 134652-01 has become a critical retrofit component — enabling engineers to restore full transient data acquisition capability without replacing the entire monitoring rack or migrating to a new control architecture.

This module captures high-resolution transient waveform data during machine startup, coastdown, and trip events, feeding directly into the 3500 Rack Configuration Software (RCS) environment. For facilities running existing 3500/20 Rack Interface Module (RIM) backplanes, the 134652-01 slots into the standard 19-inch rack without mechanical modification, preserving the existing wiring harness and terminal block assignments on adjacent I/O modules.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the 134652-01 into an existing 3500 Series rack begins with a thorough pre-retrofit audit. Engineers should document the current rack population, including the 3500/20 Rack Interface Module slot assignments, the 3500/40M Proximitor/Seismic Monitor positions, and any 3500/42M Proximitor/Seismic Monitor modules handling radial vibration channels. Confirming that the 3500/05 Power Supply — or the redundant 3500/15 Power Supply where dual-power configurations are in use — has sufficient headroom to support the additional TDI module load is a mandatory first step before physical installation.

Terminal block wiring on adjacent modules such as the 3500/25 Enhanced Keyphasor Module must be verified against the original loop drawings. The Keyphasor signal is essential for phase-referenced transient data capture; any wiring discrepancy at the 3500/25 terminal block will result in incomplete or phase-corrupted waveform records during startup and coastdown events. Similarly, if the rack includes a 3500/22M Transient Data Interface (an earlier generation), engineers should compare the slot configuration and buffer depth settings before substituting the 134652-01 to ensure backward compatibility with existing System 1 trend and waveform database schemas.

For facilities that have already migrated their operator interface to a modern HMI platform, the 134652-01 communicates via the established RS-232 or RS-422 serial link to the System 1 data acquisition server. No HMI screen reconfiguration is required for the transient data display faceplates, provided the module address in the 3500 Rack Configuration Software matches the original slot assignment. Where the control room uses a 3500/93 Communication Gateway Module for Modbus or OPC connectivity, the gateway configuration should be reviewed to confirm that the TDI data points are correctly mapped after module replacement.

I/O expansion considerations are equally important in multi-rack installations. If the facility operates a multi-rack 3500 system linked via the 3500/20 RIM, the TDI module’s transient data buffer must be synchronized across racks to prevent data gaps during simultaneous multi-machine trip events. The 3500 Rack Configuration Software provides buffer allocation settings that should be reviewed and adjusted to match the expanded monitoring scope before the system is returned to service.

Downtime Control During System Migration

Minimizing unplanned downtime during a 134652-01 retrofit requires a structured hot-swap protocol. Where the 3500 rack supports online module replacement — confirmed via the rack’s firmware revision and RCS version — the TDI module can be extracted and reinserted without powering down the entire rack, preserving continuous protection on all remaining monitor channels including the 3500/40M and 3500/42M vibration monitors.

Before extraction, engineers should export the full rack configuration from the 3500 Rack Configuration Software and archive the transient data buffer contents from the System 1 historian. This ensures that no pre-existing waveform records are lost during the module swap. The replacement 134652-01 should be pre-configured offline using RCS in simulation mode, with the module address, buffer depth, and communication port settings matched exactly to the outgoing unit.

Upon reinsertion, the RCS will perform an automatic configuration download to the new module. Engineers should monitor the System 1 communication status display to confirm that the TDI data link re-establishes within the expected timeout window. A functional verification test — triggering a controlled transient event or using the RCS built-in self-test routine — should be completed before the machine is returned to full-load operation. All 134652-01 units supplied by SMARTNEXMSK are pre-tested prior to shipment, with functional test records available upon request, reducing on-site commissioning time and supporting a controlled, low-risk return to service.

Retrofit Support FAQ

Q1: Is the 134652-01 a direct drop-in replacement for the original Bently Nevada TDI module in a 3500 Series rack?
A: Yes. The 134652-01 is dimensionally and electrically compatible with the standard 3500 Series rack slot. No mechanical modification to the rack or backplane is required. After physical installation, the module address must be confirmed and the configuration downloaded via the 3500 Rack Configuration Software before the module enters active service.

Q2: How do I verify wiring compatibility before replacing the TDI module?
A: Reference the original loop drawings and the 3500 Series Rack Configuration and Utilities Guide. Pay particular attention to the RS-232/RS-422 serial cable routing between the TDI module and the System 1 workstation, and confirm that the terminal assignments on adjacent modules — including the 3500/25 Enhanced Keyphasor Module — have not been modified since the original installation.

Q3: What commissioning steps are required after installing the replacement 134652-01?
A: After physical installation, open the 3500 Rack Configuration Software, verify the module slot address, and perform a configuration download. Confirm the System 1 communication link status, validate the transient data buffer allocation, and run the built-in self-test. For phase-referenced measurements, verify the Keyphasor signal integrity at the 3500/25 module before conducting a full transient capture test.

Q4: What warranty coverage is provided, and what does the pre-shipment test include?
A: All 134652-01 units are covered by a 12-Month Warranty against manufacturing defects and functional failure under normal operating conditions. Pre-shipment testing includes power-on functional verification, communication port integrity check, and buffer read/write validation. Test records are available upon request. For warranty claims or technical support, contact sales@smartnexmsk.com.
