Bently Nevada 135813-01 Safety I/O Module Harsh Sites

Bently Nevada 135813-01 Safety I/O Module: Reliable Control in Harsh Industrial Environments

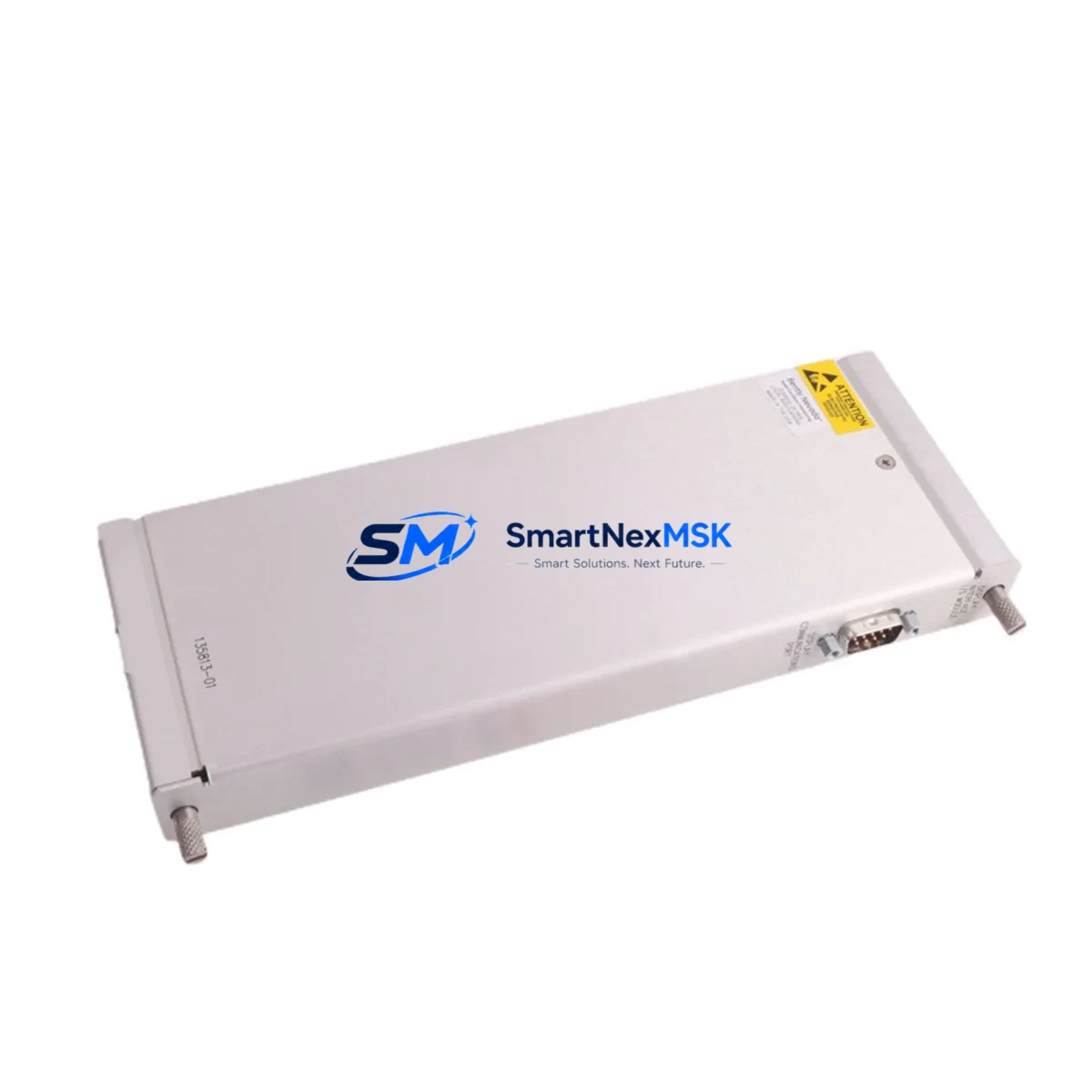

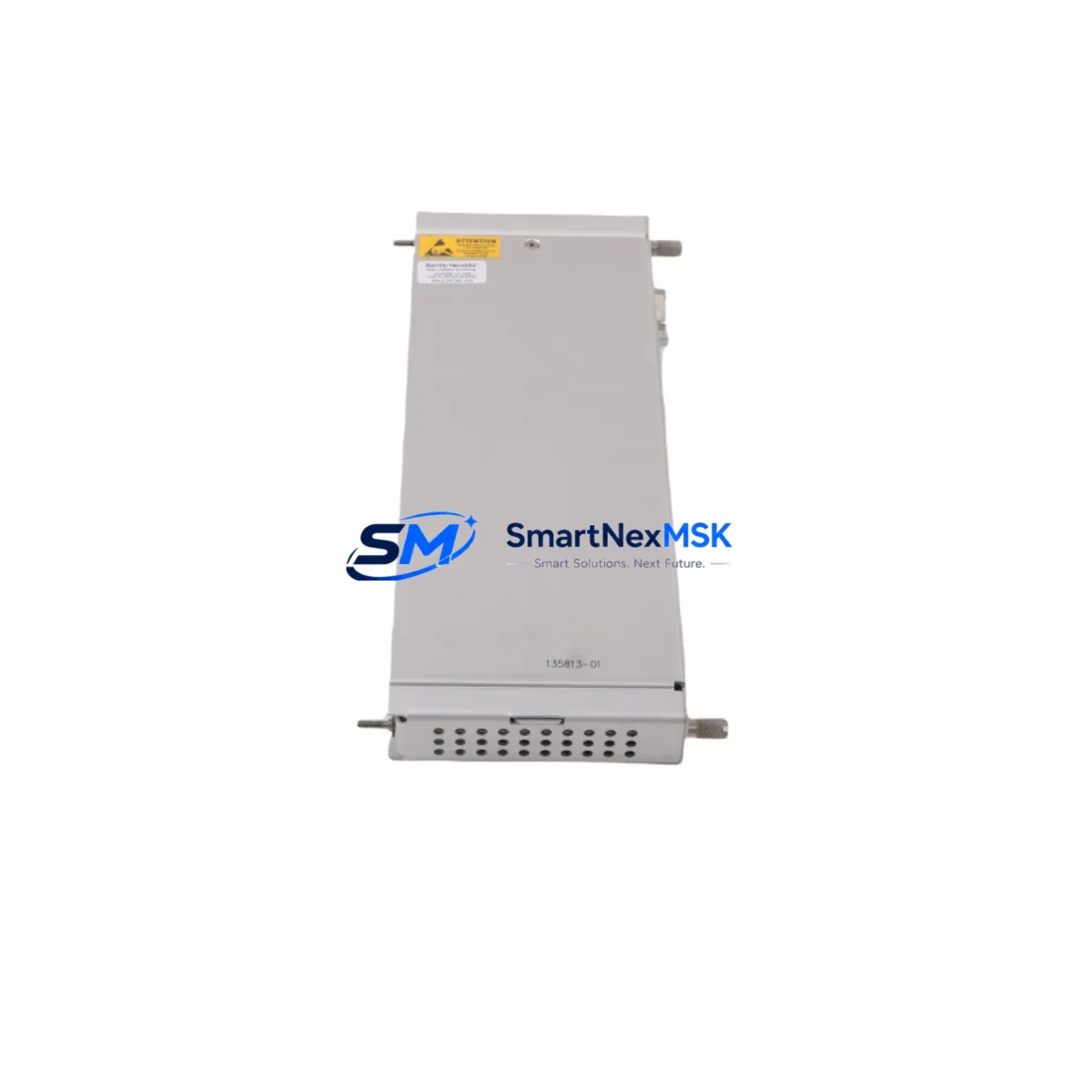

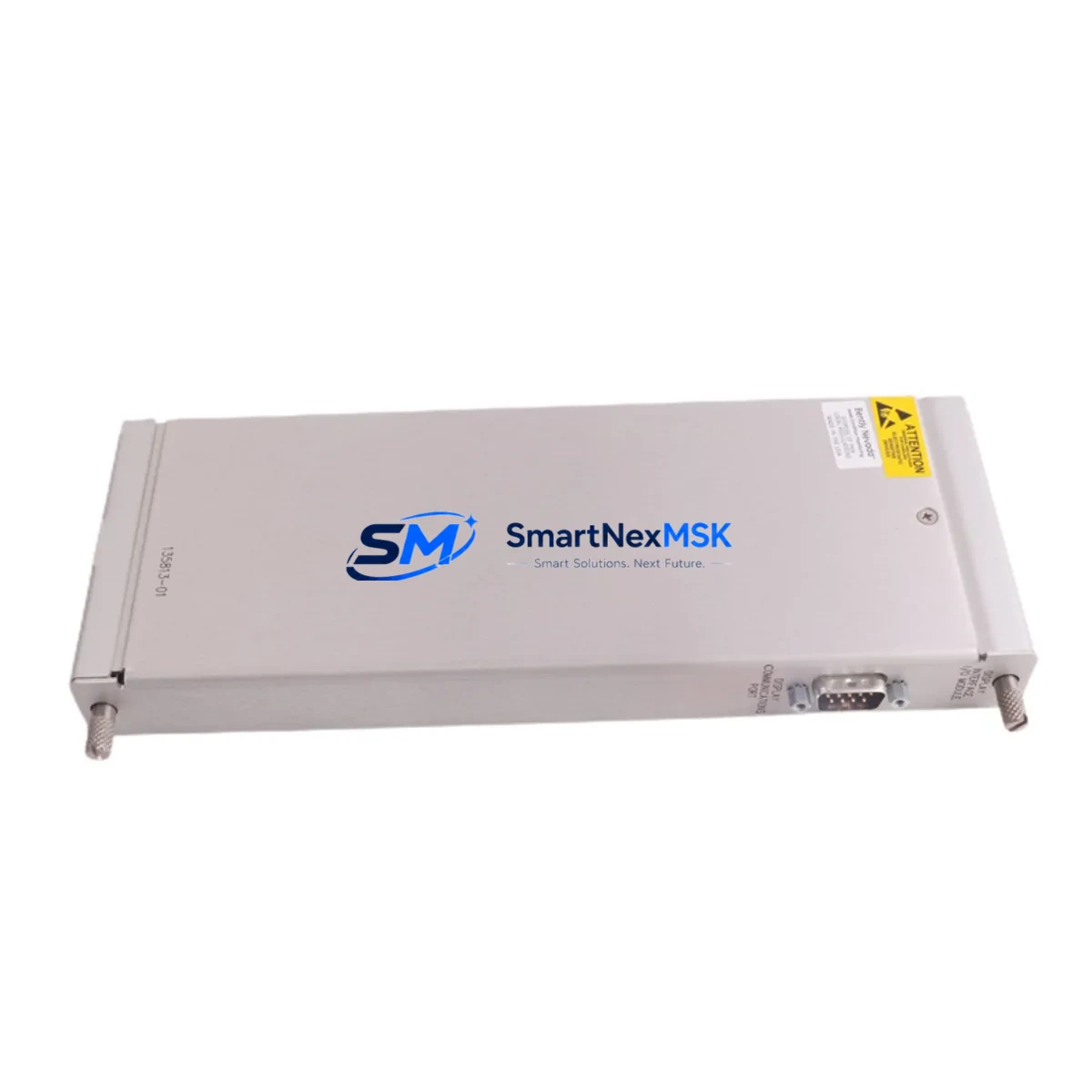

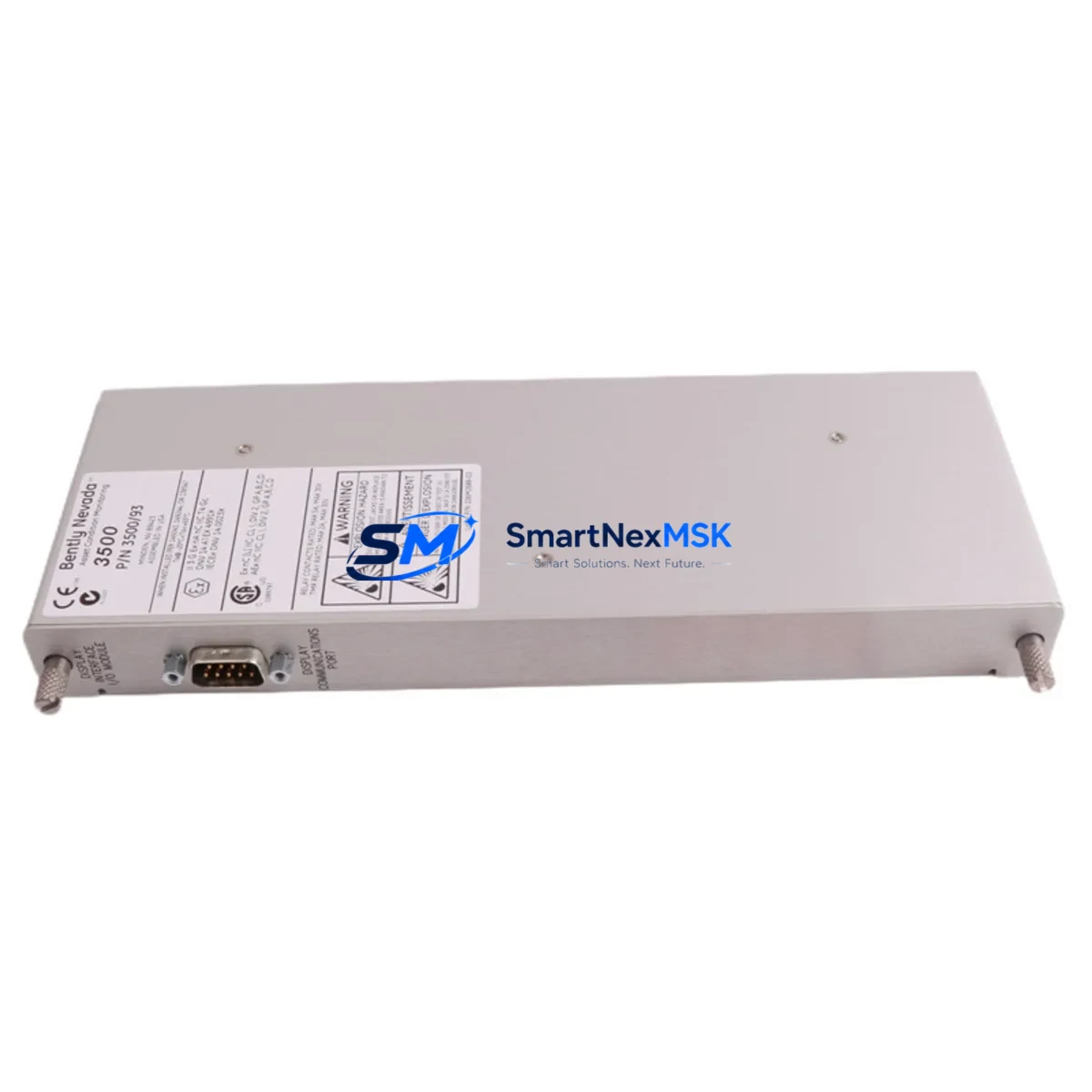

The Bently Nevada 135813-01 is a ruggedized Interface I/O Module engineered for the Bently Nevada 3500 Series machinery protection and condition monitoring platform. Designed to operate reliably in high-vibration, high-temperature, and electromagnetically noisy industrial environments, the 135813-01 serves as a critical signal interface between field sensors and the 3500 rack-based monitoring system. Whether deployed in continuous petrochemical processing, heavy-duty power generation, or demanding mining operations, this module delivers the signal integrity and operational stability that safety-critical control loops demand.

In modern industrial facilities, the integrity of every I/O signal path directly impacts plant safety. A degraded or failed interface module can cause missed vibration alarms, false shutdowns, or — more dangerously — undetected machinery faults that escalate into catastrophic failures. The 135813-01 addresses these risks through robust hardware design, tight signal conditioning tolerances, and full compatibility with the broader 3500 Series ecosystem, including the Bently Nevada 3500/22M Transient Data Interface, 3500/42M Proximitor/Seismic Monitor, and 3500/15 Power Supply Module.

Safety Reliability Table

Control Cabinet Protection Strategy

Deploying the Bently Nevada 135813-01 within a well-engineered control cabinet architecture is essential to maximizing plant safety and minimizing unplanned downtime. In a typical 3500 Series rack installation, the 135813-01 works in close coordination with the Bently Nevada 3500/20 Rack Interface Module (RIM), which manages communication between the monitoring rack and the plant DCS or safety PLC. Signal quality at the I/O layer directly determines the reliability of trip decisions made upstream.

To protect against power-related disturbances — a leading cause of module malfunction in heavy industrial sites — the 3500 rack should be fed through a dedicated UPS (Uninterruptible Power Supply) and supplemented by the Bently Nevada 3500/15 Dual Power Supply for redundant power delivery. Surge protection devices installed at the cabinet entry point further shield the 135813-01 and co-located modules such as the Bently Nevada 3500/40M Proximitor/Seismic Monitor from transient voltage spikes common in switchgear rooms and motor control centers.

For facilities running Modbus RTU or FOUNDATION Fieldbus communication architectures, the Bently Nevada 3500/22M Transient Data Interface provides the communication bridge that allows the 135813-01’s signal data to be transmitted to the plant historian or safety system without latency. In parallel, the Bently Nevada 3500/42M Proximitor/Seismic Monitor handles radial vibration and axial position measurements from proximity probes, feeding critical shaft displacement data through the same rack backplane that the 135813-01 interfaces with.

Cabinet thermal management is equally critical. Excessive heat accelerates component aging in I/O modules. Pairing the 135813-01 installation with properly rated cabinet cooling units and ensuring adequate rack ventilation extends module service life significantly. For facilities requiring hot-swap capability during live plant operation, the 3500 Series rack architecture supports online module replacement — a key safety feature that eliminates the need for full system shutdown during maintenance windows.

In safety instrumented systems (SIS) and emergency shutdown (ESD) architectures, the 135813-01 may be integrated alongside Triconex Safety Controllers or Rockwell Automation GuardLogix PLCs to form a layered protection strategy. The module’s signal outputs can feed into voted logic solvers, ensuring that a single-point I/O failure does not compromise the integrity of the overall safety loop.

Critical Industrial Safety Applications

Petrochemical & Refinery Plants: In continuous hydrocarbon processing, rotating machinery such as compressors, turbines, and pumps must be monitored without interruption. The 135813-01 provides the reliable I/O interface that keeps vibration and position data flowing to the 3500 Series protection system, enabling early detection of bearing wear, rotor imbalance, and shaft misalignment before they escalate into safety incidents or unplanned shutdowns.

Power Generation: Steam turbines and gas turbines in power plants operate under extreme mechanical stress. The 135813-01 supports the high-channel-density monitoring requirements of large turbine trains, interfacing with proximity probes and velocity sensors to deliver real-time shaft dynamics data. In combined-cycle plants, where turbine trips carry significant financial and grid-stability consequences, the reliability of every I/O module in the protection rack is non-negotiable.

Mining & Mineral Processing: Ball mills, crushers, and conveyor drive systems in mining operations generate intense vibration and electrical noise. The ruggedized design of the 135813-01 ensures stable signal transmission even in these electromagnetically hostile environments, reducing the risk of nuisance trips caused by signal interference while maintaining sensitivity to genuine fault conditions.

Water & Wastewater Treatment: Pump stations and blower systems in water treatment facilities require continuous monitoring to prevent failures that could disrupt public water supply. The 135813-01 enables cost-effective condition monitoring of critical rotating assets, supporting predictive maintenance programs that extend equipment life and reduce emergency repair costs.

Metallurgy & Steel Production: Rolling mills and continuous casting lines operate in high-temperature, high-vibration environments where I/O module reliability is directly linked to production continuity and worker safety. The 135813-01’s industrial-grade construction makes it well-suited for integration into the machinery protection systems that safeguard these critical assets.

Port & Material Handling: Crane drives, conveyor systems, and ship-loader mechanisms at port facilities depend on reliable condition monitoring to prevent mechanical failures that could cause cargo damage or personnel injury. The 135813-01 supports the real-time monitoring infrastructure that keeps these high-cycle assets operating safely.

Safety and Quality FAQ

Q1: What warranty coverage is provided for the Bently Nevada 135813-01?
Every 135813-01 unit supplied by SMARTNEXMSK is backed by a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Warranty claims are processed promptly, with replacement or repair options available to minimize your plant downtime.

Q2: How is the 135813-01 tested before shipment?
All units undergo a comprehensive pre-shipment functional test that verifies signal I/O performance, power consumption, and communication integrity. Only modules that pass full functional verification are released for dispatch, ensuring you receive a field-ready component.

Q3: Is the 135813-01 compatible with all Bently Nevada 3500 Series racks?
Yes. The 135813-01 is designed for direct installation in standard Bently Nevada 3500 Series racks and is compatible with the full range of 3500 Series monitor modules, power supplies, and communication interfaces. If you have a specific rack configuration or firmware version requirement, contact our technical team for compatibility confirmation before ordering.

Q4: Can SMARTNEXMSK support long-term supply and emergency replacement needs?
Yes. SMARTNEXMSK maintains dedicated inventory of the 135813-01 and other Bently Nevada 3500 Series components to support both planned maintenance schedules and emergency replacement requirements. We offer fast global shipping and can provide documentation packages including test reports and certificates of conformance upon request.
