Bently Nevada 136294-01 Maintenance-Ready Spare for 3500 Automation

Bently Nevada 136294-01 Maintenance-Ready Spare for 3500 Automation

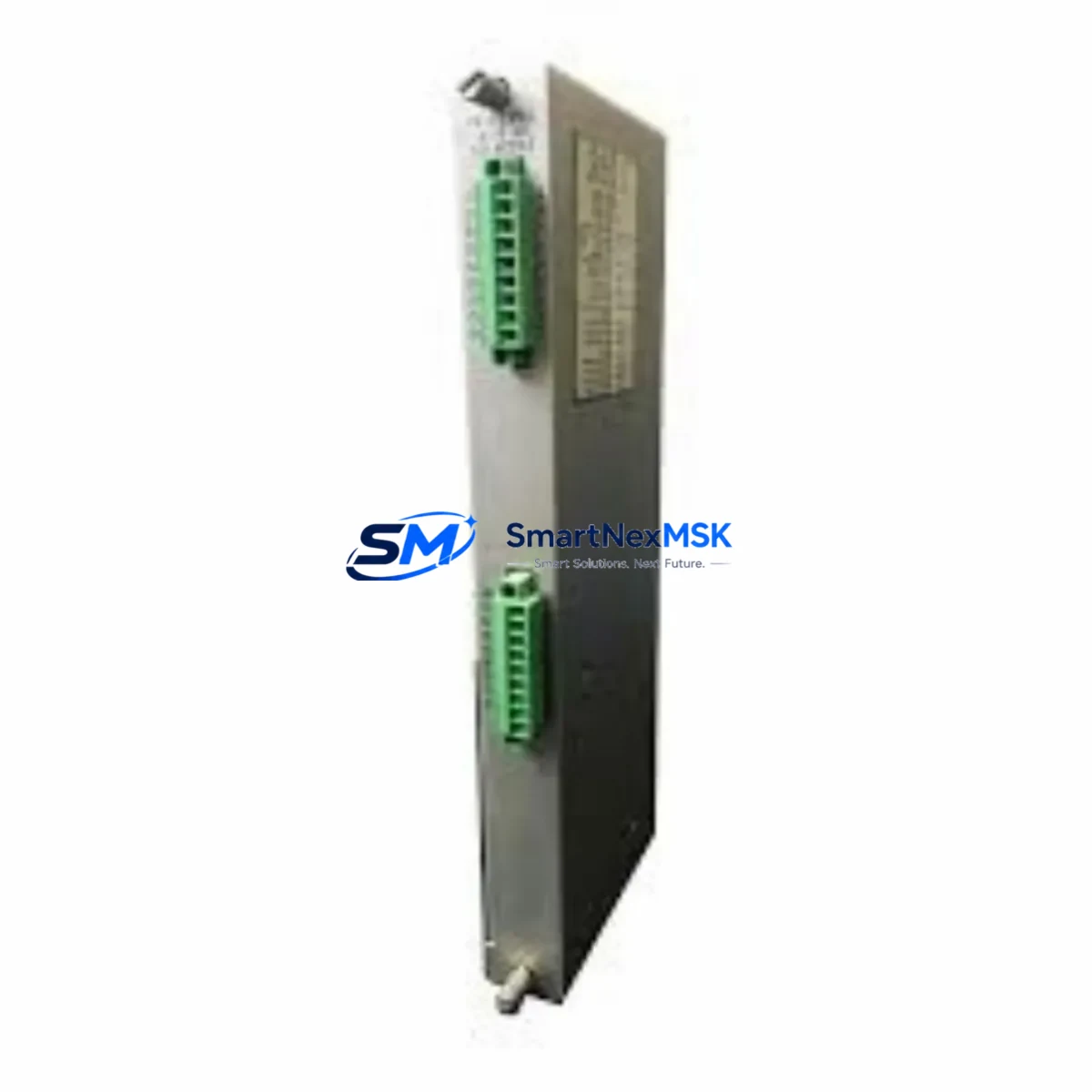

The Bently Nevada 136294-01 is an original 4-20mA PV Isolated I/O Module engineered for the 3500 Series Machinery Protection System — one of the most widely deployed continuous monitoring platforms in rotating equipment protection worldwide. For maintenance engineers managing turbines, compressors, pumps, and critical rotating assets, this module represents a mission-critical spare that directly governs the integrity of vibration, position, and process variable signal chains feeding into the 3500 rack architecture.

Unplanned downtime caused by I/O module failure in a 3500 Series rack can cascade rapidly: loss of 4-20mA signal isolation disrupts the process variable loop, triggers false alarms or missed trips, and can force a full unit shutdown pending module replacement. Holding a verified, tested 136294-01 in your on-site spare parts inventory is the most direct mitigation against this risk. Each unit we supply is functionally tested prior to dispatch and backed by a 12-month warranty, giving procurement and reliability teams documented assurance of part quality and supply continuity.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 136294-01 in a 3500 Series rack, a disciplined maintenance engineer will treat the module swap as an opportunity for a broader cabinet inspection. The 4-20mA isolated I/O module sits at the intersection of field instrumentation and the rack’s internal signal processing — meaning any degradation upstream or downstream can mask or mimic a module fault.

Begin by verifying the integrity of the 3500/20 Rack Interface Module, which governs backplane communication and power distribution to all installed I/O cards. A marginal rack interface module can cause intermittent faults that appear as I/O module failures. Next, inspect the 3500/15 Power Supply Module — dual-redundant power supply health is foundational; a sagging rail voltage will degrade 4-20mA loop accuracy before any other symptom appears.

Check the field wiring terminations at the 3500 I/O Terminal Block and associated signal cable assemblies connecting field transmitters to the rack. Corroded or loose terminals are a leading cause of loop drift that is incorrectly attributed to module failure. If the system uses Bently Nevada 3500/22M Transient Data Interface cards in adjacent slots, confirm their firmware revision is compatible with the current rack configuration after the module replacement.

For plants running extended 3500 rack installations, also audit the 3500/32 4-Channel Relay Module and 3500/33 16-Channel Relay Module outputs tied to the process variable loop — relay contact wear can introduce latency in trip response that is only revealed during a full functional test post-replacement. Where signal isolation between field loops and the DCS historian is required, inspect any installed signal isolators or loop-powered barriers in the marshalling cabinet to confirm they remain within calibration tolerance.

Finally, if the plant uses a Bently Nevada System 1 Evolution software platform for online monitoring, verify that the replacement module is recognized correctly by the configuration database and that no channel mapping changes are required after the swap. Document the replacement in the CMMS with the new module serial number and retest date to maintain audit trail continuity.

Site Replacement Workflow

The 136294-01 is a direct form-fit-function replacement for the same part number across all 3500 Series rack generations that support the 4-20mA PV isolated I/O function. No firmware flashing or rack reconfiguration is required in standard replacement scenarios — the module inherits the slot configuration stored in the rack interface module upon insertion.

Step 1 — Pre-replacement verification: Confirm the replacement module part number matches 136294-01 exactly. Inspect the module edge connector and front-panel indicators for physical damage before installation.

Step 2 — Safe isolation: Follow site LOTO procedures. If the rack supports hot-swap for this slot, coordinate with the control room to acknowledge the channel before removal to prevent spurious trips.

Step 3 — Module swap: Remove the faulty module, insert the replacement, and secure the front-panel locking mechanism. Observe the module’s LED status indicators during power-up — a steady green indicates normal operation.

Step 4 — Loop verification: Apply a calibrated 4-20mA source to the input terminals and verify the rack’s displayed process variable matches the injected signal within the specified accuracy band. Confirm alarm and trip setpoints are active and correctly configured.

Step 5 — Documentation: Record the replacement in the site CMMS, update the spare parts inventory, and schedule the next planned inspection interval per the site’s reliability program.

This workflow minimizes mean time to repair (MTTR) and ensures the 3500 Series system returns to full protective function with zero configuration drift.

Spare Parts Support FAQ

Q1: Is the 136294-01 compatible with all 3500 Series rack generations?
The 136294-01 is designed for the 3500 Series Machinery Protection System and is compatible with standard 3500 rack backplane slots that support the 4-20mA PV isolated I/O function. Always verify your rack’s slot assignment and I/O configuration against the 3500 Series system documentation before installation. We can assist with compatibility confirmation prior to order.

Q2: How is each unit tested before shipment?
Every 136294-01 we supply undergoes functional testing to verify signal isolation integrity, 4-20mA loop accuracy, and module communication with the rack interface. A test record is available upon request. Units are shipped in anti-static packaging with physical inspection documentation.

Q3: What does the 12-month warranty cover?
The 12-month warranty covers functional failure under normal operating conditions from the date of shipment. It excludes damage caused by incorrect installation, overvoltage, or physical mishandling. Warranty claims are processed with priority turnaround to minimize your site downtime exposure.

Q4: Can you support long-term or blanket spare parts orders for the 136294-01?
Yes. We support scheduled blanket orders, consignment stock arrangements, and multi-unit spare kits for reliability-critical sites. Long-term supply agreements include guaranteed pricing, reserved inventory allocation, and dedicated account support to ensure your 3500 Series spares program remains uninterrupted regardless of market availability fluctuations.
