Bently Nevada 138493-01 Safety-Enhanced Proximity Transducer

Bently Nevada 138493-01 Safety-Enhanced Proximity Transducer for Harsh Industrial Sites

The Bently Nevada 138493-01 is a ruggedized 50 mm proximity transducer engineered for the 3300 XL Series continuous vibration monitoring system. Designed to operate reliably in the most demanding industrial environments — including petrochemical plants, power generation facilities, offshore platforms, mining operations, and continuous-process manufacturing lines — this transducer delivers the signal integrity and mechanical durability that safety-critical rotating machinery protection demands.

In high-load, high-interference industrial control cabinets and critical interlock loops, signal drift and transducer failure are among the leading causes of unplanned shutdowns and machinery damage. The 138493-01 addresses these risks through its precision-wound eddy-current sensing coil, hermetically sealed stainless steel housing, and tight sensitivity tolerance of 7.87 V/mm (200 mV/mil). These characteristics ensure that the 3300 XL monitoring system receives a clean, stable proximity signal even when the installation environment is subject to electromagnetic interference, mechanical vibration, thermal cycling, or chemical exposure.

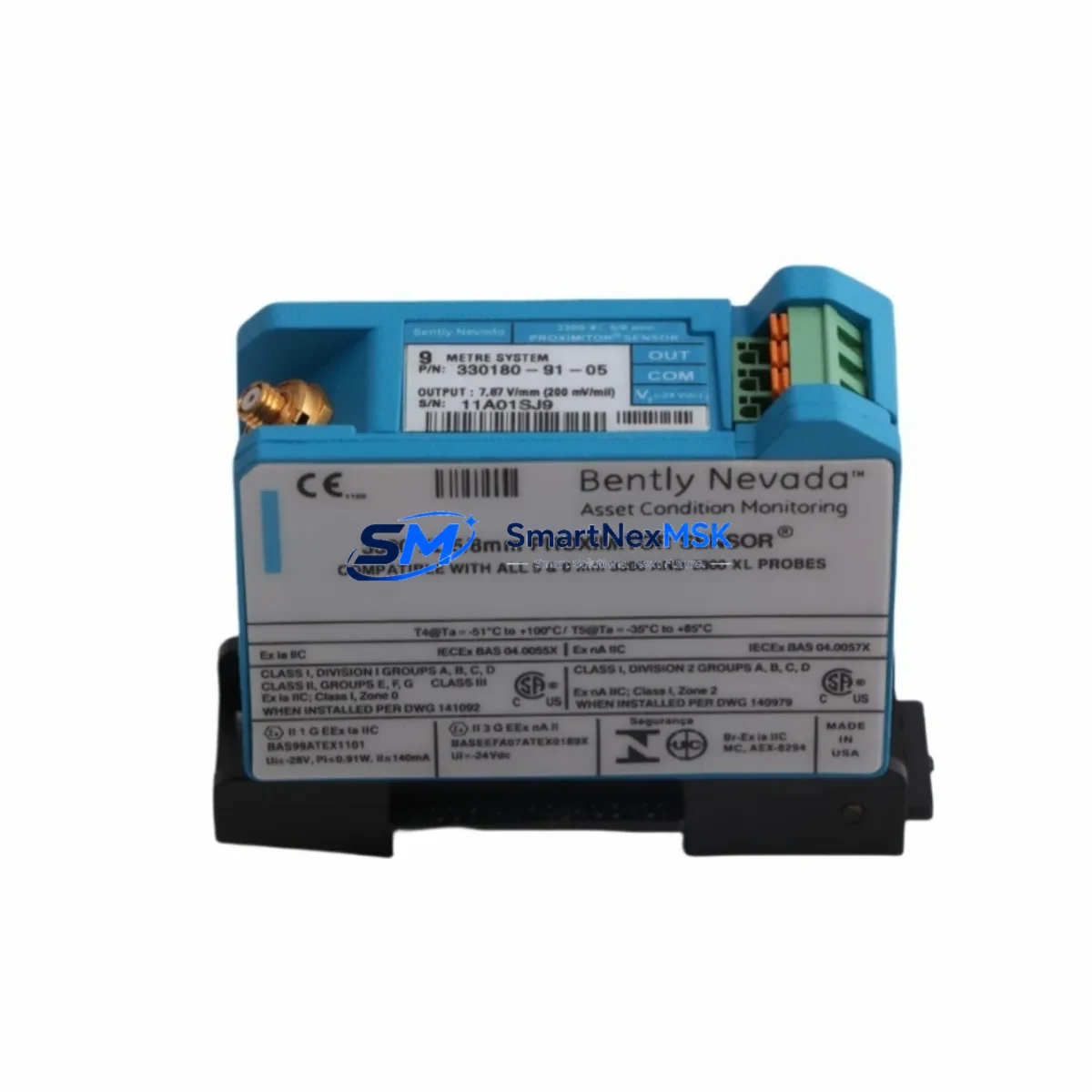

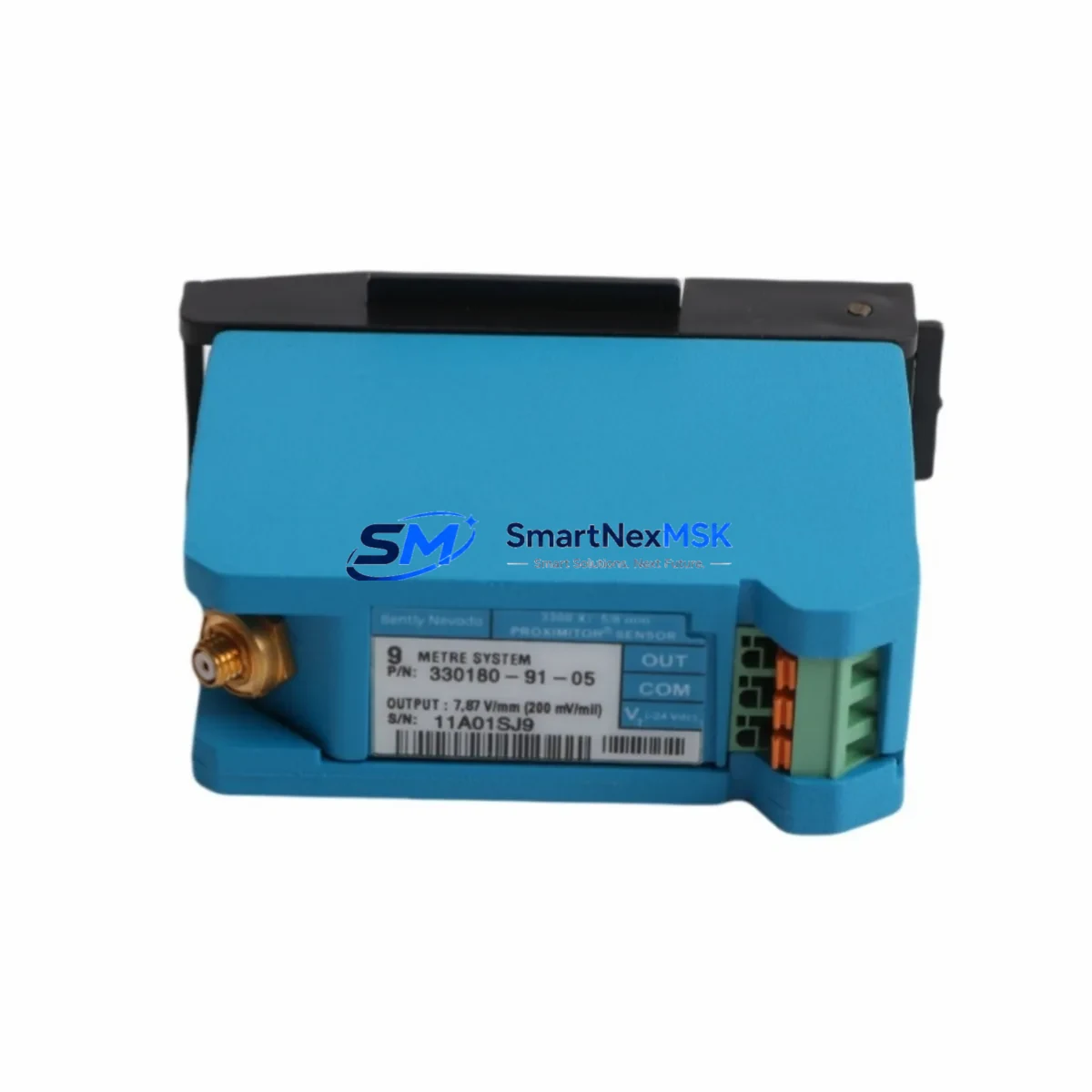

When integrated with the Bently Nevada 3300 XL 8mm Extension Cable and the 3300 XL Proximitor Sensor (such as the 330180-X1-05 series), the 138493-01 forms a complete, calibrated measurement chain. This chain feeds shaft displacement data directly into the Bently Nevada 3500 Rack Monitoring System, where the 3500/42M Proximitor/Seismic Monitor card processes the signal and triggers protective relay outputs if vibration thresholds are exceeded. The result is a closed-loop safety architecture that can initiate a controlled machine trip before catastrophic bearing failure or rotor rub occurs.

For installations where power supply stability is a concern — particularly in remote substations or skid-mounted compressor packages — the 138493-01 is typically paired with a Bently Nevada 3300 XL Power Supply or an isolated 24 VDC DIN-rail supply to eliminate ground loops and voltage fluctuation that could introduce noise into the proximity signal. Surge protection devices installed at the field junction box further reduce the risk of transient damage to the transducer tip and cable assembly during lightning events or bus switching operations.

In petrochemical and refinery applications, the 138493-01 is commonly deployed on centrifugal compressors, steam turbines, and boiler feed pumps — assets where API 670 compliance is mandatory. Its operating temperature range of -35°C to +177°C and chemical resistance to common process fluids make it suitable for direct installation in hazardous area Zone 1 and Zone 2 locations when used with the appropriate Bently Nevada Zener Barrier or Galvanic Isolator modules. These barrier devices, such as the MTL 787S+ or equivalent, ensure that intrinsically safe energy levels are maintained in the field wiring loop, protecting both personnel and instrumentation from ignition risk.

In power generation facilities, the 138493-01 monitors shaft eccentricity and differential expansion on large steam turbine-generator sets. When combined with the Bently Nevada 3500/45 Position Monitor and 3500/25 Keyphasor Module, it enables full vector analysis of rotor dynamics, supporting both online condition monitoring and post-trip forensic analysis. This level of diagnostic depth is essential for operators managing critical grid-connected assets where unplanned outages carry significant financial and regulatory consequences.

Mining and mineral processing environments present unique challenges: high ambient vibration, abrasive dust, water ingress, and aggressive chemical wash-down cycles. The 138493-01’s IP67-rated housing and robust cable entry design allow it to withstand these conditions without signal degradation. It is frequently installed on crusher drive motors, ball mill pinion bearings, and conveyor head pulley shafts, where early detection of bearing wear or shaft misalignment prevents costly structural damage and extended production downtime.

Water and wastewater treatment facilities rely on the 138493-01 for continuous monitoring of large vertical turbine pumps and centrifugal blowers. In these applications, the transducer’s long-term stability — typically less than ±0.5% full-scale drift per year — ensures that alarm and trip setpoints remain valid over extended calibration intervals, reducing maintenance burden while maintaining process safety integrity.

Every 138493-01 unit supplied by SMARTNEXMSK undergoes pre-shipment functional verification, including sensitivity check, insulation resistance test, and dimensional inspection of the probe tip. Units are shipped in anti-static protective packaging with a calibration data sheet. Stock is maintained to support both planned maintenance schedules and emergency replacement requirements, with same-day dispatch available for in-stock orders.

Safety Reliability Table

Control Cabinet Protection Strategy

A robust vibration monitoring and machinery protection architecture built around the 138493-01 requires careful selection of complementary components throughout the control cabinet and field wiring system. The Bently Nevada 3500/42M Proximitor/Seismic Monitor serves as the primary signal processing card, accepting the transducer output and executing configurable alarm and trip logic. Upstream of the monitor rack, a Bently Nevada 3500/15 Power Supply Module provides regulated, isolated DC power to all rack cards, eliminating the risk of power rail disturbances propagating into measurement circuits.

Field wiring between the 138493-01 and the control room is routed through Bently Nevada 330130 series armored extension cables, which provide both mechanical protection and EMI shielding in environments with high-voltage motor drives, variable frequency drives (VFDs), or bus bars in close proximity. At the field junction box, MTL 787S+ Zener barriers or equivalent galvanic isolators maintain intrinsic safety compliance and provide a secondary layer of surge protection.

For facilities operating redundant safety instrumented systems (SIS), the 138493-01 is often deployed in a 2oo3 (two-out-of-three) voting configuration alongside two additional proximity transducers, with each channel feeding an independent Bently Nevada 3500/22M Transient Data Interface for waveform capture and diagnostics. The Bently Nevada 3500/92 Communication Gateway then transmits processed vibration data over Modbus TCP or OPC-DA to the plant DCS — typically a Honeywell Experion PKS or Emerson DeltaV system — enabling integrated alarm management and historian archiving without manual data transcription.

Surge protection at the cabinet entry point, using devices such as the Phoenix Contact TRABTECH PT 2X2-24DC-ST or equivalent, guards against transient overvoltages on the signal cables, which are a common cause of premature transducer failure in outdoor or exposed installations. Combined with proper cable segregation, grounding discipline, and periodic loop calibration checks, this protection strategy ensures that the 138493-01 delivers its rated service life of 10+ years in continuous operation.

Critical Industrial Safety Applications

Petrochemical & Refinery: The 138493-01 is a standard component in API 670-compliant machinery protection systems on centrifugal compressors, steam turbines, and expander-compressor trains. In these applications, reliable shaft displacement measurement is a regulatory requirement under process safety management (PSM) frameworks, and transducer failure without immediate detection can result in catastrophic equipment loss and personnel injury. The transducer’s chemical resistance and high-temperature rating make it suitable for hot gas and hydrocarbon service environments.

Power Generation: On steam turbine-generator sets and gas turbines, the 138493-01 monitors journal bearing clearances and shaft centerline position. Abnormal readings trigger automatic load shedding or controlled shutdown sequences via the turbine control system, preventing rotor-to-stator contact and the associated catastrophic mechanical failure. Its compatibility with the full 3300 XL and 3500 Series ecosystem ensures seamless integration with existing plant protection infrastructure.

Mining & Mineral Processing: Crusher drives, SAG mill pinion bearings, and slurry pump shafts are monitored using the 138493-01 in environments characterized by extreme vibration, dust, and moisture. Early detection of bearing degradation or shaft deflection allows maintenance teams to schedule corrective action during planned shutdowns rather than responding to emergency failures, significantly reducing both safety risk and production loss.

Water & Wastewater Treatment: Large vertical turbine pumps and centrifugal blowers in water treatment facilities benefit from continuous proximity monitoring to detect impeller wear, shaft misalignment, and bearing deterioration before they progress to seal failure or catastrophic pump loss. The 138493-01’s long-term stability minimizes false alarms while maintaining the sensitivity required to detect early-stage fault conditions.

Metallurgy & Steel: Rolling mill drive trains, continuous caster pinch rolls, and blast furnace blower trains operate in environments with intense electromagnetic interference from large DC drives and induction furnaces. The 138493-01’s shielded construction and the 3300 XL system’s noise rejection capability ensure measurement integrity in these electrically hostile conditions, supporting both condition monitoring and safety interlock functions.

Safety and Quality FAQ

Q1: What warranty coverage is provided for the Bently Nevada 138493-01?
All 138493-01 units supplied by SMARTNEXMSK carry a 12-month warranty from the date of shipment. The warranty covers manufacturing defects and functional failures under normal operating conditions. Replacement or repair is arranged promptly to minimize any impact on plant availability.

Q2: What pre-shipment testing is performed on each unit?
Every unit undergoes a multi-point pre-shipment inspection that includes sensitivity verification against the 7.87 V/mm specification, insulation resistance testing between the coil and housing, and dimensional inspection of the probe tip geometry. A calibration data sheet is included with each shipment, providing traceability for quality management system records.

Q3: Is the 138493-01 compatible with existing Bently Nevada 3300 XL and 3500 Series systems?
Yes. The 138493-01 is a direct-fit replacement for all 3300 XL 50 mm proximity transducer positions. It is fully compatible with 3300 XL Proximitor Sensors, 3300 XL extension cables, and the complete 3500 Series monitor rack, including the 3500/42M, 3500/45, and 3500/22M cards. No recalibration of the monitoring system is required when replacing a like-for-like unit.

Q4: Can long-term supply continuity be guaranteed for maintenance and spare parts programs?
SMARTNEXMSK maintains dedicated stock of the 138493-01 to support both scheduled maintenance programs and emergency replacement requirements. For facilities with critical spare parts agreements or annual maintenance contracts, we offer reserved stock arrangements and priority dispatch to ensure that transducer availability never becomes a constraint on plant safety or production continuity.
