Bently Nevada 16710-67 Spare for 3300 7200 Automation: Proximitor Interconnect Cable for Industrial Downtime Recovery

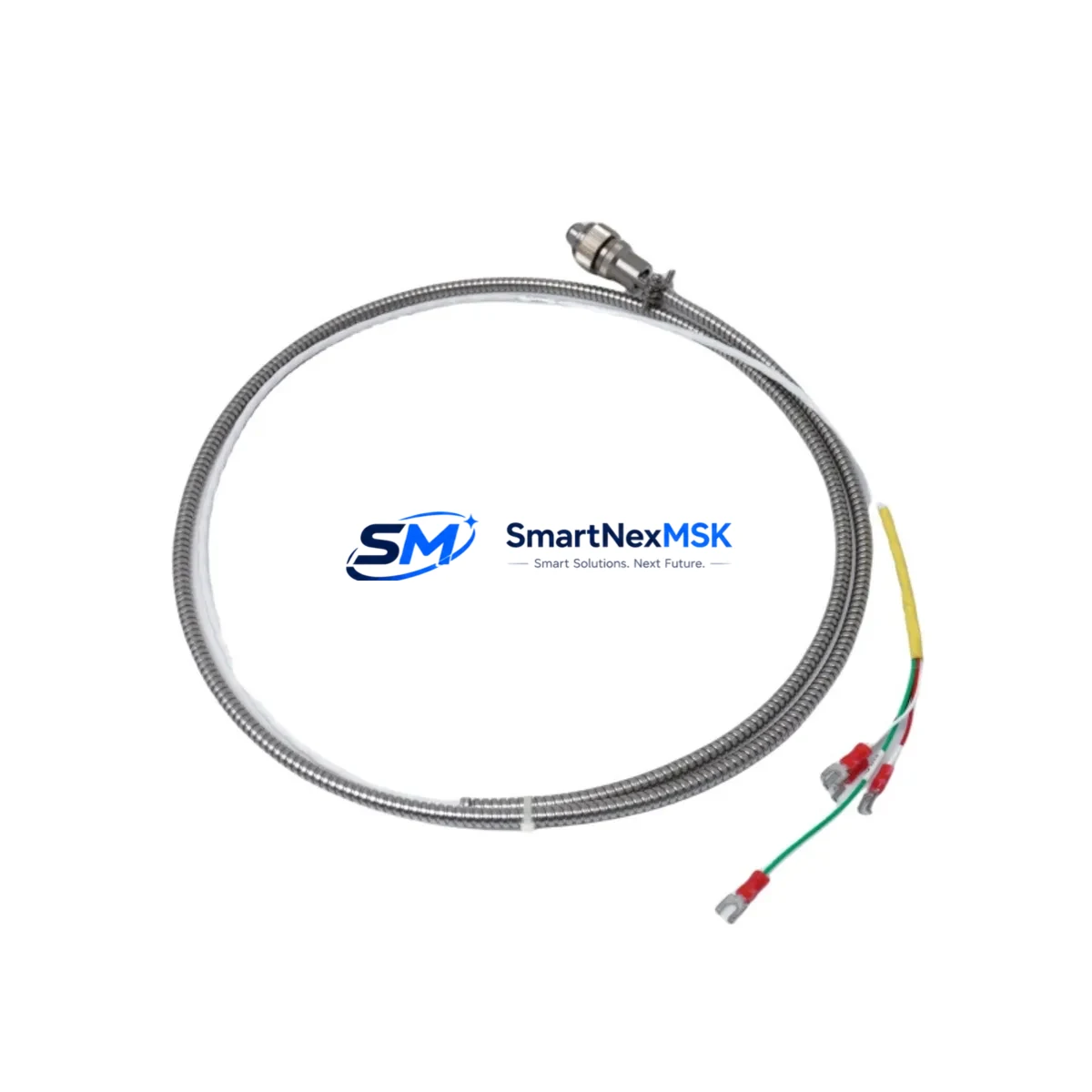

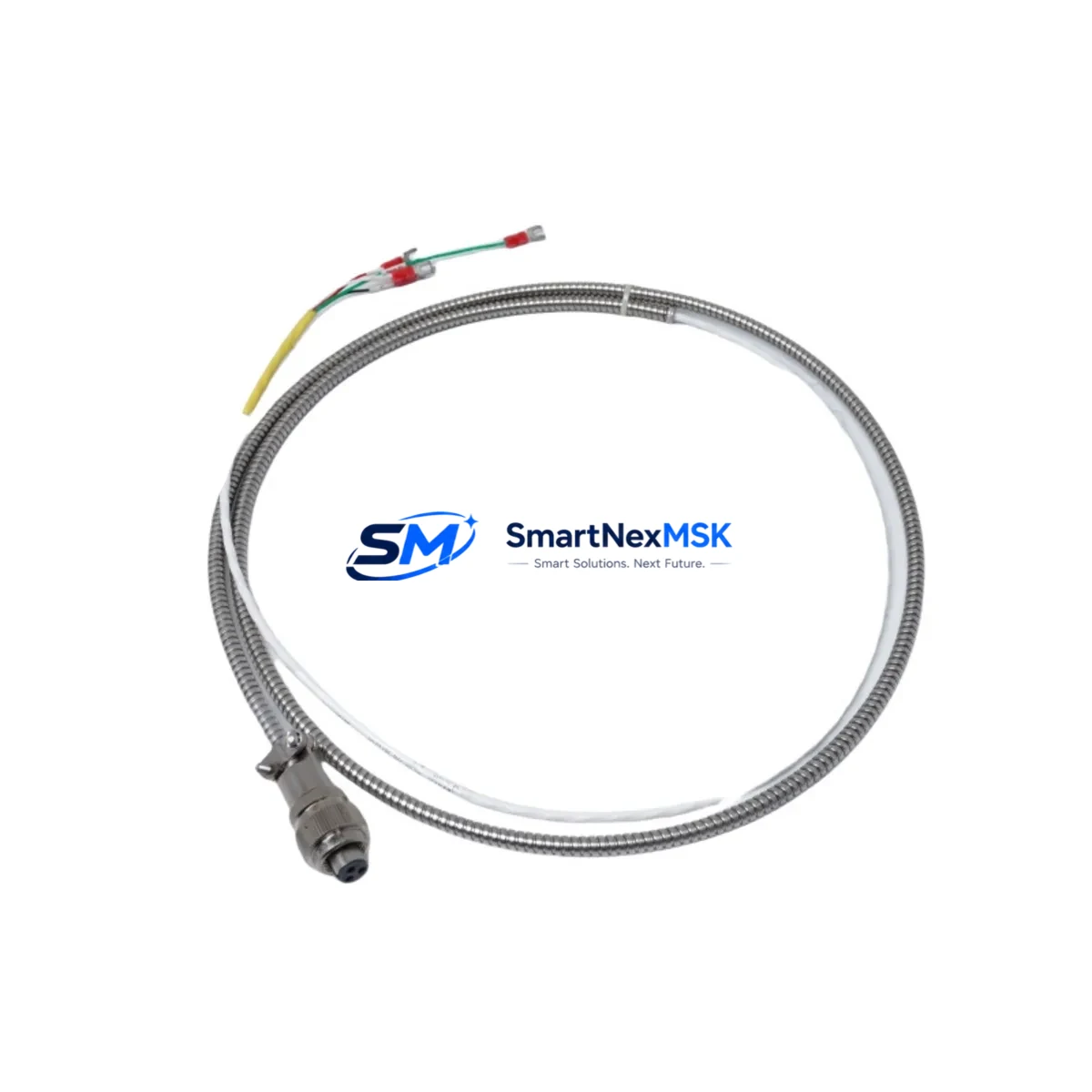

The Bently Nevada 16710-67 is an original Proximitor Interconnect Cable engineered for continuous-duty vibration monitoring applications within the 3300 Series and 7200 Series machinery protection systems. In rotating machinery environments — turbines, compressors, pumps, and gearboxes — the integrity of the proximitor signal path is mission-critical. A degraded or failed interconnect cable between the proximity probe and the Proximitor/Seismoprobe sensor is one of the most common causes of spurious trips, false alarms, and unplanned shutdowns. Stocking the 16710-67 as a verified spare eliminates the single-point-of-failure risk in your vibration monitoring loop and enables same-shift restoration of full protection coverage.

This cable is fully compatible with Bently Nevada 3300 XL 8mm and 11mm proximity probe assemblies, as well as 7200 Series Proximitor sensors. It maintains the precise electrical characteristics — capacitance, impedance, and shielding continuity — required for accurate gap voltage and dynamic signal transmission. Each unit shipped by SMARTNEXMSK undergoes pre-shipment electrical continuity and insulation resistance testing to confirm it meets OEM specification before leaving our warehouse.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a maintenance or reliability engineer identifies a fault in the vibration monitoring loop — whether through a Bently Nevada System 1 alarm, a 3500 Rack diagnostic, or a field measurement showing abnormal gap voltage — the 16710-67 interconnect cable should be among the first components inspected and replaced if suspect. However, a thorough maintenance response requires evaluating the entire signal chain and associated infrastructure.

Begin with the 3300 XL Proximity Probe itself: check for tip damage, thread condition, and correct gap setting (typically 1.0–1.5 mm for 8mm probes). Inspect the 3300 Proximitor Sensor or 7200 Proximitor housing for moisture ingress, connector pin damage, and secure mounting. Verify the 3500/40M Proximitor I/O Module or equivalent rack card for correct channel configuration and alarm setpoint integrity within the 3500 Rack.

At the cabinet level, confirm that the 3500 Power Supply Module (typically -24 VDC) is delivering stable voltage within specification — a sagging supply rail is a frequent root cause of proximity system instability that is often misdiagnosed as a cable or probe fault. Check the 3500 Rack Backplane for secure card seating and clean edge connector contacts. If the system uses a 3500/92 Communication Gateway or 3500/22M Transient Data Interface, verify that Modbus or Ethernet communication to the DCS or historian is intact and that no watchdog faults are latched.

For installations where the proximitor signal feeds into a Bently Nevada 3500/45 Position Monitor or 3500/50 Tachometer, confirm that keyphasor reference signals are clean and that phase reference cables are undamaged. In older installations, signal isolators or galvanic isolators in the signal path between the Proximitor output and the DCS analog input card should be tested for correct output scaling and isolation integrity. Terminal blocks and field wiring junction boxes should be inspected for loose terminations, corrosion, and correct shield grounding — a single ungrounded shield can introduce 50/60 Hz noise that masks real vibration data.

Proactive spare parts planning for a 3300/7200 Series vibration monitoring system should include: interconnect cables (16710-67 and equivalent lengths), proximity probe assemblies, Proximitor sensors, I/O module cards, power supply modules, and communication gateway cards. Maintaining a minimum of one spare per critical machine train significantly reduces mean time to repair (MTTR) and supports ISO 55000-aligned asset management practices.

Site Replacement Workflow

Step 1 — Isolate and document: Before disconnecting any cable, record the current gap voltage reading from the 3500 Rack display or System 1 software. Photograph the existing cable routing, connector orientation, and any cable tie or conduit entry points. This baseline ensures the replacement is installed identically.

Step 2 — De-energize and disconnect: Follow your site LOTO (Lockout/Tagout) procedure. Disconnect the 16710-67 cable at both the proximity probe extension cable junction and the Proximitor sensor connector. Inspect both mating connectors for pin damage, corrosion, or contamination before installing the new cable.

Step 3 — Install and verify gap: Route the new 16710-67 cable following the original path. Avoid sharp bends below the minimum bend radius. Reconnect and torque connectors to specification. Re-energize the Proximitor and verify gap voltage is within the acceptable window (typically -10 to -18 VDC for standard 8mm probes at nominal gap). Confirm the reading in the 3500 Rack or System 1 matches the pre-outage baseline.

Step 4 — Functional test and return to service: Perform a slow-roll check if the machine can be rotated. Confirm that 1X and 2X vibration readings are present and plausible. Clear any latched alarms in the 3500 Rack. Document the replacement in your CMMS (Maximo, SAP PM, or equivalent) and update the spare parts inventory record.

This workflow is applicable whether you are replacing a failed cable on an emergency basis or executing a planned cable replacement as part of a scheduled outage. The 16710-67 is a direct OEM replacement — no firmware changes, no recalibration of the Proximitor, and no modification to 3500 Rack configuration are required.

Spare Parts Support FAQ

Q1: Is the 16710-67 compatible with both 3300 Series and 7200 Series Proximitor systems?
Yes. The 16710-67 Proximitor Interconnect Cable is designed for use with Bently Nevada 3300 XL 8mm and 11mm proximity probe assemblies and is compatible with 3300 Proximitor Sensors and 7200 Series Proximitor/Seismoprobe sensors. Always verify the cable length and connector type match your specific installation before ordering.

Q2: What pre-shipment testing does SMARTNEXMSK perform on the 16710-67?
Every 16710-67 unit undergoes electrical continuity testing, insulation resistance measurement, and connector integrity inspection before dispatch. Units that do not meet OEM electrical specifications are quarantined and not shipped. A 12-month warranty covering manufacturing defects and electrical performance is included with every unit.

Q3: How should I manage 16710-67 inventory for a multi-machine facility?
For facilities operating multiple machine trains on Bently Nevada 3300 or 7200 Series protection, we recommend maintaining a minimum of one spare interconnect cable per critical machine train, plus two additional units as facility-level buffer stock. Cables should be stored in a dry, temperature-controlled environment in their original packaging. Inspect stored cables annually for jacket condition and connector integrity.

Q4: Can the 16710-67 replace older or discontinued Bently Nevada cable part numbers?
In many cases, yes — the 16710-67 is the current OEM part number for this cable configuration and supersedes earlier revision codes used in legacy 3300 and 7200 installations. Contact SMARTNEXMSK with your existing part number or system configuration details and our technical team will confirm compatibility before shipment.
