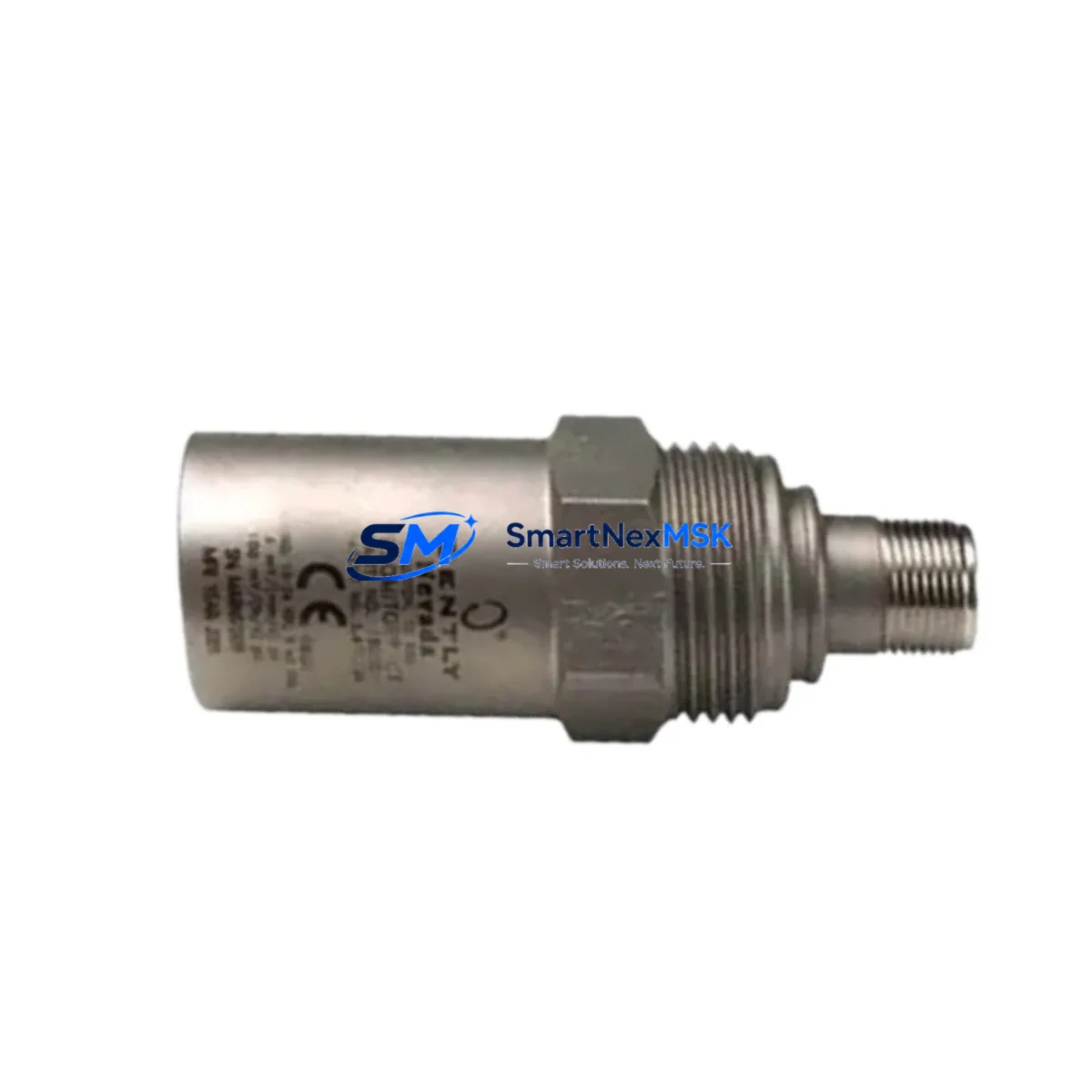

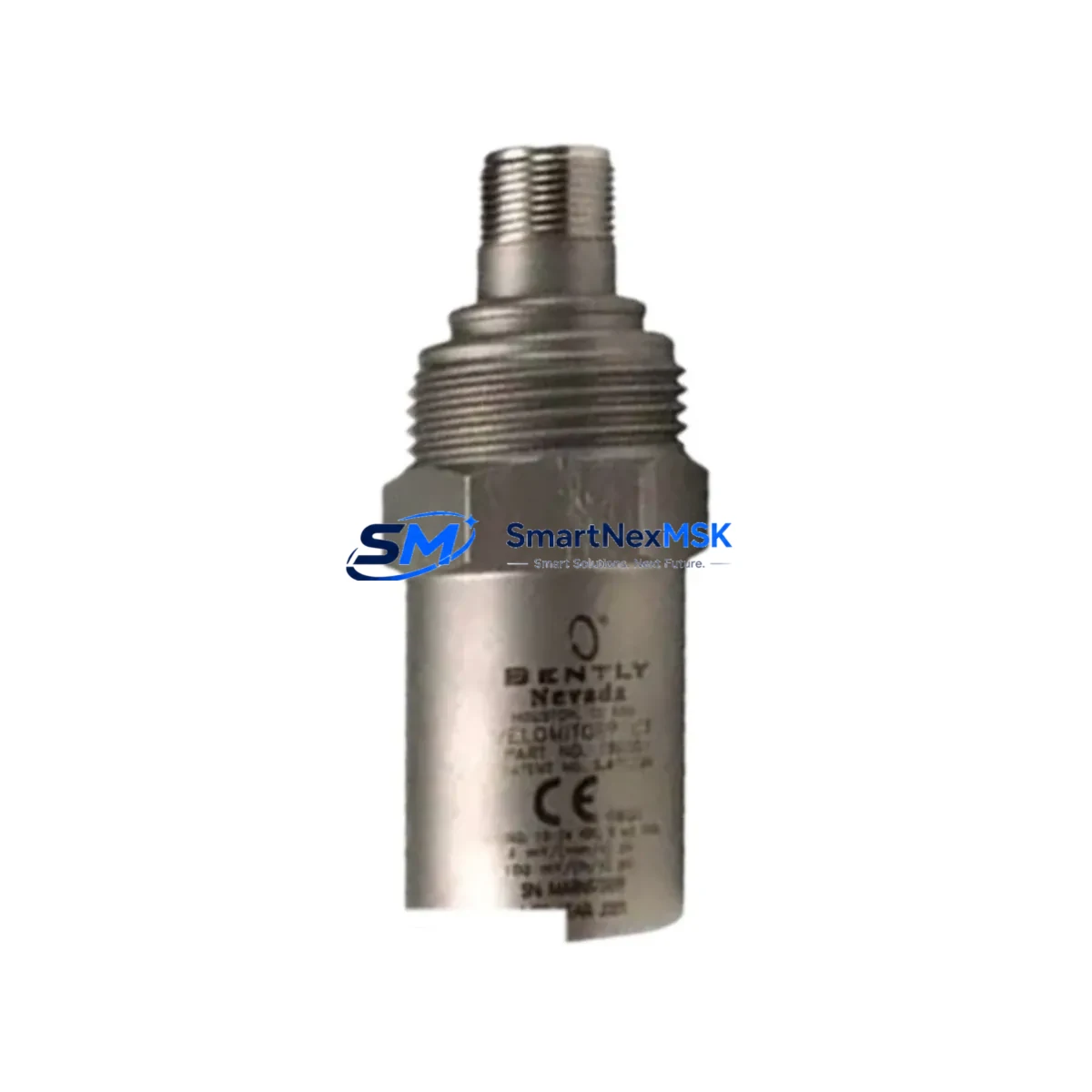

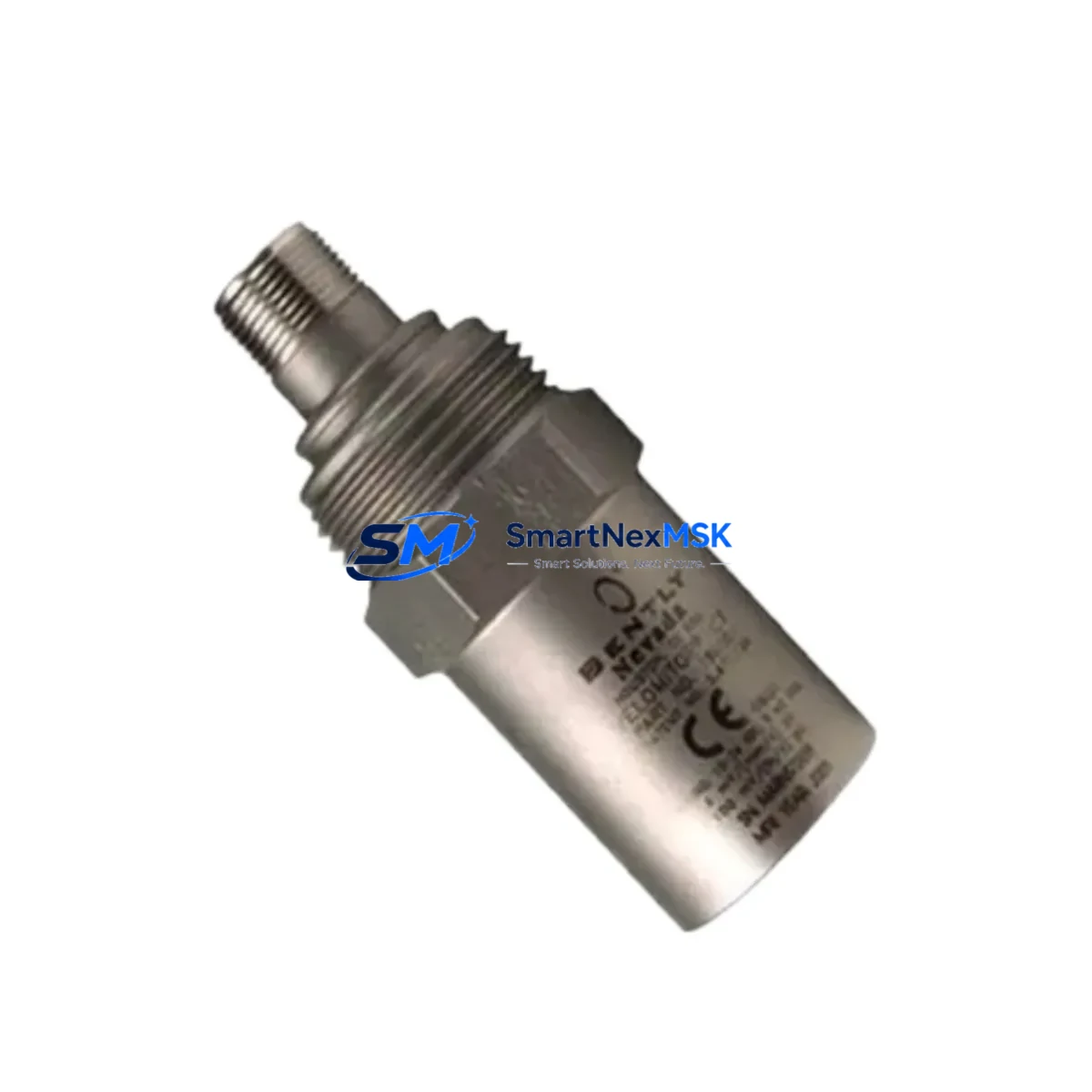

Bently Nevada 190501-00-00-04 Safety-Enhanced Velocity Transducer for Harsh Industrial Sites
The Bently Nevada 190501-00-00-04 Velomitor CT piezoelectric velocity transducer is engineered for continuous, reliable vibration monitoring in the most demanding industrial environments. Designed to operate within critical machinery protection systems, this transducer delivers accurate, low-noise velocity signals that form the backbone of safety-critical control loops in petrochemical plants, power generation facilities, mining operations, water treatment stations, metallurgical complexes, port machinery, and continuous manufacturing lines.
In high-load, high-interference production environments, signal integrity is non-negotiable. The 190501-00-00-04 features a ruggedized stainless steel housing with IP67 ingress protection, ensuring stable performance against dust, moisture, vibration shock, and electromagnetic interference. Its wide operating temperature range and robust cable assembly make it suitable for installation in control cabinets, field junction boxes, and exposed machinery housings where conventional sensors would fail prematurely.
When integrated into a Bently Nevada 3500 Series machinery protection rack — alongside modules such as the 3500/42M Proximitor/Seismic Monitor, the 3500/22M Transient Data Interface, and the 3500/15 Power Supply module — the 190501-00-00-04 provides a complete, certified vibration monitoring chain. The transducer’s output is fully compatible with the 3500/40M Proximitor Monitor and the 3500/45 Position Monitor, enabling seamless integration into existing safety interlock and emergency shutdown (ESD) architectures.
For installations requiring enhanced surge protection, pairing the 190501-00-00-04 with a Bently Nevada 990 Series signal conditioner or a dedicated Transient Voltage Suppressor (TVS) barrier is strongly recommended. This combination guards against power line transients, ground loop interference, and surge events that can corrupt velocity readings and trigger spurious machinery trips — a critical concern in facilities operating near high-voltage switchgear or variable frequency drives (VFDs).
In petrochemical and refinery applications, the 190501-00-00-04 is routinely deployed on compressor trains, turbine bearing housings, and pump skids where API 670 compliance is mandatory. Its piezoelectric sensing element provides a flat frequency response across the 10 Hz to 1,000 Hz range, capturing both low-frequency structural resonance and high-frequency bearing defect signatures without signal clipping or phase distortion. When used alongside a Bently Nevada 330180 proximity probe system and a 330130-080-00-00 extension cable, operators gain a comprehensive radial and axial vibration picture for full-spectrum machinery health assessment.
In power generation and utility environments, the transducer supports continuous online monitoring of steam turbines, gas turbines, and large motor-generator sets. Integration with a System 1 condition monitoring software platform allows real-time trending, alarm management, and predictive maintenance scheduling — reducing unplanned downtime and extending mean time between failures (MTBF) for critical rotating assets.
For mining and mineral processing sites, where heavy shock loads, abrasive dust, and high ambient vibration are constant challenges, the ruggedized construction of the 190501-00-00-04 ensures sensor longevity and measurement accuracy even when mounted on crushers, ball mills, conveyor drives, and slurry pumps. Its compatibility with the Bently Nevada TK-3 proximity driver and standard 4–20 mA signal conditioning modules simplifies retrofit installations in legacy control systems without requiring full panel redesign.
Safety Reliability Table
| Parameter | Specification |
|---|---|
| Model / SKU | 190501-00-00-04 |
| Brand / Series | Bently Nevada / Velomitor CT |
| Sensor Type | Piezoelectric Velocity Transducer |
| Measurement Range | 0–50 in/s pk (0–1270 mm/s pk) |
| Frequency Response | 10 Hz – 1,000 Hz (±3 dB) |
| Sensitivity | 100 mV/in/s (4 mV/mm/s) |
| Operating Temperature | -40°C to +121°C (-40°F to +250°F) |
| Ingress Protection | IP67 (dust-tight, immersion-resistant) |
| Housing Material | 316L Stainless Steel |
| Connector Type | 2-pin MIL-C-5015 (standard) |
| Supply Voltage | 18–30 VDC (loop-powered) |
| EMI/RFI Shielding | Integral coaxial shielded cable |
| Compliance | API 670, CE, RoHS |
| Country of Origin | United States |
| Warranty | 12 Months — covers manufacturing defects, signal drift, and connector failure |
| Pre-shipment Testing | Full functional test, sensitivity calibration, insulation resistance check |
Control Cabinet Protection Strategy
A robust machinery protection architecture built around the Bently Nevada 190501-00-00-04 extends well beyond the transducer itself. In a typical safety-rated control cabinet, the velocity signal is routed through a Bently Nevada 3500/20 rack interface module before entering the 3500/42M monitor card, which provides configurable alert and danger setpoints with relay output for ESD integration. The 3500/15 power supply module ensures clean, regulated DC power to all rack-mounted cards, eliminating the risk of power-induced false trips.
For installations in hazardous classified areas (Zone 1 / Division 1), a Bently Nevada 3300 XL proximity transducer system or an approved Zener barrier assembly is used in conjunction with the velocity transducer to maintain intrinsic safety compliance. Surge protection devices — such as DIN-rail-mounted Phoenix Contact TRABTECH surge arresters — are installed at the field terminal strip to absorb lightning-induced transients before they reach sensitive monitor inputs.
Communication integrity is maintained through the Bently Nevada 3500/92 communication gateway, which bridges the rack to a DCS or SCADA platform via Modbus TCP or OPC-DA, ensuring that vibration alarm states are visible to the plant-wide safety instrumented system (SIS) without signal latency. Redundant power feeds and watchdog relay outputs further harden the system against single-point failures in critical interlock loops.
Critical Industrial Safety Applications
The Bently Nevada 190501-00-00-04 is deployed across a wide range of safety-critical industrial sectors:
Petrochemical & Refinery: Installed on centrifugal compressors, gas turbine-driven pumps, and reactor agitators where API 670-compliant vibration monitoring is a process safety requirement. Continuous velocity monitoring enables early detection of rotor imbalance, bearing wear, and misalignment before they escalate to catastrophic failure.
Power Generation: Used on steam turbine bearing housings and generator end-shields in both base-load and peaking power plants. The transducer’s wide temperature tolerance ensures reliable operation in turbine halls where ambient temperatures fluctuate significantly between cold starts and full-load operation.
Mining & Mineral Processing: Mounted on SAG mills, ball mills, and large slurry pump drives where high shock loads and abrasive environments demand ruggedized sensor construction. Velocity data feeds into predictive maintenance programs that reduce unplanned crusher downtime by identifying liner wear and drive-end bearing degradation early.
Water & Wastewater Treatment: Applied to high-speed centrifugal blowers, vertical turbine pumps, and dewatering centrifuges in municipal and industrial water treatment facilities. Continuous vibration monitoring supports regulatory compliance and prevents pump cavitation damage in critical supply infrastructure.
Metallurgy & Steel: Deployed on rolling mill drives, continuous casting machine drives, and large induction furnace cooling pumps where thermal cycling and electromagnetic interference from high-current bus bars challenge conventional sensors. The 190501-00-00-04’s shielded construction and wide temperature range make it the preferred choice for these environments.
Port & Heavy Lifting: Installed on crane hoist drives, ship-loader conveyor drives, and bulk material handling systems where intermittent high-load cycles and outdoor exposure demand IP67-rated, corrosion-resistant sensor assemblies.
Safety and Quality FAQ
Q1: What does the 12-month warranty cover for the 190501-00-00-04?
The warranty covers all manufacturing defects, sensitivity drift beyond factory specification, connector and cable assembly failures, and housing integrity issues. Each unit is individually tested prior to shipment, and warranty claims are supported with a replacement unit dispatched within 3 business days of fault confirmation.
Q2: What pre-shipment testing is performed on each unit?
Every 190501-00-00-04 undergoes a full functional test protocol including sensitivity calibration verification against factory reference standards, insulation resistance measurement (≥100 MΩ at 500 VDC), connector continuity check, and visual inspection for housing and cable integrity. A test certificate is available upon request.
Q3: Is the 190501-00-00-04 compatible with existing Bently Nevada 3500 Series racks?
Yes. The 190501-00-00-04 is fully compatible with the Bently Nevada 3500 Series machinery protection system, including the 3500/42M Proximitor/Seismic Monitor and 3500/40M Proximitor Monitor cards. It is also backward-compatible with legacy 3300 Series monitor inputs, making it suitable for both new installations and direct replacement of aging sensors in existing racks without requiring rack reconfiguration.
Q4: Can long-term supply and replacement support be guaranteed?
Yes. We maintain dedicated stock of the 190501-00-00-04 and its common companion components to support both planned maintenance schedules and emergency replacement requirements. For critical plant applications, we recommend establishing a consignment stock agreement to ensure zero lead-time availability during unplanned outages. Our team can provide multi-unit quotations and scheduled delivery programs tailored to your plant’s maintenance calendar.
