Bently Nevada 190501-03-00-04 Retrofit-Ready Velocity Transducer

Bently Nevada 190501-03-00-04 Retrofit-Ready Velocity Transducer for 3500 Series Control Systems

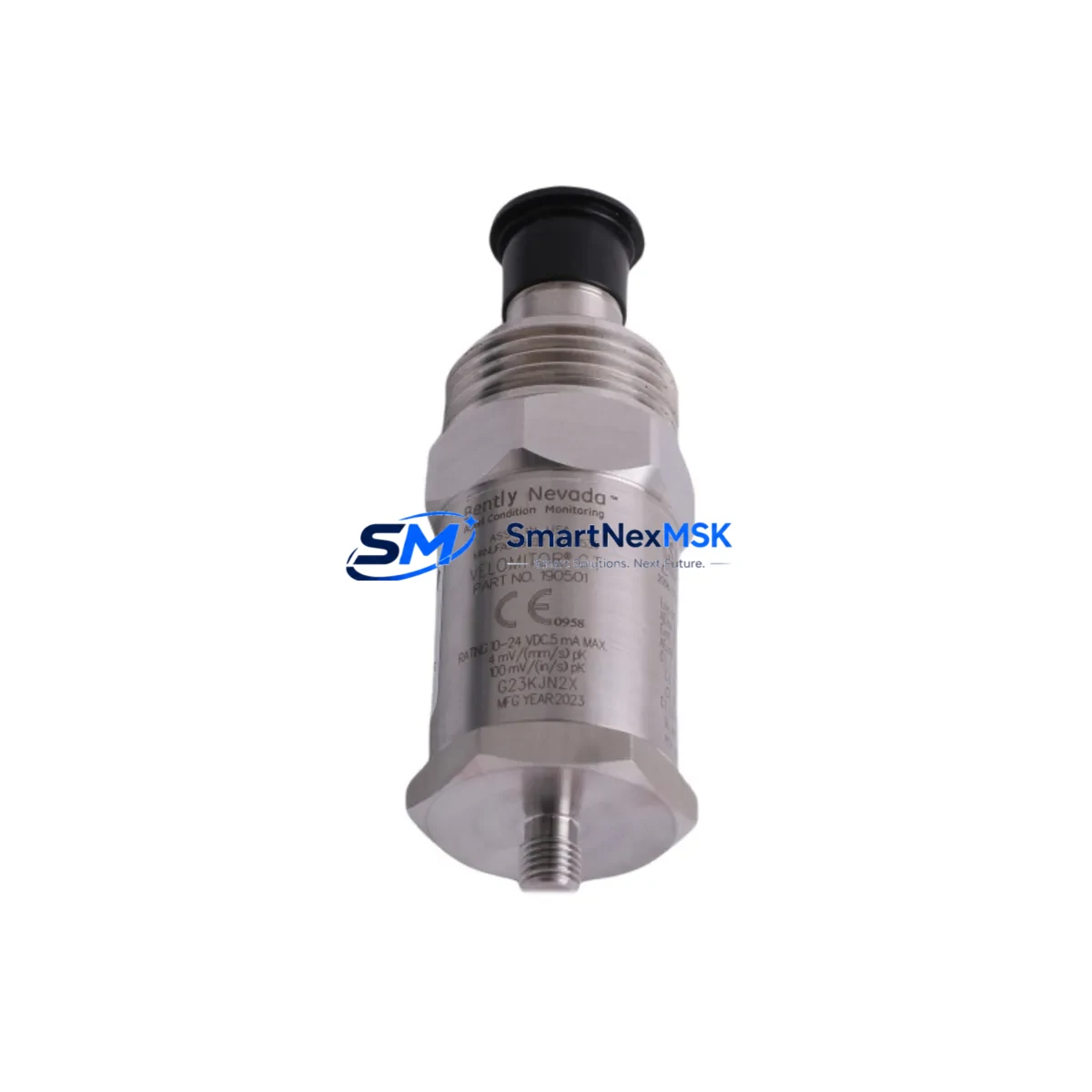

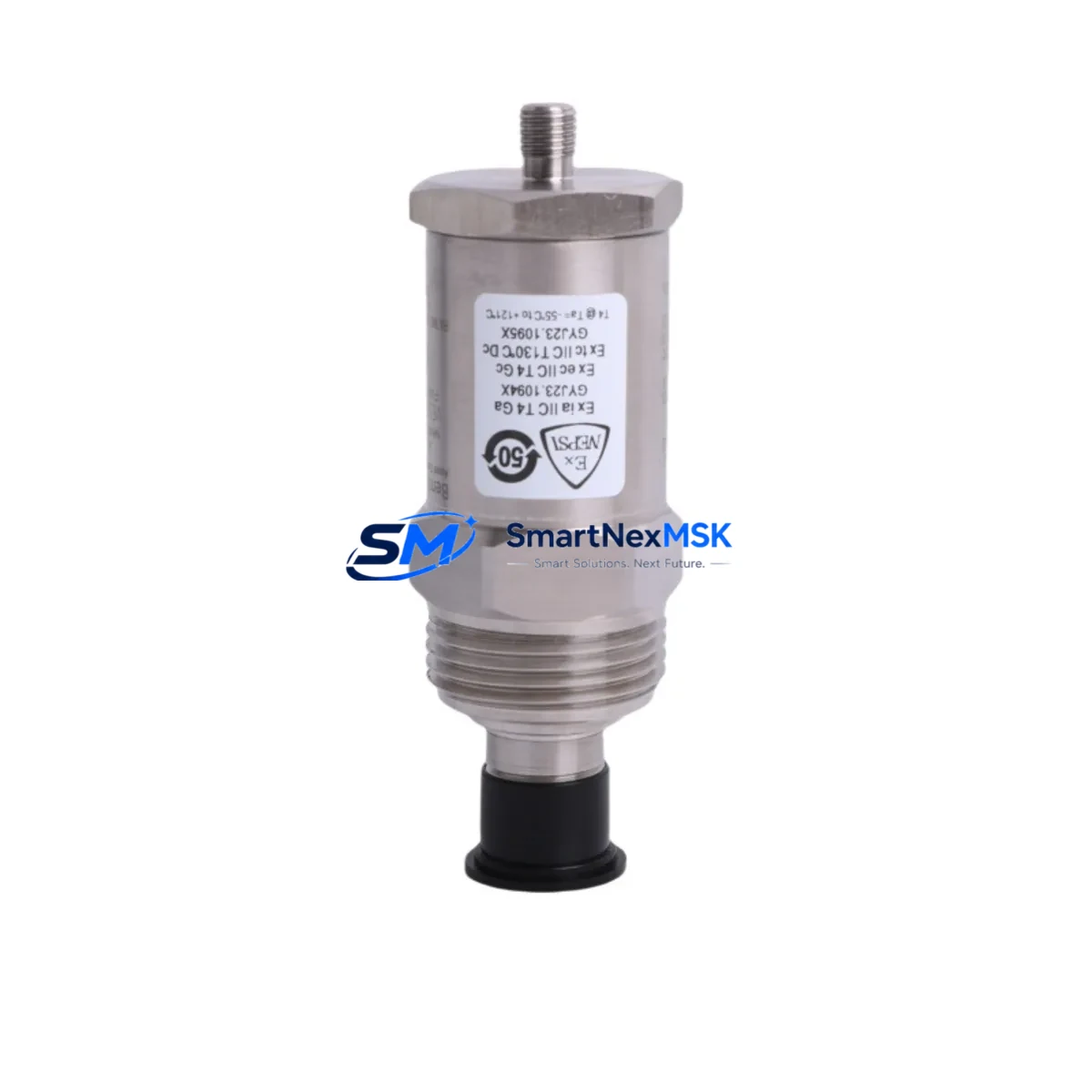

The Bently Nevada 190501-03-00-04 Velomitor CT is a high-performance, seismic velocity transducer engineered for continuous vibration monitoring in rotating machinery protection systems. As legacy installations running on older Bently Nevada 3300 and 7200 series racks approach end-of-life, plant engineers and reliability teams are increasingly turning to the 190501-03-00-04 as a proven, retrofit-ready replacement that integrates directly into existing 3500 series monitor frameworks without requiring full system overhauls. This unit delivers a flat frequency response across 2 Hz to 1,000 Hz, a sensitivity of 100 mV/in/s, and a robust stainless-steel housing rated for harsh industrial environments — making it a preferred choice for turbine, compressor, pump, and motor protection applications.

Whether you are migrating from a discontinued 330500 or 330525 proximity probe assembly, decommissioning an aging 3300/16 monitor card, or upgrading a control cabinet that still relies on obsolete 7200 series transducer loops, the 190501-03-00-04 provides a technically sound and commercially available path forward. Its 4–20 mA compatible signal conditioning, standard M8 connector interface, and 2-wire loop-powered architecture mean that existing field wiring, terminal blocks, and cable trays can typically be reused with minimal modification — a critical factor in minimizing planned outage windows.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit begins well before the maintenance window opens. When replacing a legacy velocity transducer in a 3500 series rack, the first step is to audit the existing 3500/20 rack power supply capacity to confirm it can support the transducer’s loop current draw alongside other installed monitor cards such as the 3500/42M four-channel monitor or the 3500/45 position monitor. In multi-rack configurations, the 3500/05 system rack interface module must also be verified to ensure that the new transducer channel is correctly mapped in the system communication tree.

Terminal wiring is the next critical checkpoint. The 190501-03-00-04 uses a standard Bently Nevada field wiring convention, and in most installations the existing junction box terminal blocks and shielded cable runs can be retained. However, if the original installation used 330130 extension cables or 330180 armored cables designed for proximity probe systems, these must be replaced with velocity-rated shielded cable to avoid signal degradation. Confirm shield grounding at one end only — typically at the monitor card end — to prevent ground loops that can introduce noise into the vibration signal chain.

For plants running System 1 Evolution software, the transducer replacement requires a channel reconfiguration in the Rack Configuration Software (RCS). The technician must update the transducer type, sensitivity value, and full-scale range for the affected channel on the 3500/42M or 3500/46M monitor card. If the existing HMI screens in the DCS or SCADA system display vibration trend data sourced from the 3500 rack via a 3500/92 communication gateway (Modbus TCP or PROFIBUS DP), verify that the register mapping and engineering unit scaling remain consistent after the channel update — otherwise, HMI alarm thresholds and historian tags will require recalibration.

In turbine protection applications where the 190501-03-00-04 works alongside a 3500/15 keyphasor module and a 3500/25 keyphasor and tachometer module, confirm that the phase reference signal is unaffected by the transducer swap. Similarly, in compressor train installations that include a 3500/50M temperature monitor and a 3500/61 contact input/output module for trip relay logic, ensure that the trip logic sequence is tested in bypass mode before returning the machine to service. A pre-commissioning checklist should cover: TOK (Transducer OK) status confirmation, alert and danger setpoint verification, buffered output signal check at the rack front panel BNC connector, and a 24-hour trend review post-startup.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary concern for any rotating machinery protection upgrade. The 190501-03-00-04 is designed to support a hot-swap approach in installations where the 3500 rack supports channel bypass — allowing the affected monitor channel to be placed in bypass mode while the transducer is physically replaced, without triggering a spurious trip or shutting down adjacent machinery protection channels.

Before entering bypass, export the current rack configuration from RCS and save a timestamped backup. This preserves all setpoints, channel assignments, and communication parameters, ensuring that if the configuration upload is interrupted, the original state can be restored within minutes. For plants using a 3500/92 Modbus gateway to feed vibration data to a Yokogawa, Emerson DeltaV, or Honeywell Experion DCS historian, coordinate with the control room to suppress the affected tag alarm in the DCS during the bypass window to prevent nuisance alerts from reaching the operator console.

Physical installation of the 190501-03-00-04 typically takes 15–30 minutes per transducer point. Once installed, restore the channel from bypass, confirm the TOK LED on the monitor card front panel, and verify the buffered output signal with a portable vibration analyzer before closing the maintenance work order. This structured approach keeps total planned outage time for a single transducer replacement well under two hours, even in complex multi-train installations.

Retrofit Support FAQ

Q1: Is the 190501-03-00-04 a direct drop-in replacement for the 330500-02-CN proximity probe transducer?
No — the 330500-02-CN is an eddy-current proximity probe designed for non-contact shaft displacement measurement, while the 190501-03-00-04 is a seismic velocity transducer for casing vibration measurement. They serve different measurement functions and are not interchangeable. If your application requires shaft displacement monitoring, the correct replacement path is within the 3300 XL 8mm or 3300 XL 11mm proximity probe series. The 190501-03-00-04 is the correct replacement for legacy Velomitor or velocity transducer channels on 3500/42M or 3500/46M monitor cards.

Q2: What wiring changes are required when replacing an older 190501-01-00-04 with the 190501-03-00-04?
The -03- revision uses the same M8 4-pin connector and the same field wiring polarity convention as the -01- revision. In most cases, the existing extension cable and junction box wiring can be reused without modification. Verify the cable shield continuity and confirm that the connector locking ring is fully seated after installation. Update the transducer serial number in your asset management system and re-run the TOK verification in RCS.

Q3: How is compatibility with the 3500/42M monitor card verified before installation?
Download the current rack configuration from RCS and confirm that the target channel is configured for a velocity transducer input type with a sensitivity of 100 mV/in/s. Check the full-scale range setting matches your alarm philosophy (typically 0–2 in/s or 0–50 mm/s). If the channel was previously configured for a different transducer type, update the configuration, upload it to the rack, and perform a channel calibration check using a known reference signal before returning the channel to active monitoring.

Q4: What does the 12-month warranty cover, and what is the pre-shipment testing process?
Every 190501-03-00-04 unit shipped by SMARTNEXMSK undergoes pre-shipment functional testing including sensitivity verification, frequency response check, and connector integrity inspection. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions from the date of shipment. Units are shipped with a test report. Warranty claims are processed via [email protected] with the original invoice and a description of the failure mode.
