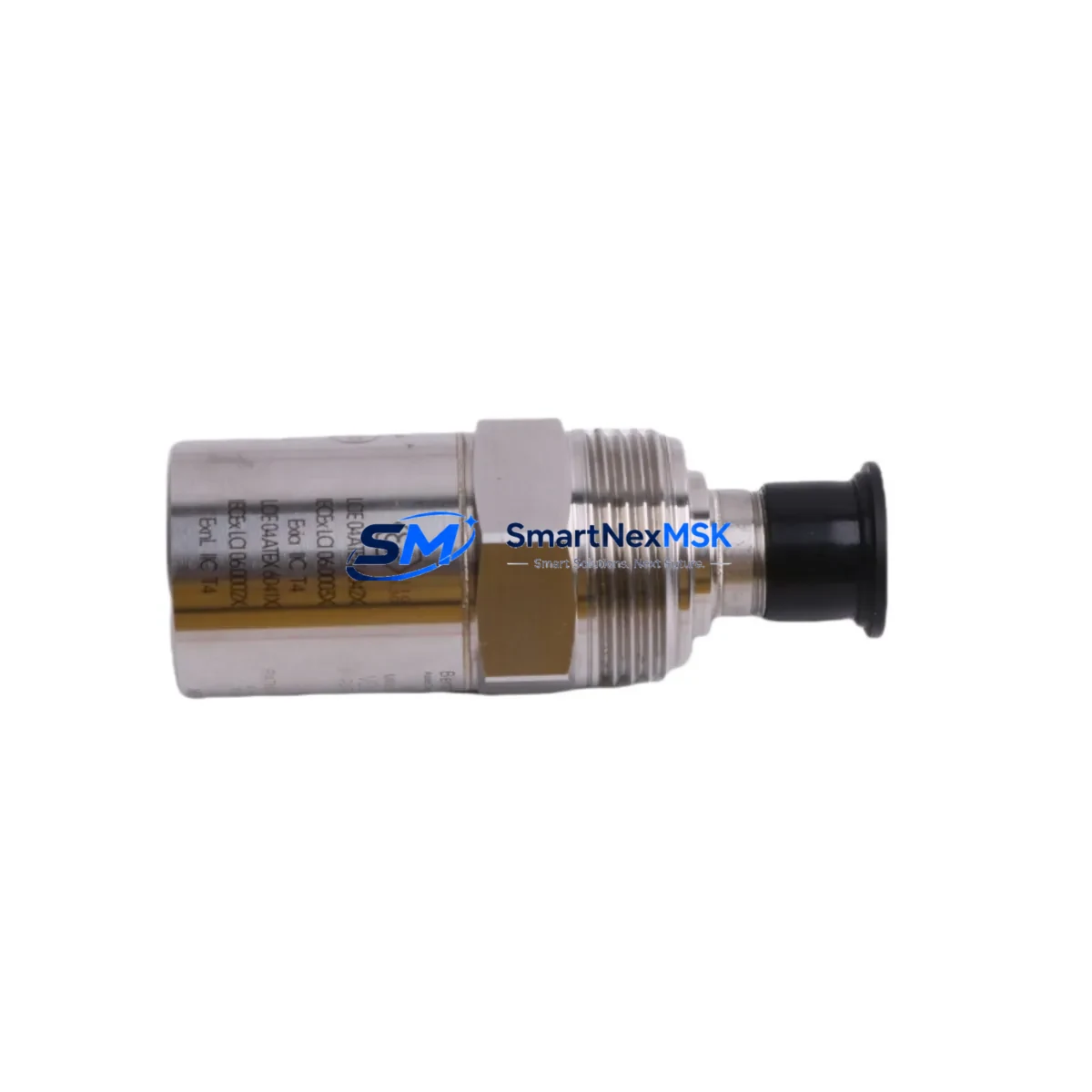

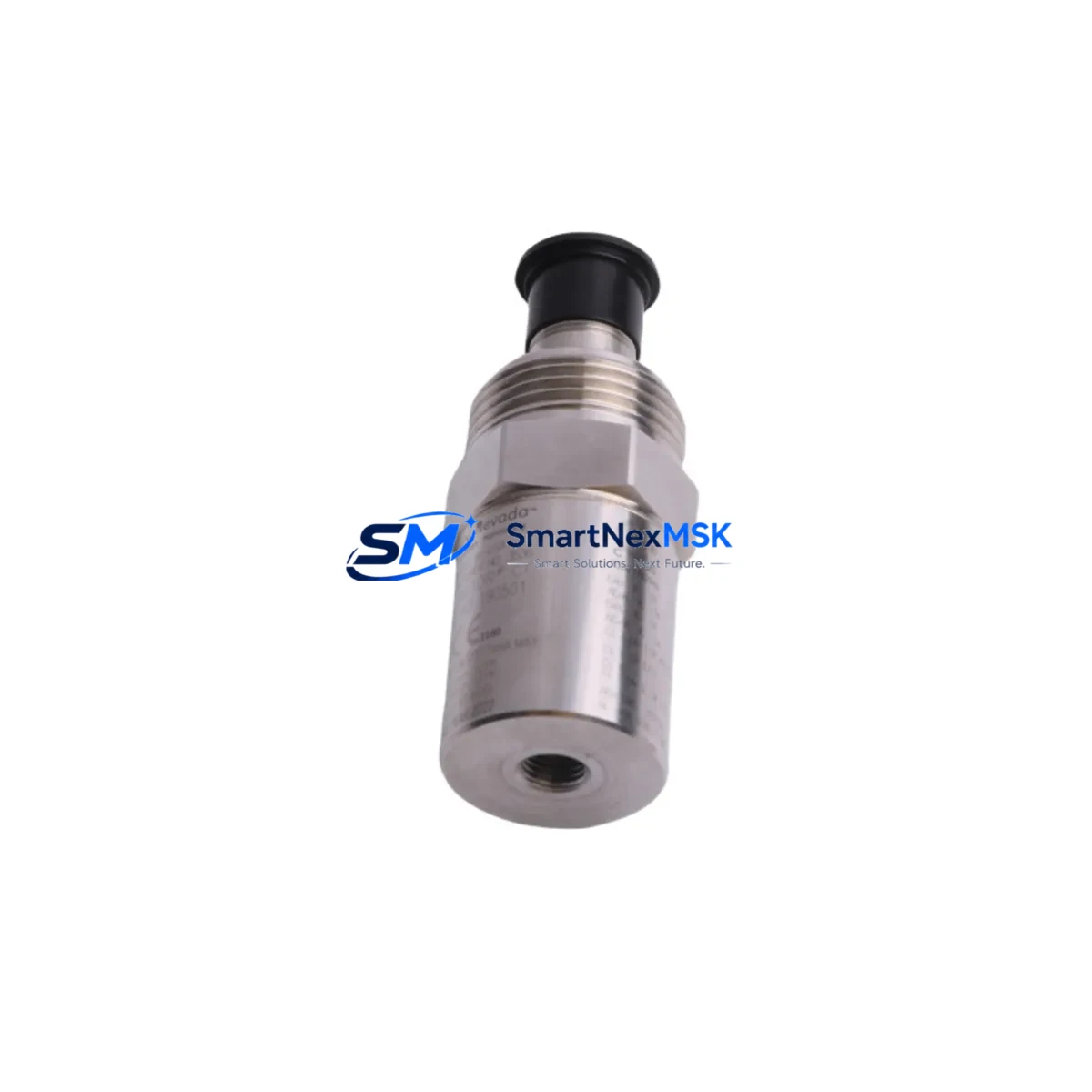

Bently Nevada 190501-03-99-CN Retrofit-Ready Seismic Velocity Transducer for 190501 Series Control Systems
The Bently Nevada 190501-03-99-CN is a retrofit-ready seismic velocity transducer engineered for seamless integration into existing 190501 Series vibration monitoring systems. Designed to serve as a direct replacement for aging or discontinued units within Bently Nevada’s industrial condition monitoring platform, this transducer delivers reliable velocity measurement across a wide range of rotating machinery applications — including turbines, compressors, pumps, and motors — without requiring modifications to existing wiring, mounting hardware, or monitoring rack configurations.
For facilities operating legacy Bently Nevada 3300 Series or 3500 Series monitoring racks, the 190501-03-99-CN provides a validated upgrade path that preserves existing signal conditioning infrastructure. The transducer outputs a standard velocity signal compatible with Bently Nevada 3300/16 and 3500/42M vibration monitor modules, allowing engineers to replace worn or failed sensors without reconfiguring monitor channel parameters or recalibrating alarm setpoints. This compatibility significantly reduces planned maintenance windows and eliminates the need for costly system-wide overhauls.
Upgrade Compatibility Table
| Parameter | 190501-03-99-CN | Notes / Retrofit Guidance |
|---|---|---|
| Mounting Interface | Standard 190501 Series base mount | Direct drop-in; no adapter required |
| Output Signal | Velocity (mV/mm/s) | Compatible with 3300/16 and 3500/42M monitor inputs |
| Cable Length | 20 ft (6.1 m), armored | Verify conduit routing before installation |
| Connector Type | MIL-C-5015 style | Matches legacy 190501 Series field wiring |
| Ingress Protection | IP67 | Suitable for outdoor and wash-down environments |
| Operating Temperature | -40°C to +121°C | Confirm against local ambient conditions |
| Communication Compatibility | Analog (passive velocity output) | No protocol migration required; direct wiring replacement |
| Replacement Recommendation | Direct OEM-equivalent replacement | Replaces discontinued 190501-03-99-CN units |
| Commissioning Requirement | Zero-point verification, sensitivity check | Use Bently Nevada TK-3 calibration tool or equivalent |
| Warranty | 12 Months | Covers manufacturing defects; includes pre-shipment functional test |
Retrofit Planning for Existing Automation Systems
Successful integration of the 190501-03-99-CN into an operational plant environment requires careful pre-installation planning. Before removing the failed or end-of-life sensor, maintenance engineers should document the existing terminal wiring at the junction box and confirm cable shield grounding practices match Bently Nevada’s recommended single-point grounding scheme. The transducer’s armored cable connects to the field junction box, which in turn feeds signal to the Bently Nevada 3500 rack — typically housed in a climate-controlled control cabinet alongside other condition monitoring modules such as the 3500/22M transient data interface, 3500/32 4-channel relay module, and 3500/92 communication gateway.
For plants running a full Bently Nevada 3500 Series rack, the retrofit scope often extends beyond the transducer itself. Engineers should audit the 3500/01 rack power supply module to confirm it can support the additional sensor load, particularly if multiple transducers are being replaced simultaneously. The 3500/05 system display and 3500/15 key phasor module should also be verified for firmware compatibility with any updated monitor modules introduced during the upgrade cycle.
In older installations where the monitoring system interfaces with a DCS via a 3500/92 Modbus or PROFIBUS gateway, the retrofit provides an opportunity to validate communication link integrity. Engineers should confirm that the gateway’s node address, baud rate, and register mapping remain consistent with the DCS configuration — particularly if the DCS is a Honeywell Experion PKS, Emerson DeltaV, or ABB 800xA platform. No protocol migration is required for the 190501-03-99-CN itself, as it outputs a standard passive velocity signal, but the broader system audit is recommended practice during any planned outage.
For facilities where the 190501 Series transducers feed into a Bently Nevada ADRE 408 DSPi portable data acquisition system for periodic route-based monitoring, the 190501-03-99-CN is fully compatible with ADRE’s velocity input channels. Technicians should update the ADRE database point configuration to reflect the new transducer serial number and sensitivity value (typically 100 mV/in/s or 3.937 mV/mm/s) to ensure accurate trend data continuity. The Bently Nevada 3300 XL 8mm proximity probe system, if installed in parallel for radial vibration measurement on the same machine train, operates independently and does not require reconfiguration during this transducer swap.
Where the plant uses a Rockwell Automation ControlLogix or CompactLogix PLC to aggregate machine health data from the 3500 rack via EtherNet/IP, the retrofit should include a verification step to confirm that the PLC’s analog input module — such as the 1756-IF16 or 1769-IF4 — is correctly scaled to the transducer’s output range. This prevents false alarms or missed trips during the post-installation commissioning period.
Downtime Control During System Migration
Minimizing unplanned downtime is the primary operational concern during any seismic transducer replacement on critical rotating equipment. The 190501-03-99-CN is supplied pre-tested and serialized, with a factory functional test report included in the shipment package, allowing site engineers to verify unit performance before the maintenance window begins. This pre-shipment testing protocol — covering sensitivity, frequency response, and insulation resistance — reduces the risk of commissioning delays caused by out-of-specification units.
To protect existing program logic and alarm configurations during the swap, engineers should export the current 3500 rack configuration using Bently Nevada’s System 1 software or the rack’s front-panel configuration port before disconnecting any field wiring. This configuration backup preserves all channel parameters, alarm setpoints, and relay logic, enabling rapid restoration if the replacement unit requires any parameter adjustment. The backup file should be stored on a dedicated engineering workstation and version-controlled alongside the plant’s P&ID documentation.
Field wiring continuity can be maintained during the transducer swap by using a temporary shorting plug at the junction box terminal block, which keeps the monitor channel in a defined state and prevents nuisance trips to the DCS or safety instrumented system (SIS). Once the new 190501-03-99-CN is installed and the cable is reconnected, the shorting plug is removed and the channel is returned to normal monitoring mode. A final sensitivity verification using a portable calibration shaker confirms that the installed transducer meets the original specification before the equipment is returned to service.
For facilities with strict change management requirements, the entire retrofit procedure — from pre-installation audit through post-commissioning sign-off — can typically be completed within a single 4-to-8-hour planned maintenance window, provided that the replacement unit is on-site and pre-tested before the outage begins. SMARTNEXMSK maintains in-stock inventory of the 190501-03-99-CN to support just-in-time delivery for planned and emergency maintenance scenarios, with same-day dispatch available for orders confirmed before 14:00 local time.
Retrofit Support FAQ
Q: Is the 190501-03-99-CN a direct replacement for the original Bently Nevada unit, or are there wiring differences I need to account for?
A: The 190501-03-99-CN is an OEM-equivalent replacement that uses the same MIL-C-5015 style connector and terminal pinout as the original 190501 Series transducer. No wiring modifications are required at the junction box or monitor rack. Verify cable shield grounding at the junction box before reconnection to ensure compliance with Bently Nevada’s single-point grounding requirement.
Q: What commissioning steps are required after installing the replacement transducer?
A: After installation, perform a zero-point verification and sensitivity check using a calibrated reference shaker or the plant’s standard vibration calibration procedure. Confirm that the 3500 monitor channel displays a reading consistent with the machine’s baseline vibration level at normal operating speed. Update the ADRE or System 1 database with the new transducer serial number and sensitivity value to maintain trend data integrity.
Q: Can this transducer be used with monitoring systems other than the Bently Nevada 3500 Series?
A: Yes. The 190501-03-99-CN outputs a standard passive velocity signal compatible with any vibration monitor that accepts a velocity transducer input in the appropriate sensitivity range. It has been used successfully with Emerson CSI 2140 data collectors, GE Bently Nevada ADRE 408 systems, and third-party condition monitoring platforms that support velocity sensor inputs. Confirm input impedance and sensitivity range compatibility with your specific monitor before installation.
Q: What does the 12-month warranty cover, and what is included in the pre-shipment test?
A: The 12-month warranty covers all manufacturing defects in materials and workmanship from the date of shipment. Each unit undergoes a pre-shipment functional test covering sensitivity verification, frequency response across the rated bandwidth, insulation resistance, and connector integrity. A test report is included with every shipment. Warranty claims are processed within 5 business days of unit receipt at our facility.
