Bently Nevada 190501-07-00-CN Velomitor CT Spare

Bently Nevada 190501-07-00-CN Velomitor CT Spare: Spare Replacement & Industrial Downtime Risk Control

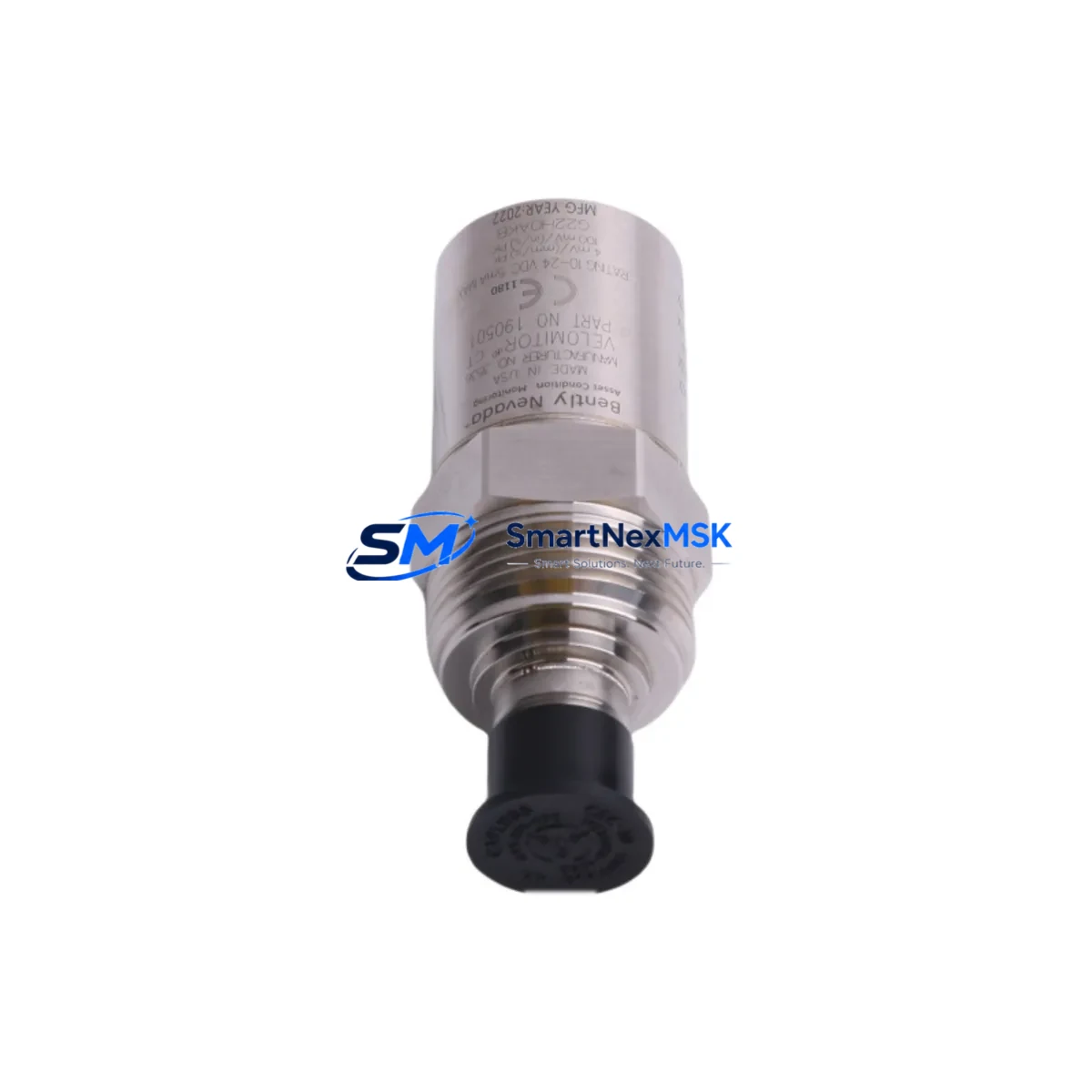

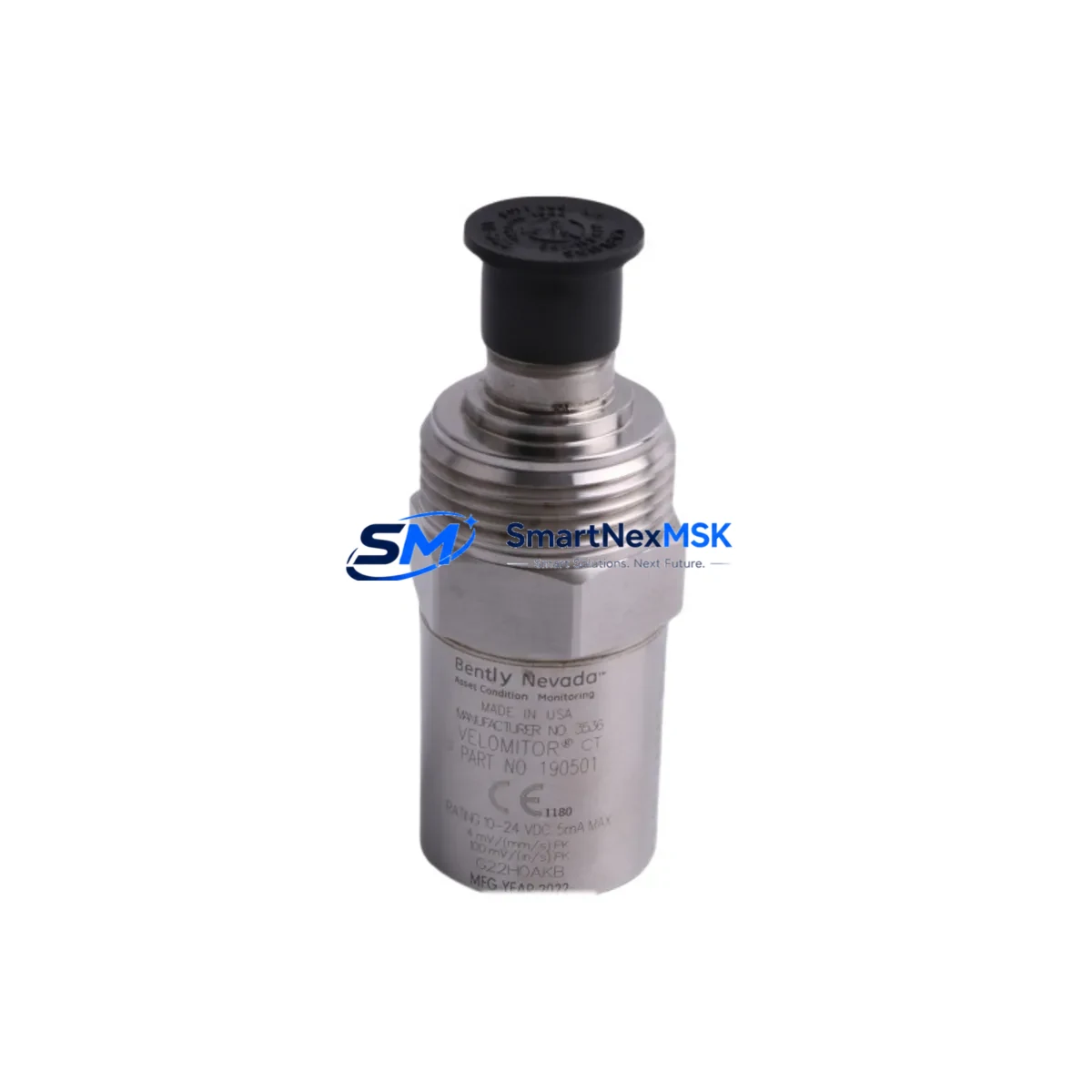

The Bently Nevada 190501-07-00-CN is a Velomitor CT seismic velocity transducer engineered for continuous vibration monitoring on rotating machinery including turbines, compressors, pumps, and motors. As a maintenance-ready original spare, this unit is fully compatible with Bently Nevada 3300 and 3500 Series monitoring systems and delivers reliable velocity output in demanding industrial environments. Holding this SKU in your spare parts inventory is a proven strategy for minimizing unplanned downtime and accelerating fault recovery during scheduled or emergency maintenance windows.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a Velomitor CT 190501-07-00-CN reaches end-of-life or fails during a routine inspection, the replacement process extends well beyond swapping the transducer itself. Experienced maintenance engineers treat this event as a trigger for a broader control-cabinet and machinery-train audit to prevent cascading failures and ensure the monitoring system returns to full accuracy.

Begin by verifying the integrity of the Bently Nevada 3500/20 Power Supply module feeding the monitoring rack — a degraded power supply can introduce noise that mimics transducer faults. Inspect the 3500/42M Proximitor/Seismic Monitor input card that processes the Velomitor signal; confirm channel configuration, full-scale range, and alarm setpoints match the replacement unit’s output sensitivity. Check the 3500/22M Transient Data Interface if the machine train is enrolled in transient capture programs, as firmware mismatches can corrupt startup data after a sensor swap.

Examine the integral armored cable and field junction box for insulation breakdown, moisture ingress, or connector corrosion — particularly in outdoor or high-humidity installations. A compromised cable will degrade the new transducer’s signal quality immediately. If the installation uses a Bently Nevada 3300/16 Proximitor extension cable or field-wiring terminal block, verify continuity and shield grounding before commissioning the replacement.

For machines running in hazardous areas, confirm that the Bently Nevada 3500/33 16-Channel Relay Module trip logic is inhibited during the swap window to prevent spurious shutdowns. Review the 3500/92 Communication Gateway or System 1 Condition Monitoring Software historian to ensure the new channel tag is correctly mapped and that baseline vibration trends are reset after installation.

Maintenance planners should also audit adjacent instrumentation on the same machinery train: proximity probes (7200 or 3300 XL series) for shaft displacement, Keyphasor transducers for phase reference, and any temperature or process transmitters wired into the same I/O rack. A complete spare-parts kit for a single machine train typically includes one Velomitor CT, one proximity probe, one Keyphasor module, and a set of pre-terminated field cables — all sourced and tested together to eliminate compatibility uncertainty during an emergency outage.

Site Replacement Workflow

Step 1 — Isolation & Inhibit: Inhibit the monitoring channel at the 3500 rack and notify the control room. Lock out / tag out (LOTO) the machine if a physical access is required at the transducer mounting location.

Step 2 — Remove & Document: Photograph the existing cable routing, connector orientation, and mounting torque markings before removal. Record the channel number, rack slot, and current alarm setpoints from the 3500/42M configuration.

Step 3 — Inspect Mounting Surface: Clean the stud-mount pad, check for corrosion or thread damage, and verify the mounting surface flatness. A poor mounting surface is the leading cause of elevated high-frequency noise after transducer replacement.

Step 4 — Install 190501-07-00-CN: Torque the replacement Velomitor CT to the manufacturer’s specification. Route the armored cable along the original path, maintaining minimum bend radius. Reconnect to the field junction box and verify shield grounding.

Step 5 — Functional Verification: Re-enable the monitoring channel and observe the live velocity reading at rest (should be near zero with low noise floor). Compare against the historical baseline stored in System 1 or the 3500 rack memory. Confirm alarm and danger setpoints are correctly restored.

Step 6 — Return to Service: Remove LOTO, release the inhibit, and document the replacement in the CMMS with the new unit’s serial number, installation date, and post-installation vibration baseline. Update the spare-parts inventory to trigger a replenishment order for the next 190501-07-00-CN unit.

Spare Parts Support FAQ

Q1: Is the 190501-07-00-CN a direct drop-in replacement for older Velomitor CT variants?
Yes. The 190501-07-00-CN is the current production part number for the Velomitor CT with CN-region cable configuration. It is electrically and mechanically compatible with earlier Velomitor CT variants used in 3300 and 3500 Series racks. Confirm the output sensitivity (mV/mm/s) matches the channel configuration in your 3500/42M monitor card before installation.

Q2: How is each unit tested before shipment?
Every 190501-07-00-CN unit undergoes functional verification including output signal check, insulation resistance test, and cable continuity test prior to packaging. A test report is available upon request. Units are shipped in anti-static, moisture-resistant packaging to preserve calibration integrity during transit.

Q3: What is the recommended spare-parts stocking strategy for this transducer?
For critical rotating machinery (turbines, compressors), industry best practice recommends holding a minimum of one Velomitor CT per monitored machine train in on-site inventory, with a second unit at the regional warehouse. Given the 1–3 business day lead time from our stock, many customers maintain a single on-site spare and rely on our fast-ship program for replenishment after each use.

Q4: What warranty coverage applies to this spare part?
All units supplied by SMARTNEXMSK carry a 12-month warranty covering manufacturing defects and functional failure under normal operating conditions. Warranty claims are supported by our technical team with replacement or repair turnaround within 5 business days. Contact [email protected] for warranty registration and claim processing.
