Bently Nevada 190501-08-00-04 Safety-Enhanced Velocity Transducer

Bently Nevada 190501-08-00-04 Safety-Enhanced Velocity Transducer for Harsh Industrial Sites

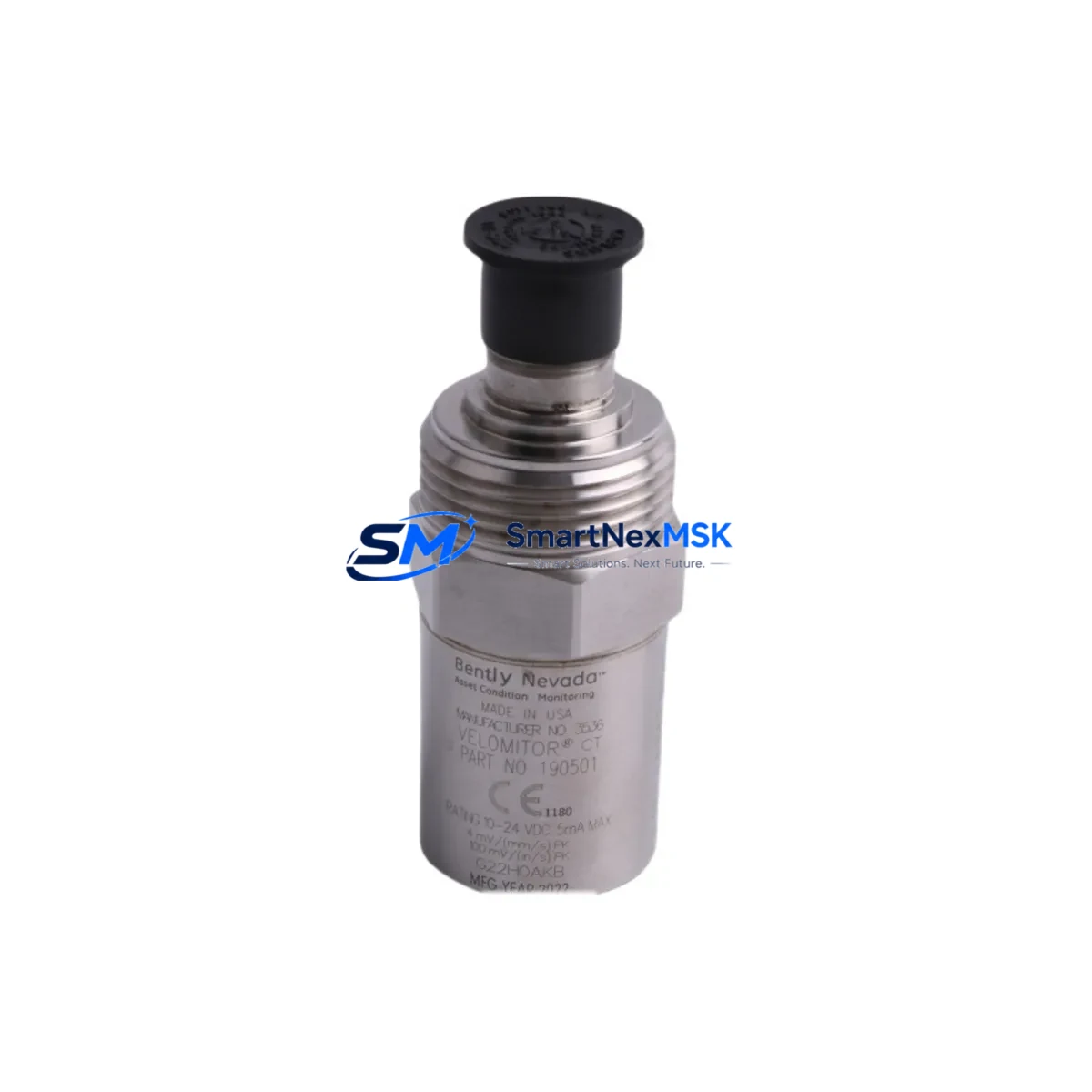

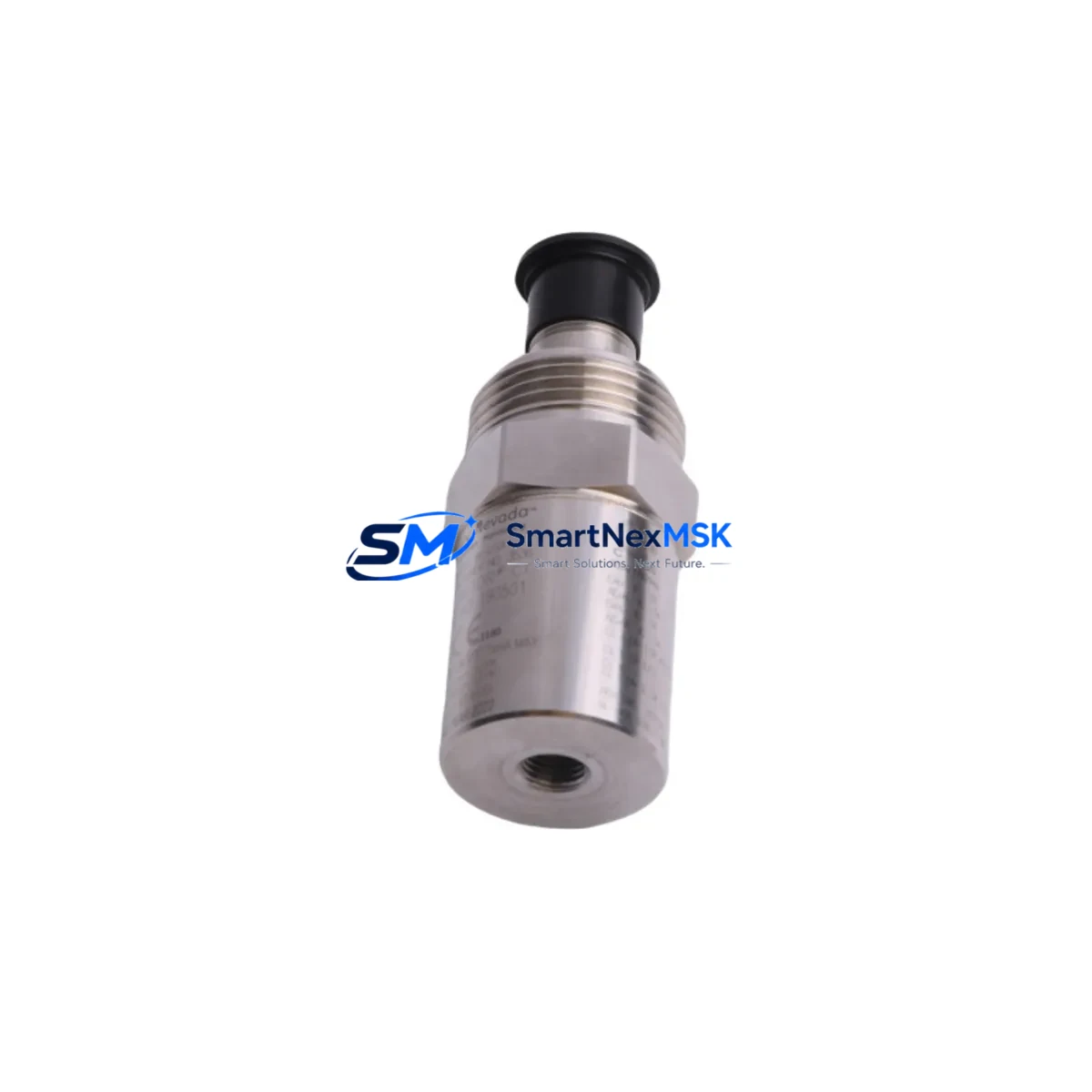

The Bently Nevada 190501-08-00-04 Velomitor CT is a ruggedized, safety-grade velocity transducer engineered for continuous operation in the most demanding industrial environments. Designed to deliver accurate, low-noise vibration velocity signals across rotating machinery, this transducer is a critical component in machinery protection systems where control interruption, signal drift, or sensor failure can trigger unplanned shutdowns, equipment damage, or safety incidents.

In high-load, high-interference production facilities — including petrochemical plants, power generation stations, mining operations, water treatment facilities, metallurgical complexes, and port logistics centers — the 190501-08-00-04 provides the measurement stability and environmental resilience required for reliable machinery health monitoring. Its wide operating temperature range, robust stainless-steel housing, and EMI-shielded cable assembly make it suitable for installation in control cabinets, junction boxes, and field-mounted machinery protection enclosures where signal integrity is non-negotiable.

This transducer integrates directly with Bently Nevada 3500 Series machinery protection rack systems, including the 3500/42M Proximitor/Seismic Monitor module and the 3500/25 keyphasor module, forming a complete vibration monitoring and safety interlock loop. When paired with the 3500/15 power supply module and 3500/22M transient data interface, the system provides full-spectrum machinery diagnostics with deterministic response times suitable for safety instrumented system (SIS) integration.

For installations requiring surge protection and signal conditioning, the 190501-08-00-04 is commonly deployed alongside Bently Nevada 990 Series vibration transmitters and 3500/20 rack interface modules. In critical interlock circuits, it is often used in conjunction with Emerson CSI 2140 machinery health analyzers for cross-validation of vibration trends before alarm or trip actions are executed.

Safety Reliability Table

Control Cabinet Protection Strategy

In a well-engineered machinery protection cabinet, the 190501-08-00-04 is never deployed in isolation. Its signal chain begins at the transducer mounting point on the machine casing and terminates at the Bently Nevada 3500/42M monitor card, which processes velocity and seismic inputs and generates relay outputs for alarm and trip logic. The 3500/32 4-channel relay module provides the hardwired trip output to the machine’s emergency shutdown system, ensuring that a confirmed high-vibration event results in a deterministic, fail-safe response.

Surge and transient protection is provided by MTL 5000 Series or Pepperl+Fuchs KFD2 signal conditioners installed in the field junction box, preventing voltage spikes from welding operations, motor starts, or lightning events from propagating into the 3500 rack. The rack itself is powered by a redundant Bently Nevada 3500/15 power supply pair, ensuring that a single power supply failure does not interrupt the protection system.

Communication to the plant DCS or historian is handled via the 3500/92 communication gateway module, which supports Modbus TCP and OPC-DA protocols. This allows real-time vibration trend data from the 190501-08-00-04 to be integrated into the plant’s Emerson DeltaV or Honeywell Experion PKS distributed control system for operator display, alarm management, and long-term trend analysis. For portable cross-checks during commissioning or maintenance, the Bently Nevada ADRE 408 DSPi data acquisition system can be connected directly to the transducer output for independent waveform capture and spectrum analysis.

In safety instrumented systems (SIS) designed to IEC 61511, the 190501-08-00-04 is used as the sensing element in voted architectures (1oo2 or 2oo3) to eliminate spurious trips while maintaining the required probability of failure on demand (PFD) for the safety function. Its proven mean time between failures (MTBF) and deterministic output behavior make it a preferred choice for SIL-rated machinery protection loops.

Critical Industrial Safety Applications

Petrochemical & Refinery: Installed on centrifugal compressors, boiler feed pumps, and cooling tower fans where continuous vibration monitoring is mandatory under API 670 machinery protection standards. The 190501-08-00-04 provides the early warning signals that allow operators to schedule maintenance before a bearing failure escalates to a process safety event.

Power Generation: Used on steam turbine bearing housings and generator end shields in coal, gas, and nuclear power plants. In these applications, the transducer’s high-temperature rating and armored cable construction are essential for reliable operation in the hot, high-vibration environment adjacent to the turbine casing.

Mining & Mineral Processing: Deployed on ball mills, SAG mills, conveyor drive gearboxes, and slurry pumps where dust, moisture, and mechanical shock are constant challenges. The IP67 rating and stainless-steel housing of the 190501-08-00-04 ensure long service life without signal degradation.

Water & Wastewater Treatment: Monitors large vertical turbine pumps and blower units in treatment plants where unplanned downtime disrupts regulatory compliance. The transducer’s low-frequency response (2 Hz) captures the slow-speed vibration signatures characteristic of these machine types.

Metallurgy & Steel: Applied to rolling mill drives, continuous caster pinch rolls, and ladle transfer car drives in steel plants. The transducer’s resistance to electromagnetic interference from large variable-frequency drives and arc furnaces ensures clean signal output even in the most electrically noisy environments.

Port & Heavy Logistics: Used on ship-to-shore crane hoist motors and container handling equipment where intermittent high-load cycles create vibration signatures that must be trended over time to predict gearbox and bearing wear.

Safety and Quality FAQ

Q1: What warranty coverage is provided for the 190501-08-00-04?
A: All units are covered by a 12-month warranty from the date of shipment. The warranty covers manufacturing defects, functional failure under normal operating conditions, and any deviation from published Bently Nevada specifications. Warranty claims are processed with priority turnaround to minimize your site downtime.

Q2: What pre-shipment testing is performed on each unit?
A: Every 190501-08-00-04 undergoes a full functional test prior to shipment, including sensitivity verification, frequency response check, insulation resistance test, and connector integrity inspection. A test report is available upon request. Units are shipped in anti-static, moisture-barrier packaging to prevent transit damage.

Q3: Is the 190501-08-00-04 compatible with existing Bently Nevada 3500 Series systems?
A: Yes. The 190501-08-00-04 is fully compatible with the Bently Nevada 3500/42M Proximitor/Seismic Monitor and all standard 3500 rack configurations. It is also compatible with the 990 Series vibration transmitters and ADRE data acquisition systems. If you are integrating into a non-Bently Nevada system, please contact us with your monitor model and we will confirm compatibility before shipment.

Q4: Can long-term supply and replacement support be guaranteed?
A: Yes. SMARTNEXMSK maintains standing inventory of the 190501-08-00-04 and its common variants to support both planned maintenance programs and emergency replacement requirements. We support OEM-equivalent replacement for decommissioned or obsolete Bently Nevada part numbers and can advise on cross-reference options where the original SKU is no longer manufactured.
