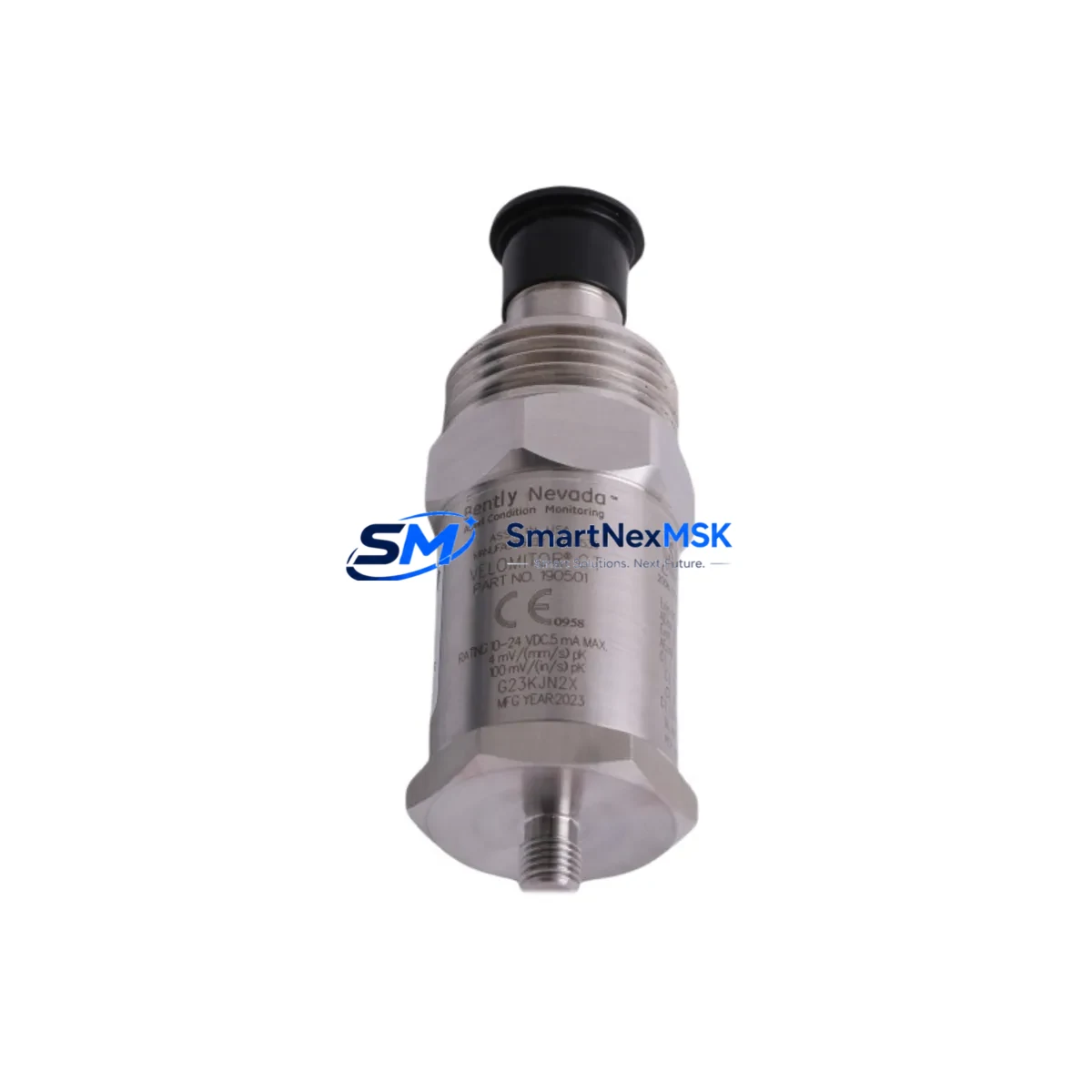

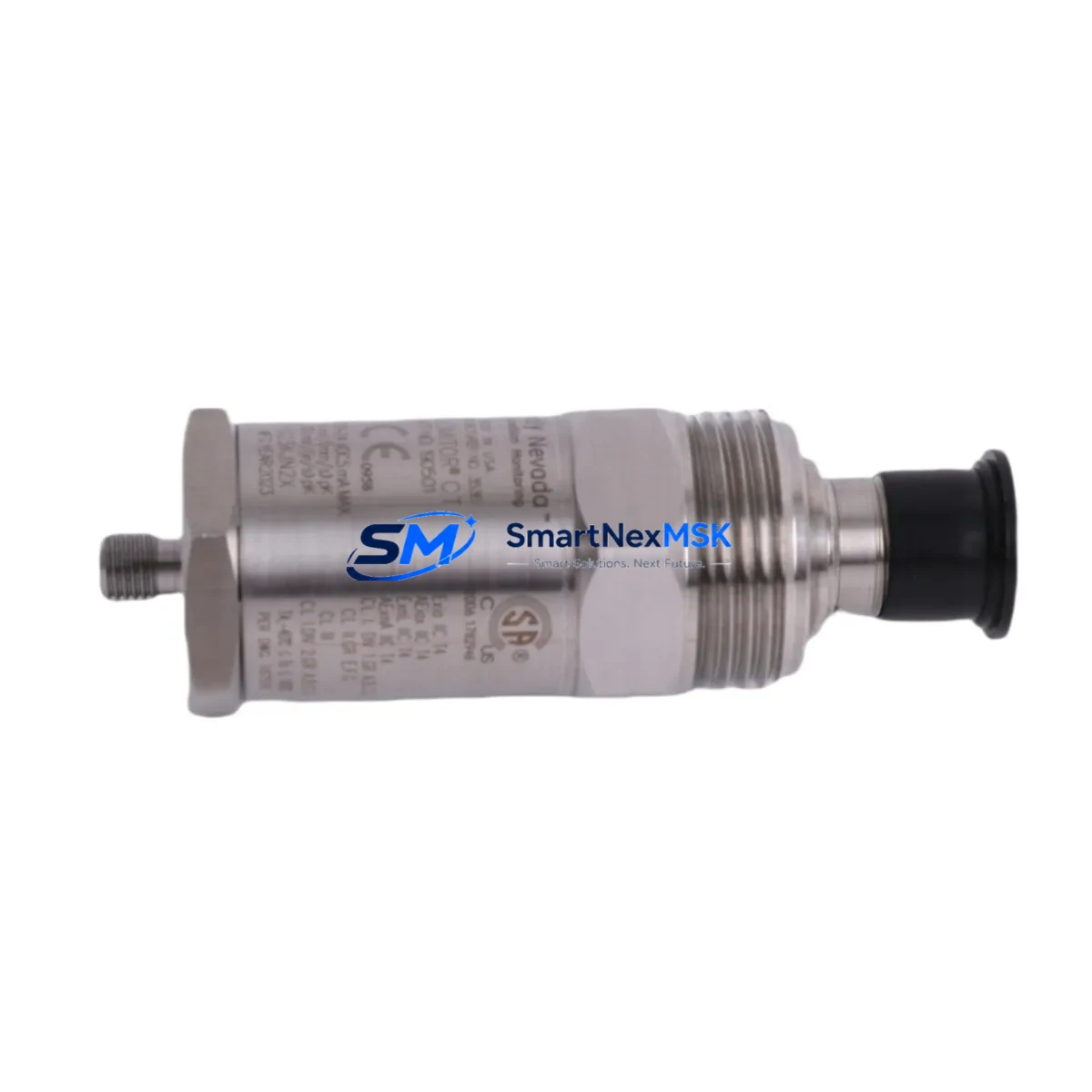

The Bently Nevada 190501-09-99-01 is an original Velomitor CT seismic velocity transducer engineered for continuous vibration monitoring on rotating machinery in industrial automation environments. Designed for direct integration with Bently Nevada 3300 series monitoring systems, this spare part is a critical component in predictive maintenance programs for turbines, compressors, pumps, motors, and gearboxes operating under demanding process conditions.

For maintenance engineers managing aging control infrastructure, sourcing a verified original 190501-09-99-01 is essential to avoid signal drift, false alarms, or unplanned shutdowns. This transducer delivers a velocity output signal (mV/mm/s) that interfaces directly with the 3300/16 or 3300/20 monitor cards without requiring signal conditioning modifications. Its rugged stainless-steel housing and hermetically sealed design make it suitable for high-temperature, high-vibration, and chemically aggressive environments typical of petrochemical, power generation, and heavy manufacturing plants.

Procurement engineers should note that the 190501-09-99-01 is a long-lead OEM item in many regions. Maintaining at least one unit in your critical spare inventory eliminates the risk of extended downtime while awaiting factory lead times. Each unit shipped by SMARTNEXMSK undergoes pre-shipment functional verification and is backed by a 12-month warranty covering manufacturing defects and signal output integrity.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 190501-09-99-01 Velomitor CT transducer during a planned or emergency shutdown, a thorough inspection of the surrounding measurement chain is strongly recommended. Maintenance engineers should simultaneously verify the condition of the Bently Nevada 3300/16 velocity monitor card, which processes the raw signal from this transducer. A degraded monitor card can mask a healthy transducer reading or generate nuisance trips even after a new transducer is installed.

The interconnect cable assembly (typically a Bently Nevada 330130 or equivalent armored cable) should be inspected for jacket abrasion, connector corrosion, and shield continuity. Cable faults are a leading cause of erratic velocity readings that are often misdiagnosed as transducer failure. Alongside the cable, check the junction box terminal blocks for oxidation and torque compliance — loose terminals introduce noise into the millivolt-level signal path.

In the control cabinet, inspect the 24 VDC power supply module feeding the 3300 rack. Voltage sag or ripple on the supply rail can cause false high-vibration alarms. If the plant uses a Bently Nevada 3500 series rack in parallel for redundant monitoring, verify that the 3500/42M velocity monitor module is also calibrated and that its OK relay output is functioning correctly.

For facilities running older System 1 Evolution or System 1 Classic software platforms, confirm that the transducer sensitivity factor (mV/mm/s) is correctly entered in the channel configuration. A mismatch between the configured and actual sensitivity will produce systematic measurement error across all operating speeds. Additionally, review the Keyphasor module (3300/25 or 3500/25) to ensure phase reference signals are clean — phase data is essential for balancing analysis when the Velomitor CT is used in conjunction with proximity probes.

Procurement teams managing multi-unit plants should consider stocking the 190501-09-99-01 alongside related consumables such as Bently Nevada 330180 proximity probe extension cables, 3300/55 power supply modules, and 3500/15 power supply cards to support a complete critical-spare strategy for the 3300/3500 monitoring ecosystem.

Site Replacement Workflow

Step 1 — Isolation & Permit: Obtain a work permit and isolate the measurement loop at the junction box. Do not power down the entire 3300 rack unless required — most Velomitor CT channels can be bypassed individually using the monitor’s bypass switch to avoid triggering a plant-wide trip during maintenance.

Step 2 — Transducer Removal: Disconnect the cable at the transducer connector. Unscrew the transducer from the stud mount using the correct torque wrench. Inspect the mounting surface for corrosion or thread damage and clean before reinstalling.

Step 3 — Compatibility Verification: Confirm the replacement 190501-09-99-01 matches the original sensitivity specification. Cross-reference the part number on the transducer body with the purchase documentation. If replacing an older 190501-09-99-00 or 190501-09-01-01 variant, verify backward compatibility with your monitor card firmware version.

Step 4 — Installation & Torque: Install the new transducer to the manufacturer’s specified torque. Route the cable away from high-voltage conductors and secure with appropriate cable clamps. Reconnect at the junction box and verify shield grounding at one end only to prevent ground loops.

Step 5 — Signal Verification: Re-energize the channel and observe the OK LED on the 3300/16 monitor card. Use a portable vibration analyzer or the System 1 software trend display to confirm the velocity reading is within expected baseline range for the machine at normal operating speed. Document the as-found and as-left readings in the maintenance management system.

Step 6 — Return to Service: Remove the bypass, confirm no active alarms, and close the work permit. Update the spare parts inventory record to reflect consumption of one 190501-09-99-01 unit and initiate a replenishment order to maintain minimum stock levels.

Spare Parts Support FAQ

Q1: Is the 190501-09-99-01 a direct drop-in replacement for older Velomitor CT variants?
A: In most cases, yes. The 190501-09-99-01 is the current production revision of the Velomitor CT family and is backward compatible with 3300 series monitor cards. However, if your system uses a very early 3300/16 card with firmware prior to revision D, we recommend verifying the sensitivity configuration before returning the machine to service. Contact our technical team with your monitor card serial number for confirmation.

Q2: What pre-shipment testing does SMARTNEXMSK perform on this transducer?
A: Each 190501-09-99-01 unit undergoes electrical continuity verification, insulation resistance testing, and output sensitivity spot-check at 100 Hz reference frequency before dispatch. A test report is available upon request. Units are shipped in anti-static packaging with individual serial number documentation.

Q3: How should this spare be stored if not immediately installed?
A: Store in original packaging in a dry, temperature-controlled environment (0°C to +40°C, <80% RH non-condensing). Avoid storage near strong magnetic fields or high-vibration areas. Inspect the connector and cable termination annually. Shelf life under proper storage conditions exceeds 5 years.

Q4: What is covered under the 12-month warranty?
A: The warranty covers manufacturing defects, signal output deviation beyond ±5% of rated sensitivity, and connector or housing integrity failures under normal installation and operating conditions. It does not cover damage from incorrect mounting torque, cable over-bend, chemical exposure beyond rated limits, or unauthorized disassembly. Warranty claims are processed within 5 business days of receipt of the returned unit.
