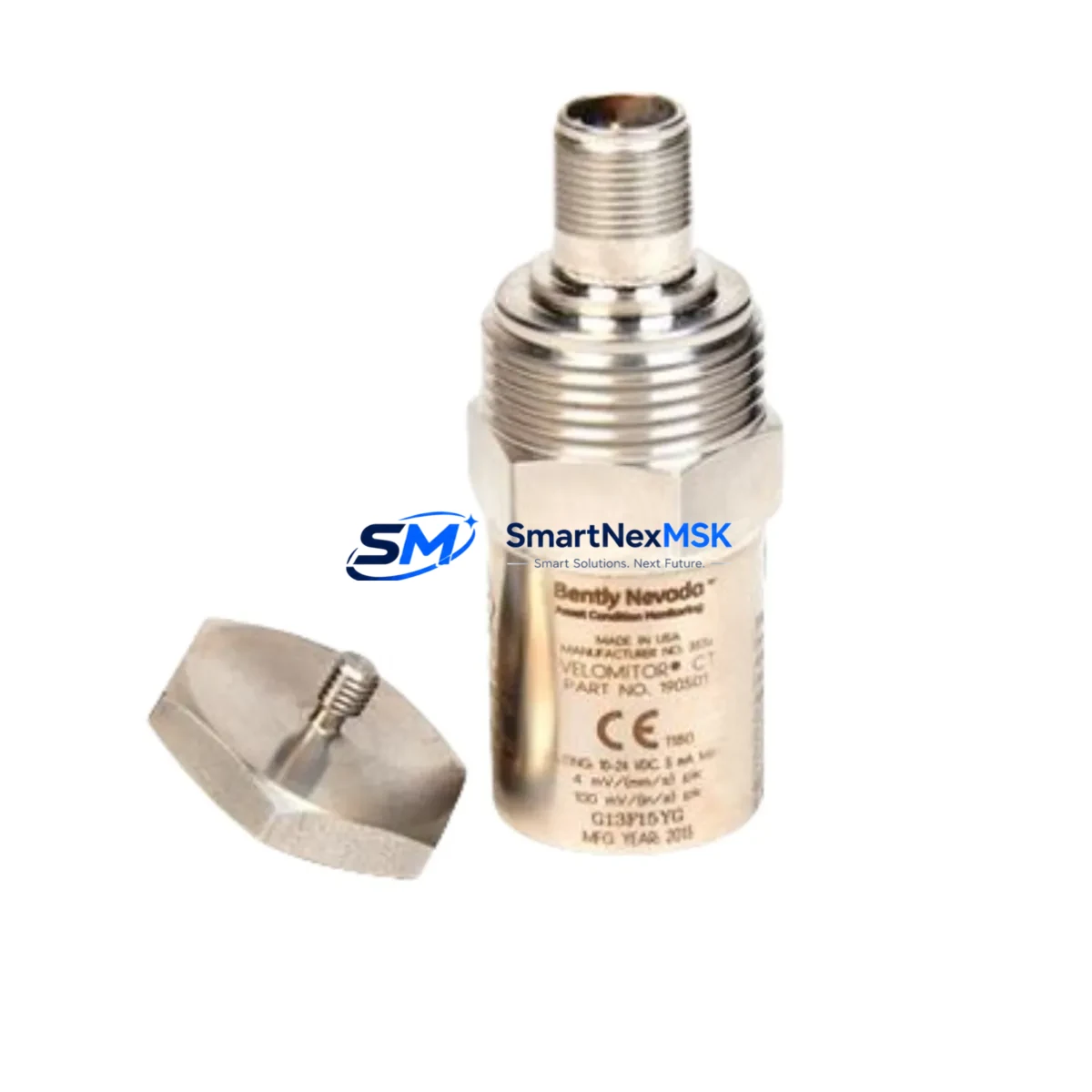

Bently Nevada 190501-14-00-01 Safety-Enhanced Velocity Transducer for Harsh Industrial Sites
The Bently Nevada 190501-14-00-01 Velomitor CT is a high-performance, safety-enhanced velocity transducer engineered for continuous operation in the most demanding industrial environments. Designed to deliver accurate, low-noise vibration velocity signals in high-load rotating machinery applications, this transducer is a critical component in control loops where signal integrity directly determines plant safety and uptime. Whether deployed in petrochemical compressor trains, power generation turbines, mining conveyor drives, or metallurgical rolling mills, the 190501-14-00-01 provides the measurement reliability that safety-critical interlock systems depend on.
Unlike conventional velocity sensors, the Velomitor CT integrates a piezoelectric sensing element with internal signal conditioning electronics, eliminating the signal drift and mechanical resonance issues common in traditional geophone-type transducers. Its ruggedized stainless steel housing and hermetically sealed construction ensure stable output even under severe vibration, thermal cycling, moisture ingress, and electromagnetic interference — conditions routinely encountered in continuous process industries. The transducer’s wide frequency response and high sensitivity make it equally effective for detecting low-frequency shaft imbalance and high-frequency bearing defects, supporting both machinery protection and predictive maintenance strategies.
In safety instrumented systems (SIS) and machinery protection architectures, the 190501-14-00-01 is typically paired with the Bently Nevada 3500/42M Proximitor/Seismic Monitor module, which processes the velocity signal and triggers protective shutdown when vibration exceeds configured danger thresholds. The transducer’s output is fully compatible with the Bently Nevada 3500 Rack system, including the 3500/20 Rack Interface Module and 3500/15 Power Supply, ensuring seamless integration into existing machinery protection infrastructure without signal conditioning adapters or additional amplification stages.
For installations requiring both radial vibration and velocity monitoring on the same machine train, the 190501-14-00-01 is commonly deployed alongside Bently Nevada 330103-00-05-10-02-00 proximity probes and 330130-040-00-00 extension cables, forming a comprehensive vibration monitoring suite. In applications where shaft absolute motion measurement is required — such as large steam turbines or centrifugal compressors — the transducer complements seismic casing measurements with the Bently Nevada 330180-X1-05 proximity transducer system, providing the combined relative and absolute vibration data required by API 670 machinery protection standards.
The 190501-14-00-01 is also well-suited for integration with System 1 condition monitoring software, where its velocity output feeds real-time trend analysis, alarm management, and event-driven diagnostics. In distributed control system (DCS) environments using Emerson DeltaV or Honeywell Experion platforms, the transducer signal can be routed through the 3500 rack’s 3500/92 Communication Gateway Module via Modbus or OPC-DA, enabling centralized safety monitoring without dedicated field wiring to the DCS I/O cabinets. For standalone protection panels, the transducer pairs effectively with Bently Nevada 3300 XL series monitors as a cost-optimized alternative in non-API critical applications.
Safety Reliability Table
| Parameter | Specification |
|---|---|
| Part Number | 190501-14-00-01 |
| Series | Velomitor CT |
| Sensor Type | Piezoelectric Velocity Transducer (ICP® compatible) |
| Sensitivity | 100 mV/in/s (4 mV/mm/s) |
| Frequency Range | 2 to 1000 Hz (±3 dB) |
| Measurement Range | 0 to 50 in/s peak (0 to 1270 mm/s peak) |
| Operating Temperature | -40°C to +121°C (-40°F to +250°F) |
| Housing Material | 316L Stainless Steel, Hermetically Sealed |
| Ingress Protection | IP67 (dust-tight, immersion-resistant) |
| EMI/RFI Shielding | Internal shielded cable, low-noise output |
| Mounting | 10-32 UNF threaded stud, side or top mount |
| Connector | 2-pin MIL-C-5015 style, integral cable option |
| Output Signal | Voltage output, compatible with 3500/42M and ICP® signal conditioners |
| Shock Resistance | 5000 g peak (11 ms half-sine) |
| Compliance | API 670, CE Marking |
| Origin | USA |
| Warranty | 12 Months from shipment date |
| Pre-shipment Testing | Full functional and calibration test performed before dispatch |
Control Cabinet Protection Strategy
Effective machinery protection in high-risk industrial facilities requires a layered approach that extends well beyond a single transducer. The 190501-14-00-01 serves as the primary sensing element in a protection architecture that typically includes the Bently Nevada 3500/42M Proximitor/Seismic Monitor for signal processing and relay-driven shutdown, the 3500/15 Power Supply Module for stable 24 VDC rail conditioning within the protection rack, and the 3500/20 Rack Interface Module for system-level communication and configuration management.
In the field junction box and marshalling cabinet, surge protection devices — such as the Phoenix Contact TRABTECH series transient voltage suppressors — are installed on the transducer signal lines to absorb lightning-induced surges and switching transients that would otherwise corrupt velocity readings or damage the transducer’s internal electronics. Shielded, twisted-pair instrumentation cable (typically Belden 9501 or equivalent) is used for all signal runs from the transducer to the monitor rack, with shield grounding at a single point to prevent ground loop interference.
For installations in hazardous classified areas (Zone 1 or Division 1), the transducer is deployed with MTL 787S+ or equivalent Zener barrier or galvanic isolator modules in the safe-area cabinet, ensuring intrinsic safety compliance and preventing ignition-capable energy from reaching the field device. The complete protection loop — transducer, barrier, monitor, and relay output — is documented and validated against IEC 61511 functional safety requirements for SIL-rated machinery protection applications.
Critical Industrial Safety Applications
The Bently Nevada 190501-14-00-01 is deployed across a broad spectrum of safety-critical industrial applications. In petrochemical and refinery facilities, it monitors casing vibration on centrifugal pumps, compressors, and blowers in continuous service, providing early warning of impeller imbalance, bearing wear, and structural resonance before these conditions escalate to catastrophic failure or process shutdown. In power generation plants — including coal-fired, gas turbine, and combined-cycle facilities — the transducer is mounted on turbine bearing housings and generator end shields, feeding the 3500 protection system that governs emergency trip logic.
In mining and mineral processing operations, the 190501-14-00-01 is used on crusher drives, ball mill pinion bearings, and conveyor head pulleys, where high ambient vibration, dust, and moisture demand the IP67-rated hermetic construction that the Velomitor CT provides. Water and wastewater treatment facilities rely on the transducer for pump and blower monitoring in wet, corrosive environments where sensor longevity and low maintenance burden are paramount. In metallurgical and steel mill applications, the transducer withstands the intense electromagnetic interference generated by large DC drive systems and induction furnaces, maintaining signal integrity where lesser sensors would produce erratic outputs.
Port and bulk material handling facilities use the 190501-14-00-01 on ship unloader drives, stacker-reclaimer slew bearings, and conveyor gearboxes, where continuous operation and minimal planned downtime are operational imperatives. Across all these applications, the transducer’s role in the safety interlock chain — from field measurement through monitor processing to relay-driven shutdown — makes it a mission-critical component whose reliability directly determines personnel safety, environmental compliance, and asset protection outcomes.
Safety and Quality FAQ
Q1: What warranty coverage is provided for the 190501-14-00-01?
All units are covered by a 12-month warranty from the date of shipment. The warranty covers manufacturing defects, calibration failures, and premature electronic component failure under normal operating conditions. Warranty claims are processed with priority turnaround to minimize customer downtime.
Q2: What pre-shipment testing is performed on each unit?
Every 190501-14-00-01 undergoes a full functional test prior to dispatch, including sensitivity verification, frequency response check, insulation resistance measurement, and connector integrity inspection. A test report is available upon request. Units are shipped in anti-static, shock-protected packaging to prevent transit damage.
Q3: Is the 190501-14-00-01 compatible with existing Bently Nevada 3500 rack systems?
Yes. The Velomitor CT output is fully compatible with the Bently Nevada 3500/42M Proximitor/Seismic Monitor and all standard ICP®-compatible signal conditioners. No additional adapters or signal converters are required for integration into existing 3500 rack installations. Compatibility with legacy 3300 series monitors should be confirmed against the specific monitor’s input impedance specification.
Q4: Can long-term supply and replacement support be guaranteed?
We maintain dedicated stock of the 190501-14-00-01 and key Bently Nevada Velomitor CT series variants to support ongoing maintenance, planned turnaround, and emergency replacement requirements. Orders are typically processed and shipped within 1–3 business days. For large-volume or scheduled maintenance contracts, please contact our sales team to discuss reserved stock arrangements and priority fulfillment agreements.
