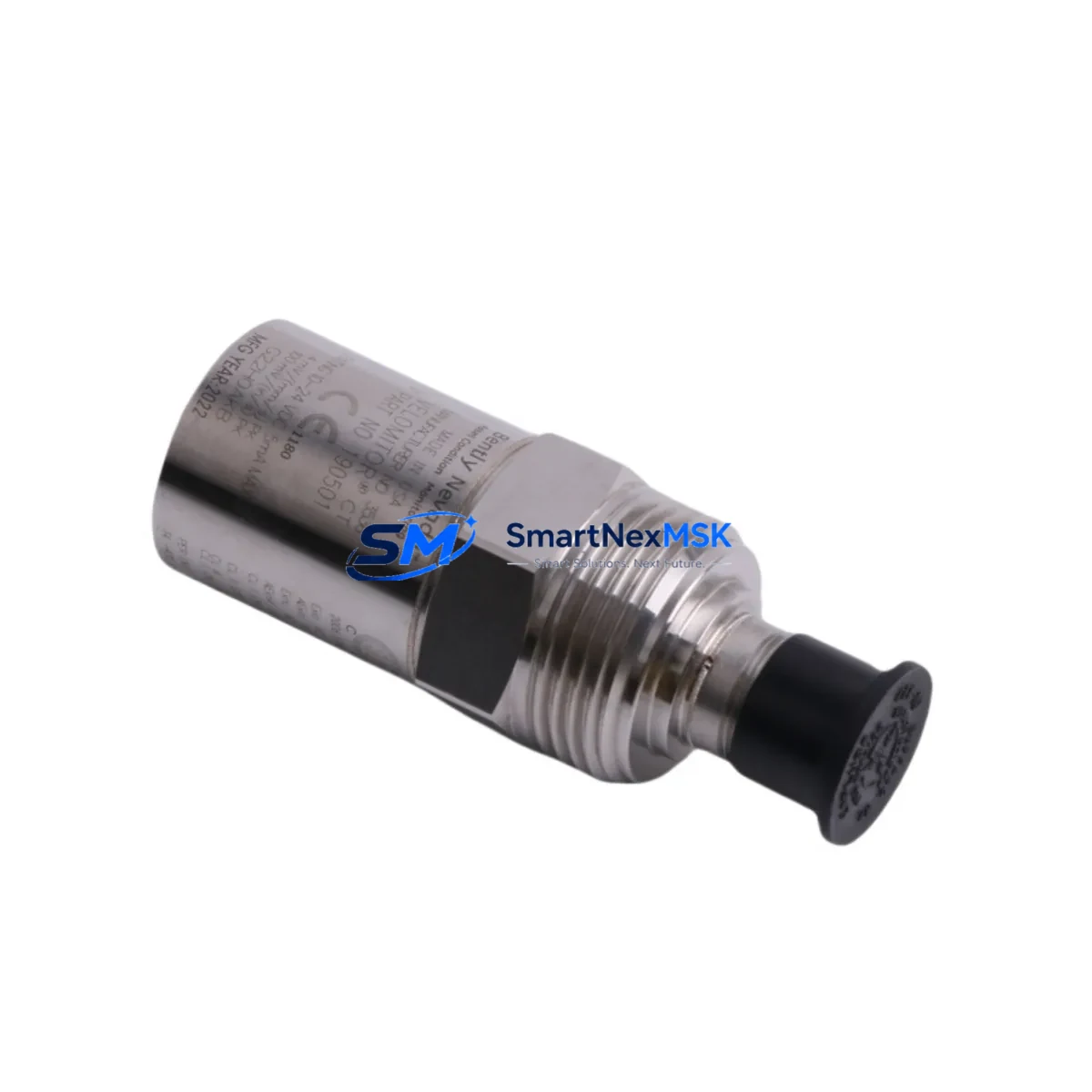

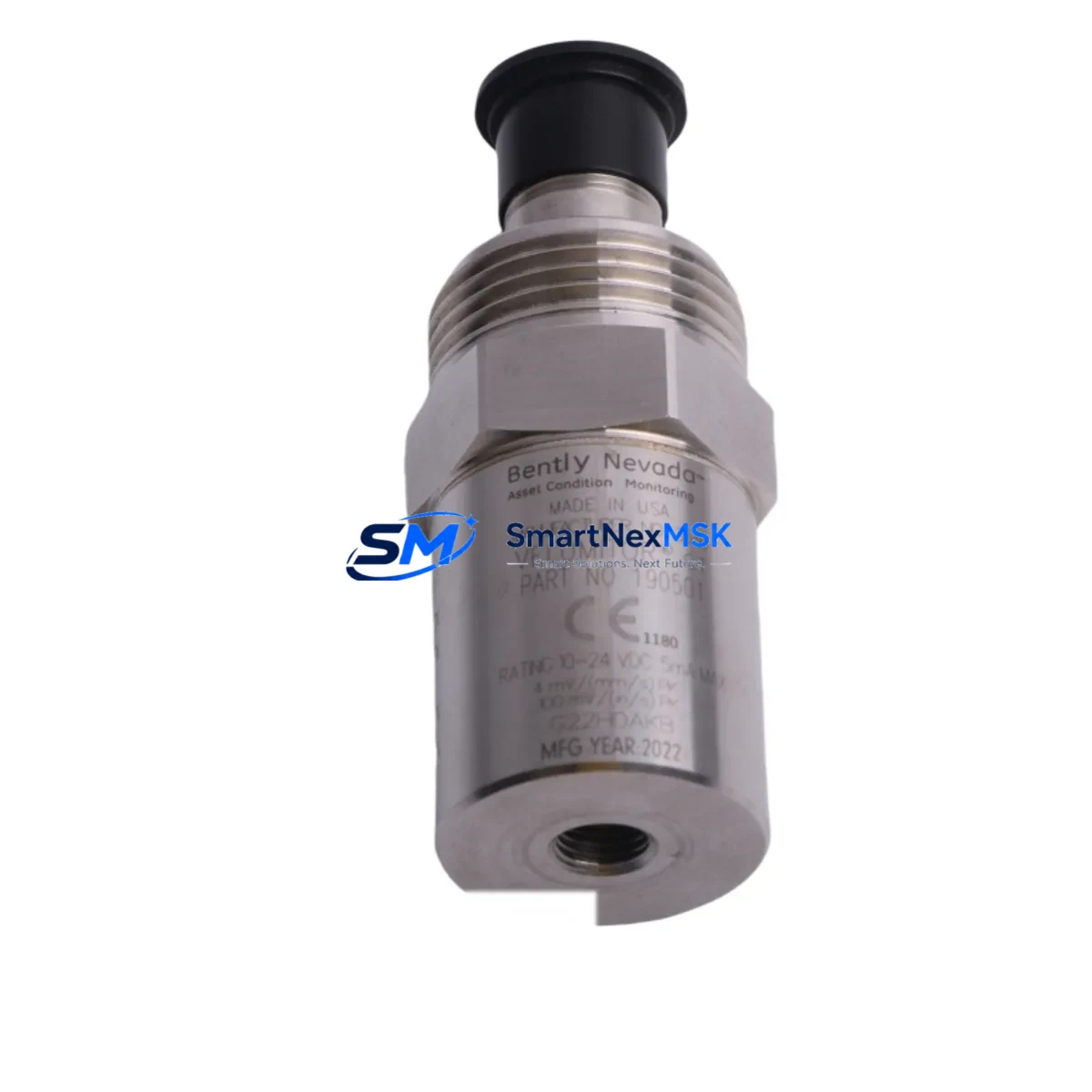

Bently Nevada 190501-19-00-CN Safety-Enhanced Seismic Velocity Transducer for Harsh Industrial Sites
The Bently Nevada 190501-19-00-CN Velomitor CT Ruggedized Seismic Velocity Transducer is engineered for continuous, mission-critical vibration monitoring in the most demanding industrial environments. Designed to operate reliably under high mechanical load, intense electromagnetic interference, and extreme ambient conditions, this module plays a central role in protecting rotating machinery, critical control loops, and safety interlock systems across heavy industry sectors.
In petrochemical plants, power generation facilities, mining operations, and metallurgical processing lines, undetected vibration anomalies can escalate rapidly into catastrophic equipment failures, unplanned shutdowns, and serious safety incidents. The 190501-19-00-CN addresses this risk directly by delivering accurate, low-noise velocity signals to the Bently Nevada 3500 Series monitoring rack — enabling real-time alarm and trip decisions that protect both personnel and assets.
Its ruggedized stainless-steel housing and hermetically sealed construction make it resistant to moisture ingress, chemical exposure, and mechanical shock — conditions routinely encountered in offshore platforms, water treatment facilities, and continuous casting lines. The transducer’s wide operating temperature range and robust cable assembly ensure signal integrity is maintained even when installed in confined, high-vibration control cabinets or exposed field junction boxes.
Safety Reliability Table
| Parameter | Specification |
|---|---|
| Model / SKU | Bently Nevada 190501-19-00-CN |
| Series | Velomitor CT (Ruggedized) |
| Sensor Type | Seismic Velocity Transducer (Piezoelectric) |
| Measurement Range | 0–50 in/s (0–1270 mm/s) peak |
| Frequency Response | 4.5 Hz – 1000 Hz (±3 dB) |
| Output Sensitivity | 100 mV/in/s (4 mV/mm/s) |
| Operating Temperature | –40°C to +121°C (–40°F to +250°F) |
| Housing Material | 316 Stainless Steel (Ruggedized) |
| Ingress Protection | IP67 (Hermetically Sealed) |
| EMI/RFI Resistance | High — shielded cable, low-impedance output |
| Connector / Cable | Integral armored cable with MIL-spec connector |
| Compatible Monitoring System | Bently Nevada 3500 Series Rack |
| Country of Origin | United States |
| Warranty | 12 Months — covers defects in materials and workmanship |
| Pre-shipment Testing | Full functional and signal output verification |
| Availability | In Stock — ready for immediate dispatch |
Control Cabinet Protection Strategy
Effective machinery protection in heavy industry is never the result of a single component — it depends on a coordinated architecture of sensing, conditioning, monitoring, and tripping elements working in concert. The Bently Nevada 190501-19-00-CN is typically deployed as part of a broader protection strategy centered on the Bently Nevada 3500/42M Proximitor/Seismic Monitor module, which processes velocity and proximity signals simultaneously to provide comprehensive shaft and casing vibration coverage.
Within the same 3500 Series rack, the 3500/15 Power Supply provides conditioned, redundant DC power to all I/O modules, eliminating the risk of power-induced false trips or module resets during grid disturbances. Surge protection at the field terminal level — typically achieved with MTL or Phoenix Contact surge arrestors on signal lines — prevents transient overvoltage events from corrupting velocity readings or damaging transducer electronics.
For installations requiring proximity-based shaft displacement monitoring alongside seismic velocity, the Bently Nevada 3300 XL 8mm Proximity Transducer System (including driver and extension cable) is commonly installed in the same control cabinet, sharing the same rack infrastructure and alarm management logic. In safety-instrumented systems (SIS) where IEC 61511 compliance is required, the velocity trip output from the 190501-19-00-CN feeds directly into a Triconex or Rockwell GuardLogix Safety PLC input card, forming part of a certified safety interlock loop.
Communication integrity between the 3500 rack and the plant DCS — often a Honeywell Experion PKS or Emerson DeltaV system — is maintained via Modbus TCP or FOUNDATION Fieldbus, with the Bently Nevada 3500/92 Communication Gateway serving as the protocol bridge. Proper grounding of the transducer cable shield at a single point, combined with the use of Belden 9501 or equivalent shielded instrumentation cable, is essential to suppress ground loop interference in high-noise environments such as motor control centers and variable frequency drive (VFD) enclosures.
Critical Industrial Safety Applications
Petrochemical & Refinery: In compressor trains and centrifugal pump skids operating continuously in hazardous classified areas, the 190501-19-00-CN provides the velocity signal required to detect bearing degradation, rotor imbalance, and structural resonance before they escalate to seal failure or fire risk. Its IP67 rating and stainless housing withstand hydrocarbon vapor exposure and high-pressure wash-down cycles.
Power Generation: Steam turbine and gas turbine installations demand sub-millisecond trip response when casing vibration exceeds alarm thresholds. Integrated with the 3500/42M monitor, this transducer enables the protection system to issue a turbine trip signal within the required response time, preventing blade contact and catastrophic rotor damage.
Mining & Mineral Processing: Ball mills, SAG mills, and crusher drives operate under extreme mechanical shock and dust loading. The ruggedized construction of the 190501-19-00-CN ensures continuous signal output even when subjected to the high-amplitude, broadband vibration characteristic of these machines, supporting predictive maintenance programs that reduce unplanned downtime.
Water & Wastewater Treatment: Pump stations and blower facilities in water infrastructure require reliable, low-maintenance vibration monitoring. The hermetically sealed design prevents moisture and chemical ingress in humid, corrosive environments, ensuring long service life without recalibration.
Metallurgy & Continuous Casting: In rolling mills and continuous casters, thermal cycling and mechanical vibration are severe. The wide operating temperature range of the 190501-19-00-CN makes it suitable for installation near hot sections of the process line, where standard transducers would fail prematurely.
Port & Heavy Lifting Equipment: Crane drives, conveyor systems, and ship-loader gearboxes benefit from seismic velocity monitoring to detect gear mesh anomalies and bearing wear, enabling condition-based maintenance scheduling that avoids costly port shutdowns.
Safety and Quality FAQ
Q1: What does the 12-month warranty cover for the Bently Nevada 190501-19-00-CN?
The 12-month warranty covers all defects in materials and workmanship from the date of shipment. If the unit fails under normal operating conditions within the warranty period, we will provide a replacement or full repair at no additional cost. Warranty claims are processed promptly to minimize your site downtime.
Q2: What pre-shipment testing is performed on each unit?
Every 190501-19-00-CN undergoes a full functional verification prior to dispatch, including signal output sensitivity check, frequency response validation, insulation resistance test, and connector integrity inspection. A test report is available upon request. Units are shipped in anti-static, shock-protected packaging to prevent transit damage.
Q3: Is this transducer compatible with existing Bently Nevada 3500 Series racks and legacy 7200 Series systems?
Yes. The 190501-19-00-CN is fully compatible with the Bently Nevada 3500/42M Proximitor/Seismic Monitor and is also backward-compatible with legacy 7200 Series monitor inputs that accept a velocity transducer signal. No additional signal conditioning is required for standard rack installations.
Q4: Can long-term supply and spare parts availability be guaranteed?
We maintain dedicated stock of the 190501-19-00-CN and related Velomitor CT series components to support ongoing spare parts programs and emergency replacement requirements. For customers with planned maintenance schedules or multi-unit projects, we offer reserved stock arrangements and priority dispatch to ensure supply continuity without lead-time risk.
