Bently Nevada 190501-20-00-01 Maintenance-Ready Spare Velomitor CT

Bently Nevada 190501-20-00-01 Maintenance-Ready Spare Velomitor CT

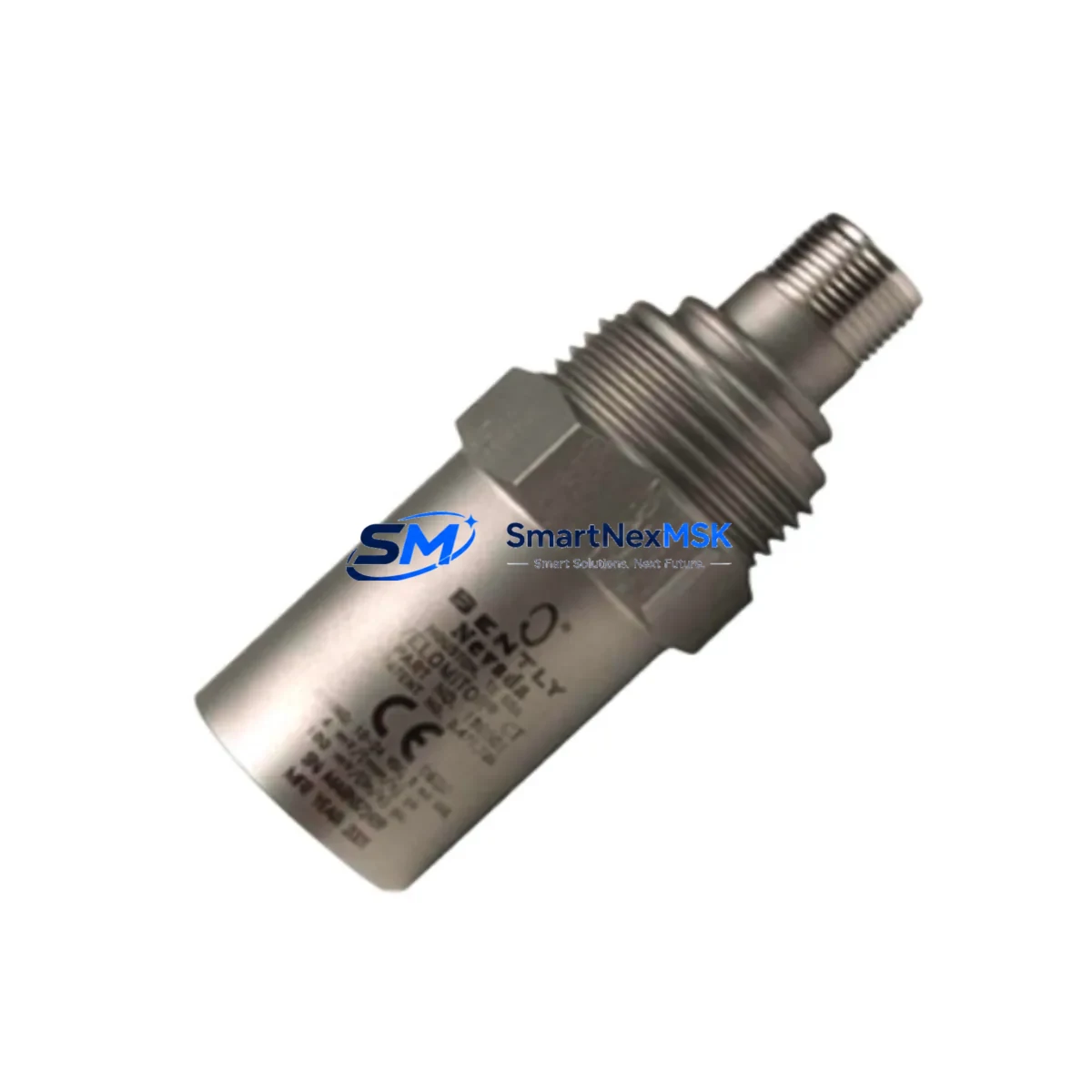

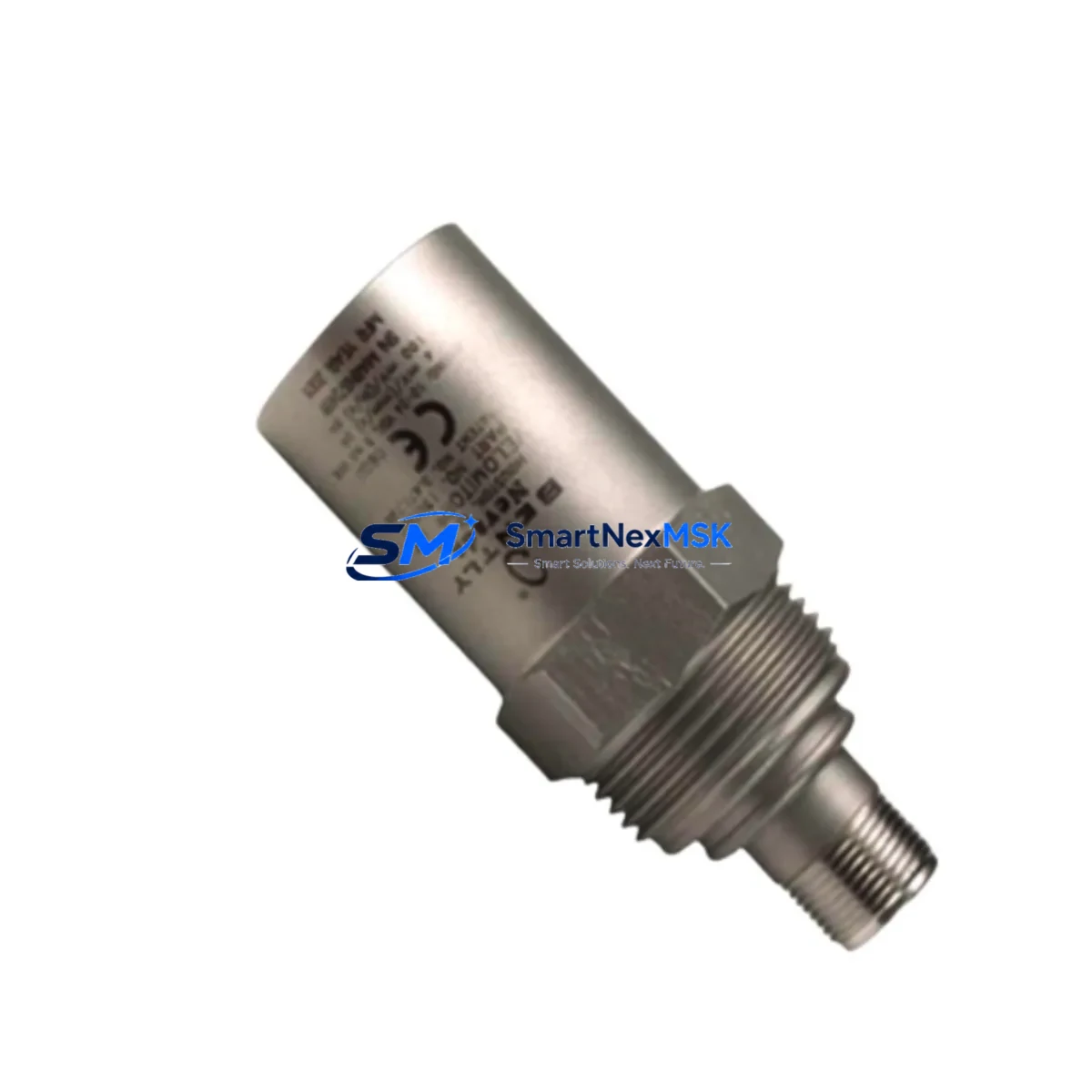

The Bently Nevada 190501-20-00-01 is a Velomitor CT piezoelectric velocity transducer engineered for continuous vibration monitoring in rotating machinery applications. As a maintenance-ready original spare, this unit is designed to support rapid field replacement in turbines, compressors, pumps, motors, and gearboxes where unplanned downtime carries significant operational and financial risk. Every unit is tested prior to shipment and backed by a 12-month warranty, ensuring your maintenance team can deploy with confidence.

For maintenance engineers managing aging Bently Nevada 3500 Series monitoring systems, the 190501-20-00-01 provides a direct, specification-matched replacement that eliminates compatibility guesswork. Its piezoelectric sensing element delivers accurate velocity output across a wide frequency range, making it suitable for both routine condition monitoring and emergency fault isolation. Procurement engineers will appreciate the long-term supply commitment and consistent availability from our industrial spare parts inventory.

Whether you are executing a planned shutdown inspection, responding to a high-vibration alarm, or building a strategic spare parts buffer for a critical asset, the 190501-20-00-01 is a proven, field-validated component that integrates directly into existing Bently Nevada monitoring architectures without modification.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 190501-20-00-01 Velomitor CT transducer during a scheduled or emergency maintenance event, a thorough inspection of the surrounding monitoring loop is essential to prevent repeat failures and ensure measurement integrity. Maintenance engineers should begin by verifying the condition of the Bently Nevada 3500/42M Proximitor / Seismic Monitor module, which processes the velocity signal from this transducer — a degraded monitor card can produce false readings even with a new sensor installed.

Inspect the transducer extension cable (typically a Bently Nevada 330130 or equivalent armored cable) for insulation damage, connector corrosion, or shield continuity failures, as cable faults are a leading cause of spurious vibration alarms. The 3500/15 Power Supply module feeding the monitoring rack should be checked for output voltage stability; an under-voltage condition can affect transducer sensitivity and signal quality.

For systems using 3500/20 Rack Interface Modules or 3500/22M Transient Data Interface cards, confirm that firmware and configuration parameters remain consistent after the transducer swap. If the control cabinet also houses signal isolators or barriers (such as MTL or P+F Zener barriers for hazardous area installations), verify their integrity as part of the same work order — these components degrade over time and can introduce signal offset errors.

Where the Velomitor CT feeds into a DCS or PLC I/O card (e.g., a 4–20 mA velocity transmitter interface), confirm the analog input channel scaling and alarm setpoints are correctly configured post-replacement. Terminal blocks and DIN rail-mounted relay modules within the same cabinet should be inspected for loose terminations, which are a common source of intermittent vibration signal faults. If the system includes a Bently Nevada 3500/93 Communication Gateway or Modbus/OPC interface, verify that the data path is re-established and trending data resumes correctly after the replacement is complete.

For facilities managing multiple rotating assets, maintaining a minimum buffer stock of the 190501-20-00-01 alongside compatible proximity probe systems (e.g., 3300 XL 8mm probes) and junction box assemblies is a recognized best practice for reducing mean time to repair (MTTR) on critical machinery trains.

Site Replacement Workflow

Step 1 — Isolation & Permit: Obtain a work permit and isolate the machinery. Do not remove the transducer under live vibration conditions. Confirm the 3500 monitor rack is in bypass or alarm inhibit mode to prevent spurious trips during the swap.

Step 2 — Remove the Faulty Unit: Disconnect the extension cable at the transducer connector. Unscrew the 190501-20-00-01 from its mounting stud, noting the orientation if directional mounting is required. Inspect the mounting surface for corrosion or thread damage.

Step 3 — Install the Replacement: Thread the new 190501-20-00-01 to the specified torque (refer to Bently Nevada installation drawing). Reconnect the extension cable, ensuring the connector is fully seated and the locking ring is engaged. Apply anti-corrosion compound to exposed connector threads in outdoor or high-humidity environments.

Step 4 — Signal Verification: Restore power to the monitoring rack. Using the 3500 rack display or a handheld calibrator, verify that the velocity output is within the expected baseline range for the machine at normal operating speed. Compare against historical trend data to confirm the replacement is performing correctly.

Step 5 — Documentation: Record the replacement in the CMMS (e.g., SAP PM or Maximo), update the spare parts inventory, and note the new unit’s serial number for warranty tracking. Schedule the next inspection interval per your predictive maintenance program.

This workflow minimizes downtime, maintains system compatibility, and ensures the replaced 190501-20-00-01 is fully operational before the machine is returned to service — typically achievable within a single shift for a prepared maintenance team.

Spare Parts Support FAQ

Q1: Is the 190501-20-00-01 a direct drop-in replacement for older Velomitor CT units?
Yes. The 190501-20-00-01 maintains the same mechanical interface, connector pinout, and electrical output characteristics as previous Velomitor CT variants, making it a direct replacement without wiring or configuration changes in standard Bently Nevada 3500 Series installations. Always verify the mounting thread specification and cable connector type against your existing installation drawing before ordering.

Q2: How is the unit tested before shipment?
Every 190501-20-00-01 unit undergoes electrical continuity, insulation resistance, and output sensitivity verification prior to dispatch. Units that do not meet Bently Nevada original specification thresholds are not shipped. A test report can be provided upon request for critical applications.

Q3: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects, electrical failures under normal operating conditions, and connector integrity. It does not cover damage resulting from incorrect installation, mechanical impact, or operation outside the specified temperature and vibration range. Warranty claims are processed with full replacement or repair at no additional cost.

Q4: Can you support long-term or blanket purchase orders for this spare?
Yes. For facilities managing multiple rotating assets or operating under a planned maintenance program, we support blanket PO arrangements, consignment stock agreements, and scheduled delivery programs to ensure the 190501-20-00-01 is available when needed without emergency procurement lead times. Contact our sales team to discuss inventory support options.
