Bently Nevada 190501-21-00-CN Spare for Velomitor CT Automation

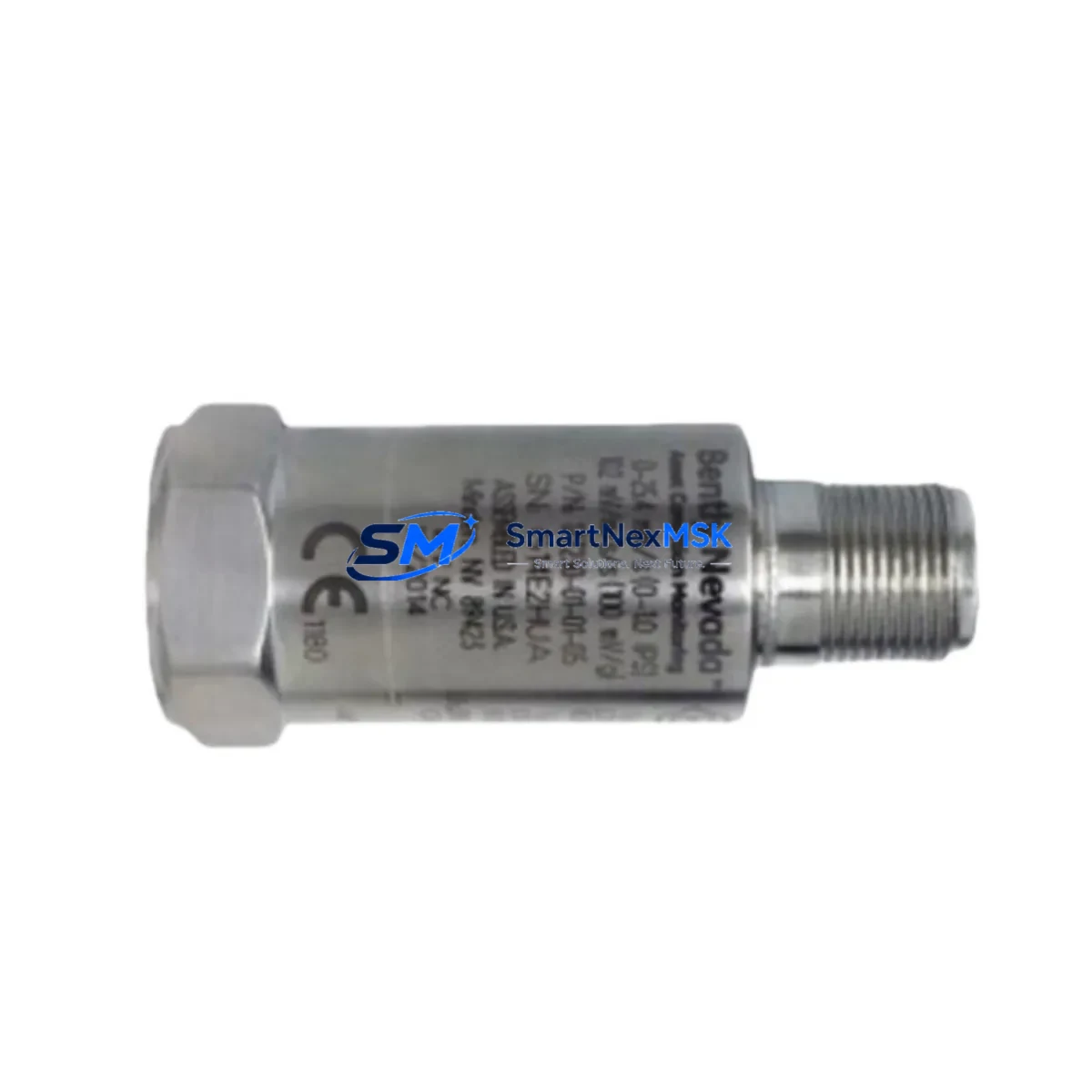

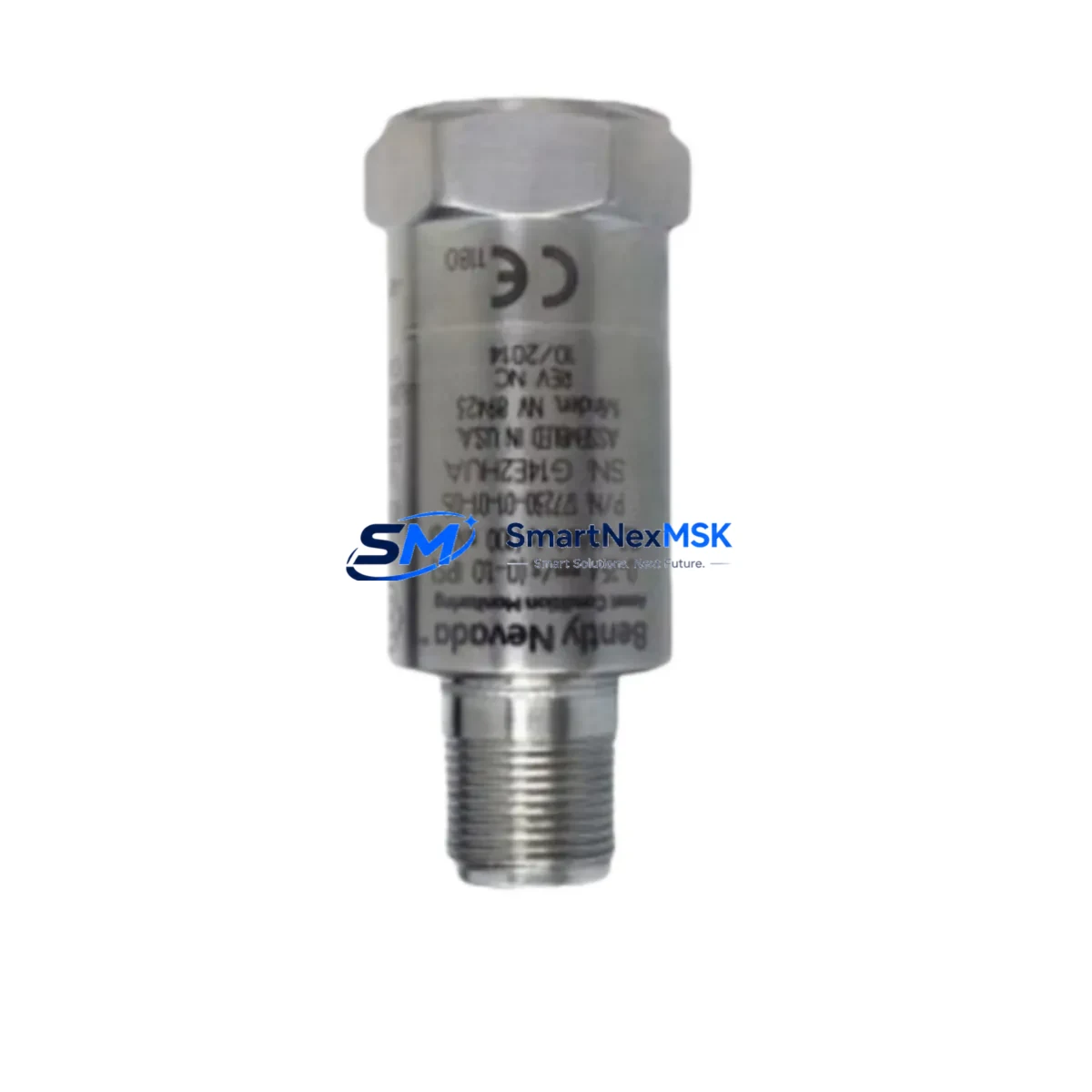

The Bently Nevada 190501-21-00-CN is an original piezoelectric velocity transducer from the Velomitor CT series, engineered for continuous vibration monitoring in rotating machinery and industrial automation systems. As a maintenance-ready spare, this unit is stocked, tested, and ready for immediate deployment to minimize unplanned downtime in critical plant operations. Whether you are managing a scheduled overhaul, responding to a vibration alarm, or building a strategic spare parts inventory for aging machinery protection systems, the 190501-21-00-CN delivers the signal fidelity and mechanical durability required in demanding industrial environments.
Maintenance engineers and procurement teams working with Bently Nevada 3500 Series machinery protection systems, ADRE 408 DSPi data acquisition platforms, or legacy 7200 Series monitoring racks will recognize the 190501-21-00-CN as a direct-fit replacement for worn or failed velocity transducers. Its broad frequency response and robust stainless-steel housing make it suitable for turbines, compressors, pumps, fans, and gearboxes operating in petrochemical, power generation, and heavy manufacturing facilities.
Spare Maintenance Table
| Parameter | Specification |
|---|---|
| Part Number | 190501-21-00-CN |
| Brand | Bently Nevada |
| Series | Velomitor CT |
| Type | Piezoelectric Velocity Transducer |
| Sensitivity | 100 mV/in/s (4 mV/mm/s) |
| Frequency Range | 2 Hz – 1,000 Hz (±3 dB) |
| Operating Temperature | -40°C to +121°C |
| Supply Voltage | 18–30 VDC (loop-powered) |
| Output Signal | 4–20 mA / Voltage (configurable) |
| Housing Material | 316L Stainless Steel |
| Connector | 2-pin MIL-C-5015 style |
| Mounting | 1/4-28 UNF threaded stud |
| IP Rating | IP67 |
| Compatibility | Bently Nevada 3500/42M, 3500/45, 7200 Series monitors |
| Application | Turbines, compressors, pumps, fans, gearboxes |
| Origin | USA |
| Condition | Original, new or tested-serviceable spare |
| Warranty | 12 Months |
| Lead Time | In stock – ships within 24–48 hours |
Maintenance Planning for Continuous Operation
When replacing the 190501-21-00-CN in the field, a thorough inspection of the surrounding monitoring loop is essential to prevent repeat failures and ensure measurement accuracy. Maintenance engineers should begin by verifying the integrity of the Velomitor CT interconnect cable — typically a shielded, low-capacitance coaxial cable such as the Bently Nevada 330130 series — checking for insulation breakdown, connector corrosion, or mechanical damage at the cable entry point.
The associated Bently Nevada 3500/42M Velocity Monitor or 3500/45 Position Monitor input card should be inspected for alarm setpoint drift, relay output status, and any latched fault conditions that may have been triggered by the failed transducer. If the monitor card shows signs of moisture ingress or terminal oxidation, consider replacing the 3500 rack I/O module as part of the same maintenance window to avoid a secondary callout.
Power supply integrity is equally critical. The 3500 rack’s power supply module — such as the 3500/15 or 3500/20 — should be load-tested to confirm stable 24 VDC output under full channel load. A marginal power supply can cause intermittent transducer dropouts that mimic sensor failure. Similarly, the Bently Nevada 3500/22M Transient Data Interface or 3500/32 relay module should be checked for proper termination and relay contact wear if the system has been in service for more than five years.
For systems integrated with a DCS or SCADA platform via a 3500/92 Communication Gateway or Modbus/TCP interface, verify that the channel mapping and engineering unit scaling are correctly restored after transducer replacement. Signal isolators or barriers — particularly Zener barriers used in hazardous area installations — should be tested for loop resistance compliance, as a degraded barrier can suppress the 4–20 mA output and cause false low-vibration readings.
Procurement engineers building a strategic spare parts kit for Velomitor CT-based monitoring systems should consider stocking the 190501-21-00-CN alongside the 330130-040-00-00 interconnect cable assembly, a spare 3500/42M monitor card, a set of 3500 rack terminal blocks, and at least one 3500/15 power supply module. For older 7200 Series installations, the 7200/20-00-00 proximitor power supply and 7200/14-02-00 monitor module are common companion spares that share the same maintenance cycle.
Site Replacement Workflow
Replacing the 190501-21-00-CN on-site follows a structured sequence designed to minimize machinery downtime and eliminate re-work. Begin by isolating the monitoring channel at the 3500 rack — place the affected channel in bypass mode to prevent spurious shutdown trips during the swap. Disconnect the Velomitor CT cable at the junction box, noting the cable shield grounding arrangement, and remove the transducer from its mounting stud using the correct torque specification (typically 5–7 Nm for 1/4-28 UNF).
Before installing the replacement 190501-21-00-CN, inspect the mounting surface for flatness and cleanliness, and apply a thin layer of anti-seize compound to the stud threads. Reconnect the cable, verify shield continuity to the rack ground bus, and restore the channel from bypass. Perform a static sensitivity check using a calibrated reference signal or the Bently Nevada ADRE 408 portable analyzer to confirm the transducer output matches the expected mV/in/s sensitivity before returning the machine to service.
This workflow is equally applicable when upgrading from legacy Bently Nevada 9200 Series velocity transducers or third-party equivalents, as the 190501-21-00-CN’s standardized output and mounting dimensions allow direct substitution without rack reconfiguration in most installations. Documenting the as-found and as-left vibration baseline readings in the plant CMMS ensures traceability and supports future predictive maintenance trending.
Spare Parts Support FAQ
Q1: Is the 190501-21-00-CN compatible with both 3500 Series and 7200 Series Bently Nevada monitors?
Yes. The 190501-21-00-CN Velomitor CT is designed for use with Bently Nevada 3500/42M and 3500/45 monitor cards and is also compatible with 7200 Series velocity monitor inputs. Always verify the input impedance and supply voltage requirements of your specific monitor card against the transducer datasheet before installation.
Q2: What is included in the 12-month warranty, and how does it apply to spare parts?
All 190501-21-00-CN units supplied by SMARTNEXMSK carry a 12-month warranty covering manufacturing defects and functional failure under normal operating conditions. Each unit undergoes pre-shipment functional testing. Warranty claims are supported by our technical team with replacement or repair at no additional cost within the warranty period.
Q3: How quickly can the 190501-21-00-CN be shipped for emergency maintenance situations?
In-stock units are dispatched within 24–48 hours of order confirmation. For critical plant shutdowns, expedited air freight options are available to most global destinations. Contact [email protected] or call +86 18259474341 to confirm stock availability and arrange emergency logistics.
Q4: How should I verify compatibility before installing a replacement Velomitor CT transducer?
Confirm the monitor card model and channel configuration in your 3500 rack documentation. Check that the cable assembly part number matches the approved Bently Nevada interconnect specification for your installation distance and hazardous area classification. If upgrading from a different transducer model, verify that the sensitivity (mV/in/s) and frequency range are within the monitor card’s accepted input range before energizing the channel.
