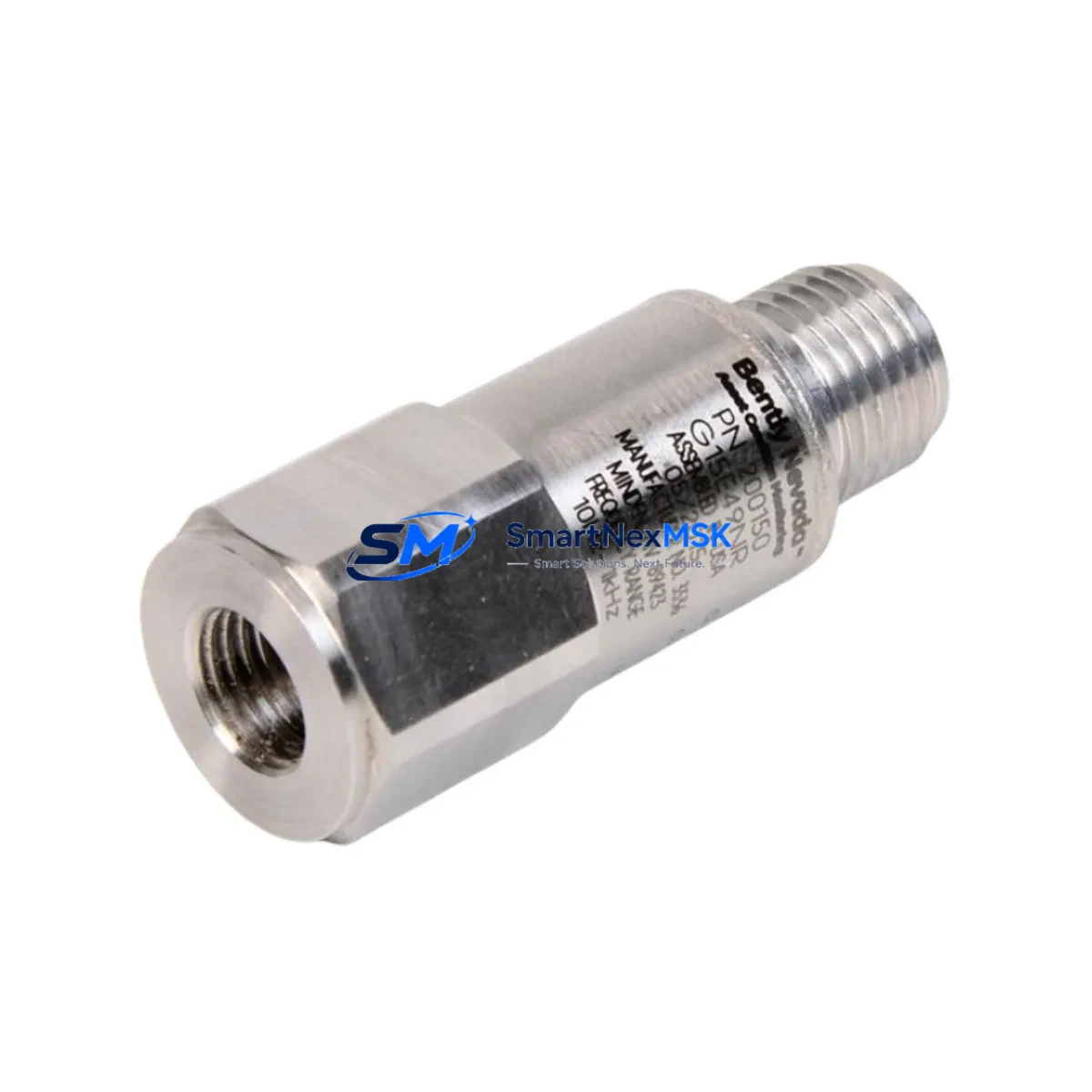

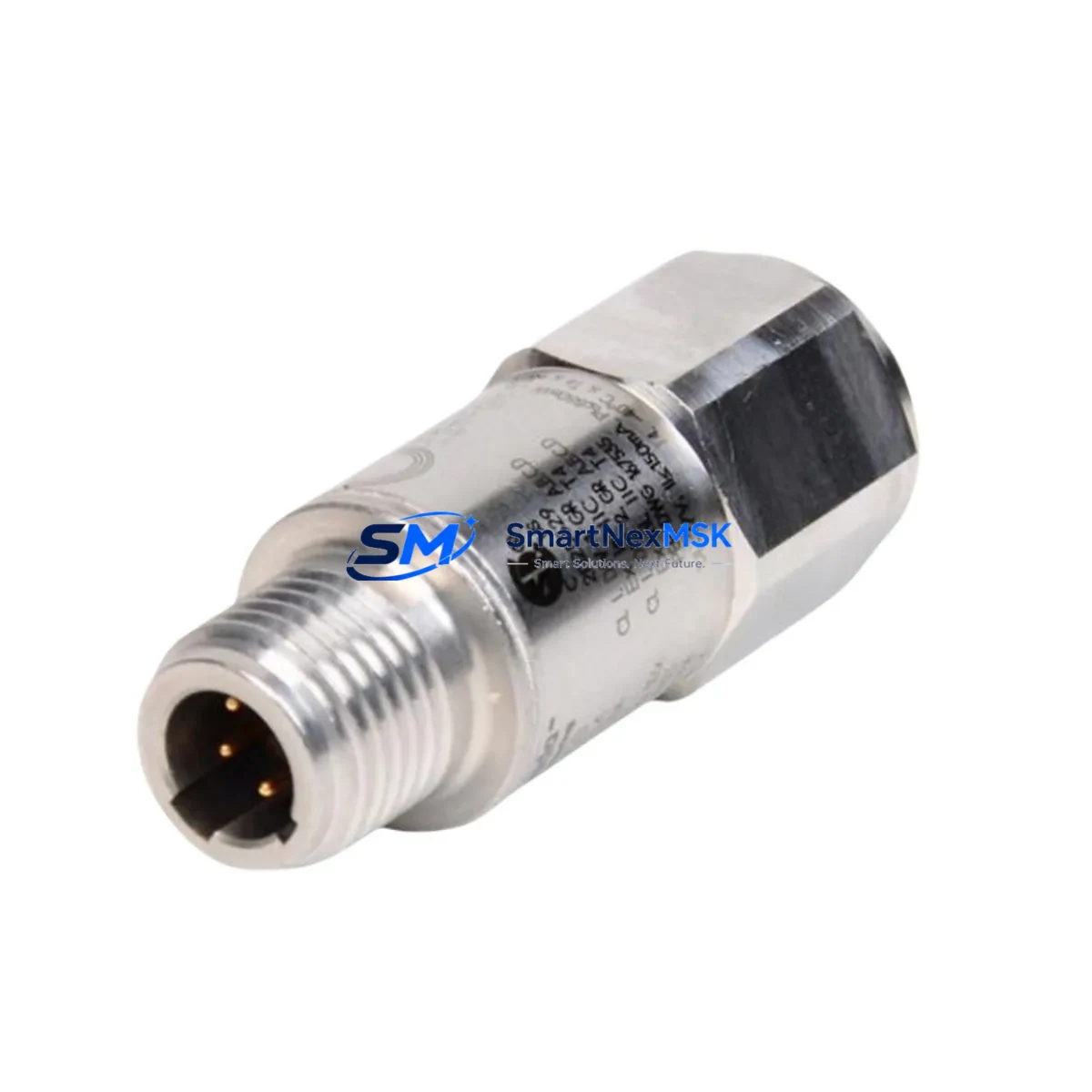

Bently Nevada 200155-03-05 Retrofit-Ready Accelerometer for Trendmaster Pro Control Systems
The Bently Nevada 200155-03-05 is a low frequency accelerometer engineered for seamless integration into existing Trendmaster Pro condition monitoring systems. As legacy machinery protection infrastructure ages and OEM support windows close, plant engineers and reliability teams increasingly require a verified, drop-in replacement that preserves signal fidelity, maintains wiring compatibility, and eliminates the need for full-system overhauls. The 200155-03-05 addresses exactly this need — delivering a retrofit-ready solution for rotating equipment monitoring across turbines, compressors, pumps, and gearboxes.
Whether you are replacing a failed unit on a critical asset, upgrading a brownfield control cabinet, or consolidating spare parts inventory ahead of a planned outage, the 200155-03-05 is stocked and ready for immediate dispatch with full functional testing completed prior to shipment.
Upgrade Compatibility Table
| Parameter | Details |
|---|---|
| Compatible Platform | Bently Nevada Trendmaster Pro |
| Replaces / Supersedes | 200155-03-05 (direct replacement) |
| Sensor Type | Low Frequency Accelerometer |
| Mounting Interface | Standard Trendmaster Pro transducer port |
| Signal Output | Compatible with Trendmaster Pro I/O cards and data managers |
| Communication Compatibility | Trendmaster Pro TDIX / TDIM data manager bus |
| Wiring / Connector | Matches OEM pinout; no rewiring required |
| Installation Requirement | Standard mounting hardware; verify torque spec per OEM manual |
| Retrofit Recommendation | Direct swap; confirm channel address in Trendmaster Pro software |
| Commissioning Notes | Verify sensitivity scaling in System 1 or Trendmaster Pro configuration tool |
| Warranty | 12 Months from date of shipment |
Retrofit Planning for Existing Automation Systems
Successful integration of the 200155-03-05 into a live Trendmaster Pro installation requires a structured approach that accounts for both hardware and software dependencies. Before removing the failed or end-of-life sensor, engineers should document the existing channel configuration within the Trendmaster Pro data manager — typically a TDIX or TDIM module — including the assigned channel number, measurement point tag, alarm setpoints, and sensitivity value stored in the system database.
On the hardware side, the 200155-03-05 connects to the Trendmaster Pro transducer interface using the standard OEM connector and cable assembly. In most retrofit scenarios, the existing field cable can be reused without modification, significantly reducing installation time. However, if the cable run has been exposed to mechanical damage or chemical contamination, replacement with a compatible shielded cable is recommended to preserve signal integrity at low frequencies.
Within the control cabinet, the Trendmaster Pro rack typically houses a combination of I/O cards, power supply modules, and the central data manager. When replacing a sensor on a channel served by a Trendmaster Pro I/O card, it is advisable to verify that the card firmware is current and that no latent faults are logged against that channel prior to commissioning the new sensor. In some installations, the rack also accommodates a 3500/22M transient data interface or a 3500/42M proximitor monitor alongside the Trendmaster Pro modules — these adjacent modules should remain undisturbed during the swap.
For plants running Bently Nevada System 1 software as the condition monitoring front-end, the 200155-03-05 replacement will appear on the same measurement point after the channel is re-enabled. Sensitivity calibration data should be entered or confirmed in the System 1 point configuration screen. If the site uses an older Trendmaster Pro standalone display or a third-party DCS integration via Modbus or OPC, the communication link should be verified post-installation to confirm that live data is flowing correctly to the historian or control room HMI.
In multi-rack installations, where a single Trendmaster Pro system monitors dozens of measurement points across multiple equipment trains, it is good practice to stage the replacement during a scheduled maintenance window. Having a Bently Nevada 3500/15 power supply module and a spare TDIX data manager card on hand as contingency spares can prevent extended downtime if adjacent hardware issues are discovered during the swap. Similarly, keeping a Bently Nevada 3500/25 keyphasor module accessible ensures that phase reference signals remain intact throughout the retrofit process.
For sites transitioning from Trendmaster Pro to the newer Bently Nevada System 1 Evolution platform, the 200155-03-05 can serve as an interim sensor during the phased migration, maintaining continuous vibration monitoring on legacy equipment while new monitoring hardware is installed on priority assets. This approach allows engineering teams to validate the new platform in parallel without exposing critical machinery to unmonitored periods.
Downtime Control During System Migration
Minimizing unplanned downtime is the primary concern for any maintenance team executing a sensor replacement on a live production asset. The 200155-03-05 retrofit process is designed to support a rapid swap with no requirement for program re-compilation or PLC logic modification, since the Trendmaster Pro system treats the replacement sensor as a transparent hardware substitution on the existing channel.
To protect the original measurement configuration, export the full Trendmaster Pro channel database before beginning physical work. This backup preserves all alarm thresholds, sensitivity values, measurement point tags, and historical trend baselines. If the replacement is being performed under time pressure — for example, during an unplanned outage — this export step takes less than five minutes and provides a complete recovery point if any configuration discrepancy is discovered during commissioning.
During the physical swap, the Trendmaster Pro channel can be placed in bypass mode to suppress nuisance alarms at the DCS or control room level while the sensor is disconnected. Once the 200155-03-05 is installed and the connector is secured, the channel is re-enabled and a live signal check is performed against the expected baseline. For rotating equipment, a brief run-up to operating speed confirms that the vibration signature is within normal parameters before the bypass is lifted and the measurement point is returned to active monitoring.
Field commissioning typically requires a laptop running the Trendmaster Pro configuration utility or System 1 software, a calibrated reference signal source for sensitivity verification, and the OEM wiring diagram for the specific equipment train. With these tools on hand, the complete replacement cycle — from sensor removal to verified live monitoring — can be completed within a single shift, keeping production impact to a minimum.
Retrofit Support FAQ
Q: Is the 200155-03-05 a direct drop-in replacement for the original Bently Nevada unit?
A: Yes. The 200155-03-05 is a direct replacement that matches the OEM connector, mounting interface, and signal output specifications of the original Trendmaster Pro low frequency accelerometer. No wiring modifications or software reconfiguration are required beyond confirming the channel sensitivity value in the Trendmaster Pro database.
Q: What commissioning steps are required after installation?
A: After physical installation, re-enable the channel in the Trendmaster Pro data manager, verify the sensitivity scaling in the system configuration tool, and confirm live signal output against the expected baseline. If the site uses System 1 software, check the measurement point configuration screen to ensure the new sensor data is populating correctly. A brief operational run is recommended to validate the vibration signature before returning the point to active alarm monitoring.
Q: How is wiring compatibility confirmed before ordering?
A: The 200155-03-05 uses the standard Trendmaster Pro transducer connector and pinout. Customers should confirm the cable assembly part number and connector type on the existing installation. In the majority of Trendmaster Pro deployments, the existing field cable is fully reusable. If there is any uncertainty, our technical team can assist with connector and cable compatibility verification prior to shipment.
Q: What does the 12-month warranty cover, and is pre-shipment testing performed?
A: Every 200155-03-05 unit undergoes functional testing prior to dispatch to verify signal output, connector integrity, and mechanical condition. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions from the date of shipment. Warranty claims are supported by our technical team with rapid response and replacement dispatch to minimize asset downtime.
