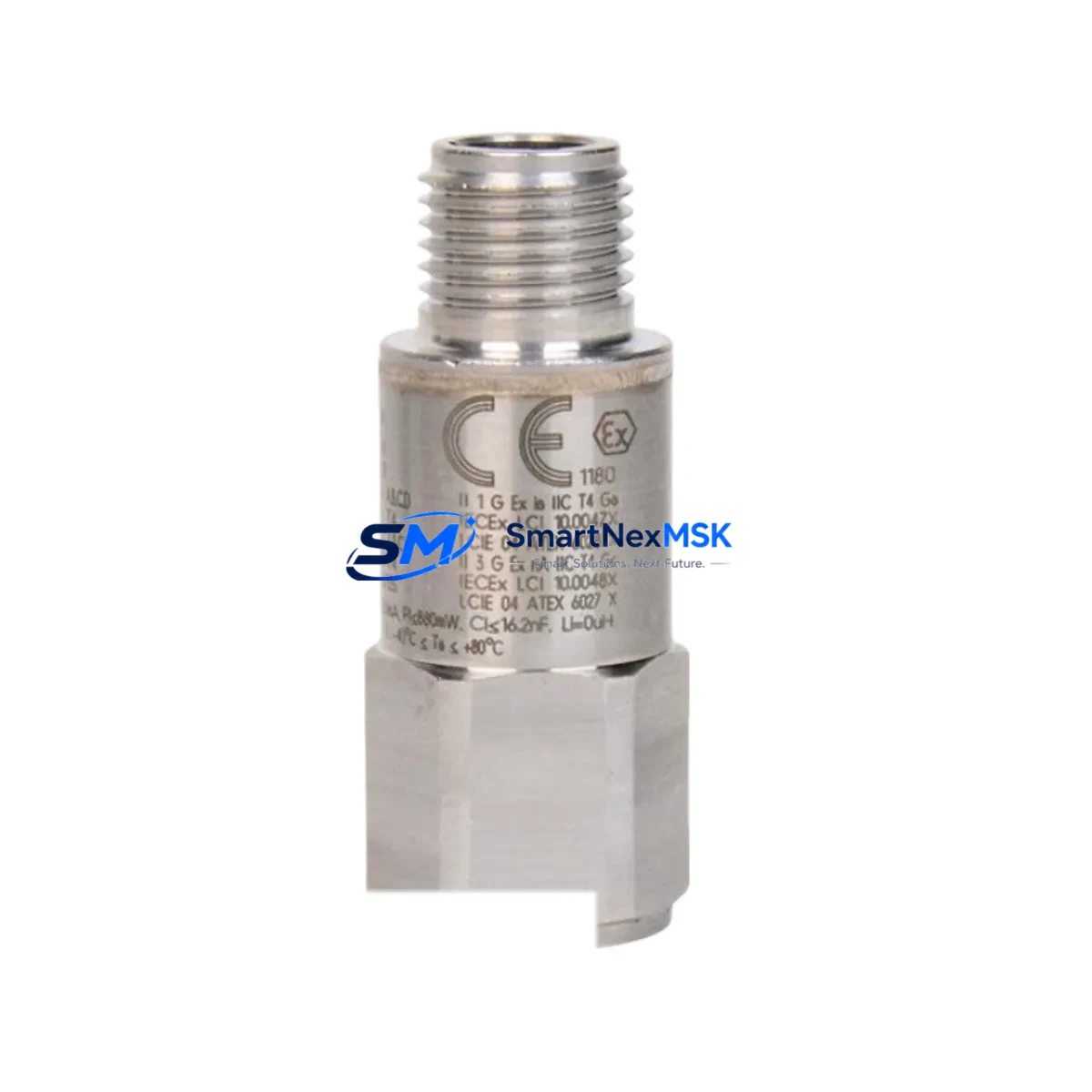

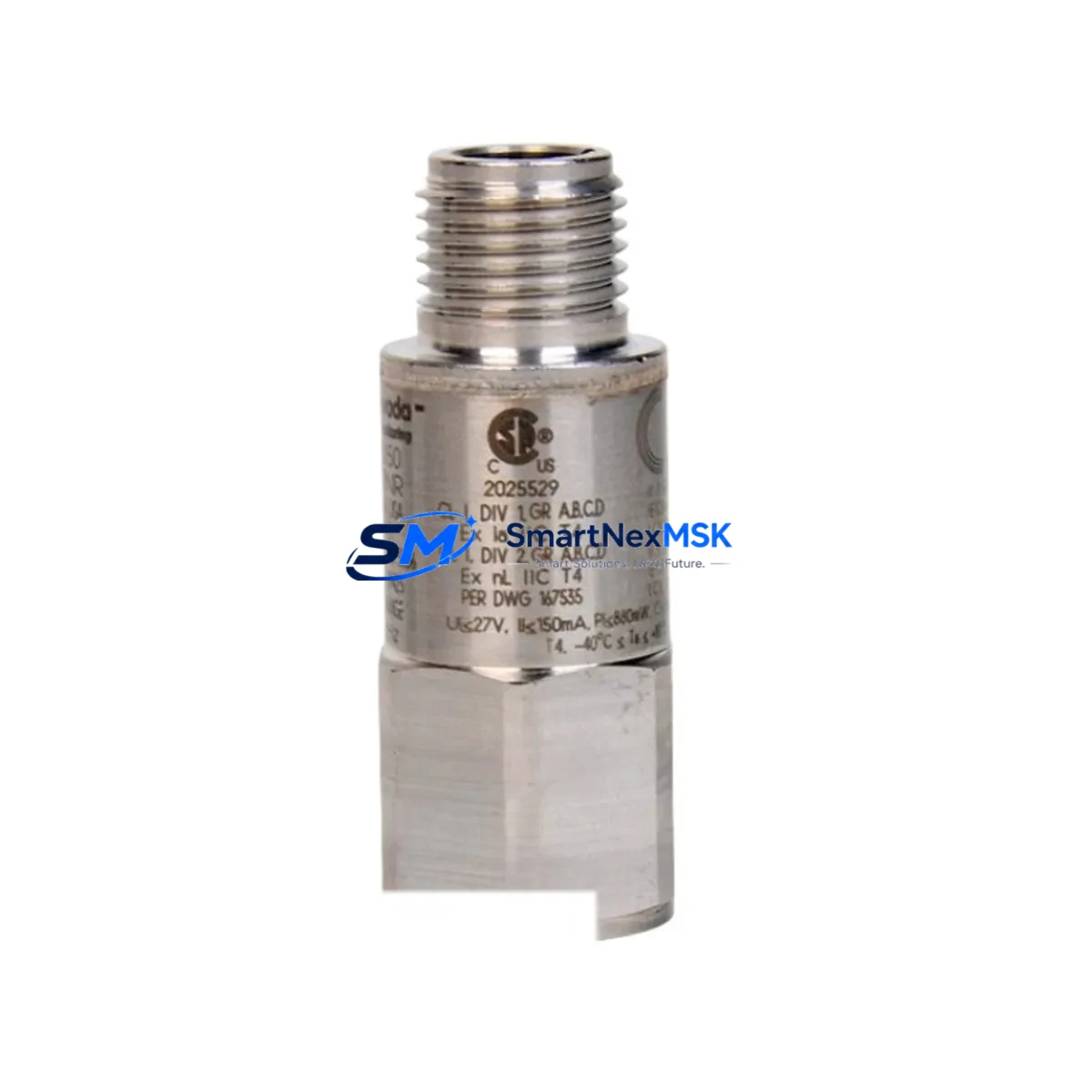

Bently Nevada 200155-14-05 Retrofit-Ready Accelerometer for Trendmaster Pro Control Systems
The Bently Nevada 200155-14-05 is a low-frequency accelerometer engineered for seamless integration into legacy Trendmaster Pro continuous monitoring systems. As aging vibration monitoring infrastructure reaches end-of-life, plant engineers and reliability teams face the challenge of sourcing compatible replacement sensors without triggering full-system overhauls. This module addresses that challenge directly — offering a verified drop-in retrofit solution that preserves existing wiring topology, signal conditioning chains, and data acquisition configurations.
Whether you are replacing a failed unit on a critical rotating machine, upgrading a brownfield monitoring network, or consolidating spare parts inventory ahead of a planned outage, the 200155-14-05 delivers the dimensional compatibility, connector pinout alignment, and frequency response characteristics required to restore system integrity with minimal engineering rework. The sensor is compatible with the Trendmaster Pro 2300/20 Smart I/O Module and interfaces directly with the Trendmaster Pro Data Manager over the existing field wiring infrastructure.
Before installation, engineers should verify the following parameters against the existing system documentation: sensor supply voltage (typically 18–30 VDC from the I/O module), output signal range (4–20 mA or voltage output depending on configuration), cable shield grounding scheme, and the measurement range setting programmed in the associated Trendmaster Pro Configuration Software. Incorrect range settings will result in clipped or saturated output signals that may not trigger alarms correctly in the System 1 Condition Monitoring Software historian.
Upgrade Compatibility Table
| Parameter | Details |
|---|---|
| SKU / Part Number | 200155-14-05 |
| Brand / OEM | Bently Nevada |
| Series | Trendmaster Pro |
| Sensor Type | Low-Frequency Accelerometer |
| Compatible I/O Module | Trendmaster Pro 2300/20 Smart I/O Module |
| Interface / Protocol | Analog (4–20 mA / Voltage), proprietary Trendmaster bus |
| Mounting | Stud-mount or adhesive pad (per installation standard) |
| Connector Compatibility | Drop-in pinout match to original 200155 series |
| Replacement Recommendation | Direct replacement for discontinued 200155-14-05 units |
| Commissioning Note | Verify measurement range and alarm setpoints in Trendmaster Pro Config Software post-installation |
| Warranty | 12 Months |
| Origin | China (CN) |
Retrofit Planning for Existing Automation Systems
Retrofitting a Trendmaster Pro monitoring network requires a structured approach to avoid introducing measurement gaps or alarm blind spots during the transition. The 200155-14-05 accelerometer is typically deployed alongside the Trendmaster Pro 2300/16 Wiring I/O Module, which provides the terminal block interface for field sensor cables. When replacing sensors in a multi-channel rack, it is advisable to document the existing channel-to-machine mapping in the Trendmaster Pro Data Manager before disconnecting any field wiring.
Power budget verification is a critical pre-retrofit step. The Trendmaster Pro Power Supply Module (typically the 2300/50 series) must have sufficient headroom to support the replacement sensor’s quiescent current draw. In systems where multiple I/O modules share a common backplane, adding or replacing sensors without checking the aggregate load can cause intermittent supply voltage sag, leading to erratic sensor output and false alarm conditions.
For sites migrating from older Bently Nevada 3300 Series proximity probes or 7200 Series accelerometers to the Trendmaster Pro platform, the 200155-14-05 represents a forward-compatible sensor choice that aligns with the Trendmaster Pro’s signal conditioning expectations. The transition also typically involves updating the System 1 Software machine templates to reflect the new sensor’s sensitivity and measurement range, ensuring that trend plots and alarm logic remain consistent with historical baseline data.
In control cabinet upgrades where the Trendmaster Pro rack is being relocated or consolidated, engineers should also account for cable length changes and their effect on signal integrity. Shielded twisted-pair cable runs exceeding recommended lengths may require the addition of a Trendmaster Pro Signal Conditioning Module to maintain measurement accuracy. Labeling all field cables with the corresponding machine tag and channel number before disconnection is strongly recommended to prevent cross-wiring errors during recommissioning.
Downtime Control During System Migration
Minimizing unplanned downtime during a sensor replacement or monitoring system upgrade is a primary concern for plant operations teams. The 200155-14-05’s drop-in compatibility with the existing Trendmaster Pro wiring infrastructure means that a trained technician can complete a single-channel sensor swap in under 30 minutes, provided the replacement unit has been pre-tested and the channel configuration has been verified offline.
To protect original program logic and alarm configurations, export the full machine configuration from the Trendmaster Pro Configuration Software before beginning any hardware work. This backup file preserves measurement range settings, alarm setpoints, OK limit thresholds, and channel-to-machine associations. If the replacement sensor requires a sensitivity adjustment, the configuration can be updated in the software and downloaded to the 2300/20 Smart I/O Module without affecting adjacent channels or disrupting the data historian connection to System 1.
For planned outage windows, it is best practice to stage all replacement components — including the 200155-14-05 accelerometer, any required Trendmaster Pro terminal block accessories, and spare connector hardware — at the work site before the maintenance window begins. Pre-testing each sensor on a bench fixture using a calibrated vibration source confirms that the unit is within specification before installation, eliminating the risk of discovering a defective replacement during a live commissioning sequence. All units shipped by SMARTNEXMSK undergo functional output verification and continuity testing prior to dispatch.
Retrofit Support FAQ
Q1: Is the 200155-14-05 a direct drop-in replacement for the original Bently Nevada part?
Yes. The 200155-14-05 is dimensionally and electrically compatible with the original Bently Nevada specification. The connector pinout, mounting footprint, and output signal characteristics match the original design, allowing installation without modifications to existing field wiring or I/O module configuration.
Q2: What commissioning steps are required after installation?
After physical installation, verify the channel configuration in the Trendmaster Pro Configuration Software to confirm that the measurement range, sensitivity value, and alarm setpoints match the replacement sensor’s specification. Perform a functional check by observing the live channel output in System 1 while the machine is at rest and at operating speed. Confirm that the OK status indicator on the 2300/20 Smart I/O Module is active before returning the channel to service.
Q3: How do I verify wiring compatibility before installation?
Compare the existing field cable termination against the 200155-14-05 connector pinout diagram. Verify shield grounding continuity and insulation resistance between signal conductors and cable shield. If the existing cable uses a non-standard connector, a Trendmaster Pro-compatible field wiring adapter may be required. Contact SMARTNEXMSK technical support for wiring compatibility guidance specific to your installation.
Q4: What warranty and testing does SMARTNEXMSK provide?
All 200155-14-05 units supplied by SMARTNEXMSK carry a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Each unit undergoes pre-shipment output verification and continuity testing. In the event of a warranty claim, SMARTNEXMSK provides replacement or repair with priority processing to minimize impact on plant operations.
