Bently Nevada 200155-21-CN Spare TrendMaster Pro Sensor

Bently Nevada 200155-21-CN Spare TrendMaster Pro Sensor: Spare Replacement & Downtime Risk Control

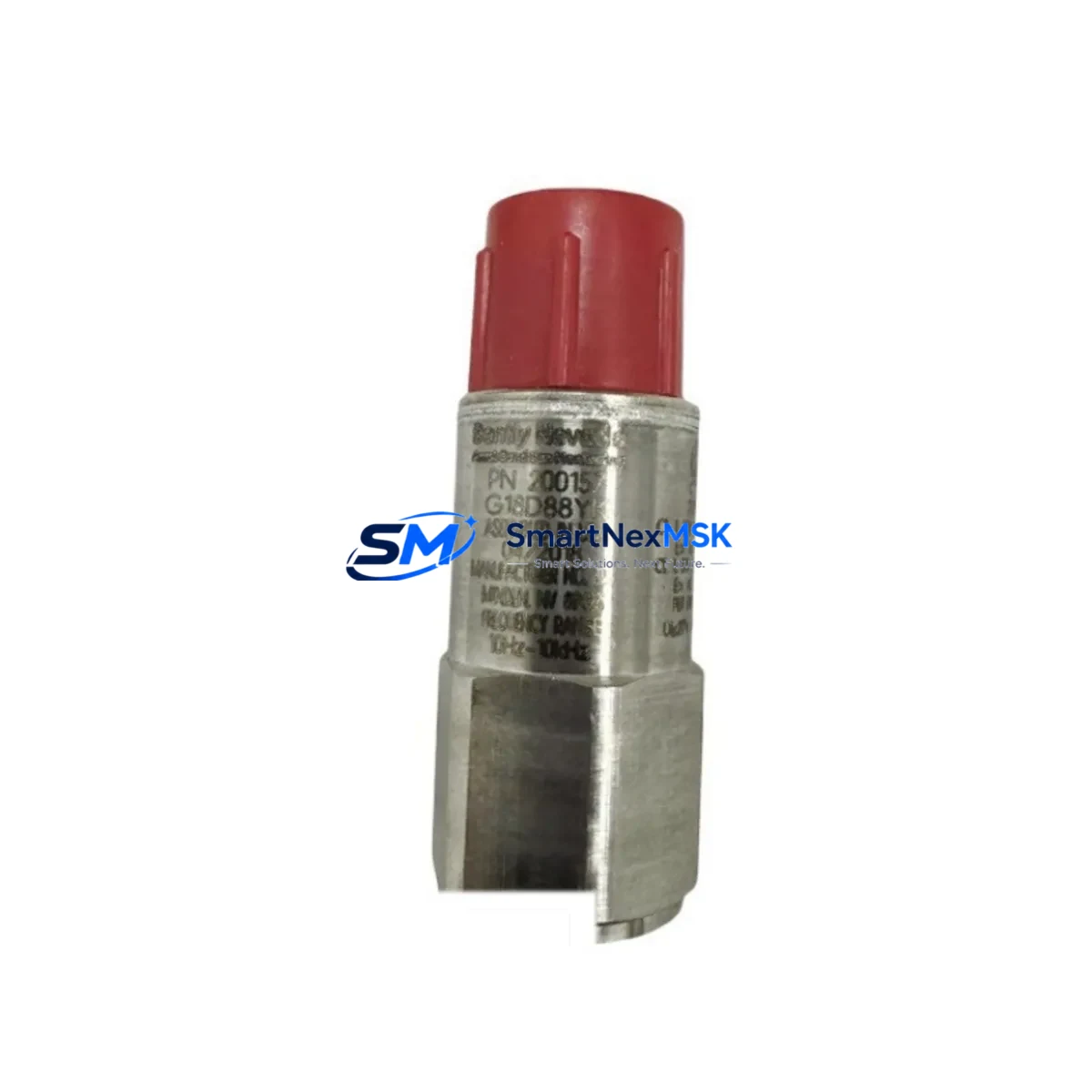

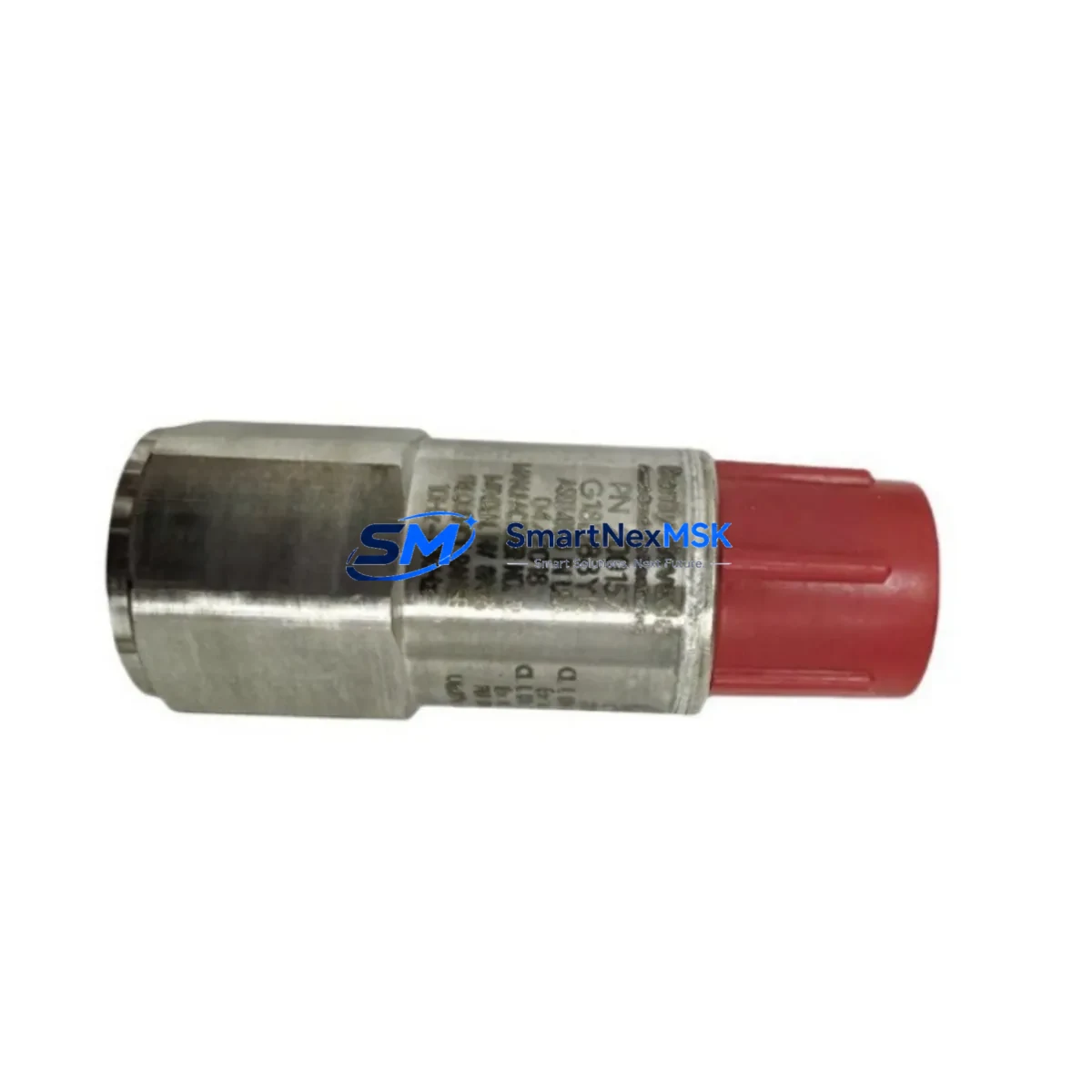

The Bently Nevada 200155-21-CN is an original low-frequency accelerometer engineered for continuous vibration monitoring in rotating machinery applications. Designed for seamless integration with the TrendMaster Pro condition monitoring system, this spare part is a critical component in any maintenance-ready inventory for facilities operating turbines, compressors, pumps, motors, and gearboxes. Sourced directly from authorized supply channels, each unit is inspected and tested prior to shipment, ensuring field-ready performance upon arrival.

For maintenance engineers managing aging control infrastructure, the 200155-21-CN represents a direct, compatible replacement for worn or failed accelerometers without requiring system reconfiguration. Its low-frequency response characteristics make it particularly suited for monitoring slow-speed machinery where conventional sensors may miss early-stage fault signatures. Procurement engineers will appreciate the 12-month warranty coverage and documented traceability, which support both planned maintenance budgets and emergency procurement scenarios.

Holding this part in your on-site spare parts inventory significantly reduces mean time to repair (MTTR) when a vibration channel goes offline. In critical asset monitoring environments, a single failed sensor can mask developing faults in adjacent machinery, escalating a minor maintenance event into a costly unplanned shutdown. Stocking the 200155-21-CN alongside your TrendMaster Pro system spares is a straightforward risk mitigation measure.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 200155-21-CN in the field, a thorough inspection of the surrounding measurement chain is essential to ensure the integrity of the entire vibration monitoring loop. Maintenance engineers should begin by verifying the condition of the sensor cable and connector — the Bently Nevada 330130 series extension cables are commonly paired with this accelerometer and should be checked for insulation damage, connector corrosion, or continuity faults before the new sensor is commissioned.

At the TrendMaster Pro I/O rack level, inspect the relevant dynamic measurement I/O module (DMI) for any indication of channel faults or calibration drift. If the DMI card has been in service for an extended period, this is an appropriate time to schedule its own condition assessment. The TrendMaster Pro system’s power supply modules — typically the 3500/15 or equivalent rack power units — should also be verified for stable output voltage, as power fluctuations can introduce noise into sensitive accelerometer circuits.

For facilities running parallel eddy-current proximity probes on the same shaft, confirm that the 3300 XL series proximitor systems and their associated extension cables are functioning correctly. A failed accelerometer channel is sometimes symptomatic of a broader grounding or shielding issue in the control cabinet, which can simultaneously affect proximity probe signals and introduce cross-channel interference.

Terminal blocks and field wiring terminations within the junction box should be inspected for tightness and corrosion — loose terminations are a common source of intermittent signal faults that are difficult to diagnose remotely. If the installation uses signal isolators or barriers between the field sensor and the rack input, verify that the isolator output is within specification. Bently Nevada-compatible signal conditioners and galvanic isolators should be tested with a calibrated signal source before the replacement sensor is declared operational.

For older TrendMaster Pro installations approaching end-of-support lifecycle, this replacement event is also an opportunity to audit the system’s communication modules — including any Modbus or OPC gateway cards — and confirm that historian data is being correctly archived. Proactive replacement of the 200155-21-CN, combined with a structured inspection of the surrounding I/O, wiring, and power infrastructure, is the most effective strategy for extending the operational life of legacy condition monitoring systems without committing to a full platform migration.

Site Replacement Workflow

Step 1 — Isolation & Lockout: Follow site LOTO procedures. Isolate the affected measurement channel at the TrendMaster Pro rack and confirm the channel is in bypass or alarm-inhibit mode to prevent spurious trips during the replacement.

Step 2 — Sensor Removal: Disconnect the field cable at the sensor connector. Remove the 200155-21-CN from its mounting point, noting the orientation and torque specification for reinstallation. Inspect the mounting surface for corrosion or mechanical damage.

Step 3 — Cable & Connector Inspection: Before installing the replacement, perform a continuity and insulation resistance check on the extension cable. Replace any cable showing degraded insulation or connector damage — installing a new sensor on a compromised cable will not restore channel integrity.

Step 4 — Replacement Installation: Mount the new 200155-21-CN per the original installation specification. Reconnect the field cable and verify connector seating. Apply appropriate thread-locking compound if stud-mounted.

Step 5 — Channel Verification: Restore the channel at the TrendMaster Pro rack. Confirm the dynamic signal is within expected baseline range for the monitored machine. Compare against historical trend data to validate sensor performance before removing the alarm inhibit.

Step 6 — Documentation: Record the replacement in the site maintenance management system (CMMS), including the new sensor serial number, installation date, and post-replacement baseline reading. Update the spare parts inventory accordingly.

This workflow minimizes downtime, maintains system compatibility, and ensures the replacement is fully documented for future maintenance reference — a critical requirement in regulated industries and ISO 55000-aligned asset management programs.

Spare Parts Support FAQ

Q1: What is the warranty coverage for the Bently Nevada 200155-21-CN?
All units supplied by SMARTNEXMSK carry a 12-month warranty from the date of shipment. This covers manufacturing defects and functional failures under normal operating conditions. Each unit undergoes electrical and functional verification prior to dispatch.

Q2: How do I confirm compatibility with my existing TrendMaster Pro system before ordering?
The 200155-21-CN is designed for use within the Bently Nevada TrendMaster Pro condition monitoring platform. To confirm compatibility, provide your rack configuration, DMI card revision, and existing sensor part number. Our technical team can cross-reference your system configuration and confirm a direct fit before the order is placed.

Q3: What is the recommended spare parts stocking strategy for TrendMaster Pro accelerometers?
For critical rotating machinery applications, we recommend maintaining a minimum of one spare 200155-21-CN per monitored machine train, with additional units held for facilities with high machine counts or extended lead times from primary suppliers. Pairing this with spare extension cables and a DMI card reduces the risk of extended downtime from a single component failure.

Q4: Can the 200155-21-CN replace older or discontinued Bently Nevada accelerometer models?
In many cases, yes. The 200155-21-CN can serve as a functional replacement for earlier-generation Bently Nevada low-frequency accelerometers used in TrendMaster Pro and compatible legacy systems, subject to connector and cable compatibility verification. Contact our technical support team with your existing part number for a formal cross-reference assessment.
