Bently Nevada 200157-09-CN Spare TrendMaster Pro

Bently Nevada 200157-09-CN Spare TrendMaster Pro: Spare Parts Replacement & Downtime Risk Control

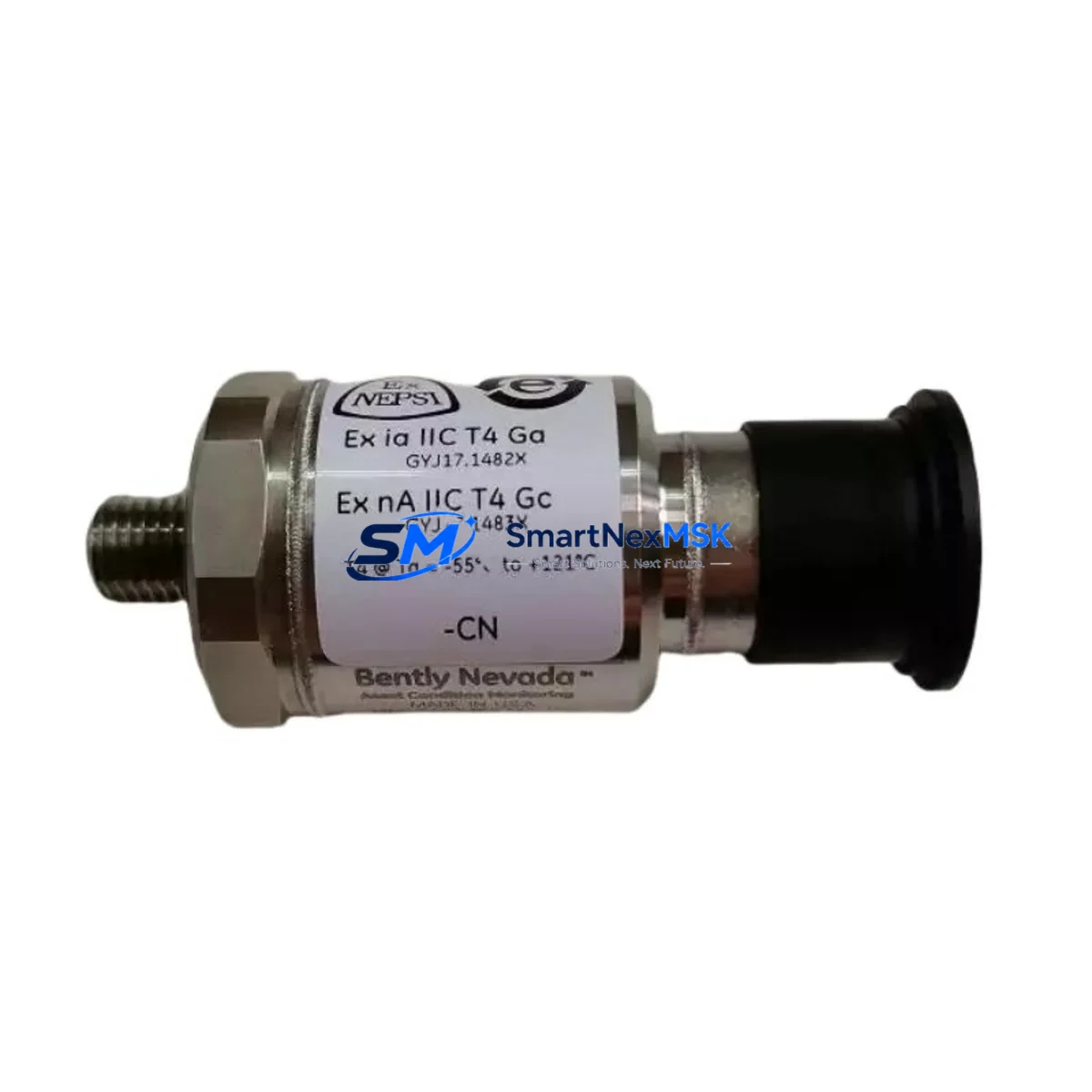

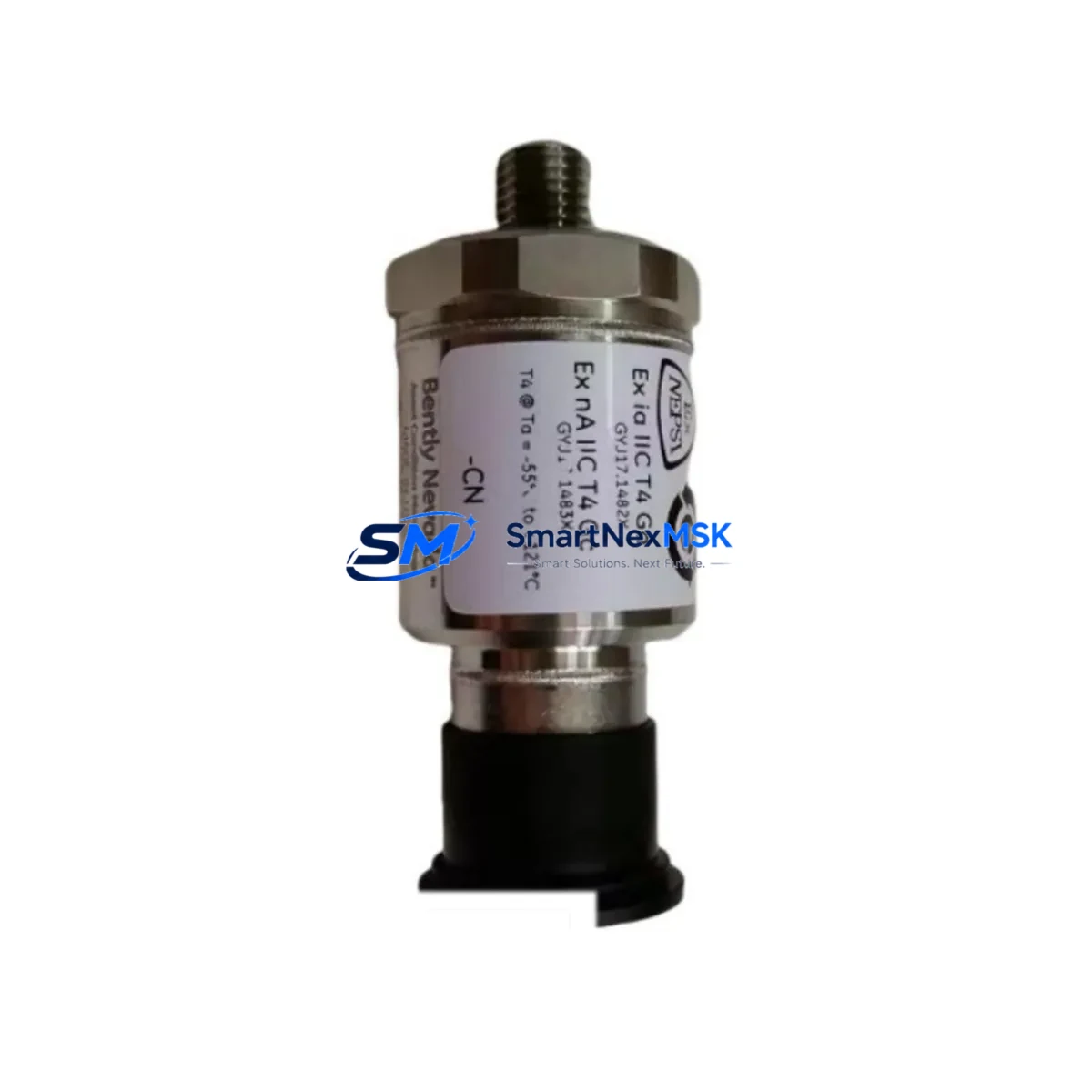

The Bently Nevada 200157-09-CN is an original enveloping accelerometer designed for use within the TrendMaster Pro continuous online vibration monitoring system. In rotating machinery protection environments — including turbines, compressors, pumps, fans, and gearboxes — this sensor plays a critical role in detecting high-frequency bearing defects, gear mesh anomalies, and early-stage mechanical degradation. Maintaining a verified spare of the 200157-09-CN in your site inventory is a fundamental element of any proactive maintenance strategy aimed at minimizing unplanned downtime and protecting capital assets.

For maintenance engineers and procurement engineers managing aging TrendMaster Pro installations, sourcing a genuine 200157-09-CN replacement from a reliable industrial spare parts supplier ensures that emergency callouts can be resolved within hours rather than days. Each unit shipped by SMARTNEXMSK undergoes pre-shipment functional verification and is backed by a 12-month warranty, providing confidence for both planned overhauls and emergency fault isolation scenarios.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 200157-09-CN enveloping accelerometer in a TrendMaster Pro installation, a thorough site inspection of the surrounding measurement chain is essential to ensure the replacement delivers accurate, reliable data from day one. Maintenance engineers should treat this replacement as an opportunity to audit the full vibration monitoring loop.

Begin by inspecting the TrendMaster Pro I/O module (such as the 3500/42M or equivalent TrendMaster Pro analog input card) that receives the 4–20 mA signal from the 200157-09-CN. Verify that the channel is correctly configured for enveloping acceleration input and that the alarm setpoints remain valid for the machine being monitored. Simultaneously, check the field junction box and terminal blocks for corrosion, loose terminations, or moisture ingress — these are common failure points in outdoor or high-humidity installations.

The sensor cable and cable gland assembly should be inspected for mechanical damage, chafing against rotating guards, or UV degradation. If the cable shows any signs of insulation breakdown, replace it alongside the sensor to avoid introducing ground loops or noise into the measurement. For installations where the 200157-09-CN feeds into a signal conditioning module or signal isolator, verify that the isolator’s input impedance and loop supply voltage remain within specification — a faulty isolator can mask sensor faults or generate false alarms.

Review the TrendMaster Pro power supply module that energizes the field loop. Confirm output voltage stability and check for ripple that could corrupt the 4–20 mA signal. In control cabinets housing multiple TrendMaster Pro channels, inspect the backplane and rack connectors for oxidation or bent pins, particularly in older installations where the rack has not been serviced in several years.

For sites running parallel protection systems, cross-check the 200157-09-CN channel against any proximity probe or velocity transducer channels (such as Bently Nevada 3300 XL 8mm probes or 330500 velocity sensors) monitoring the same machine. Discrepancies between sensor types can indicate a developing mechanical fault or a wiring error introduced during a previous maintenance event. If the machine is also protected by a 3500 Series rack, ensure that the TrendMaster Pro data is consistent with the 3500 system’s overall machine health picture before returning the asset to service.

Finally, update the TrendMaster Pro software configuration (System 1 or equivalent historian) to log the sensor replacement event, reset any latched alarms, and confirm that the new sensor’s calibration data is correctly entered. This documentation step is critical for audit trails and for validating the 12-month warranty period on the replacement 200157-09-CN.

Site Replacement Workflow

Step 1 — Isolation & Permit: Obtain a permit to work and isolate the TrendMaster Pro channel associated with the 200157-09-CN. Place the channel in bypass mode within the monitoring system to prevent spurious alarms during the replacement procedure.

Step 2 — Physical Removal: Disconnect the sensor cable at the field junction box. Remove the 200157-09-CN from its mounting point (stud or adhesive pad). Inspect the mounting surface for corrosion, thread damage, or contamination and clean as required.

Step 3 — Replacement Installation: Install the new 200157-09-CN, applying the correct torque to the stud mount. Route and secure the cable to avoid contact with hot surfaces or rotating components. Reconnect at the junction box, verifying correct polarity and terminal tightness.

Step 4 — Loop Verification: With the channel still in bypass, apply power and verify the 4–20 mA loop current at the I/O module input. Confirm the signal is within the expected range for the machine at rest (typically near the zero-g baseline). Use a calibrated loop calibrator if available.

Step 5 — Return to Service: Remove the bypass, reset latched alarms, and monitor the channel for the first 30 minutes of machine operation. Confirm that enveloping alarm levels are appropriate and that no spurious trips occur. Log the replacement in the CMMS and record the new sensor serial number for warranty tracking.

This workflow minimizes machine downtime, maintains system compatibility, and ensures the replacement 200157-09-CN is performing correctly before the maintenance team leaves the site.

Spare Parts Support FAQ

Q1: Is the 200157-09-CN a direct drop-in replacement for older 200157-09 variants?
Yes. The 200157-09-CN is the current production variant of the 200157-09 enveloping accelerometer family. It maintains the same mechanical footprint, connector interface, and 4–20 mA output as earlier variants, making it a direct replacement in existing TrendMaster Pro installations without requiring wiring or configuration changes.

Q2: How do you verify compatibility before shipment?
Each 200157-09-CN unit is inspected against the original Bently Nevada part specification prior to dispatch. We verify part markings, connector integrity, cable condition, and perform a functional loop test where applicable. A test report is available upon request for critical applications.

Q3: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage, mechanical impact, or exposure to conditions outside the rated specification. Warranty claims are processed with photographic evidence and a fault description.

Q4: Can you support long-term or blanket spare parts orders for TrendMaster Pro systems?
Yes. SMARTNEXMSK supports long-term supply agreements for TrendMaster Pro spare parts, including the 200157-09-CN and associated system components. Contact our team to discuss annual volume commitments, reserved stock arrangements, and priority dispatch agreements that align with your planned maintenance schedule.
