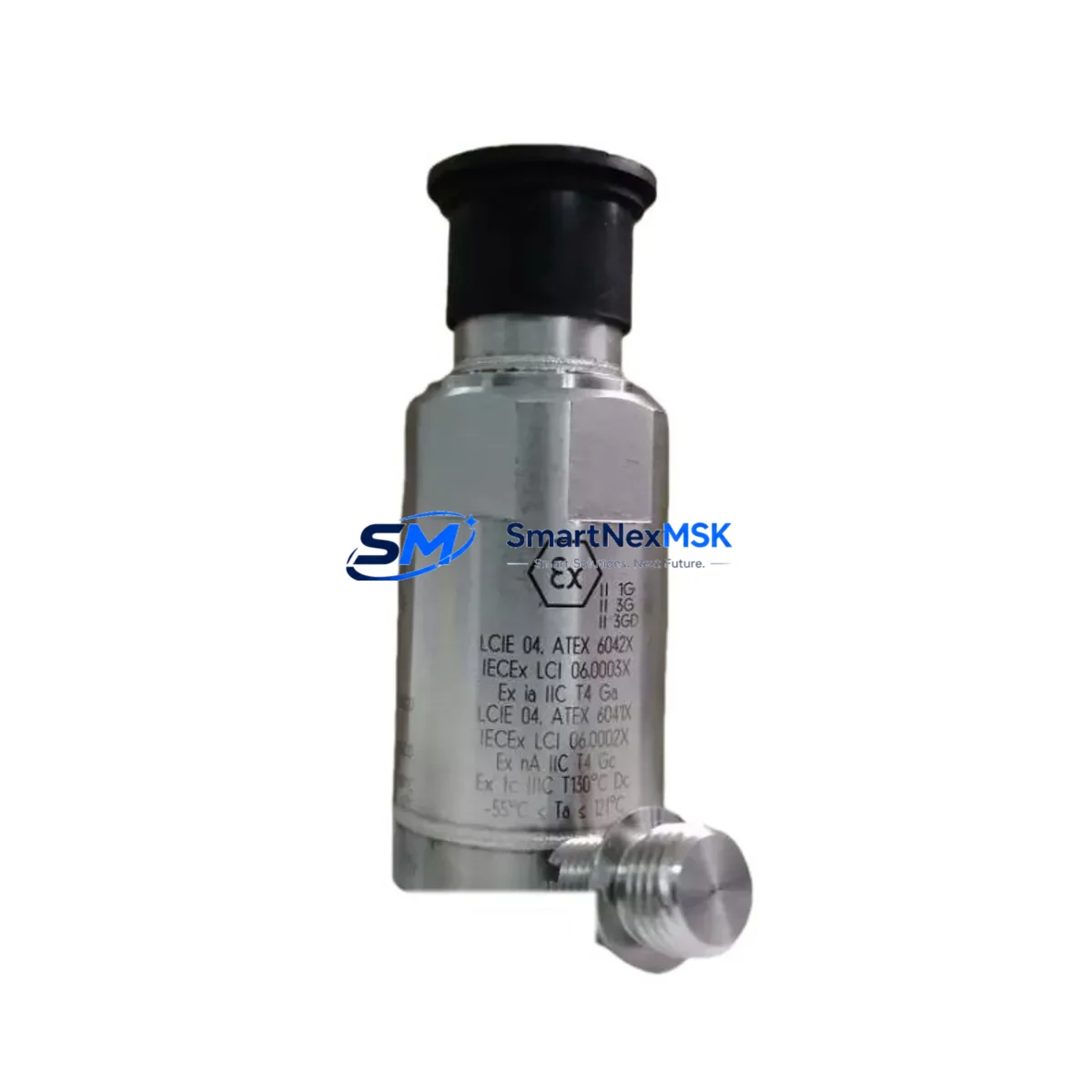

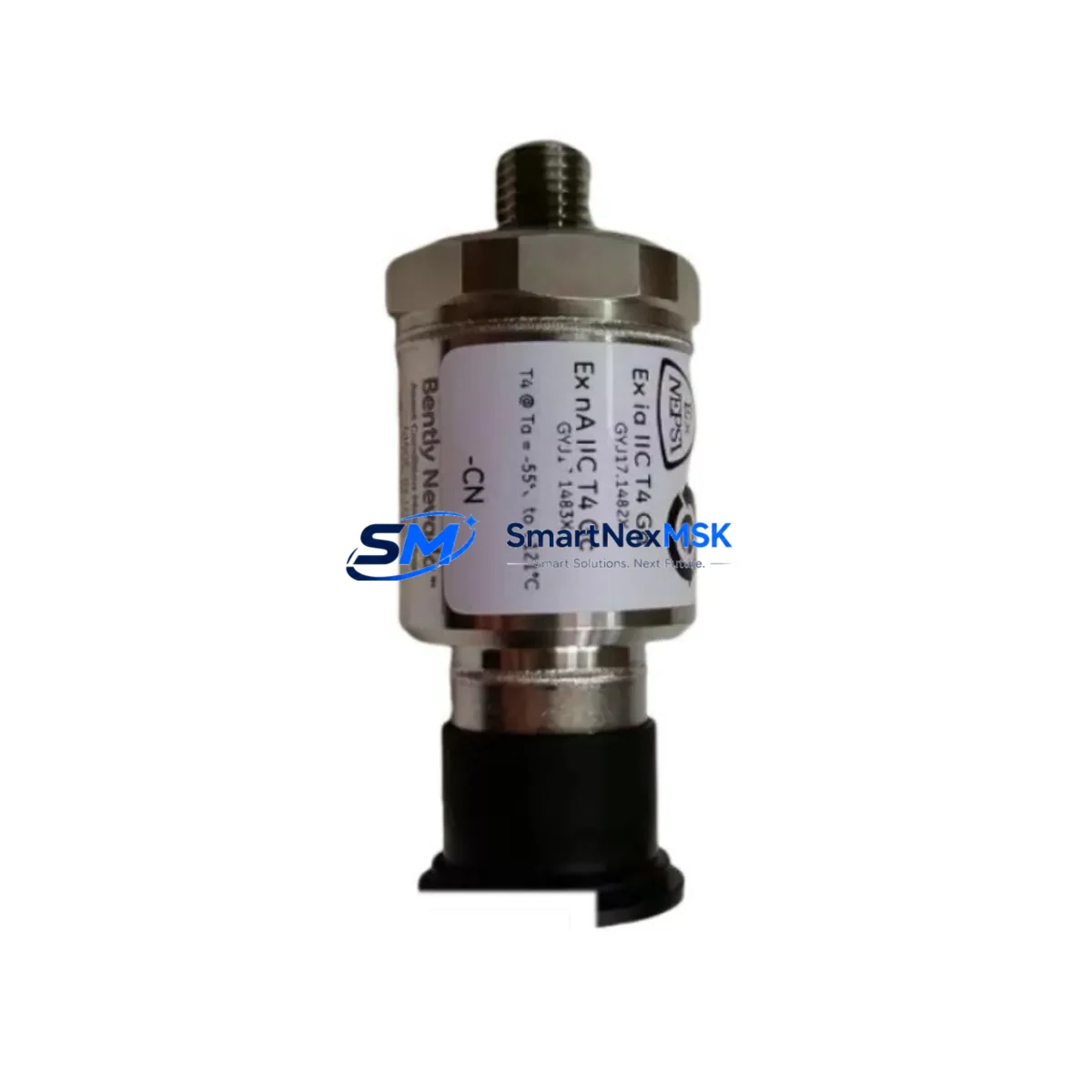

Bently Nevada 200157-14-CN Safety Accelerometer Module

Bently Nevada 200157-14-CN Safety Accelerometer Module: Ruggedized Control and Harsh-Site Reliability

The Bently Nevada 200157-14-CN is a ruggedized enveloping accelerometer module engineered for the TrendMaster Pro continuous machinery monitoring system. Designed to operate reliably in the most demanding industrial environments — including petrochemical plants, power generation facilities, mining operations, metallurgical mills, and continuous-process manufacturing — this module delivers high-fidelity vibration signal acquisition that is critical to maintaining safe, uninterrupted machine operation.

In high-stakes industrial control architectures, signal integrity is non-negotiable. The 200157-14-CN employs enveloping signal processing technology to extract bearing fault signatures from high-frequency vibration data, enabling early detection of mechanical degradation before it escalates into catastrophic failure. This capability directly reduces the risk of unplanned shutdowns, control loop interruptions, and safety interlock activations caused by rotating equipment faults.

Safety Reliability Table

Control Cabinet Protection Strategy

In a well-engineered machinery protection cabinet, the Bently Nevada 200157-14-CN does not operate in isolation. It functions as a critical sensing front-end within a layered protection architecture. The module interfaces directly with the Bently Nevada 3500/42M Proximitor/Seismic Monitor, which processes the enveloped vibration signal and triggers alarm or trip outputs when predefined thresholds are exceeded. This integration ensures that abnormal bearing conditions are captured at the sensor level and acted upon at the relay level without delay.

To maintain signal fidelity across long cable runs in electrically noisy environments — common in motor control centers and variable frequency drive (VFD) cabinets — the system relies on shielded instrumentation cabling and proper grounding practices consistent with the Bently Nevada 3500 System installation guidelines. The 3500/15 Power Supply Module provides stable, isolated DC power to the monitoring rack, protecting all I/O modules including the 200157-14-CN from power line transients and voltage sags that could cause false trips or data corruption.

For plants operating Bently Nevada TrendMaster Pro distributed monitoring networks, the 200157-14-CN slots into the standard TrendMaster Pro I/O chassis alongside companion modules such as the TrendMaster Pro Dynamic Pressure Input Module and TrendMaster Pro Tachometer Input Module, enabling synchronized multi-parameter acquisition across compressors, turbines, pumps, and fans within a single monitoring node. This architecture eliminates the need for separate data concentrators and reduces the number of potential communication failure points in the safety loop.

Where safety instrumented systems (SIS) are deployed, the vibration data from the 200157-14-CN can be fed into a Triconex Safety Controller or equivalent SIL-rated logic solver via the plant’s DCS integration layer, supporting machinery trip functions within a formally assessed safety instrumented function (SIF). Complementary protection devices such as the Bently Nevada 3500/40M Proximitor Monitor and Bently Nevada 3500/50 Tachometer Monitor are commonly deployed in the same rack to provide comprehensive shaft and speed protection alongside the enveloping accelerometer data.

Surge protection at the field terminal block — using DIN-rail mounted surge arrestors rated for the signal frequency range — further safeguards the 200157-14-CN input circuitry from lightning-induced transients and switching surges generated by large motor starts in adjacent switchgear panels.

Critical Industrial Safety Applications

Petrochemical and Refinery Plants: In continuous catalytic cracking units, compressor trains, and pump stations, undetected bearing failures can trigger emergency shutdowns, process upsets, and fire or explosion hazards. The 200157-14-CN provides the early warning margin needed to schedule predictive maintenance during planned turnarounds rather than reacting to catastrophic failures during peak production.

Power Generation: Steam turbine generators, boiler feed pumps, and induced draft fans in thermal power plants operate under extreme thermal and mechanical stress. Enveloping accelerometry from the 200157-14-CN detects incipient bearing spalling and race defects weeks before they become critical, allowing operators to maintain grid stability and avoid forced outages.

Mining and Mineral Processing: Ball mills, SAG mills, conveyor drive gearboxes, and slurry pumps in mining operations are subject to heavy shock loads and abrasive contamination. The ruggedized design of the 200157-14-CN ensures reliable signal acquisition even in high-dust, high-vibration environments where standard sensors would fail prematurely.

Water and Wastewater Treatment: Continuous-duty pumping stations and blower systems in municipal water infrastructure require uninterrupted operation. The 200157-14-CN supports condition-based maintenance programs that extend equipment life and reduce the risk of service interruptions affecting public safety.

Metallurgy and Steel Production: Rolling mill drives, continuous casters, and ladle transfer cranes operate in extreme thermal environments with high electromagnetic interference from arc furnaces and induction heaters. The EMI-hardened signal path of the TrendMaster Pro system, anchored by modules like the 200157-14-CN, maintains measurement integrity under these conditions.

Port and Heavy Logistics: Crane hoist motors, gantry drive systems, and bulk material handling conveyors benefit from enveloping vibration monitoring to prevent unexpected mechanical failures that could halt port operations or create load-drop safety hazards.

Safety and Quality FAQ

Q1: What warranty coverage is provided for the Bently Nevada 200157-14-CN?
All units are covered by a 12-month warranty from the date of shipment. The warranty covers manufacturing defects, functional failures under normal operating conditions, and module non-performance when installed per Bently Nevada system specifications. Warranty claims are processed with priority to minimize plant downtime.

Q2: What pre-shipment testing is performed on each unit?
Every 200157-14-CN undergoes a functional inspection prior to dispatch, including visual examination for physical integrity, connector condition verification, and where applicable, power-on functional checks. Units sourced as surplus-new are inspected to confirm they have not been field-installed or subjected to abnormal operating conditions.

Q3: Is the 200157-14-CN compatible with existing TrendMaster Pro installations?
Yes. The 200157-14-CN is a direct-fit replacement for compatible TrendMaster Pro I/O chassis positions. It is designed to integrate with the existing TrendMaster Pro software configuration, backplane power distribution, and data acquisition network without requiring hardware modifications to the monitoring rack.

Q4: Can long-term supply and replacement support be guaranteed?
SMARTNEXMSK maintains dedicated inventory of Bently Nevada TrendMaster Pro modules, including the 200157-14-CN, to support both immediate replacement needs and planned spare parts programs. We provide sourcing continuity for legacy and current-generation Bently Nevada components, ensuring that plants with long equipment lifecycles can secure replacement modules without extended lead times.
