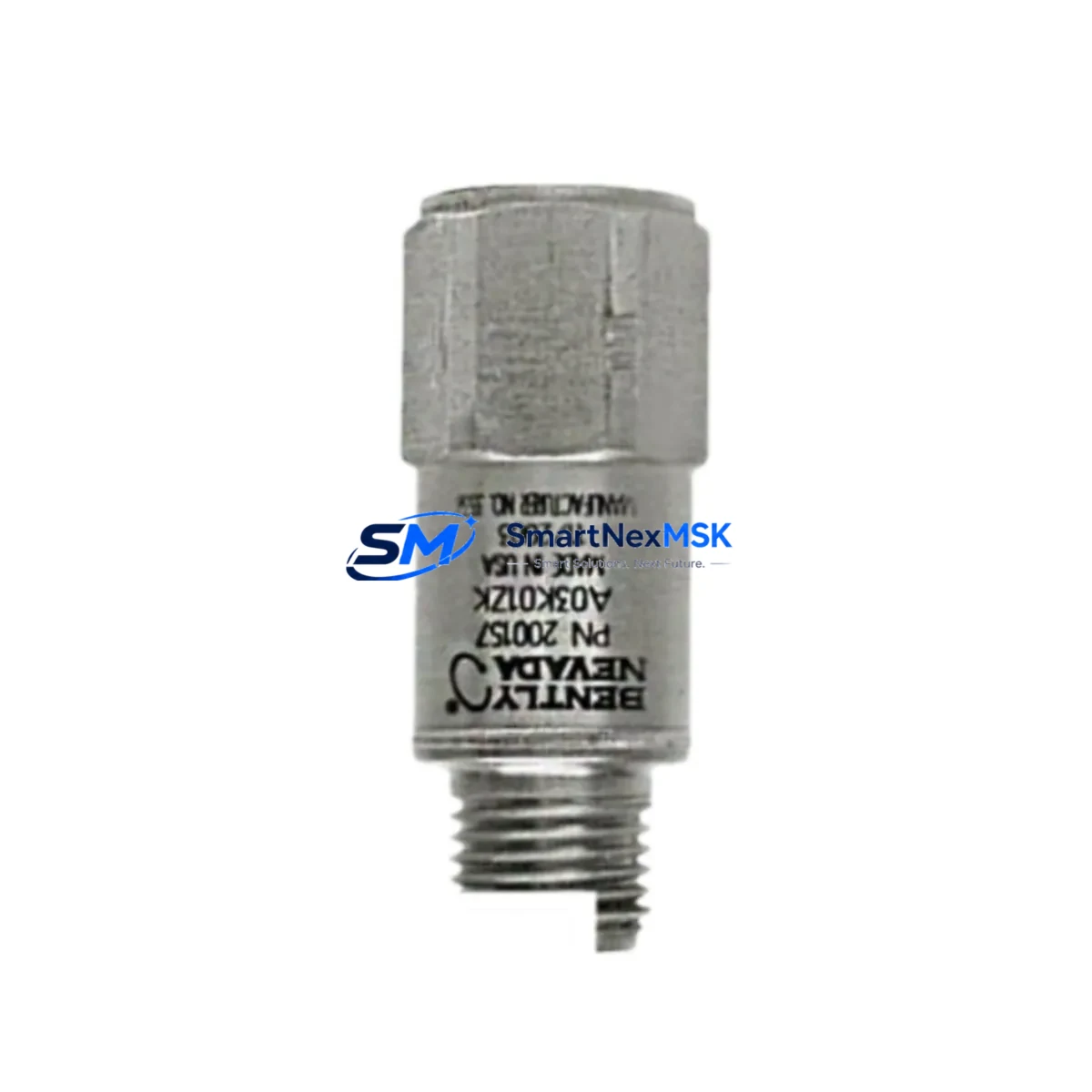

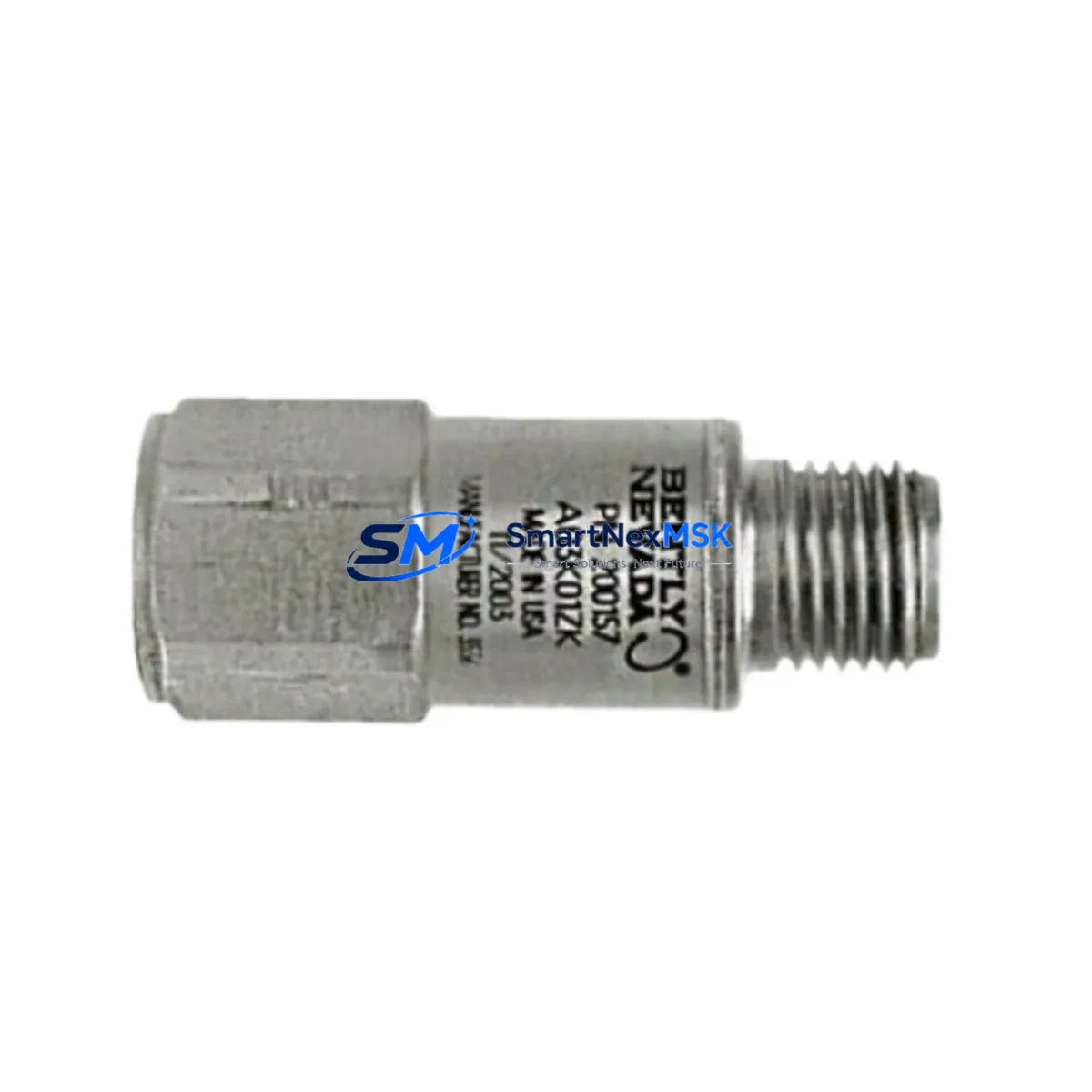

Bently Nevada 200157-23-05 Retrofit-Ready Accelerometer

Bently Nevada 200157-23-05 Retrofit-Ready Accelerometer for TrendMaster Pro Control Systems

The Bently Nevada 200157-23-05 is a retrofit-ready enveloping accelerometer module engineered for seamless integration into existing TrendMaster Pro vibration monitoring systems. As legacy control infrastructure ages across petrochemical, power generation, mining, and continuous manufacturing facilities, the demand for verified drop-in replacements that eliminate extended downtime and costly re-engineering has never been greater. The 200157-23-05 answers that demand directly — delivering full functional compatibility with the TrendMaster Pro platform while meeting the mechanical and electrical interface requirements of the original installation.

When planning a retrofit or spare-part replacement using the 200157-23-05, engineers must systematically verify several critical parameters before committing to installation. Power supply capacity at the field junction box or marshalling cabinet must be confirmed against the module’s input voltage range. Terminal wiring — including shield grounding, signal polarity, and cable routing — should be mapped against the original as-built drawings to avoid signal inversion or ground loops that can corrupt vibration trend data. The backplane interface and slot addressing within the TrendMaster Pro rack must match the original module’s channel assignment to ensure the system’s data acquisition engine correctly maps the new sensor input to the corresponding machine train.

Program compatibility is another key checkpoint. The TrendMaster Pro System 1 software configuration — including alarm setpoints, full-scale ranges, transducer scale factors, and enveloping filter bands — should be exported and archived before any hardware swap. After installing the 200157-23-05, these parameters must be re-validated against the new module’s calibration certificate to confirm that the software-defined measurement chain remains accurate. If the facility is simultaneously migrating from an older Bently Nevada 3500 Series rack-based monitoring system to TrendMaster Pro, additional attention is required for communication link reconfiguration, including Modbus RTU or OPC DA/UA gateway settings that feed the plant DCS or historian.

HMI screen updates are frequently overlooked during accelerometer replacements. Any System 1 Evolution or third-party SCADA display that references the original channel tag must be updated to reflect the new module’s engineering unit output and alarm threshold. Failing to do so can result in nuisance alarms or, more critically, masked fault conditions during the post-commissioning period.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit using the Bently Nevada 200157-23-05 rarely involves the accelerometer module in isolation. In practice, the replacement exercise surfaces adjacent components that also require attention. Within the same TrendMaster Pro rack, companion modules such as the Bently Nevada 200157-01-05 dynamic pressure input module and the 200157-02-05 tachometer input module should be inspected for firmware currency and connector integrity, since a partial rack replacement without auditing neighboring slots can introduce latent faults that only manifest under load.

The TrendMaster Pro power supply module — typically a 24 VDC redundant supply feeding the rack backplane — must be load-tested before the new accelerometer module is commissioned. An undersized or aging power supply is a common root cause of intermittent channel dropouts that are incorrectly attributed to the sensor or input module. Similarly, the field junction box terminal blocks and cable glands should be inspected and replaced if corrosion or mechanical damage is present, particularly in offshore or chemically aggressive environments.

For facilities running a parallel Bently Nevada 3500/42M proximitor I/O module on the same machine train for radial vibration, the retrofit plan must account for the interaction between the proximity probe channels and the accelerometer enveloping data within the System 1 machine template. Both data streams feed the same machine health dashboard, and a mismatch in channel mapping will produce misleading composite alarm states.

Communication infrastructure also warrants review. If the TrendMaster Pro system communicates to a plant DCS via a Modbus TCP/IP gateway or an OPC DA server running on a System 1 workstation, the gateway configuration file must be updated to include the new module’s register map. Facilities that have already migrated to OPC UA for IIoT integration should verify that the System 1 Evolution server’s address space correctly exposes the 200157-23-05 channel data to upstream analytics platforms.

Where the retrofit is part of a broader control cabinet upgrade, engineers often simultaneously replace the Bently Nevada 3500/20 rack interface module, update the System 1 software license to the current revision, and reconfigure the Ethernet switch port assignments within the monitoring network. Having all replacement components — including the 200157-23-05 — available on-site before the maintenance window begins is essential to keeping the outage within the planned schedule.

Downtime Control During System Migration

Minimizing production interruption during a TrendMaster Pro accelerometer replacement requires a structured pre-outage preparation protocol. Before the maintenance window opens, the engineering team should complete a full System 1 configuration export, capturing all machine templates, alarm setpoints, trend display layouts, and communication gateway parameters. This archive serves as both a rollback baseline and a commissioning checklist.

During the physical swap, the original 200157-23-05 wiring schedule — terminal numbers, cable IDs, and shield termination points — must be documented photographically and in writing before any terminals are disturbed. Re-termination errors are the single most common cause of extended commissioning time after an accelerometer module replacement. Using pre-labeled, pre-cut replacement cables prepared in advance reduces re-termination time significantly.

After the new module is seated and powered, a channel-by-channel functional verification should be performed using a calibrated accelerometer simulator or a known-good reference sensor before the machine is returned to service. This step confirms that the signal chain — from the field sensor through the 200157-23-05 input module to the System 1 trend display — is intact and correctly scaled. Only after this verification is complete should the machine be restarted and the monitoring system returned to normal alarm-enabled operation.

For critical machines where even a brief monitoring gap is unacceptable, a temporary portable vibration analyzer can be connected to the machine’s existing accelerometer cabling during the rack module swap, maintaining continuous vibration surveillance throughout the replacement procedure. This approach is particularly valuable in power generation and petrochemical applications where machinery protection requirements are governed by API 670 or equivalent standards.

Retrofit Support FAQ

Q1: Is the Bently Nevada 200157-23-05 a direct drop-in replacement for other 200157-xx-05 variants?
The 200157-23-05 is designed for the TrendMaster Pro platform and shares the same rack form factor and backplane connector as other modules in the 200157 series. However, each suffix designates a specific input configuration (accelerometer type, filter band, or channel count). Before substituting a different suffix variant, confirm the transducer scale factor, enveloping filter frequency range, and channel count match your System 1 machine template configuration. SMARTNEXMSK’s technical team can assist with cross-reference verification prior to shipment.

Q2: What pre-shipment testing is performed on the 200157-23-05?
Every unit supplied by SMARTNEXMSK undergoes functional power-on verification and signal path continuity testing before dispatch. Units are inspected for connector integrity, PCB condition, and firmware label consistency. A test report is available upon request. The module is covered by a 12-month warranty from the date of shipment against manufacturing defects and functional failure under normal operating conditions.

Q3: How do I verify wiring compatibility before installation?
Obtain the original TrendMaster Pro installation drawing for the slot being replaced. Confirm terminal block assignments for the accelerometer signal (positive and negative), shield ground, and any auxiliary power connections. The 200157-23-05 uses the standard TrendMaster Pro field wiring interface — no adapter or rewiring is required for a like-for-like replacement. If the original drawing is unavailable, SMARTNEXMSK can provide reference wiring documentation based on the module’s revision level.

Q4: Can SMARTNEXMSK guarantee long-term supply of the 200157-23-05?
SMARTNEXMSK maintains dedicated inventory of TrendMaster Pro series modules, including the 200157-23-05, to support both emergency replacement and planned maintenance programs. Stock levels are updated regularly, and priority allocation is available for customers with multi-unit or annual supply agreements. Contact our team at [email protected] to discuss inventory reservation and lead-time commitments for your facility’s maintenance schedule.
